Overview

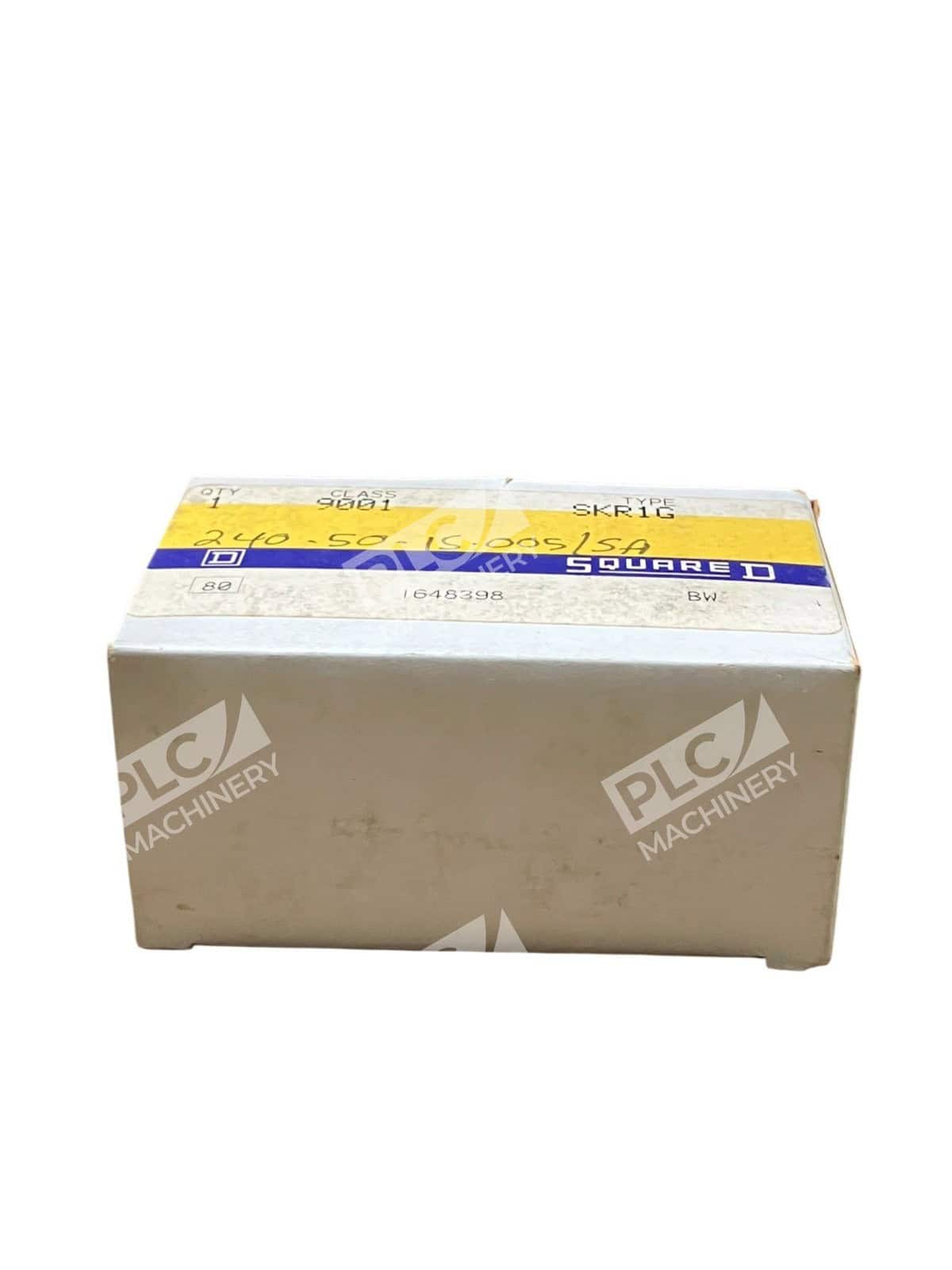

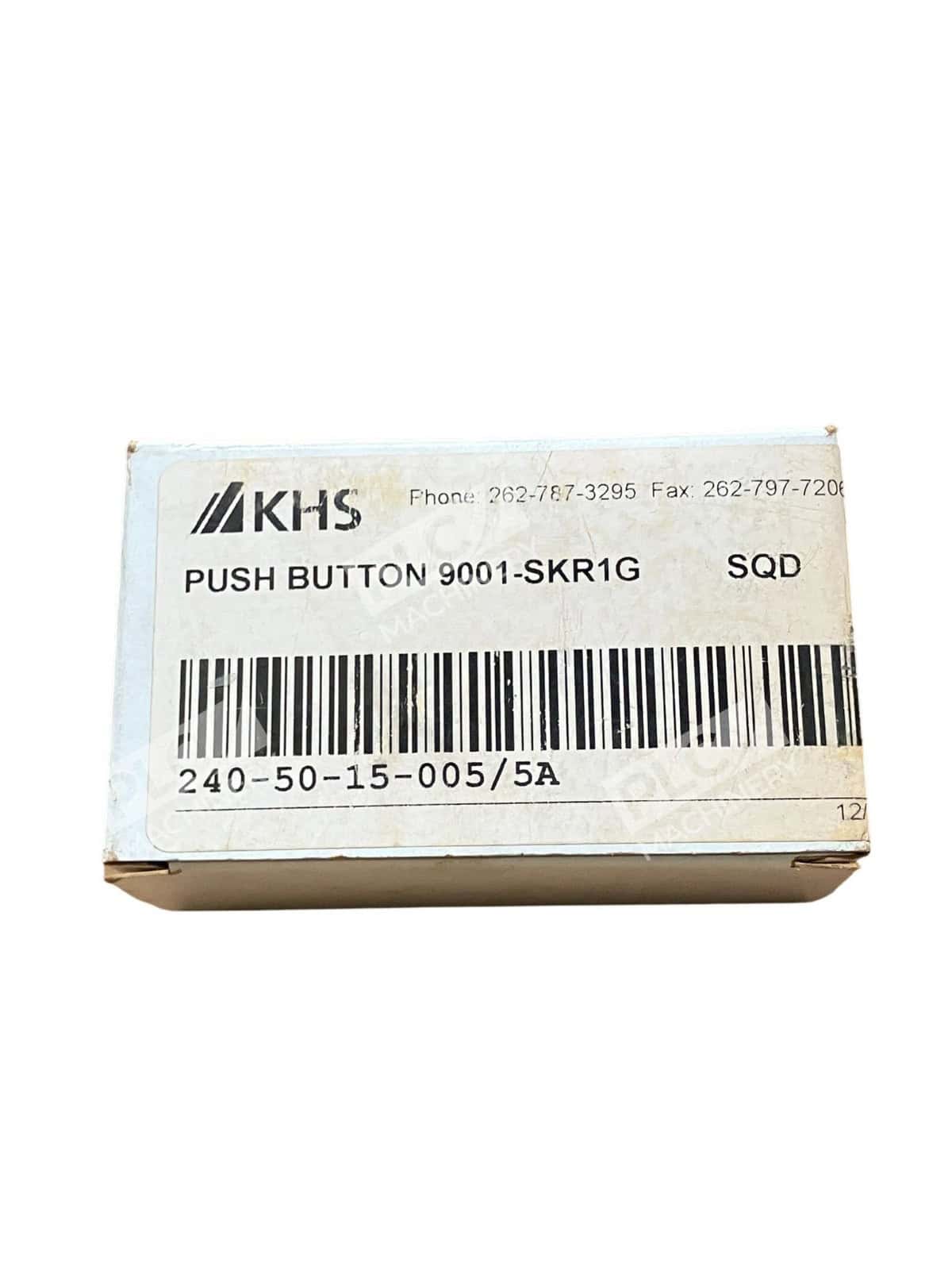

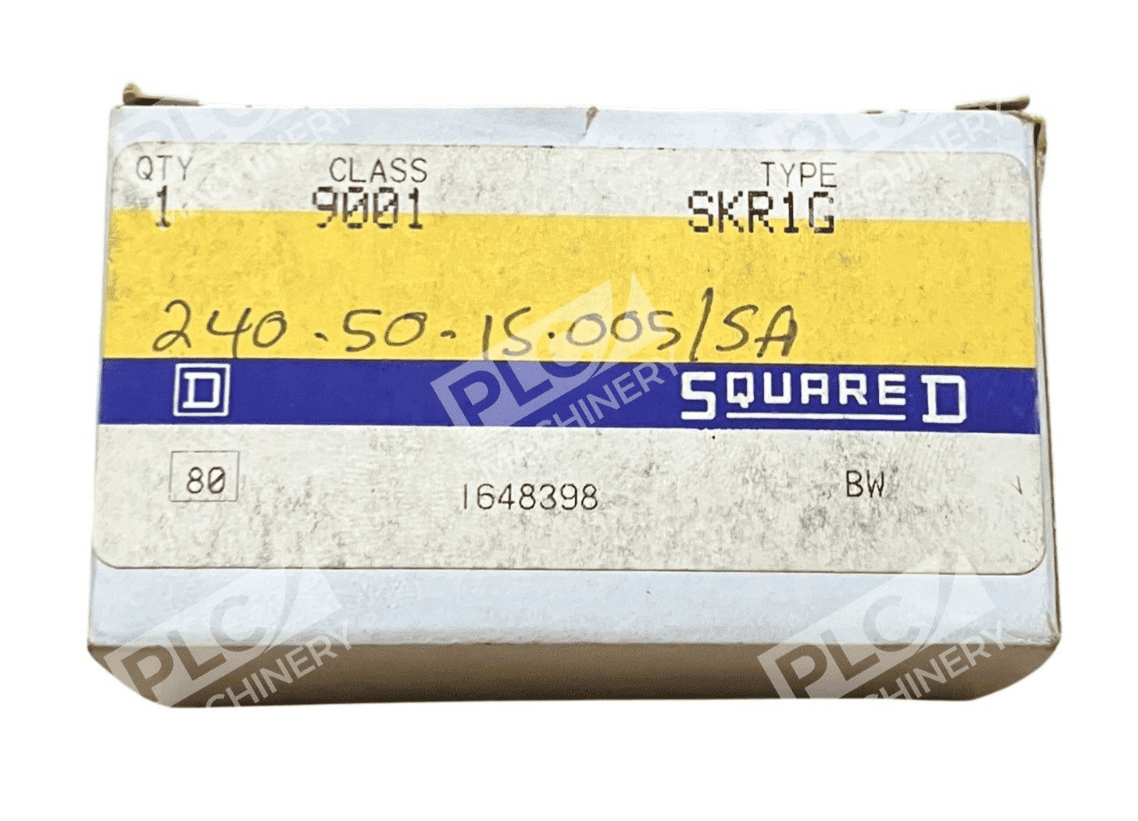

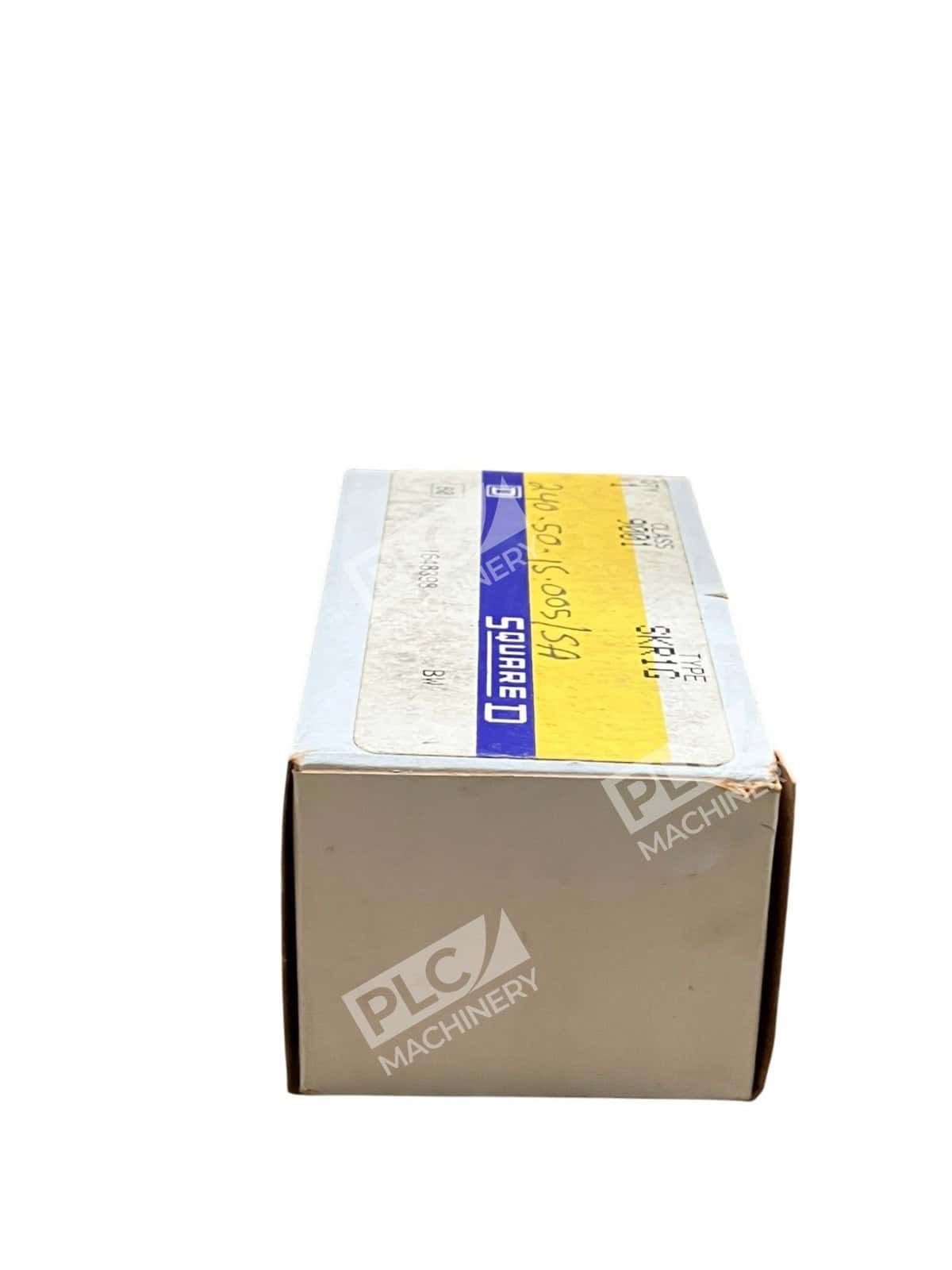

The Square D 9001-SKR1G is a Class 9001 Type SK 30mm pushbutton operator featuring a green plastic button head with flush mounting. Designed for reliable momentary-action control in demanding industrial environments, this unit offers NEMA 4X corrosion resistance and full IP66 protection against dust, moisture, and vibration. New in box condition ensures original factory specifications and performance.
Key Features
- 30mm Push Button Operator: Standard industrial size for easy operator identification and comfortable grip
- Momentary Action with Spring Return: Ensures positive control and automatic reset after each press
- Plastic Base Construction: Lightweight, corrosion-resistant body suitable for harsh environments
- IP66 / NEMA 4X Rated: Sealed against oil, water, dust, and vibration without requiring boots or enclosure modifications
- Flush Mount Design: Compact profile for panel integration and operator control stations
- Screw Terminal Connection: Accepts #12–#24 AWG solid or stranded wire for reliable electrical connections
Technical Specifications
- Button Color: Green
- Type: Class 9001 Type SK 30mm Push Button
- Operator Action: Momentary, spring return
- Mounting Style: Flush
- Terminal Type: Screw terminals (captive, backed-out)
- Wire Capacity: #12 to #24 AWG, solid or stranded
- NEMA Rating: NEMA 4X (also rated NEMA 1, 2, 3, 3R, 4, 6, 12, 13)
- IP Rating: IP66 (dust-tight, water-jet resistant)
- Standards: UL, CSA, IEC, EN, NOM; CE marked
- Base Material: Plastic with corrosion-resistant finish
Typical Applications
- Automotive manufacturing and assembly lines
- Machine tool and industrial equipment control
- Crane and hoist operator interfaces
- Food and beverage processing facilities
- Material handling and logistics systems
- Petrochemical and wastewater treatment plants
- Heavy-duty outdoor control stations subject to spray, dust, or vibration
Compatibility & Replacements
Compatible With
- Square D Class 9001 contact blocks and control modules
- Standard industrial control panels and motor starters
- PLC input modules and discrete 24 VDC control circuits
- NEMA-rated electrical enclosures and control stations
- IP66-rated panel assemblies and outdoor control interfaces
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit is designed to replace other Square D 9001 SK series pushbuttons with equivalent mounting dimensions and electrical ratings.
Works With
- Square D Class 9001 type KA contact blocks (normally open and normally closed configurations)
- Industrial relay circuits and contactor coils
- 24 VDC and AC control voltage systems
- Hardwired control logic and traditional motor control centers
- Emergency stop systems and interlocked control sequences
