Overview

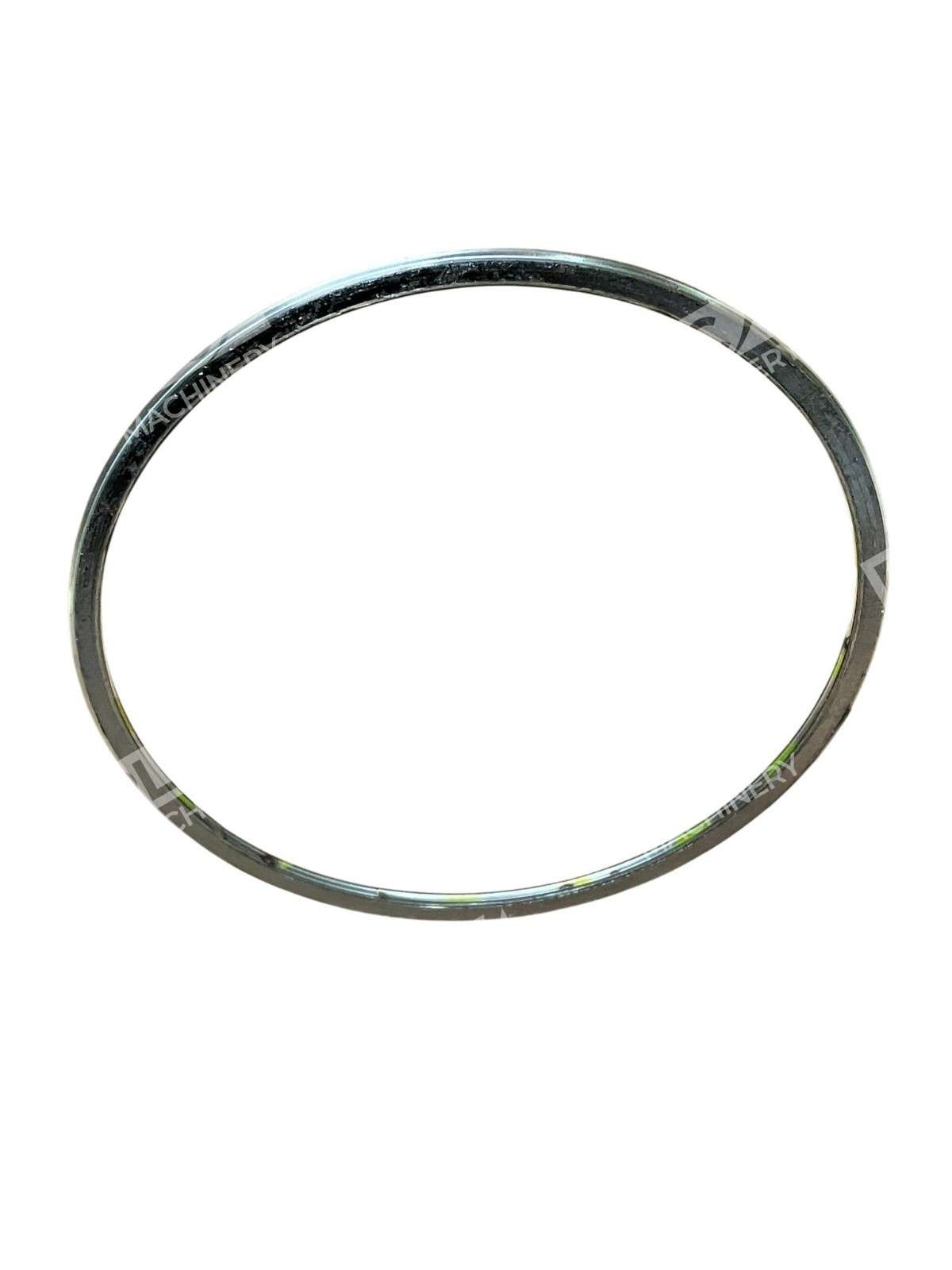

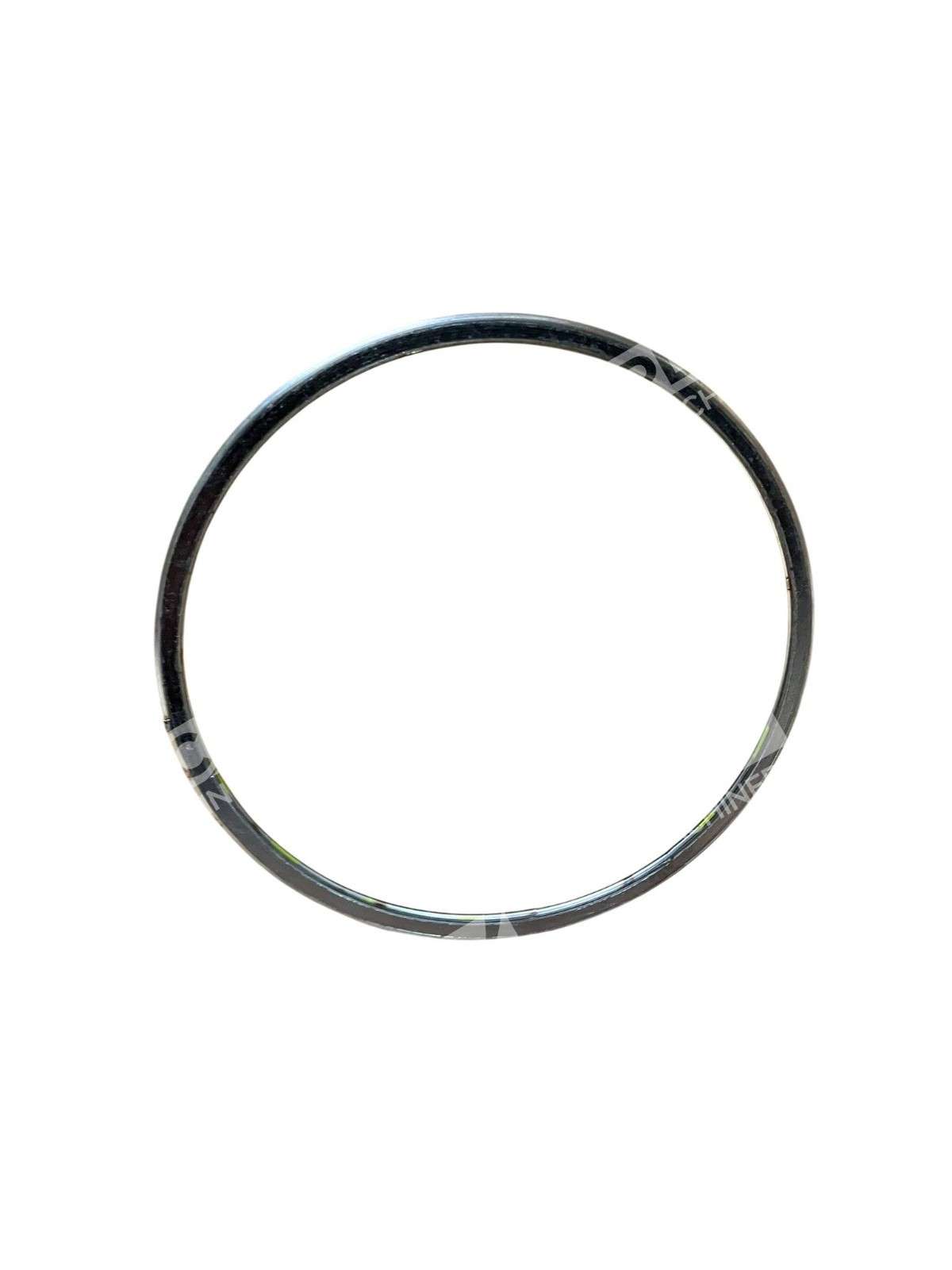

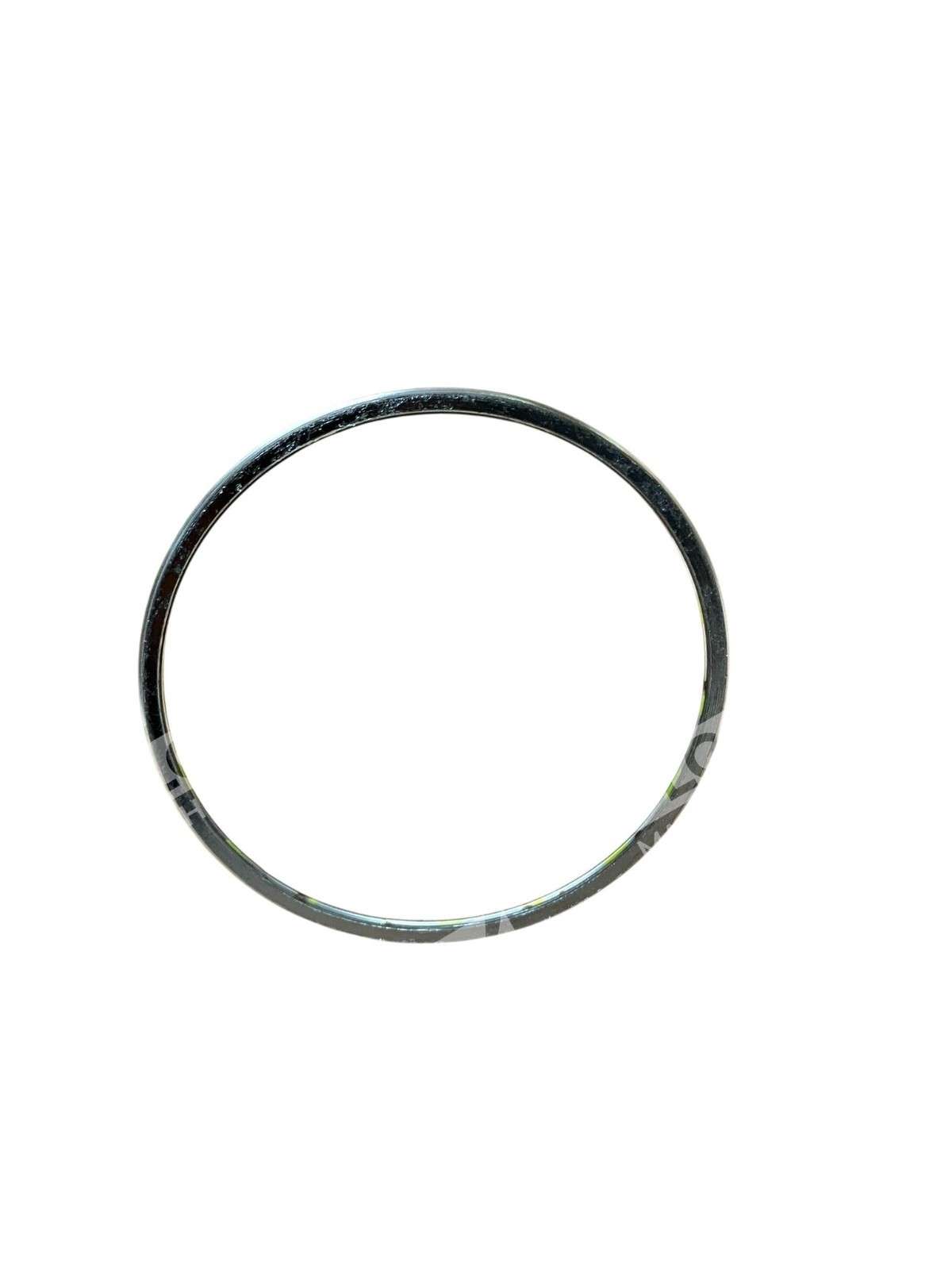

The GASK-6-095X5-587 spiral wound gasket is an R-style industrial sealing component engineered for demanding high-temperature and pressure applications. Spiral wound gaskets are created by winding alternating strips of metal and filler material, composed of a steel centering (outer) ring, a spiral wound sealing strip (filler) and an inner ring made of special steel. This R-style configuration is suitable for both flat-surface and raised-face flange applications across industrial equipment, heat exchangers, pumps, and piping systems.
Key Features
- R-Style Configuration: Designed for compatibility with standard industrial flanges in flat-face and raised-face applications
- Spiral Wound Construction: Spiral wound gaskets depend upon the mechanical characteristics of a formed metal spiral strip, rather than the compressive virtues of more traditional gasket materials. This design excels under fluctuating loads and temperature conditions
- High-Temperature Rated: Suitable for demanding thermal environments typical in chemical processing, steam systems, and industrial piping
- 6-Inch Nominal Size: Fits standard 6-inch ANSI flange connections
- Durable Materials: Spiral wound gaskets typically feature a 1/8″ thick carbon steel outer ring and a 304 stainless steel sealing element with a graphite-based filler.
- New, No-Box Condition: Tested and ready for immediate installation
Technical Specifications
| Part Number | GASK-6-095X5-587 |
| Style | R-Style Spiral Wound |
| Nominal Size | 6 Inch |
| Outer Diameter | 95/16 inches (nominal) |
| Quantity Per Package | 3 Units |
| Outer Ring Material | Carbon Steel, 1/8″ thick (typical) |
| Sealing Element | Stainless Steel 304 with Graphite Filler (typical) |
| Pressure Rating | ASME B16.5 / B16.20 Compliant (verify specific class) |
| Flange Compatibility | Flat-Face and Raised-Face ANSI Flanges |
| Status | New, No Box |
Typical Applications
The GASK-6-095X5-587 spiral wound gasket is used in a wide range of industrial environments:
- Steam piping and condensate return systems
- Chemical processing equipment and reactors
- Heat exchangers and cooling systems
- Centrifugal pumps and compressors
- Pressure vessels and tanks
- Oil and gas production and refining equipment
- HVAC and industrial boiler systems
Compatibility & Replacements
Compatible With
- 6-inch ANSI B16.5 flanges (all pressure classes)
- 6-inch ANSI B16.47 Series A and Series B flanges
- Flat-face and raised-face flange surfaces
- Seals pressures to flange ratings in accordance with ASME B16.5 and B16.47
- Applications requiring graphite-filled spiral wound gaskets
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or maintenance department before ordering, as gasket interchangeability depends on exact flange specifications, pressure rating, and temperature requirements.
Works With
- Standard industrial flange bolt patterns and torque specifications
- ASME B16.20 Inner Ring design (where applicable)
- Standard gasket installation tools and procedures
- Compatible with all ANSI flange bolt materials (carbon steel, stainless steel, alloy)
