Overview

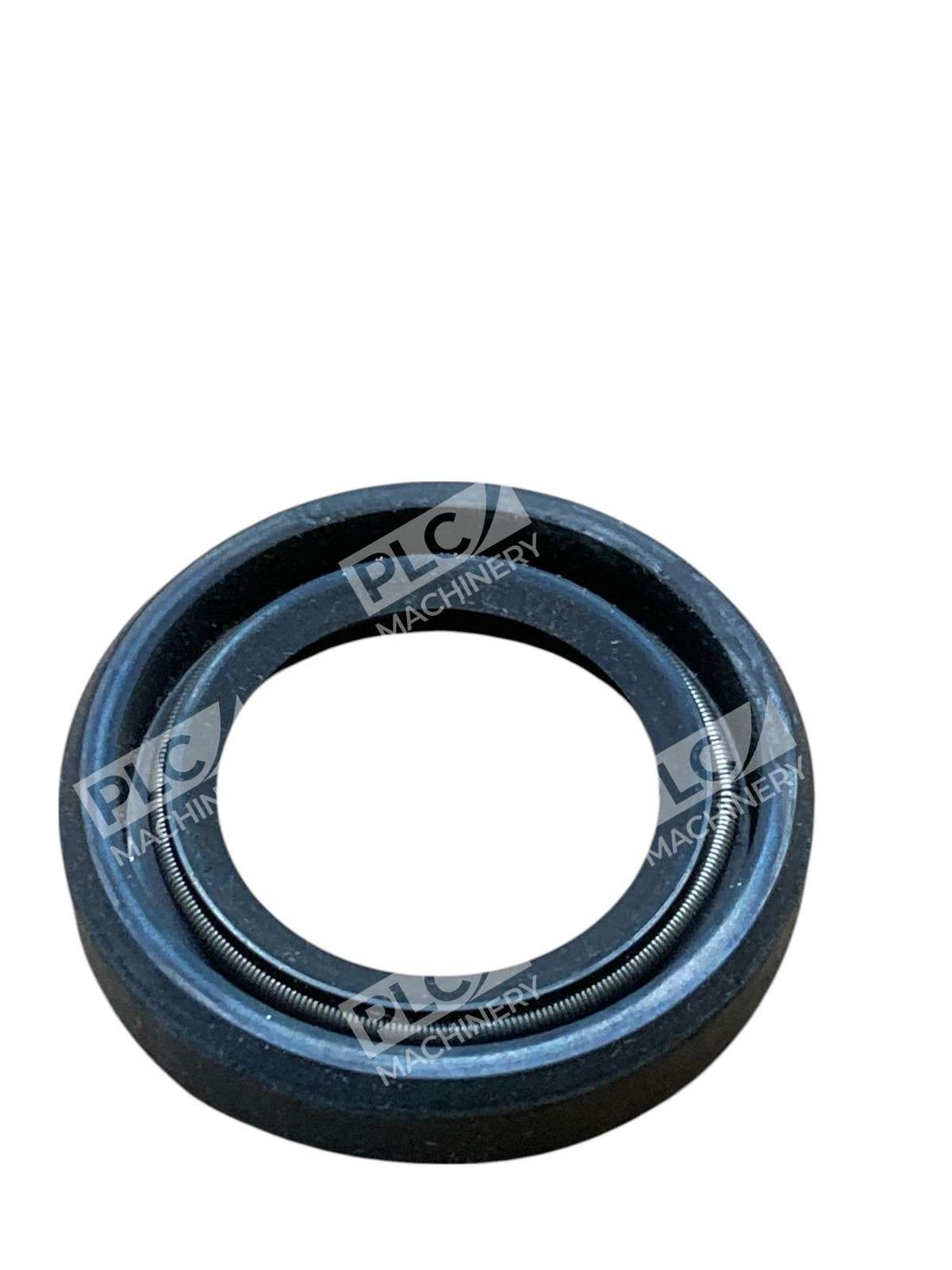

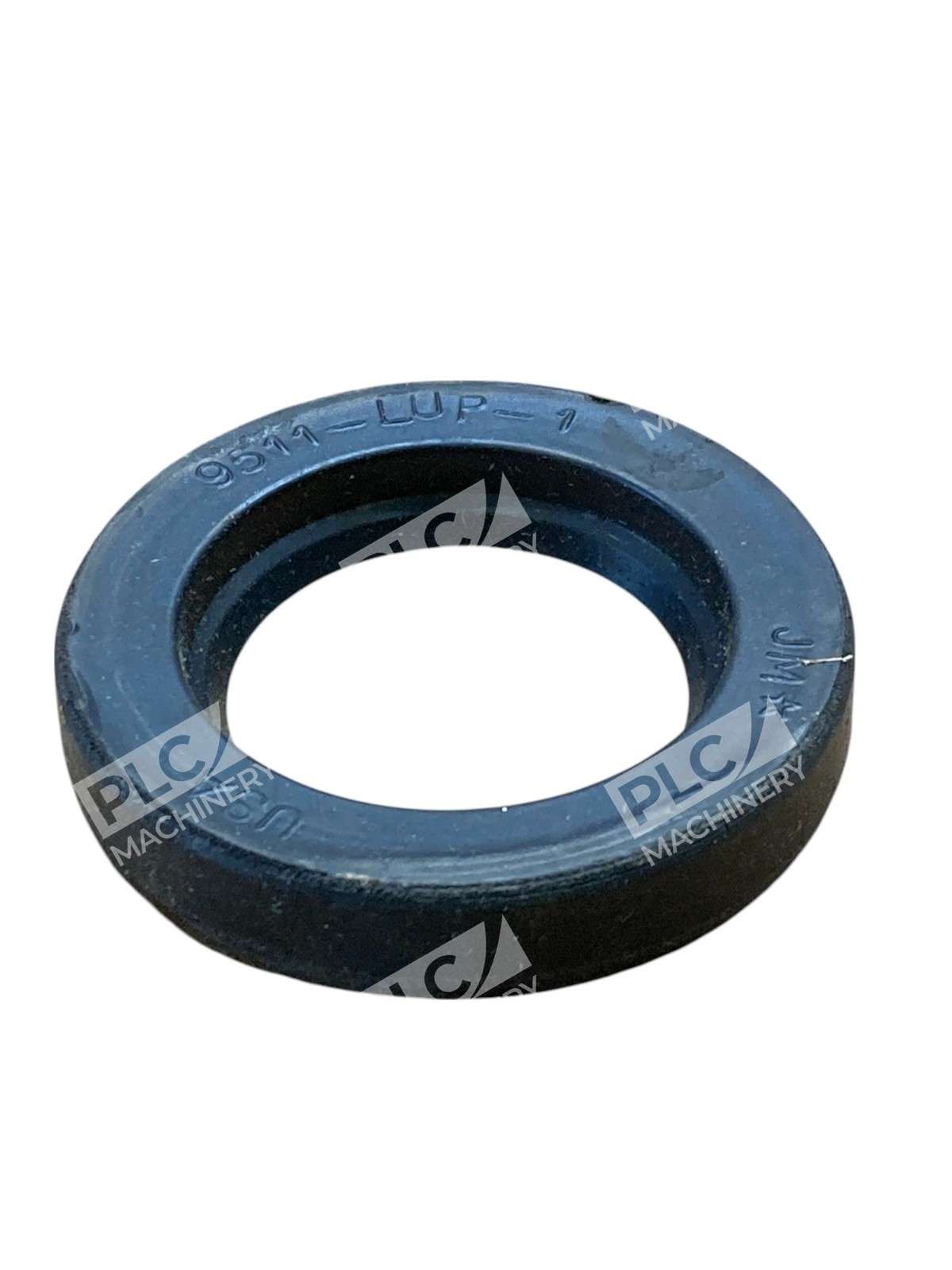

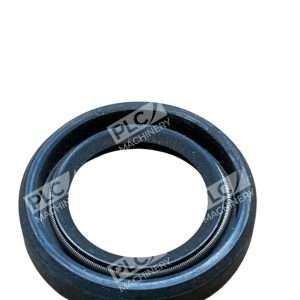

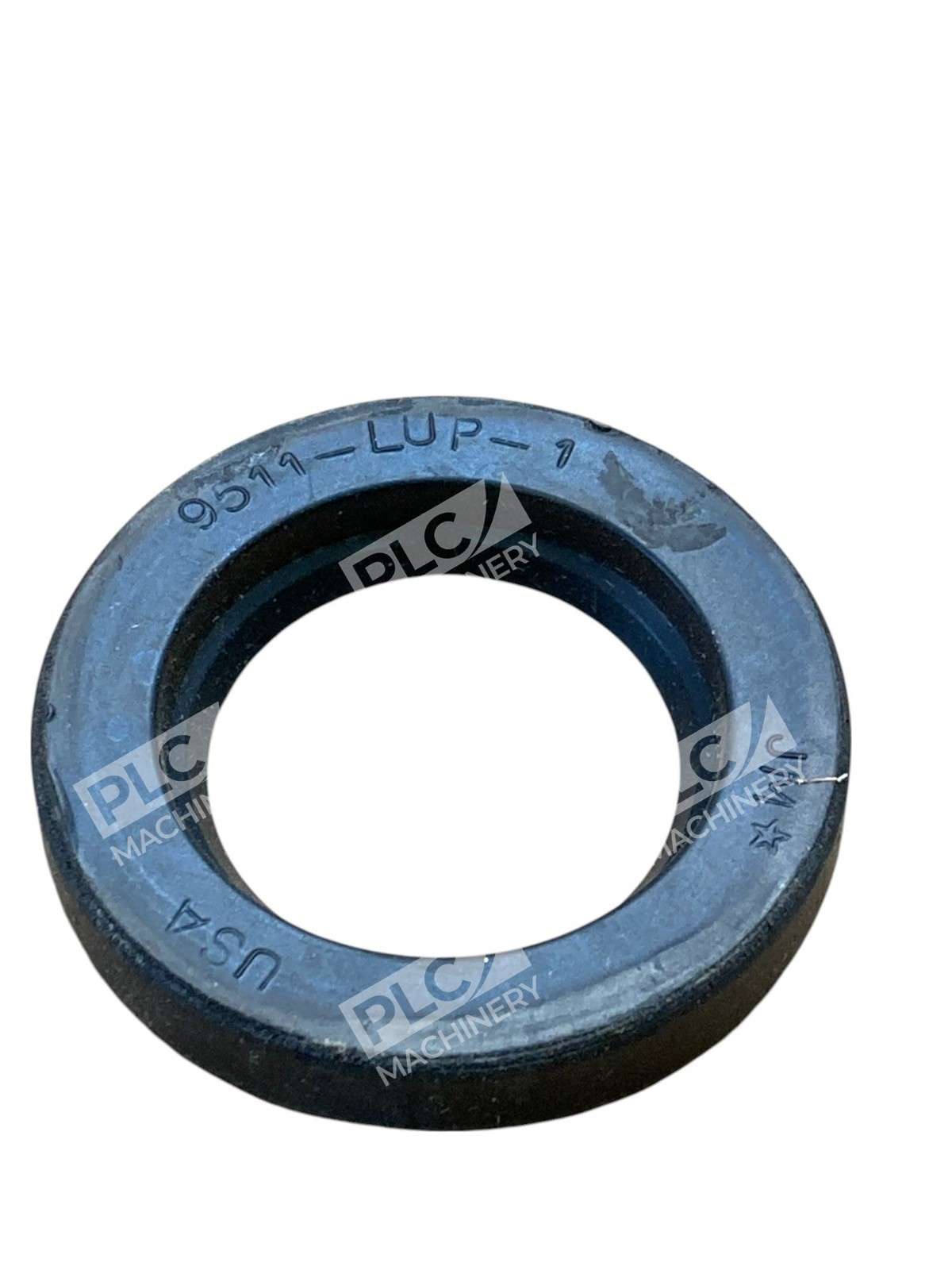

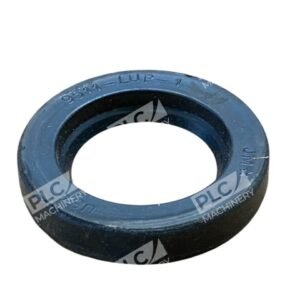

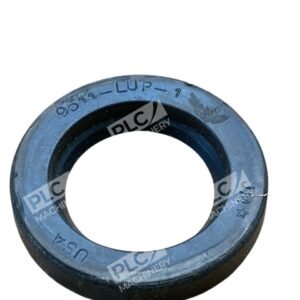

The Parker SEAL-H1L5-9511 is a rotary shaft Clipper oil seal manufactured by Parker Hannifin Corporation. The H1L5 material designation indicates an NBR (nitrile) lip compound. This general-purpose seal combines a molded elastomer lip with a reinforced composite rubber and aramid fiber outer diameter (heel) to create a durable, leak-free seal for industrial and mechanical power transmission applications.
Key Features
- Non-metallic, composite rubber/aramid fiber OD or “heel” forms a leak-free, press fit in the housing, conforming to minor surface irregularities
- Garter spring provides constant, uniform load of the lip on the shaft for the life of the seal, keeping the elastomer lip in contact with the shaft during higher shaft speeds and offsetting normally occurring compression set and wear
- Excellent retention of grease and light oil splash
- Operating temperature range: -20°F to +250°F with NBR material
- General-purpose LUP (lip-up) profile suitable for standard shaft alignment conditions
Technical Specifications
| Material | NBR (H1L5 compound) |
| Lip Profile | LUP (General Purpose) |
| Operating Temperature | -20°F to +250°F (-29°C to +121°C) |
| Maximum Shaft Speed | Up to 3,200 fpm (16.3 m/s) |
| Maximum Pressure | 0-7 psi (depending on shaft speed) |
| Maximum Shaft Runout (TIR) | 0.010″ maximum |
| Maximum Misalignment | 0.010″ maximum |
| Manufacturer | Parker Hannifin Corporation (USA) |
| Product Category | Rotary Shaft Oil Seal |
| Seal Type | Clipper® Oil Seal |
Typical Applications
General purpose Clipper oil seal profiles are designed for applications such as electric motors, gearboxes, pumps, fans, runout tables, paper rolls, mixer and custom equipment. The Parker SEAL-H1L5-9511 performs well in standard rotating shaft applications where consistent lubrication retention and contamination exclusion are required.
Compatibility & Replacements
Compatible With
- Rotary shaft equipment requiring standard oil seals
- Electric motor bearing housings
- Gearbox shafts
- Centrifugal pump assemblies
- Fan and blower equipment
- Industrial mixers and agitators
Replaces / Drop-In Replacement For
The Parker SEAL-H1L5-9511 serves as a direct replacement for equivalent Parker Clipper oil seals with matching shaft diameter, bore diameter, and seal width dimensions. Verify specific model compatibility with your equipment documentation before ordering.
Works With
- Standard hydraulic and mineral oil lubricants
- Light oil splash lubrication systems
- Grease-lubricated shaft applications
- General industrial mechanical power transmission equipment
