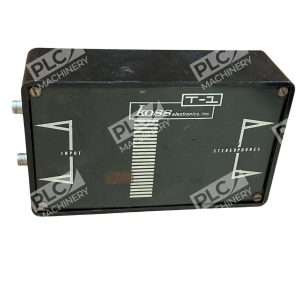

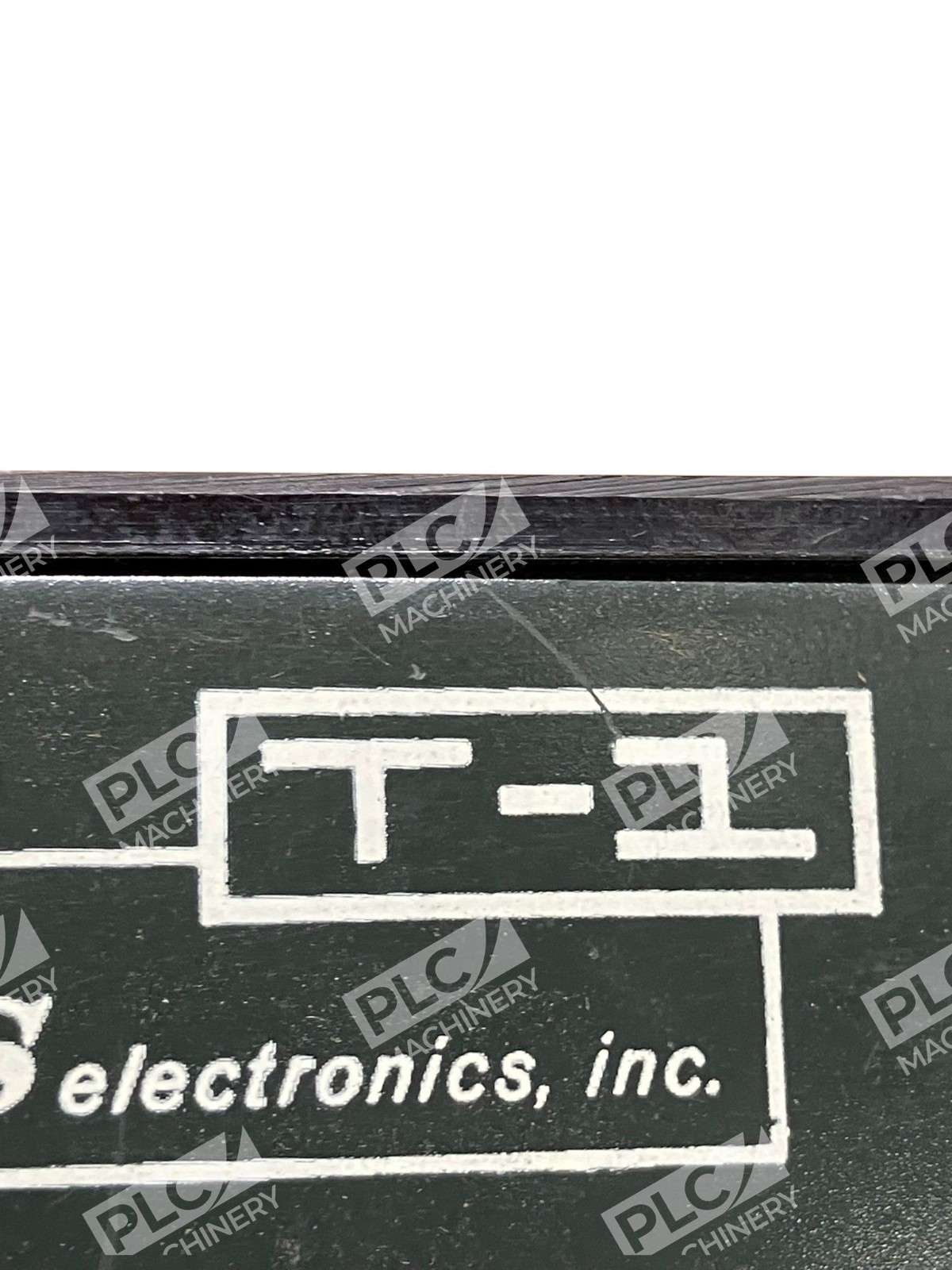

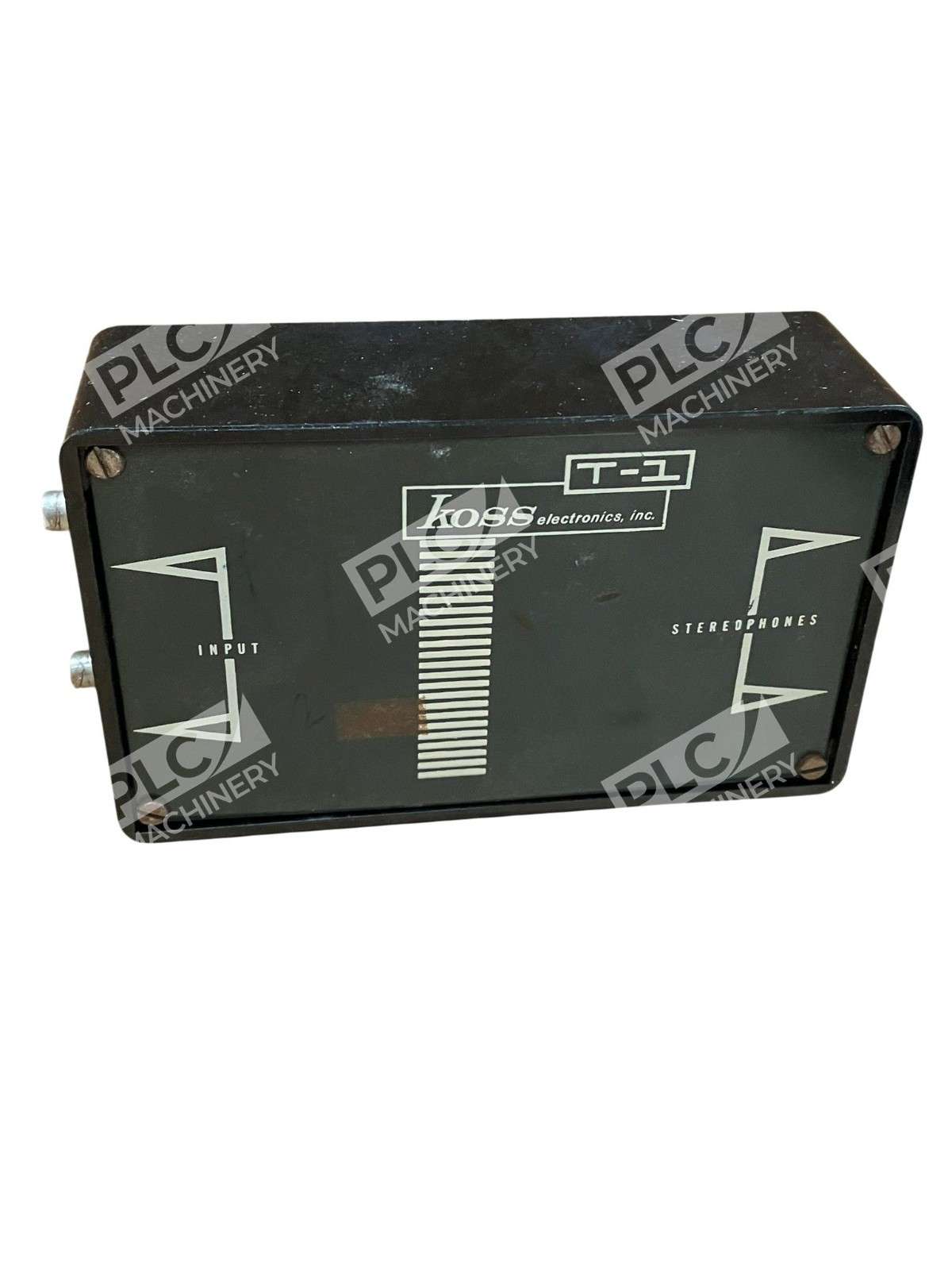

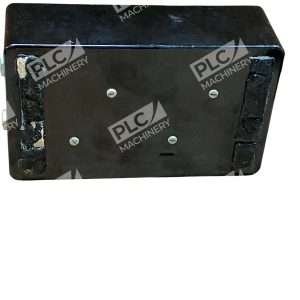

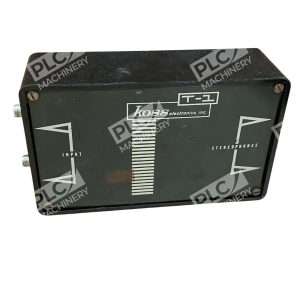

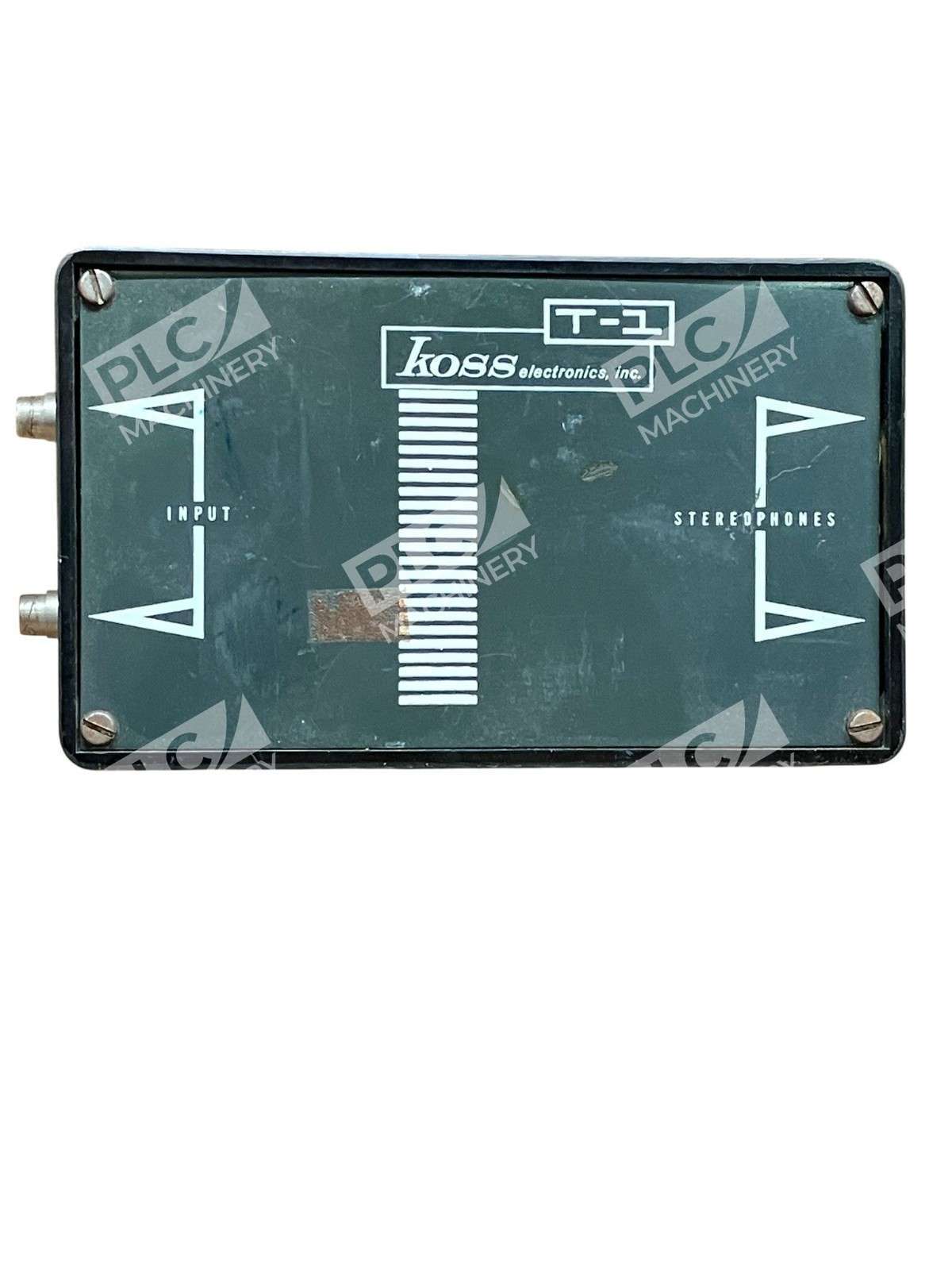

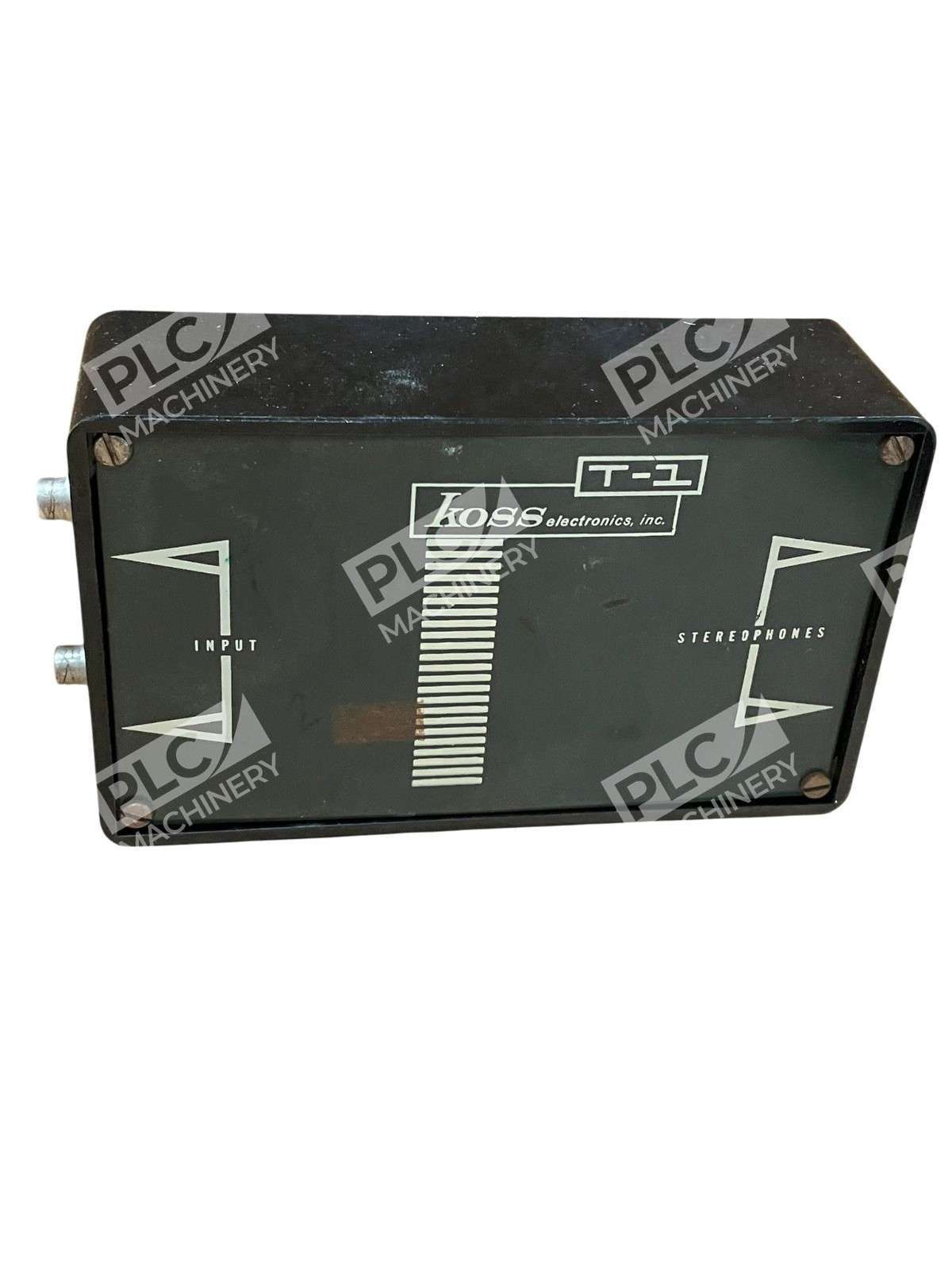

The Koss T-1 Monitoring Adapter is a vintage audio accessory from the early 1970s era, engineered for monitoring tape recordings from high-impedance sources. This classic unit represents an important piece of analog audio history and remains sought-after by vintage equipment collectors and audio enthusiasts.
Overview
The Koss T-1 Monitoring Adapter provides impedance matching capabilities for tape recorder monitoring setups. Built around precision transformer technology, this adapter converts high-impedance audio outputs to lower impedance levels suitable for direct headphone connection. The unit is constructed as a passive adapter box, making it a simple and reliable solution for vintage audio monitoring applications.
Key Features
- Dual stereo output channels with matching transformers per channel
- Impedance conversion from 600–10,000 ohm sources down to 4 ohms

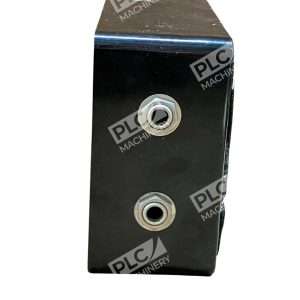

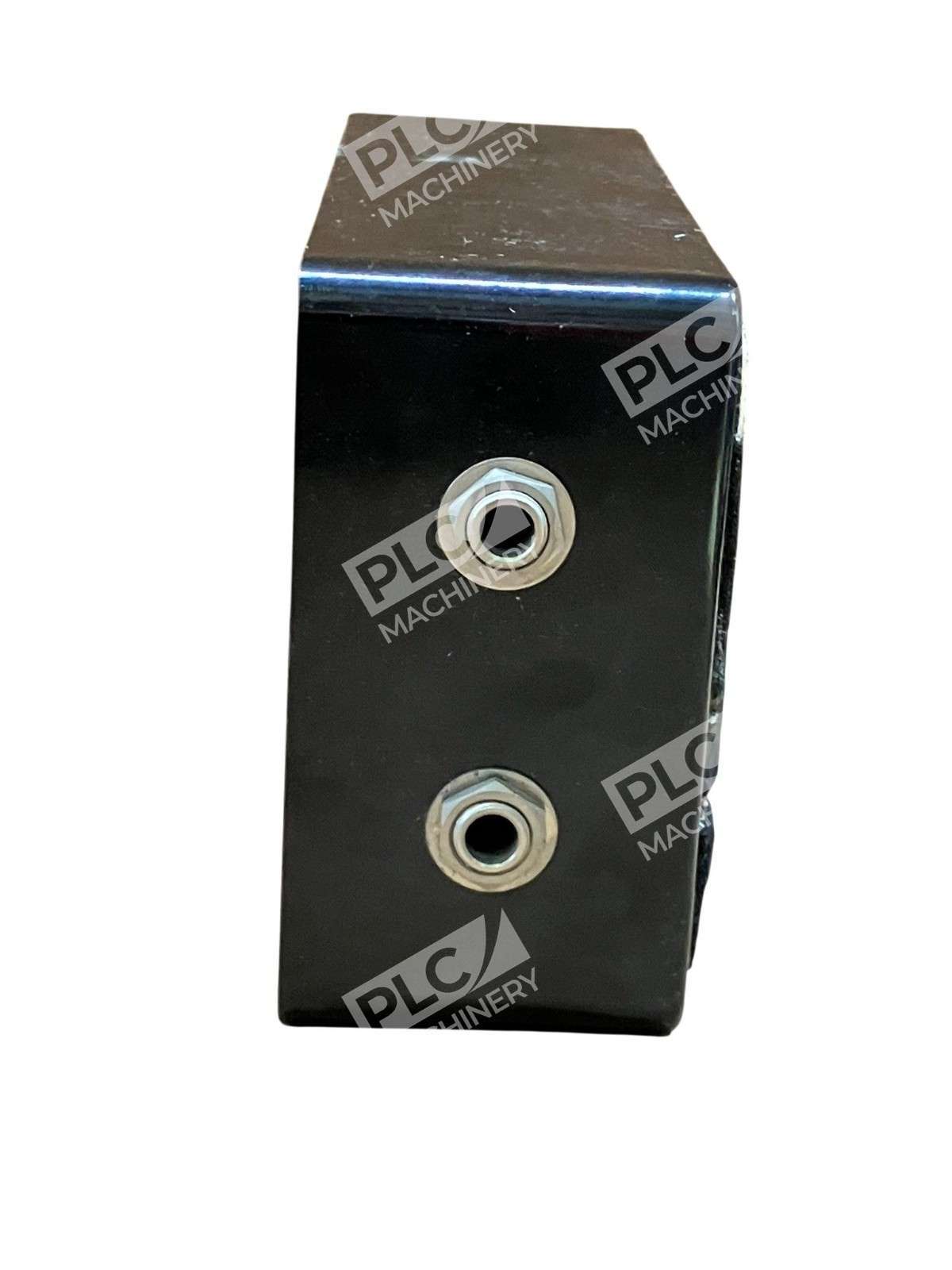

- Two 1/4-inch phone output jacks for headphone connection

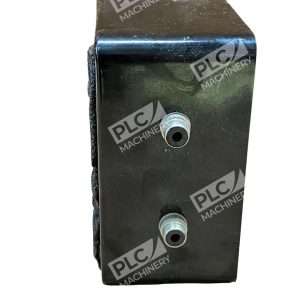

- Two pin-type input jacks for tape recorder output connection
- Passive transformer-based design requiring no external power
- Compact, portable form factor ideal for studio or portable equipment setups
Technical Specifications
- Unit Type: Passive impedance matching adapter
- Input Impedance Range: 600 to 10,000 ohms
- Output Impedance: 4 ohms
- Input Connectors: 2 pin-type jacks (stereo pair)
- Output Connectors: 2 × 1/4-inch phone jacks (stereo pair)
- Channels: Stereo (2-channel)
- Transformer Configuration: One transformer per channel
- Power Required: None (passive)
- Era: Early 1970s
- Condition: New, open box
Typical Applications
- Tape recorder monitoring headphone connection
- Vintage studio equipment impedance matching
- High-impedance audio source monitoring
- Reel-to-reel and cassette tape recorder audio monitoring
- Vintage audio equipment restoration and preservation
- Audio equipment collector reference piece
Compatibility & Replacements
Compatible With
- Tape recorders and reel-to-reel machines with line-level outputs (1970s–1980s era)
- Audio amplifiers with high-impedance monitor outputs
- Professional tape machine monitoring setups
- Vintage recording studios and broadcast equipment
Replaces / Drop-In Replacement For
As a unique vintage impedance matching adapter, the Koss T-1 is not directly replaced by modern audio equipment. However, contemporary audio interfaces and impedance matching transformers can provide similar functionality in modern systems. This unit is primarily sought for its vintage specifications and collector value.
Works With
- Koss vintage headphones and monitoring headsets from the 1970s era
- High-impedance headphone models (600–1200+ ohm designs)
- Tape recording and mastering equipment from the analog era
- Vintage audio monitoring systems
