Overview

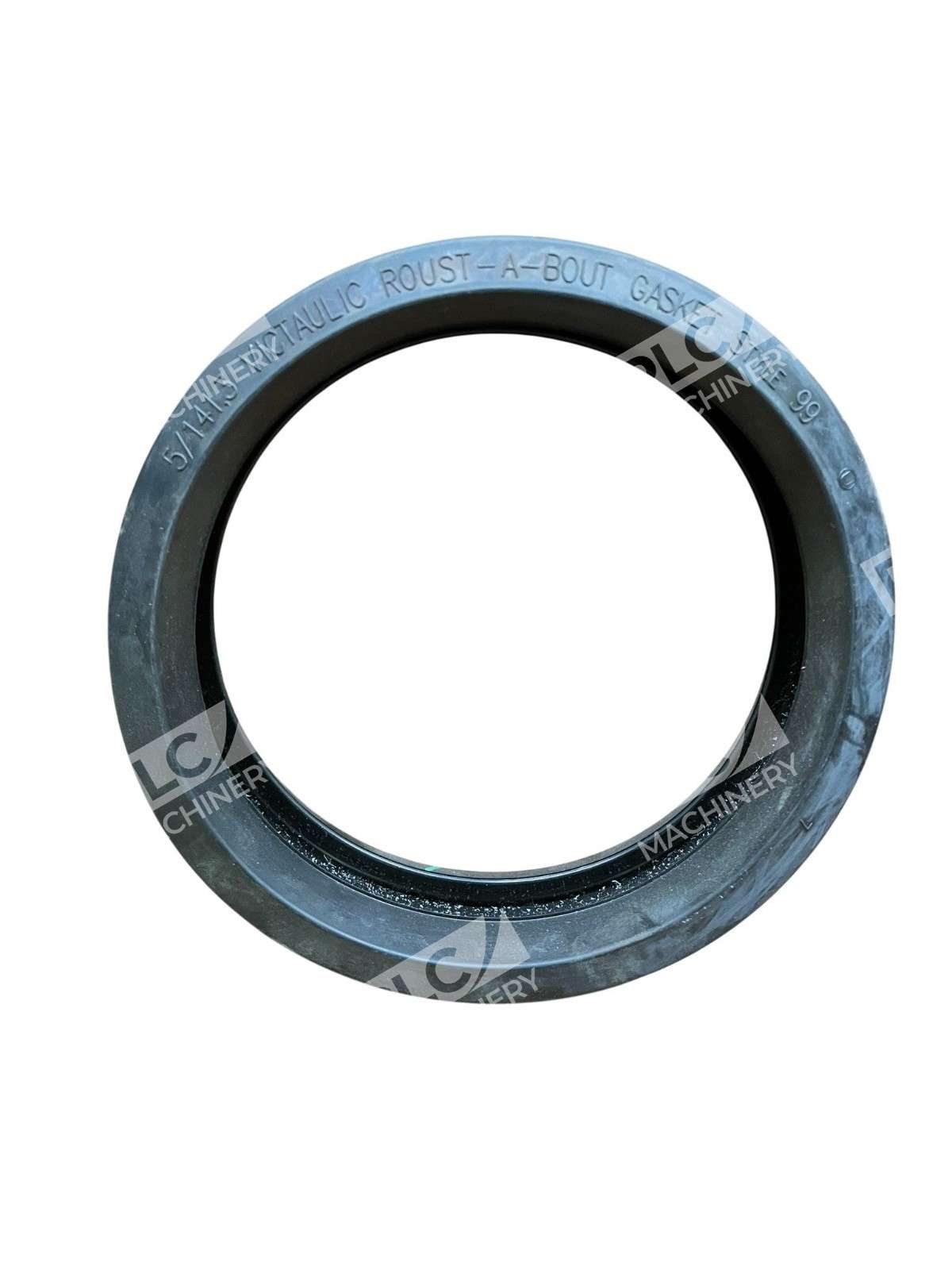

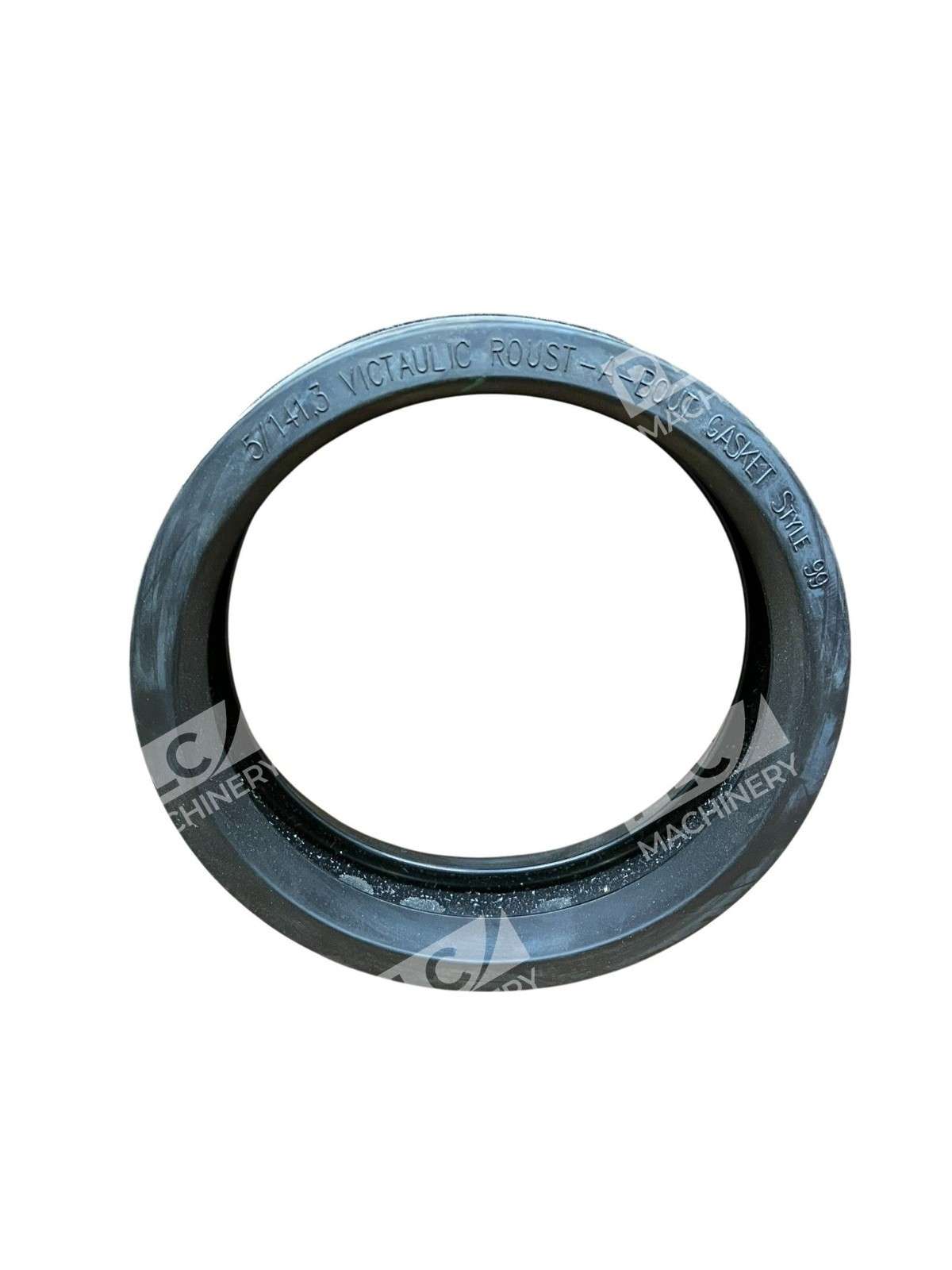

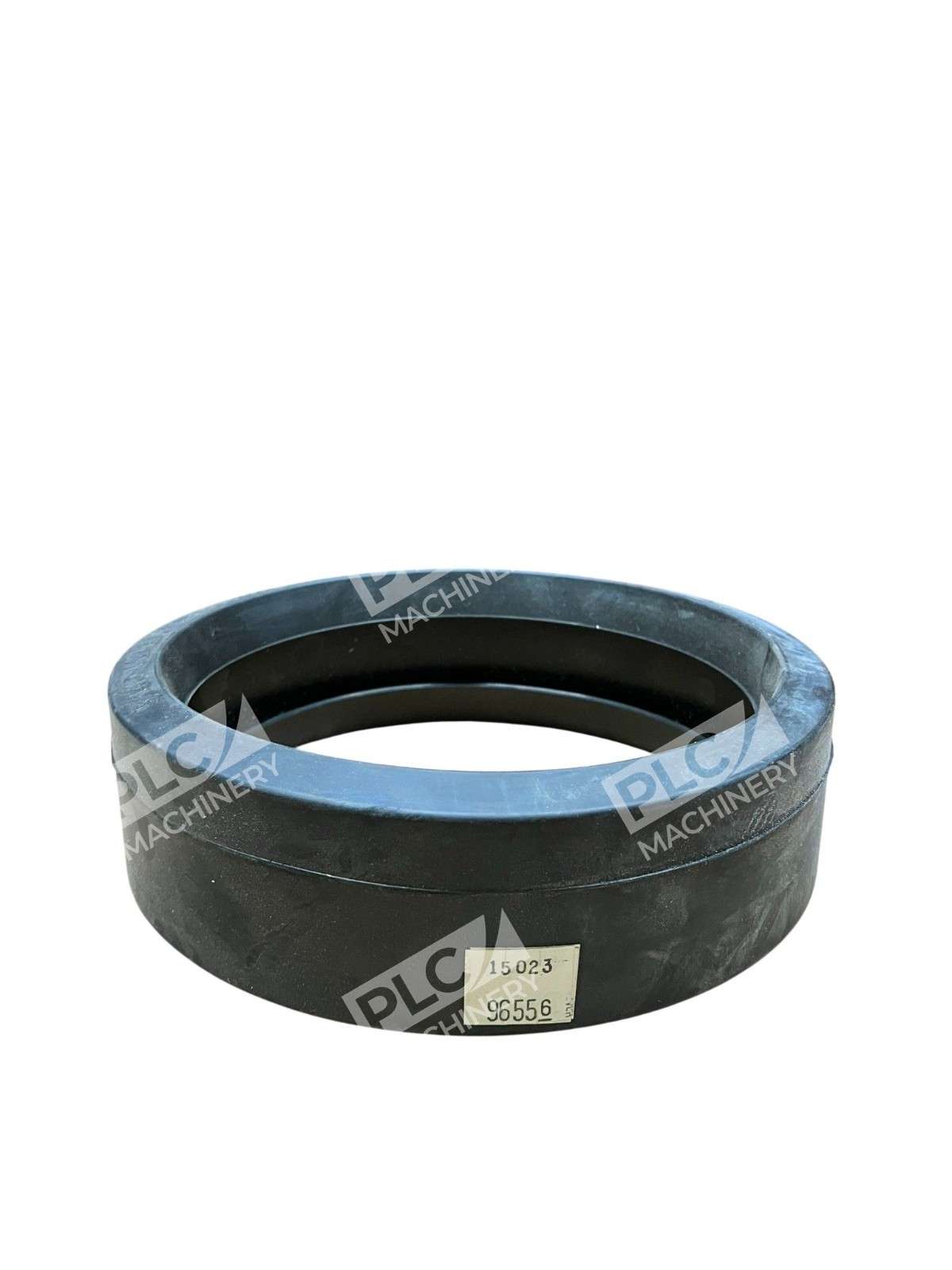

The Victaulic LPC R20 Style 99 is a replacement gasket seal engineered for use with 5-inch Victaulic Roust-A-Bout Style 99 couplings. Constructed from EPDM and Nitrile elastomers, this gasket provides superior sealing integrity in hydraulic, pneumatic, and general plumbing systems. The gasket is designed to maintain system pressure and prevent leakage in demanding industrial and commercial piping applications.
Key Features
- EPDM/Nitrile Construction — Dual-material composition resists temperature fluctuation and chemical exposure across a wide range of fluid types
- Grade E Gasket Standard — Meets Victaulic specification requirements for Style 99 coupling assemblies
- 5-inch (DN125) Compatibility — Engineered for use with Victaulic plain end and beveled end pipe systems
- Reliable Sealing Performance — Proven elastomer formulation maintains pressure integrity under rated operating conditions
- Easy Installation — Drop-in replacement component requires no special tools or procedures
Technical Specifications
- Pipe Size (Nominal): 5 inches (DN125)
- Gasket Type: Grade E Replacement Seal
- Material: EPDM and Nitrile elastomer blend
- Series: Victaulic Style 99 Roust-A-Bout
- Application: Hydraulic, pneumatic, and plumbing systems
- Maximum Working Pressure (5″): 350 PSI (2.4 MPa)
- Housing Material: Ductile iron (ASTM A536, Grade 65-45-12)
- Finish: Orange enamel coating (standard Roust-A-Bout finish)
- Industry Standards: UL and ULC Listed, ASTM A536 compliant
- Suitable Pipe Materials: Carbon steel, stainless steel, copper, ductile iron plain or beveled end
Typical Applications
Victaulic Style 99 couplings and replacement gaskets are used in:
- Water distribution and treatment systems
- Fire protection and sprinkler systems
- HVAC chilled and hot water circuits
- Compressed air and pneumatic networks
- Hydraulic fluid transfer and control lines
- Industrial process piping requiring field-joinable connections
- Temporary or emergency bypass installations
Compatibility & Replacements
Compatible With
- Victaulic Style 99 Roust-A-Bout Couplings — All 5-inch plain end and beveled end coupling configurations
- Victaulic Plain End Fittings — Compatible with Victaulic plain end fitting assemblies
- Carbon Steel Pipe (ASTM A53) — Schedule 40 and higher wall thicknesses per ASME/ANSI B36.10
- Stainless Steel and Copper Pipe — Standard industrial wall thicknesses
- Ductile Iron Pipe (DIP) — Plain and beveled end configurations
- System Pressures up to 350 PSI — Rated for standard Roust-A-Bout 5″ working pressure
Replaces / Drop-In Replacement For
- Victaulic Grade E Gaskets — OEM replacement gasket for Style 99 5-inch couplings
- Field-worn or degraded gasket seals — Restores coupling sealing performance without coupling replacement

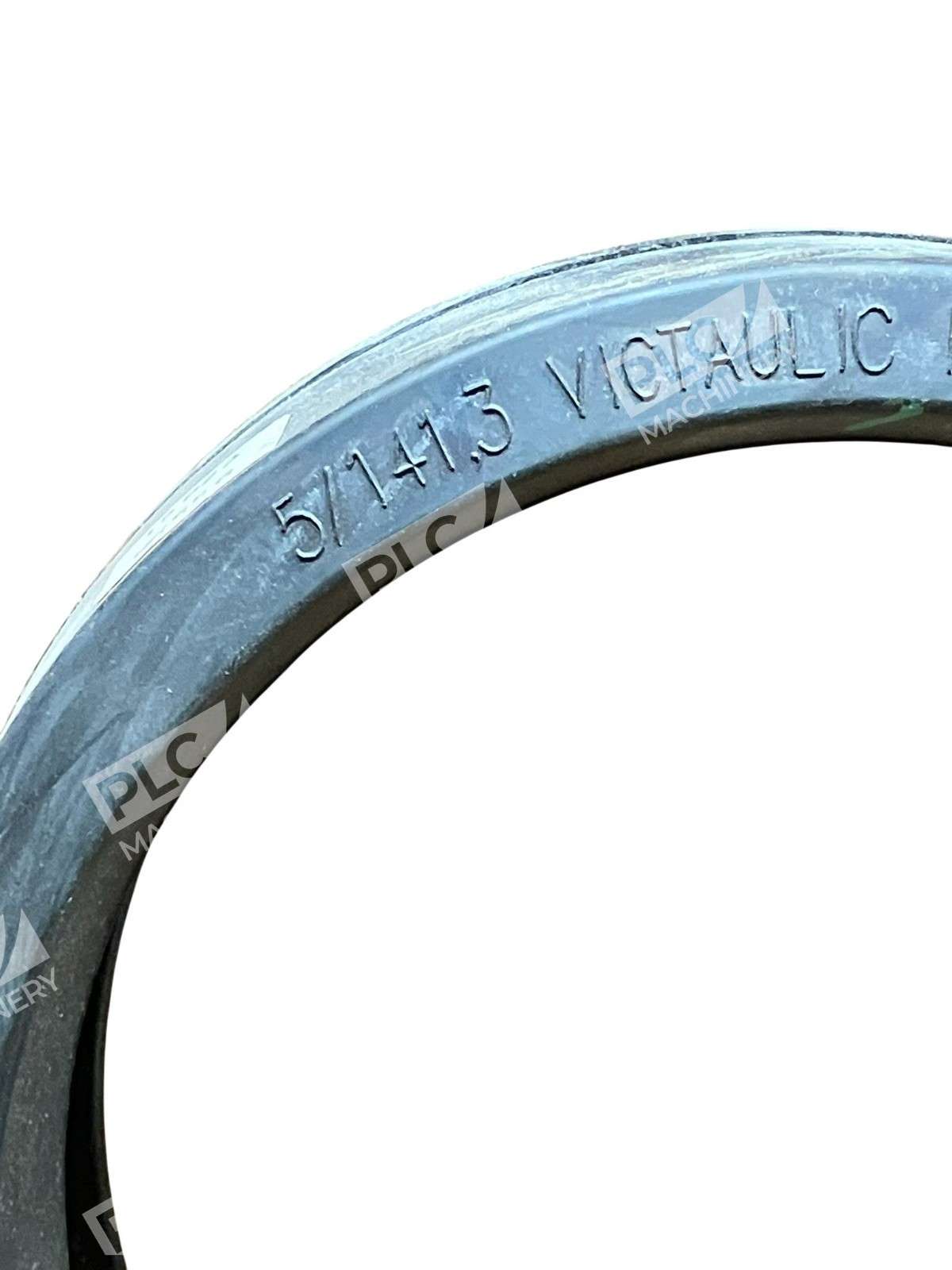

- LPC R20 / 141.3 designation gaskets — Direct replacement using Victaulic OEM part reference
Works With
- Victaulic Roust-A-Bout coupling system — Uses field-installed gasket technology for rapid pipe joining
- Mechanical coupling pipe joining method — No threading, welding, or soldering required
- Multi-fluid systems — Water, glycol-water mixture, air, and light hydraulic oils per Victaulic guidelines
- Operating temperature range — EPDM material suitable for -40°F to +180°F (-40°C to +82°C) fluid service
