Overview

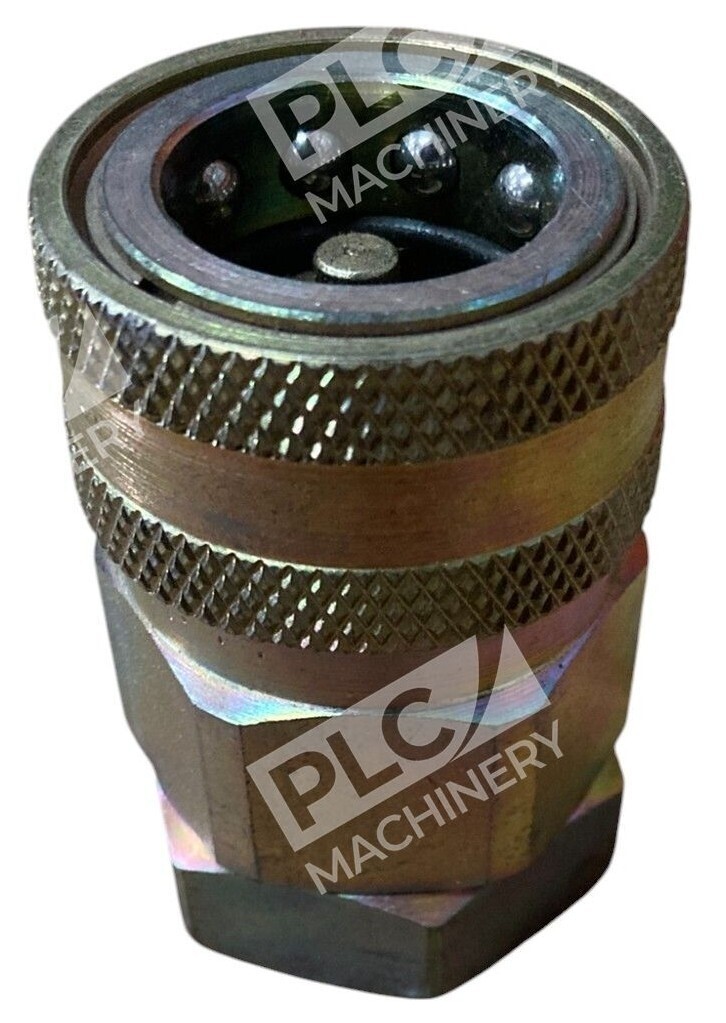

The Snap-Tite VHC-12 quick disconnect coupling is a Parker Hannifin precision-engineered component designed for multi-purpose hydraulic and pneumatic applications. This H-Series quick disconnect offers dependable performance in systems requiring frequent connect/disconnect cycles with minimal spillage and air inclusion, making it ideal for maintenance, assembly, and field service work.
Key Features
- Multi-purpose design for hydraulic and pneumatic fluids
- Manual sleeve valve mechanism with poppet valve technology
- Rated to 11,000 PSI for demanding hydraulic applications
- Both-side valving, single shut-off, or full-flow configuration options
- Zinc-plated steel construction resists corrosion and wear
- Low-spillage, clean-break design minimizes fluid loss on disconnect
Technical Specifications
- Coupling Size: 3/4″
- Thread Type: 3/4″-14 NPT (Male or Female options available)
- Working Pressure Rating: Up to 11,000 PSI
- Series: Snap-Tite H (Manual Sleeve, Valved)
- Material: Zinc-plated steel
- Valve Design: Poppet valve with manual sleeve actuation
- Body Length: 1.73″ to 2.88″ depending on gender
- Applicable Models: VHC12-12M (male), VHC12-12F (female)
- Compatibility: Connects with Snap-tite H and PH Series nipples
Typical Applications
The Snap-Tite VHC-12 serves a wide range of industrial and mobile equipment applications including:
- Hydraulic power tools and rescue equipment
- Water jetting and blasting systems
- Mobile and construction equipment hydraulics
- Industrial load-holding and actuation systems
- Pneumatic tool hookups and compressed air circuits
- Agricultural and marine equipment hydraulics
Compatibility & Replacements
Compatible With
- Snap-tite H-Series couplers and nipples (up to 11,000 PSI)
- Snap-tite PH-Series non-valved couplers
- Standard 3/4″ NPT-threaded hydraulic systems
- Pneumatic systems operating below rated pressure
- Water jetting and fluid power applications
Replaces / Drop-In Replacement For
The VHC-12 is a standard-replacement component for legacy Parker Hannifin Snap-Tite VHC-12 couplings in the same gender and configuration. Verify thread type (NPT male or female) and valve configuration (single shut-off or both-sides valved) before ordering as drop-in replacements.
Works With
- Snap-tite H-Series male and female nipples
- ISO 11237 (CETOP 03) compatibility for certain applications
- Industrial hose assemblies with 3/4″ NPT connections
- Manual hydraulic and pneumatic control systems
