Overview

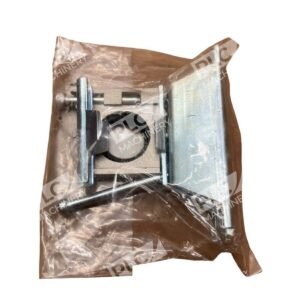

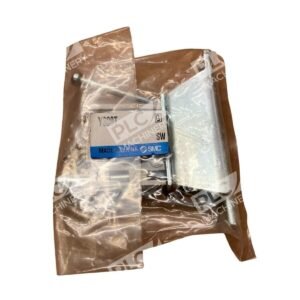

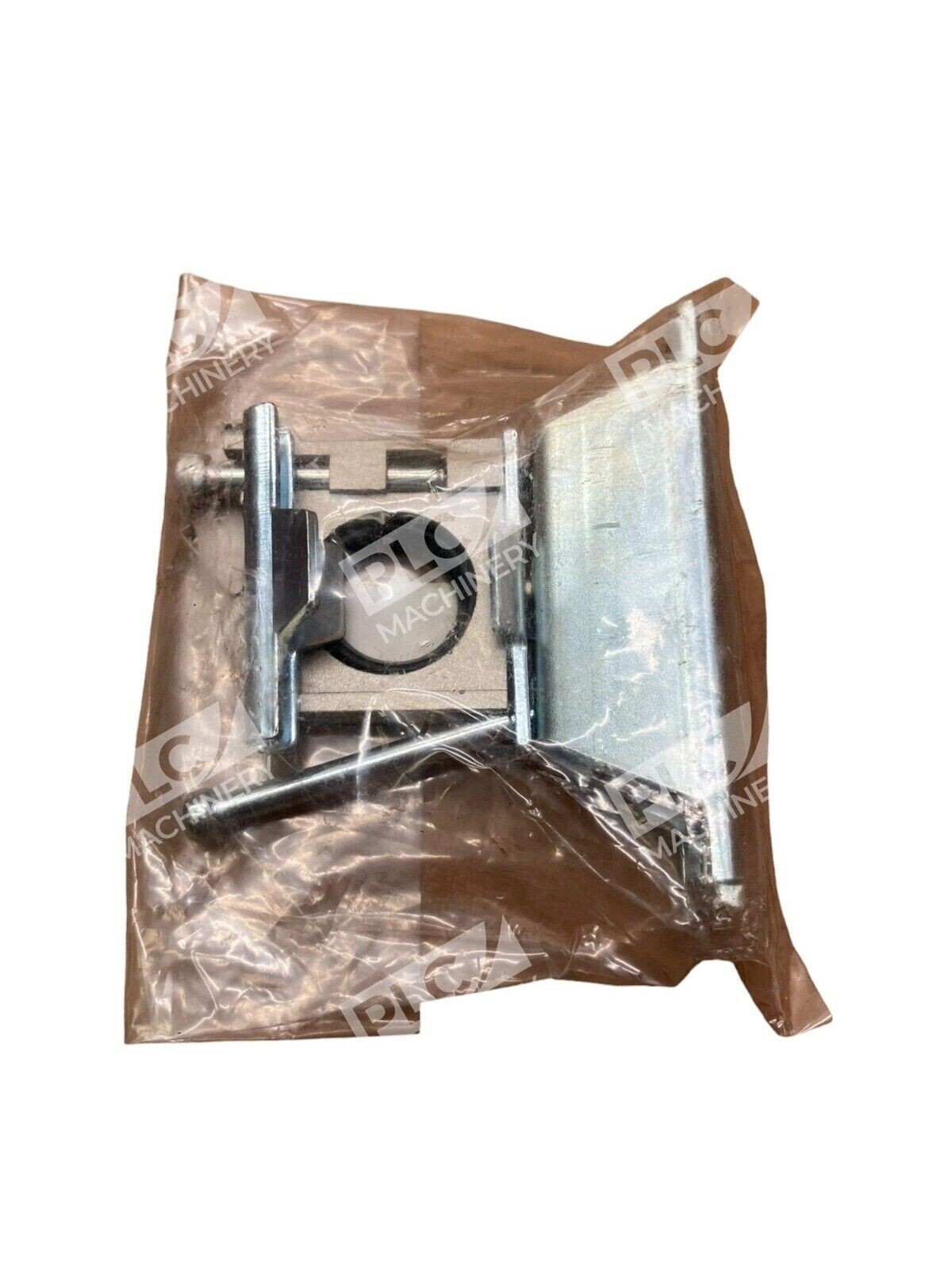

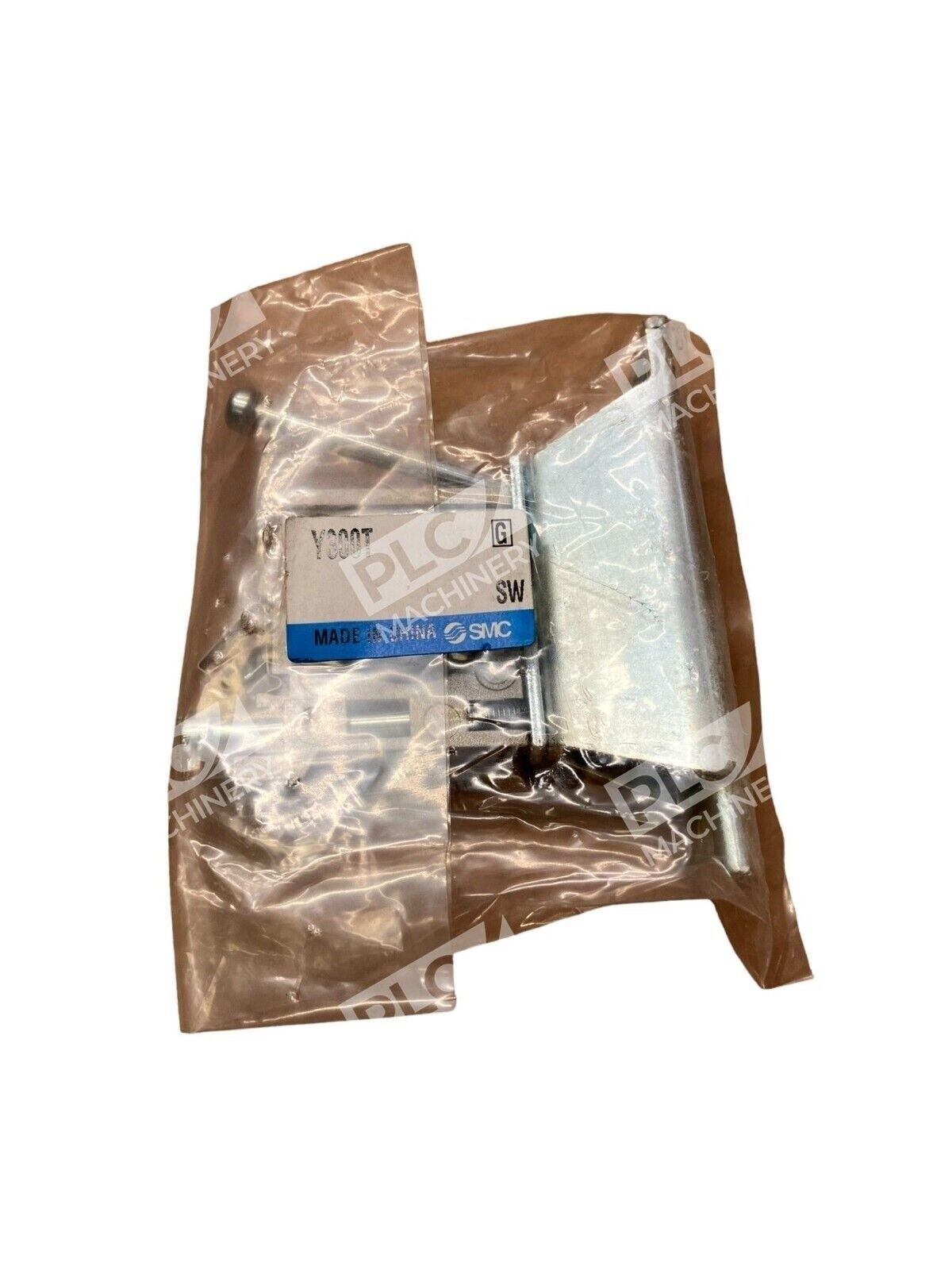

The SMC Y300T spacer with bracket is a compact interface component engineered for modular connection of filter-regulator-lubricator (FRL) air preparation units. This spacer accommodates AC25 and AC30 series FRL units, providing the necessary clearance and mounting support for wall or panel installation while reducing overall assembly footprint.
Key Features
- Compact design — reduces assembly space and simplifies layout
- Integrated T-bracket — enables direct mounting without separate hardware
- Easy screw attachment — secures FRL units with simple fastening mechanism
- NBR O-ring seal — prevents air leakage and maintains system integrity
- Simple maintenance — accessible design for inspection and service
Technical Specifications

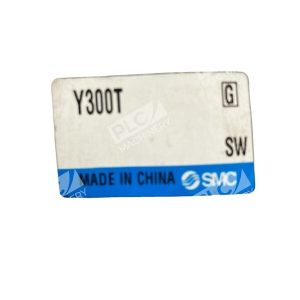

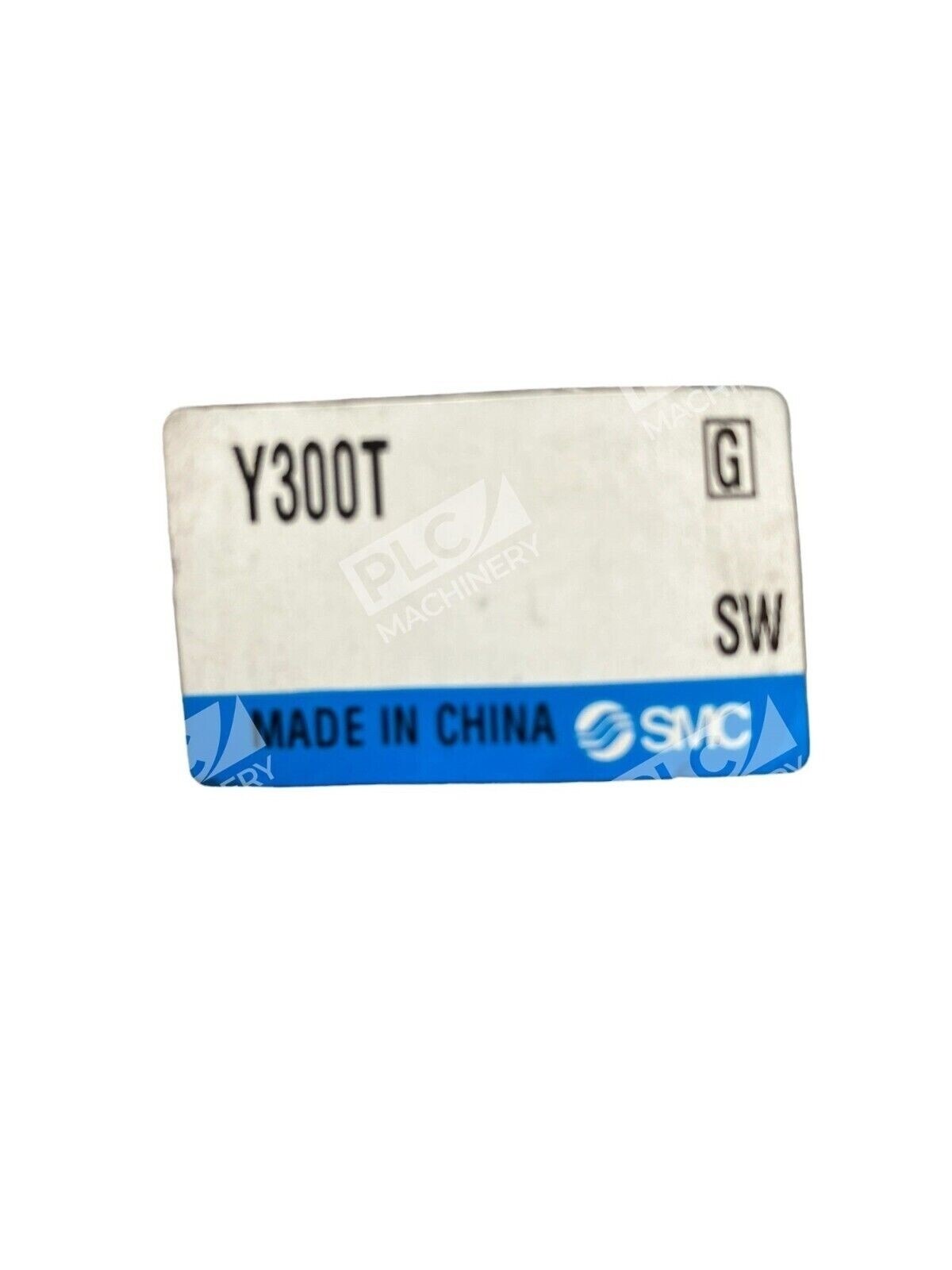

- Part Number: Y300T (variants: Y300T-A, Y300T-D, Y300T-2-D)
- Manufacturer: SMC (Japanese-made pneumatic automation)
- Component Type: Spacer with T-bracket attachment
- Compatible Series: AC25, AC30 FRL units
- Seal Material: NBR (nitrile) O-ring
- Mounting Style: Wall or panel bracket
- Attachment Method: Screw fastening

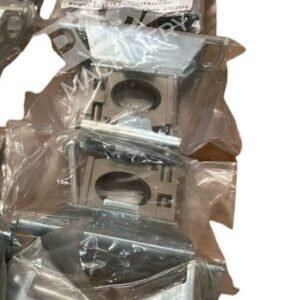

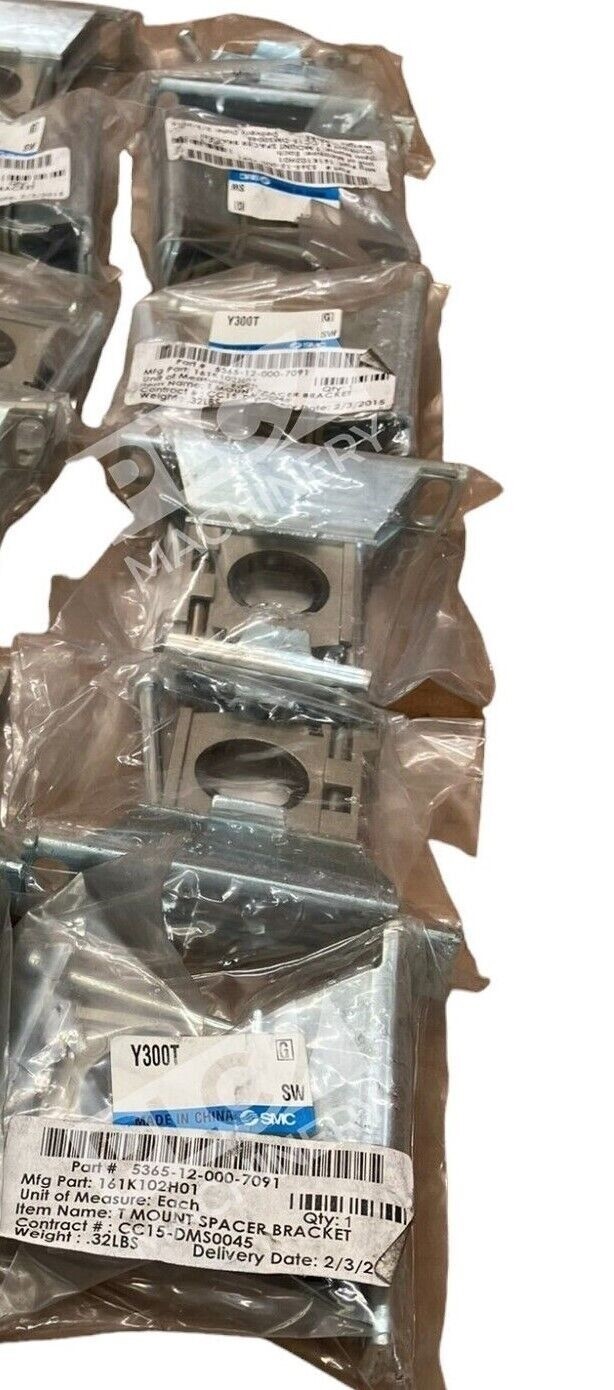

- Quantity in Lot: 5 units
- Condition: New in box
Typical Applications
- Pneumatic air preparation systems in manufacturing facilities
- Industrial automation and control panel installations
- Compressed air stations requiring compact FRL stacking
- Equipment requiring modular air filtration and pressure regulation
- Wall-mounted pneumatic distribution assemblies
Compatibility & Replacements
Compatible With
- SMC AC25 series FRL units
- SMC AC30 series FRL units
- Modular FRL component stacking systems
- Wall and panel mounting applications
Replaces / Drop-In Replacement For
- Y300T-A (spacer with bracket for AC25/AC30)
- Y300T-D (spacer bracket variant)
- Y300T-2-D (alternate configuration)
Works With
- SMC pneumatic air preparation systems
- Standard industrial FRL accessories and components
- Compressed air distribution networks
- ISO/CETOP ported pneumatic equipment
