Overview

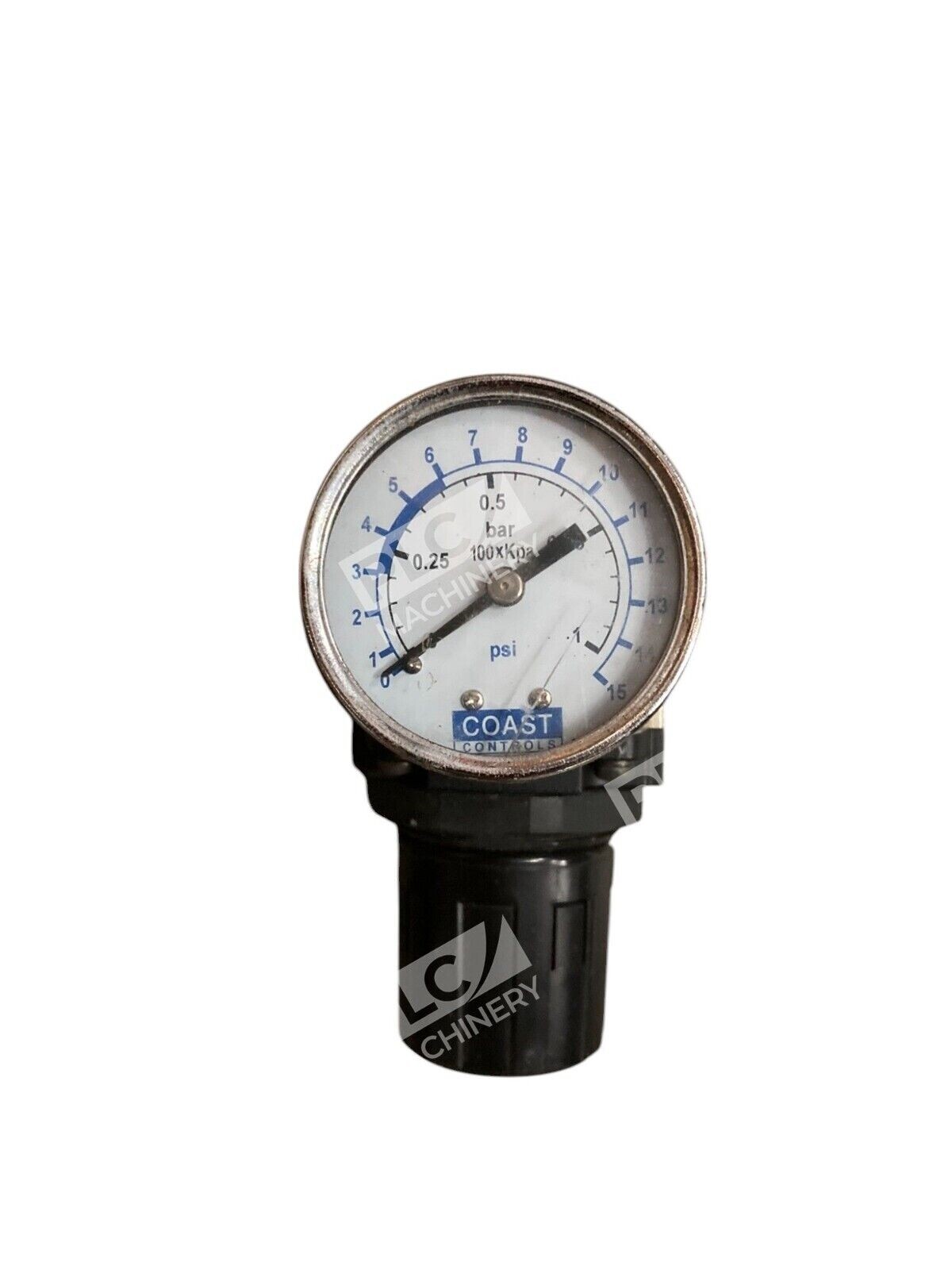

The SMC NARP3000-N02-X535 is a precision pneumatic regulator equipped with an integrated 0-15 PSI gauge for real-time pressure monitoring. This modular-style regulator is designed for air preparation and pressure control in industrial automation and pneumatic systems. The NARP3000-N02-X535 combines compact design with reliable regulation, making it suitable for manufacturing, assembly lines, and process control environments.
Key Features
- Integrated 0-15 PSI analog pressure gauge for direct monitoring
- Compact modular design for space-constrained installations
- Precise pressure regulation for repeatable process control
- Standard NPT port connections for easy integration
- Suitable for use in pneumatic control circuits and air preparation systems
- Durable construction for industrial environments
Technical Specifications
- Pressure Range: 0–15 PSI (gauge indication)
- Port Connection: 1/4″ NPT
- Gauge Type: Analog dial, 0–15 PSI
- Body Style: Modular regulator
- Operating Temperature Range: Industrial standard (verify with unit documentation)
- Material: Aluminum and ductile iron (typical for SMC regulators)
- Application: Pneumatic air preparation and pressure control
Typical Applications
- Industrial pneumatic systems and automation circuits
- Air preparation in manufacturing and assembly equipment
- Process control requiring precise pressure regulation
- Machinery pneumatic control circuits
- Plant air distribution systems
Compatibility & Replacements
Compatible With
- SMC pneumatic control systems and components
- Standard pneumatic lines with 1/4″ NPT connections
- Industrial compressed air networks
- Air preparation units and manifold systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or SMC technical support before ordering replacement applications.
Works With
- SMC pneumatic valves and actuators
- FRL (filter-regulator-lubricator) assemblies
- Pneumatic manifold blocks and valve islands
- Industrial automation control systems
