Overview

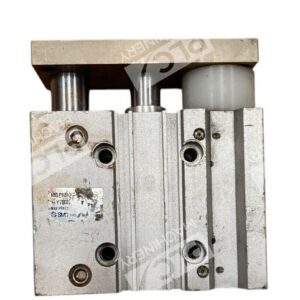

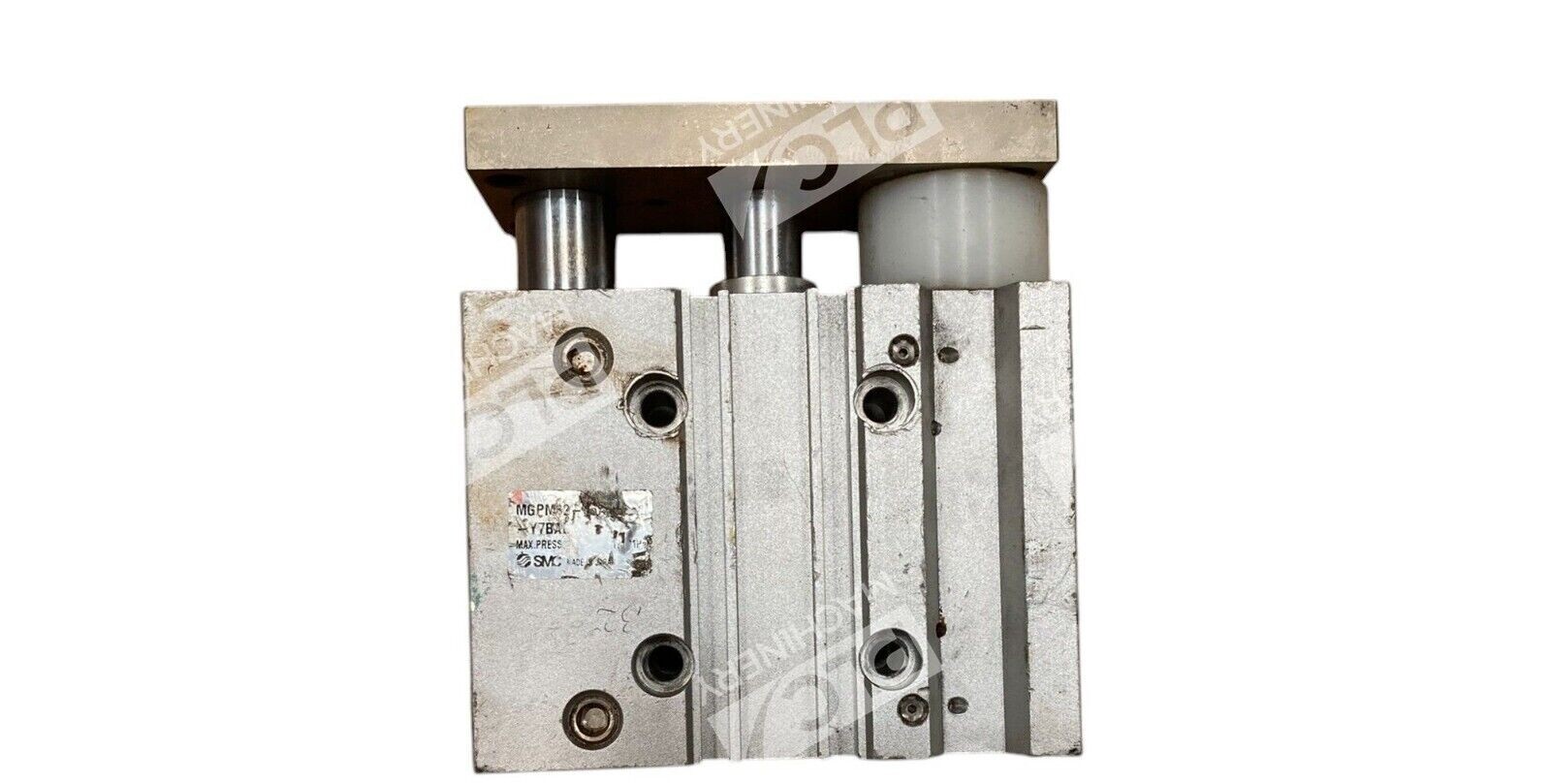

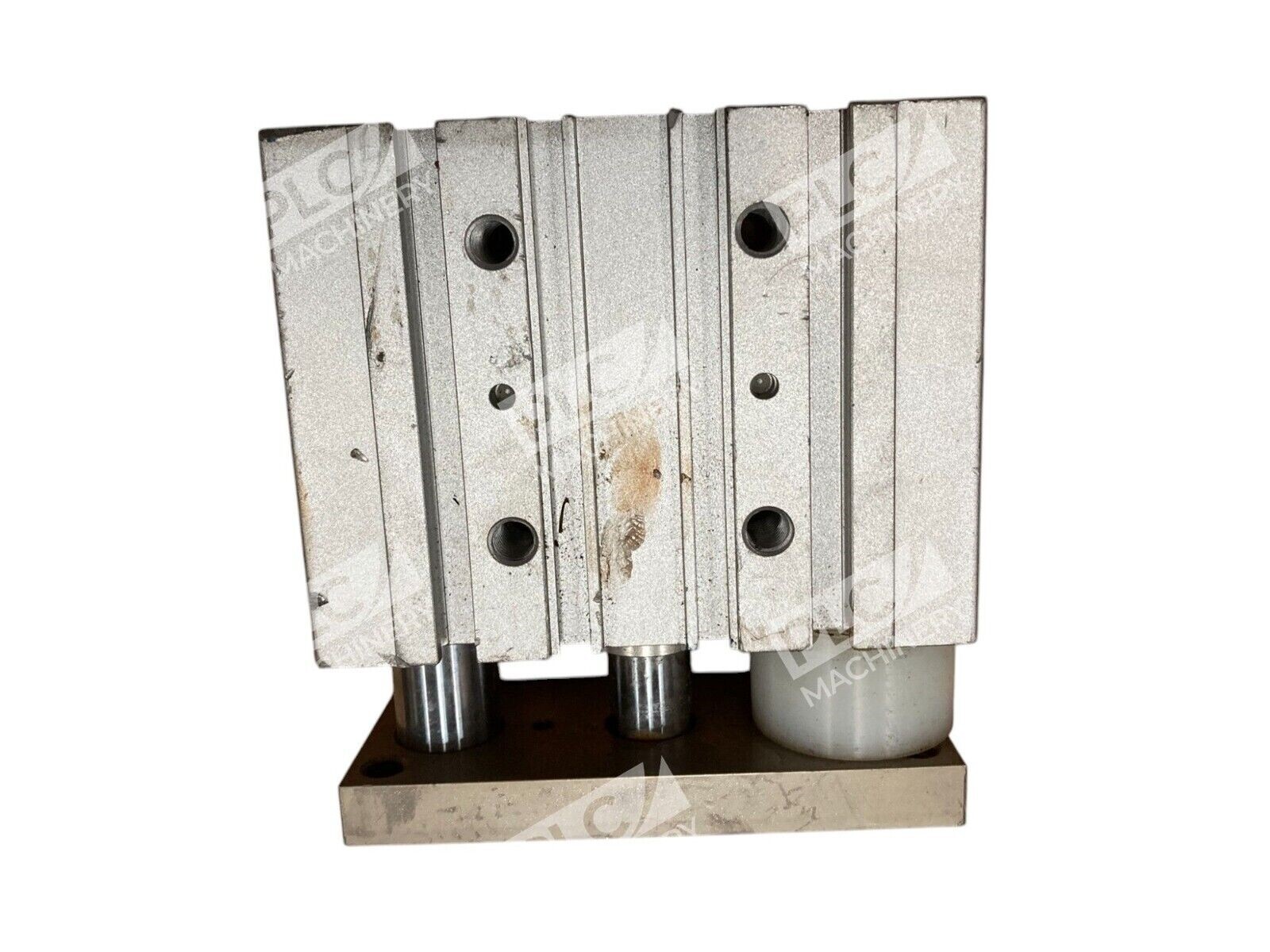

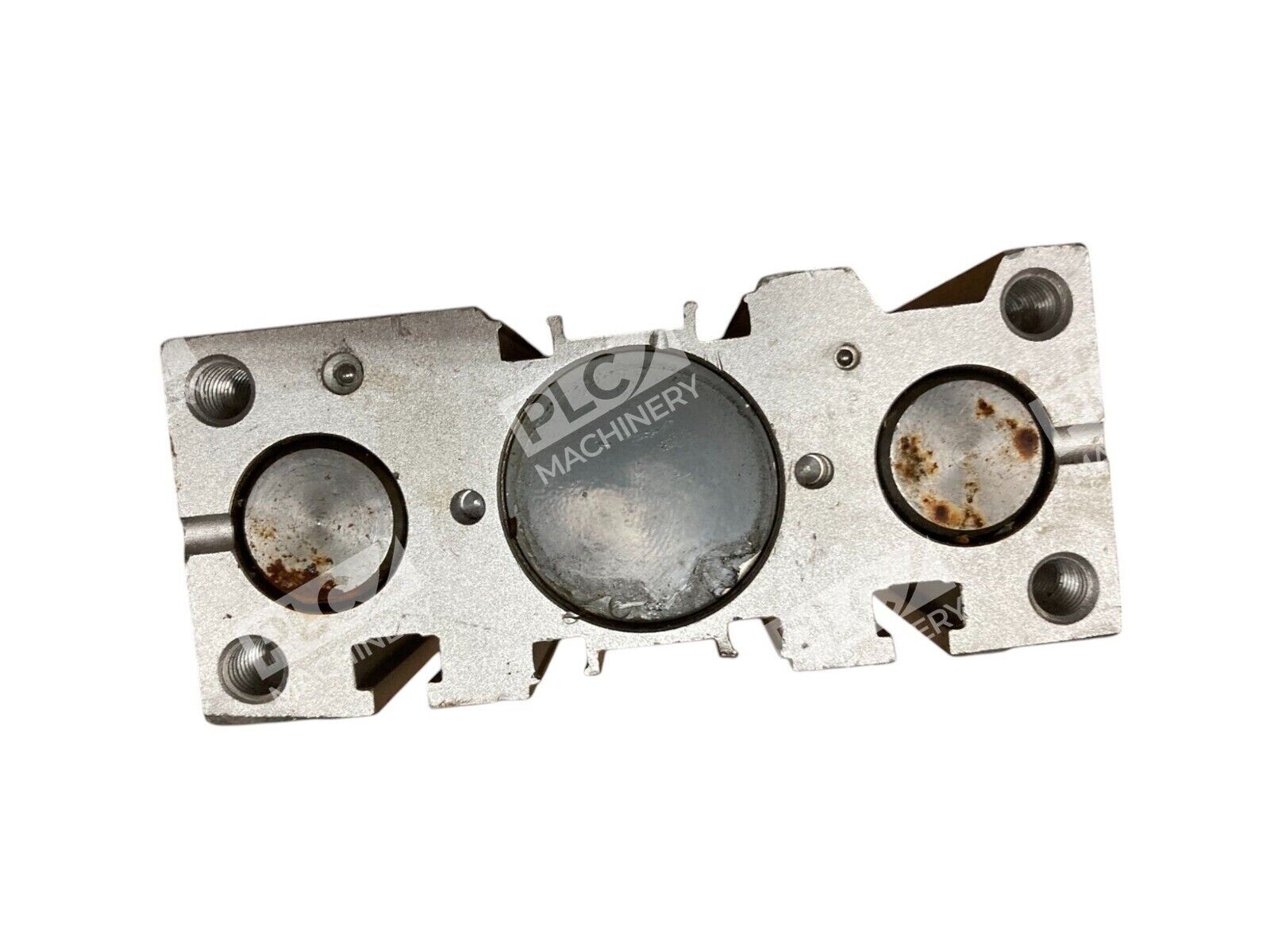

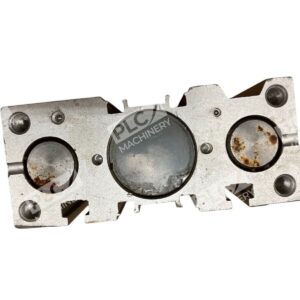

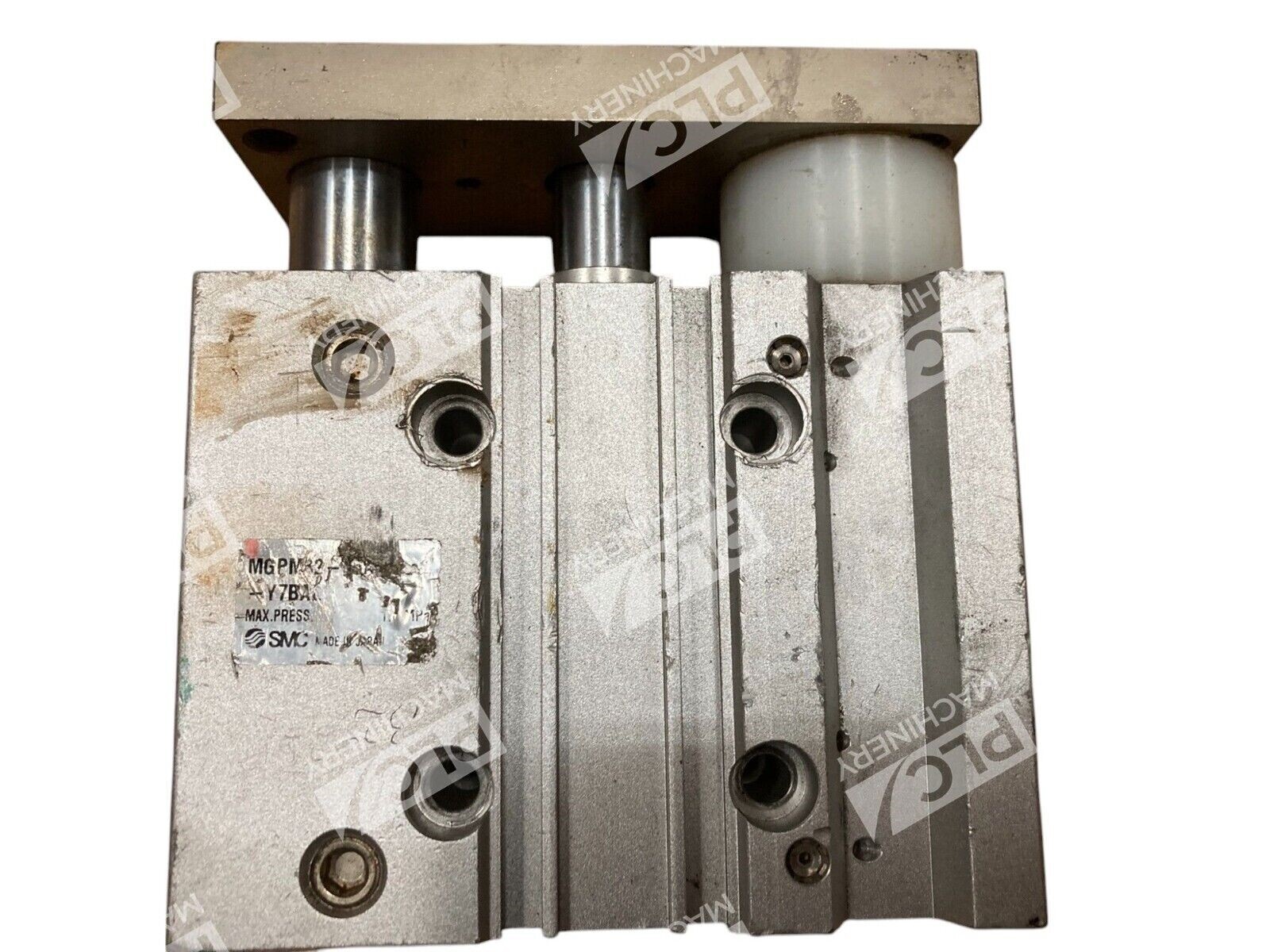

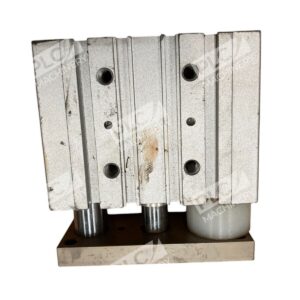

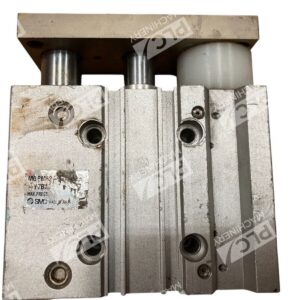

The SMC MGPM32- is a compact guided pneumatic cylinder featuring a 32mm bore and slide bearing design. Part of SMC’s MGP series, this double-acting pneumatic actuator delivers linear motion with space-saving geometry, making it ideal for tight machine layouts. The cylinder incorporates built-in air cushion technology at both ends for smooth deceleration and load control.
Key Features
- 32mm bore size with compact slide bearing guide
- Double-acting pneumatic operation
- Built-in air cushion buffers at both ends
- Shortened guide rod reduces installation space by up to 22mm
- Multiple mounting options available
- Direct auto-switch mounting compatibility
- Piping from either direction
- Magnetic field resistant design
Technical Specifications
Standard configurations of the MGPM32- series include multiple stroke lengths ranging from 25mm to over 200mm. Pressure rating is 1.0 MPa (10 bar) maximum operating pressure. The cylinder features Rc1/8″ pneumatic threaded ports and piston speeds of 50–500 mm/s depending on load and supply pressure. Standard sealing material is NBR (nitrile rubber). The compact design reduces the machining required for equipment mounting and allows flexible positioning with round or magnetic auto switches.
Typical Applications
- Assembly machinery and pick-and-place automation
- Packaging equipment with tight spatial constraints
- Industrial clamping and positioning systems
- Transfer and material handling equipment
- CNC machine tool automation
- Factory automation and conveyor systems
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems using 0.12–1.0 MPa supply pressure
- Manual and solenoid-operated directional control valves (4/3 or 4/2 configurations)
- Pneumatic pressure regulators and flow controls
- ISO 4401 standard valve manifold systems
- Round or magnetic auto-switches (direct mounting)
Replaces / Drop-In Replacement For
The MGPM32- is the slide bearing variant of the MGP compact guide cylinder family. Other bore sizes in the family include MGPM40-, MGPM50-, MGPM63-, MGPM80-, and MGPM100-. Verify your specific stroke length and mounting requirements with the part number (e.g., MGPM32-25Z, MGPM32-50Z, MGPM32-75AZ) before ordering to ensure proper fit and compatibility with your application.
Works With
- SMC air preparation units (filters, regulators, lubricators)
- SMC solenoid valve series (SY3000, SY5000, VF series)
- SMC pneumatic fittings and tubing (Rc1/8″ metric thread)
- Standard industrial pneumatic accessories and manifolds
- Pressure switches and proximity sensors compatible with 1.0 MPa rated cylinders
