Overview

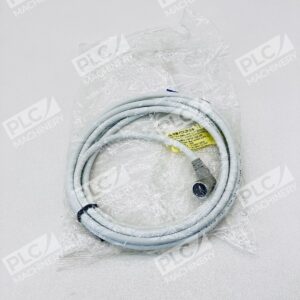

The SMC P398020-501-3 power cable is a purpose-built connector for ITV series electro-pneumatic and electronic vacuum regulators. With its right-angle M12 connector configuration and 3-meter length, this cable simplifies integration into tight spaces and reduces strain on connections. RoHS compliant and factory tested, the P398020-501-3 meets industrial automation standards for consistent performance in pneumatic control systems.
Key Features

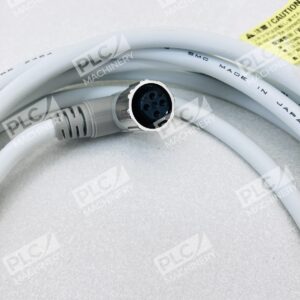

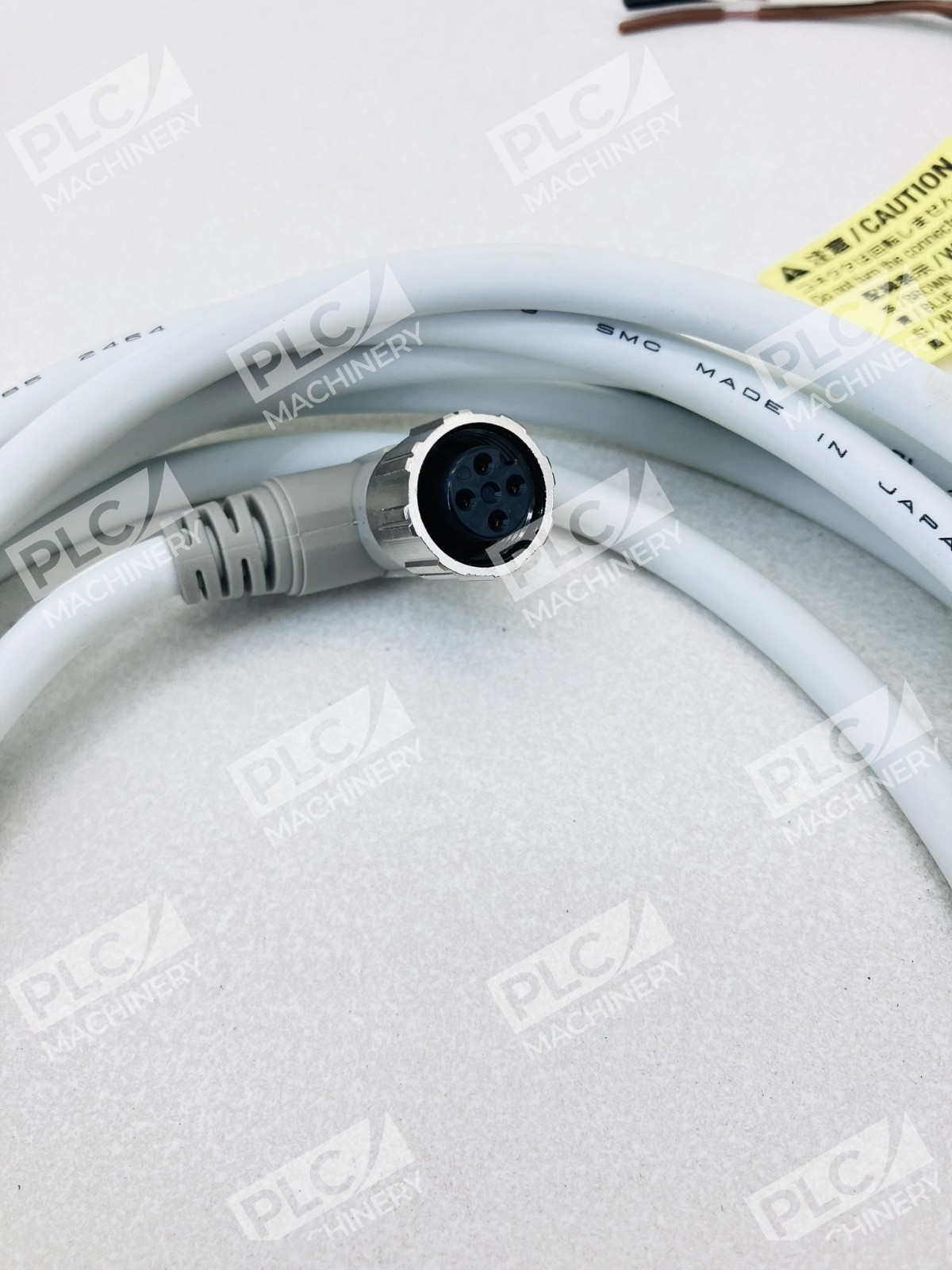

- Right-angle M12 connector minimizes mechanical stress and saves installation space

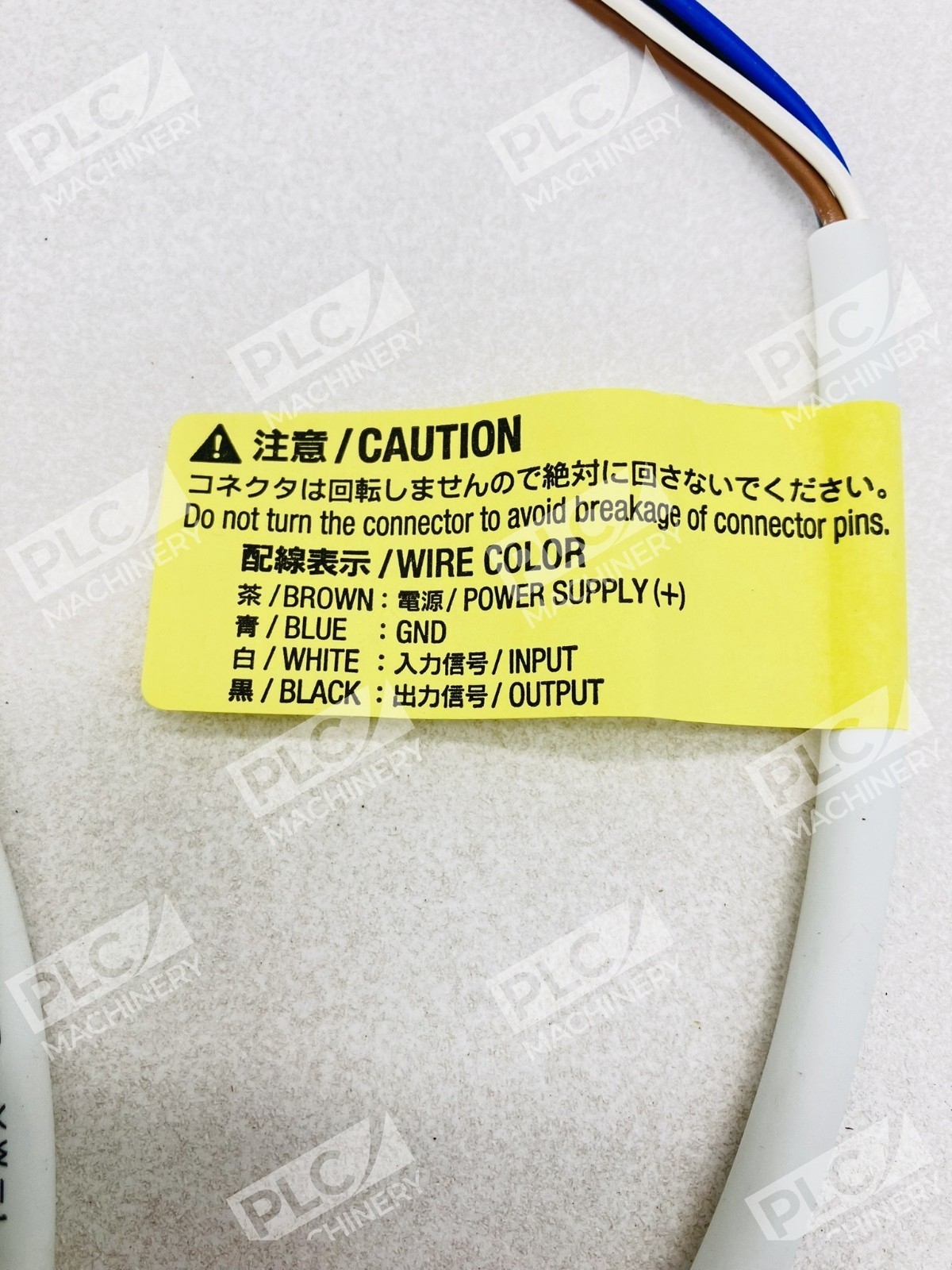

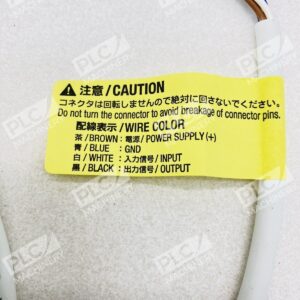

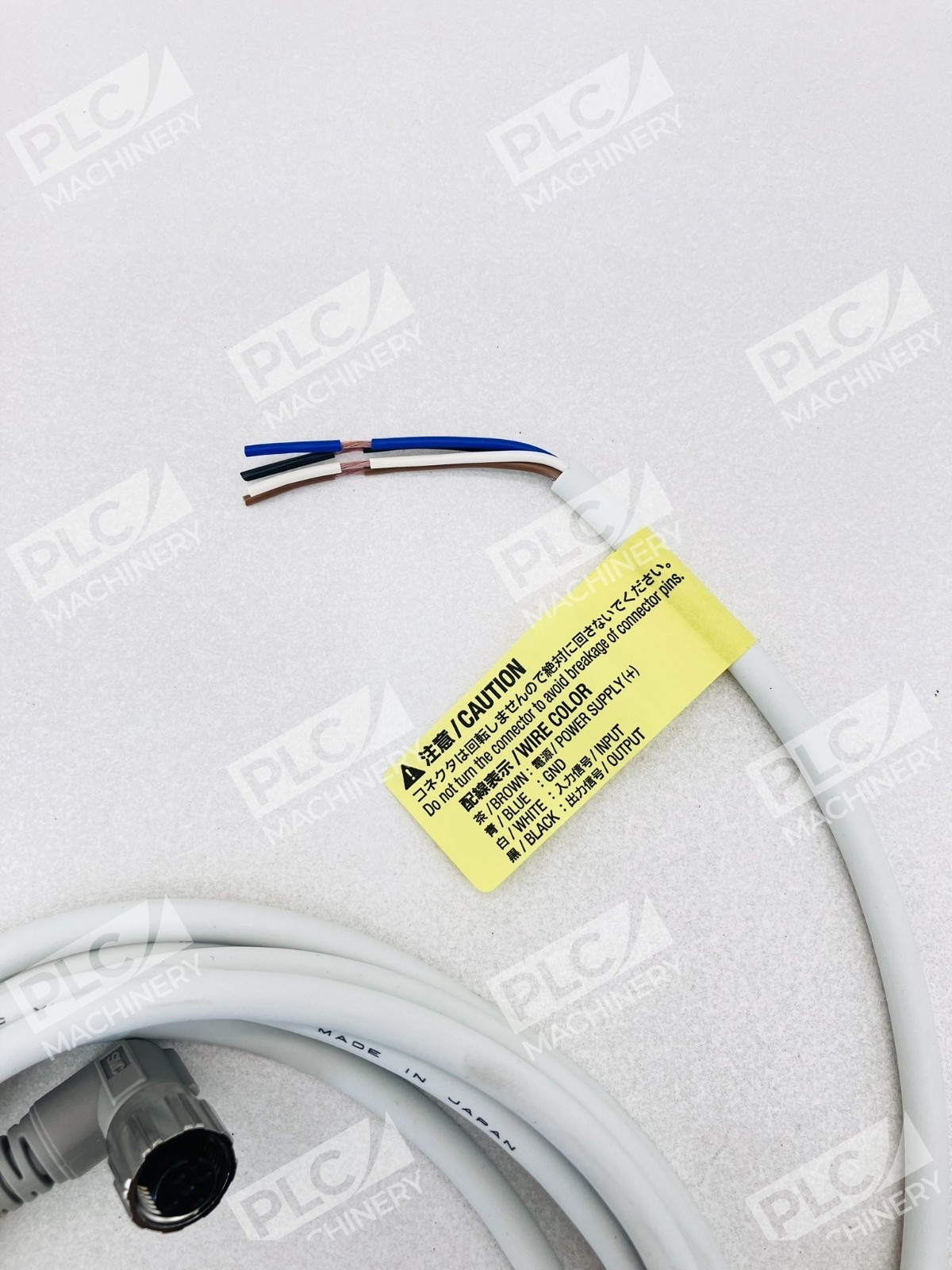

- 4-wire design carries power and signal lines to regulators
- 3-meter cable length accommodates typical control panel and valve mounting distances
- RoHS compliant construction meets environmental and regulatory requirements
- Direct replacement and compatibility verified across ITV regulator series
Technical Specifications
- Model Number: P398020-501-3
- Connector Type: Right-angle M12, 4-wire

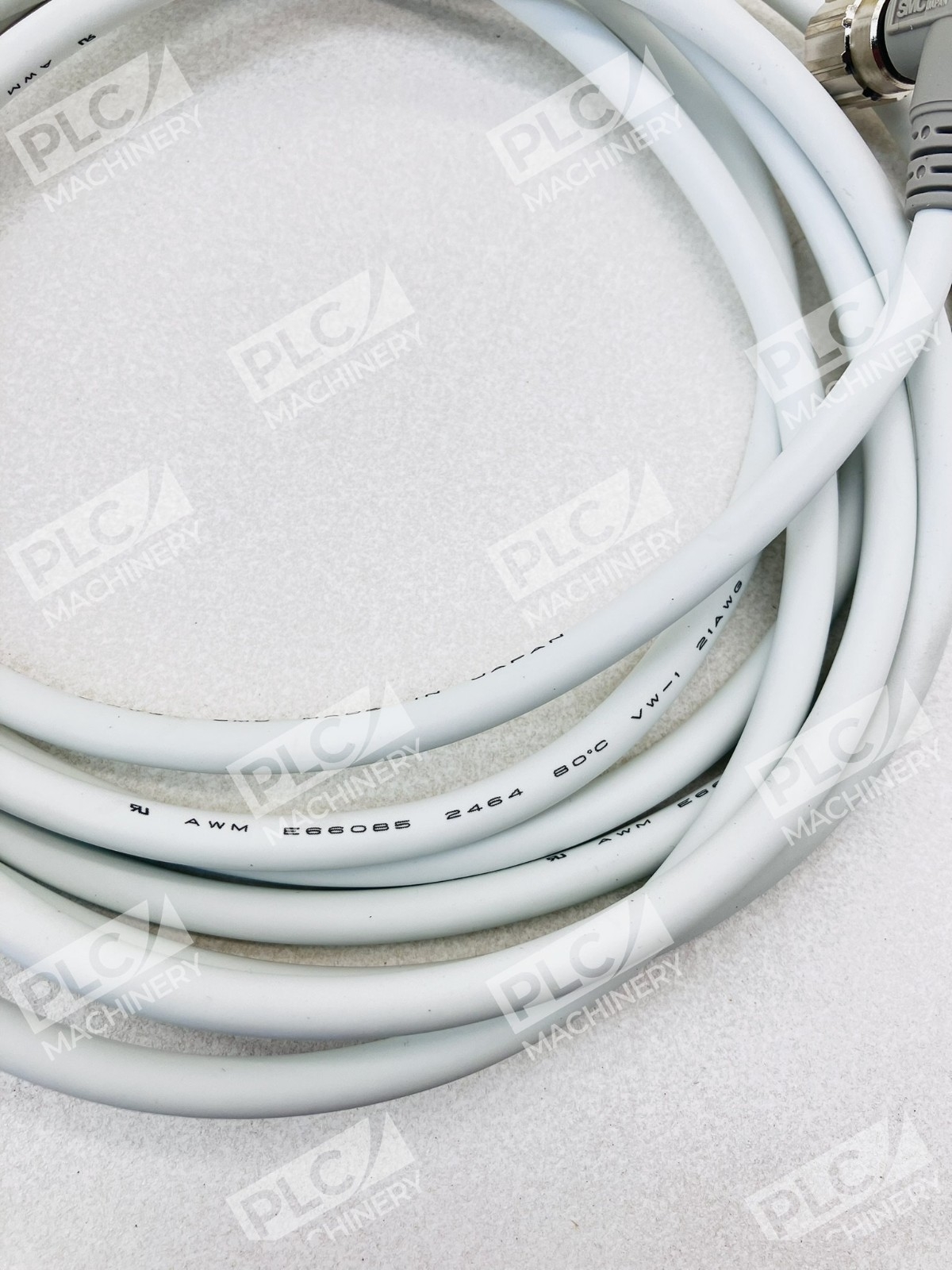

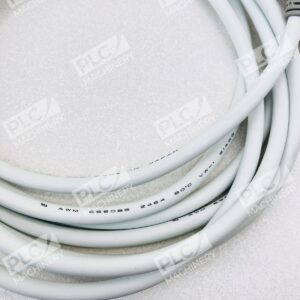

- Cable Length: 3 meters (9.84 feet)
- Wire Count: 4
- Compliance: RoHS
- Manufacturer: SMC Corporation

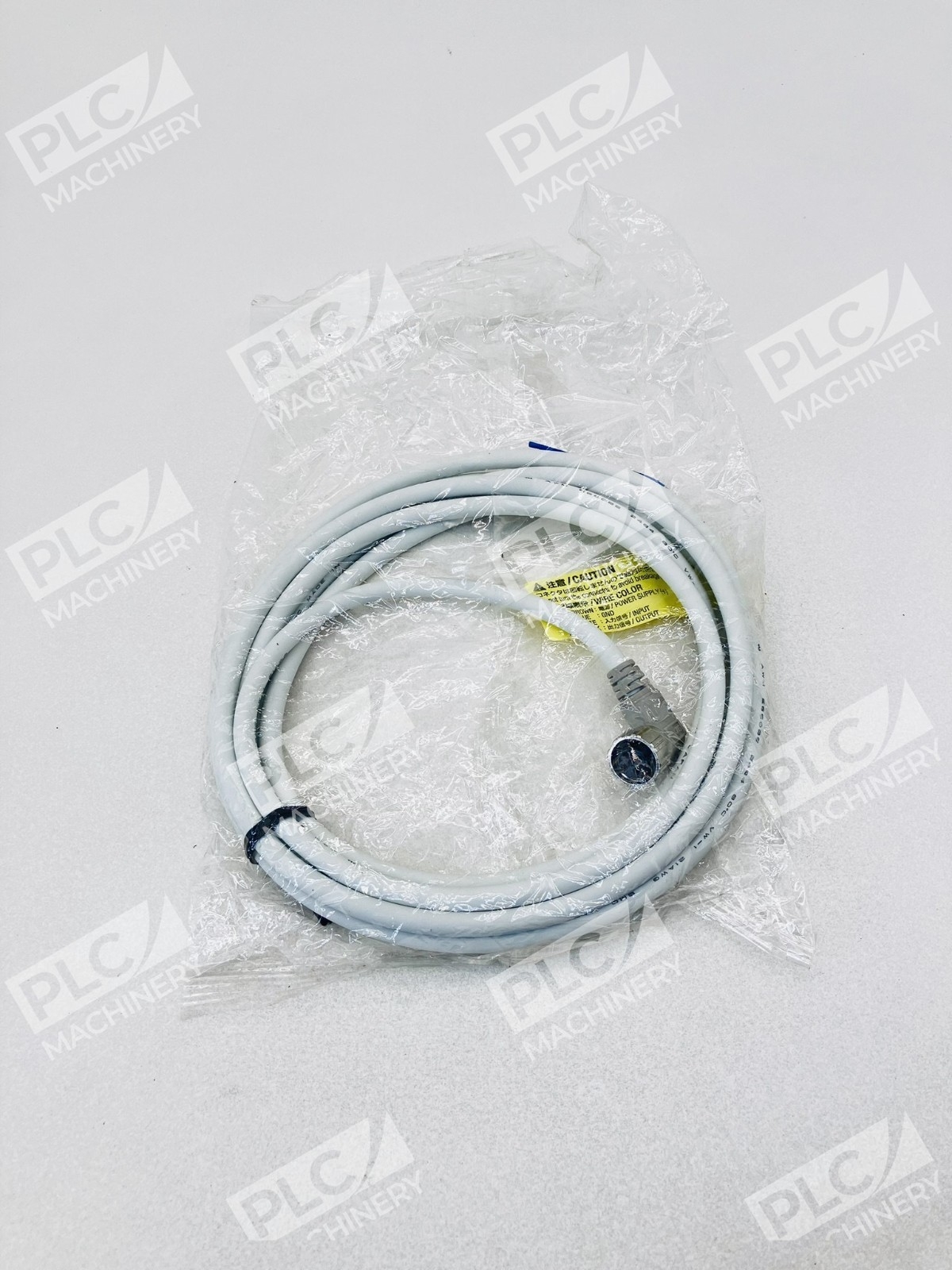

- Condition: New – No Box
- Origin: Japan
Typical Applications
The SMC P398020-501-3 is used to connect ITV series regulators to external power supplies and control systems. Common installations include:
- Electro-pneumatic regulator assemblies in industrial production lines
- Electronic vacuum regulator circuits requiring external power
- Pneumatic pressure control systems with remote panel-mounted regulators
- Automation equipment where space-saving right-angle connectors are required
Compatibility & Replacements
Compatible With
- ITV0000 Series Electro-Pneumatic Regulators
- ITV1000 Series Electro-Pneumatic Regulators
- ITV2000 Series Electro-Pneumatic Regulators
- ITV3000 Series Electro-Pneumatic Regulators
- ITV209 Series Electronic Vacuum Regulators
Replaces / Drop-In Replacement For
The P398020-501-3 is the standard power cable connector for the specified ITV series and configurations. Verify exact part compatibility with your system integrator or SMC documentation before ordering.
Works With
- Industrial pneumatic control systems and manifolds
- PLC and external power supply connections
- M12 connector-equipped regulator assemblies
- Standard 24 VDC pneumatic control circuits
