Overview

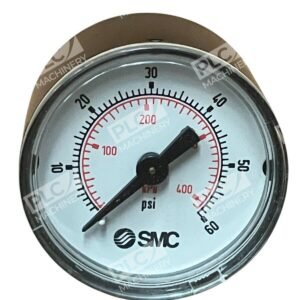

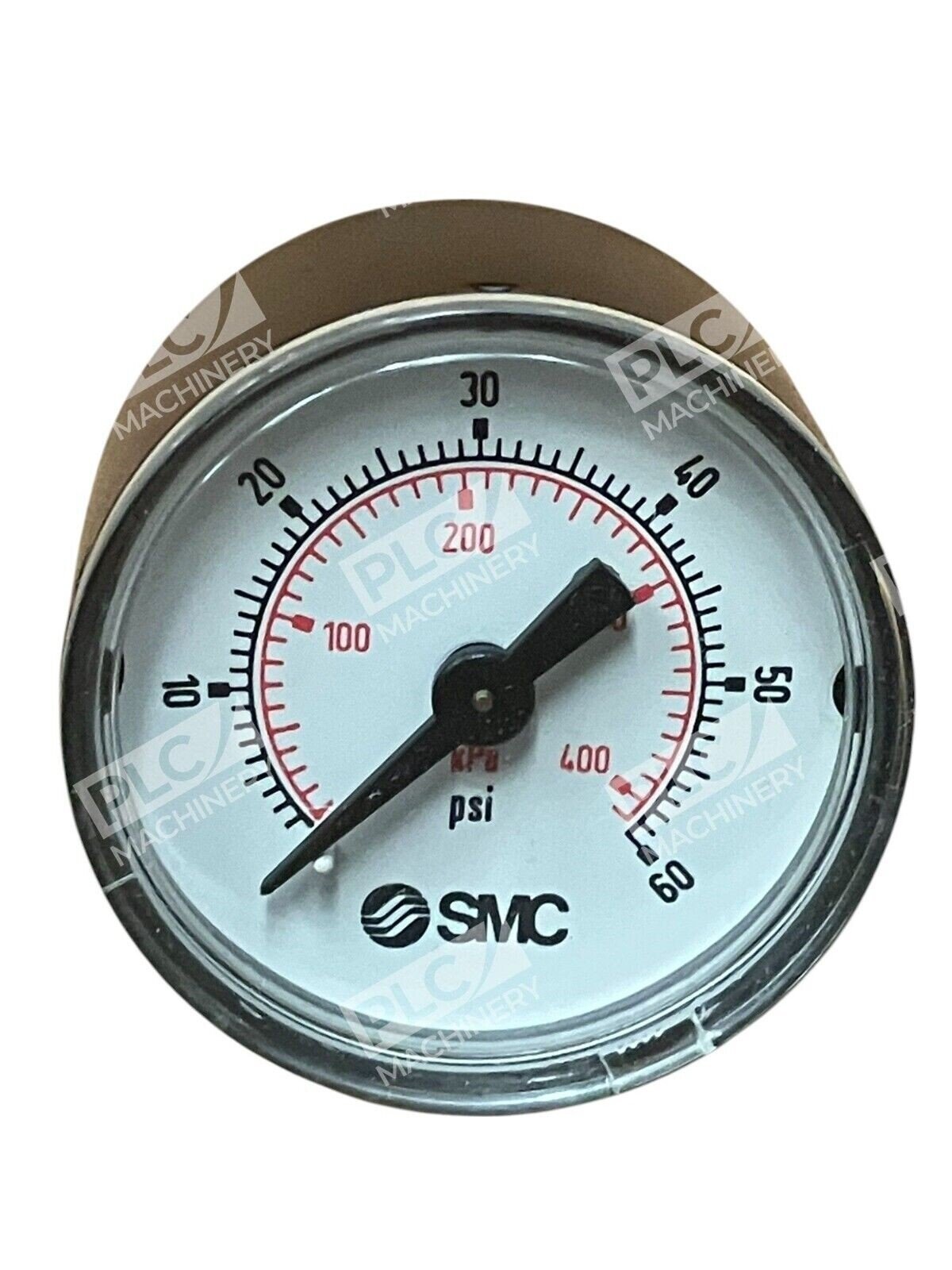

The SMC 9625105 pressure gauge is a compact, general-purpose instrument designed for pneumatic and modular air component systems. With a 0–60 PSI measurement range and 1.5″ diameter dial, this gauge provides reliable, at-a-glance pressure indication for system monitoring and control. Its robust construction ensures consistent performance across industrial pneumatic applications.
Key Features
- 0–60 PSI measurement range — suitable for low- to mid-pressure pneumatic circuits
- 1.5″ (40 mm) dial face — clear readability in compact installation spaces
- Bourdon tube mechanism — proven durability and accuracy for pneumatic systems
- Brass wetted parts — compatible with compressed air and many industrial fluids
- Back or panel-mountable — flexible installation on regulators, manifolds, or system panels
- ±5% full-scale accuracy — meets standard industrial measurement tolerances
Technical Specifications
- Model Number: 9625105
- Pressure Range: 0–60 PSI
- Dial Size: 1.5″ (40 mm) diameter
- Indication Accuracy: ±5% full-scale
- Internal Components: Brass Bourdon tube and movement
- Case Material: ABS plastic
- Thread Material: Brass
- Operating Temperature Range: 23°C ±5°C (guaranteed)
- Maximum Temperature (transient): 80°C (avoid freezing)
- Fluid Compatibility: Compressed air; consult SMC for other fluids
- Installation Method: Back mount or panel mount (with optional adapter ring)
Typical Applications
- Pneumatic system pressure monitoring and diagnostics
- Modular air regulator assemblies and FRL units
- Industrial automation and process control circuits
- Manufacturing equipment and machine tools
- Test benches and laboratory pneumatic setups
- Maintenance technician rapid pressure checks
Compatibility & Replacements
Compatible With
- SMC modular pneumatic regulators (G, GA, GR series)
- Standard pneumatic manifold systems with back or side-mount ports
- Compressed air lines and general industrial pneumatic networks
- Panel-mounted control systems (with optional mounting adapter)
Replaces / Drop-In Replacement For
The SMC 9625105 is a standard catalog gauge. For compatibility with legacy equipment or specific system replacements, verify the original gauge model, pressure range, and thread size with your system documentation or contact SMC technical support.
Works With
- SMC pneumatic FRL (Filter-Regulator-Lubricator) components
- Standard ISO 228 and NPT thread ports
- Back-mount, bottom-mount, and side-mount regulator configurations
- Compressed air systems up to the maximum rated pressure
