SMC MGPM12-50Z 12MM Bore Compact Guided Cylinder

SMC MGPM12-50Z 12mm Bore Compact Guided Cylinder

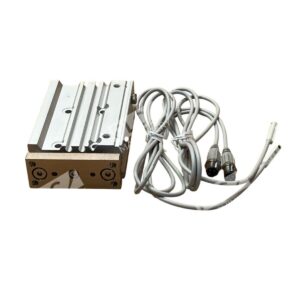

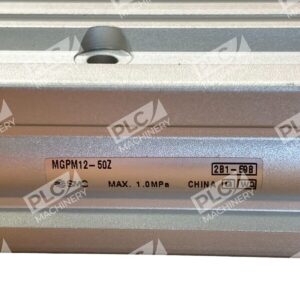

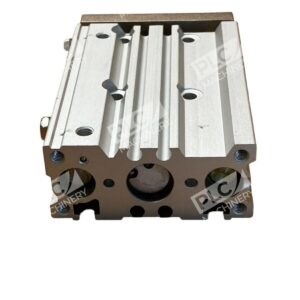

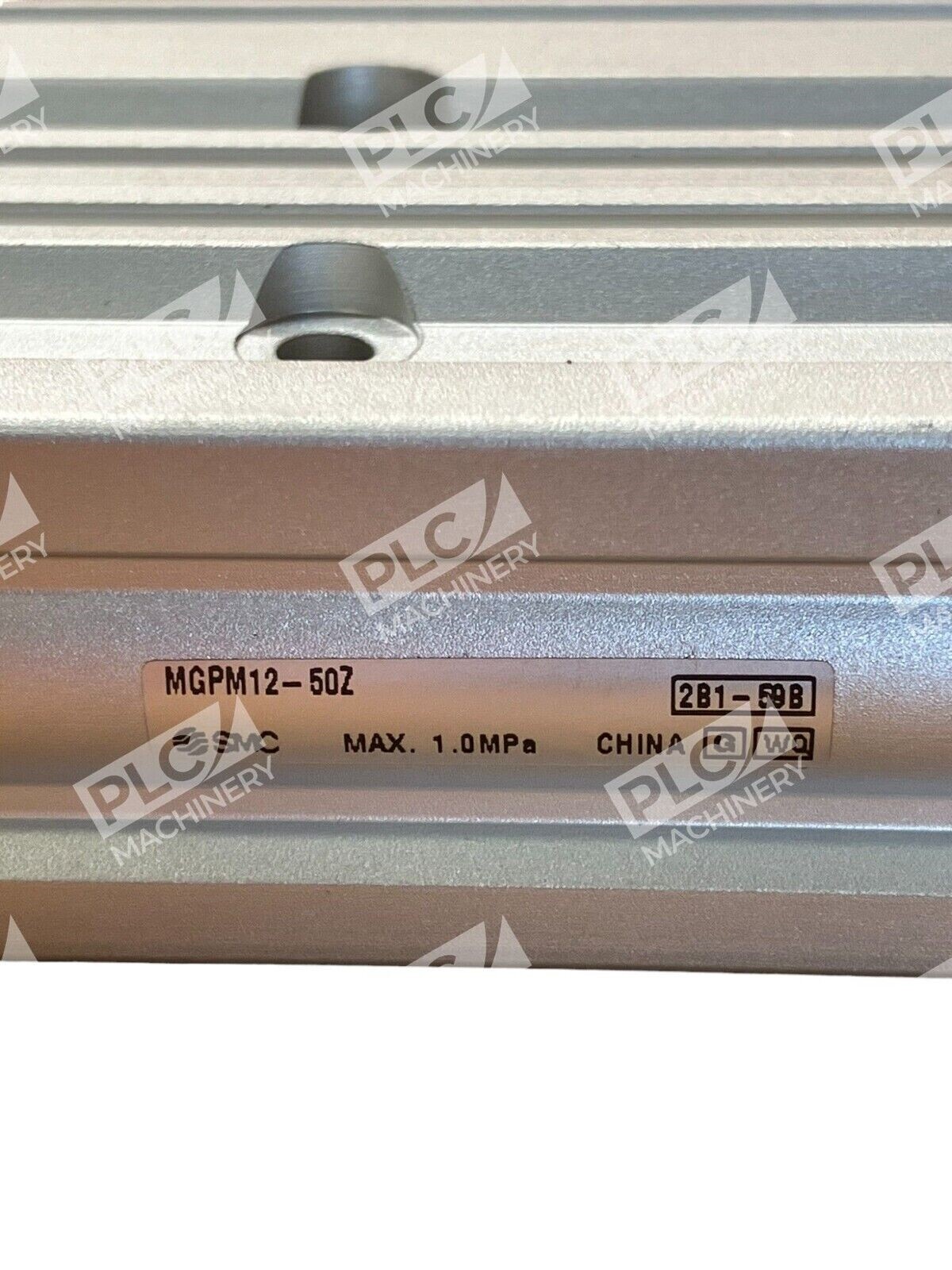

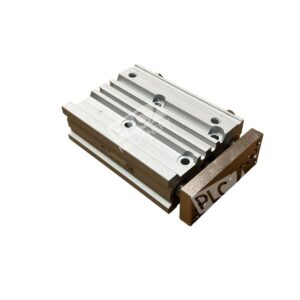

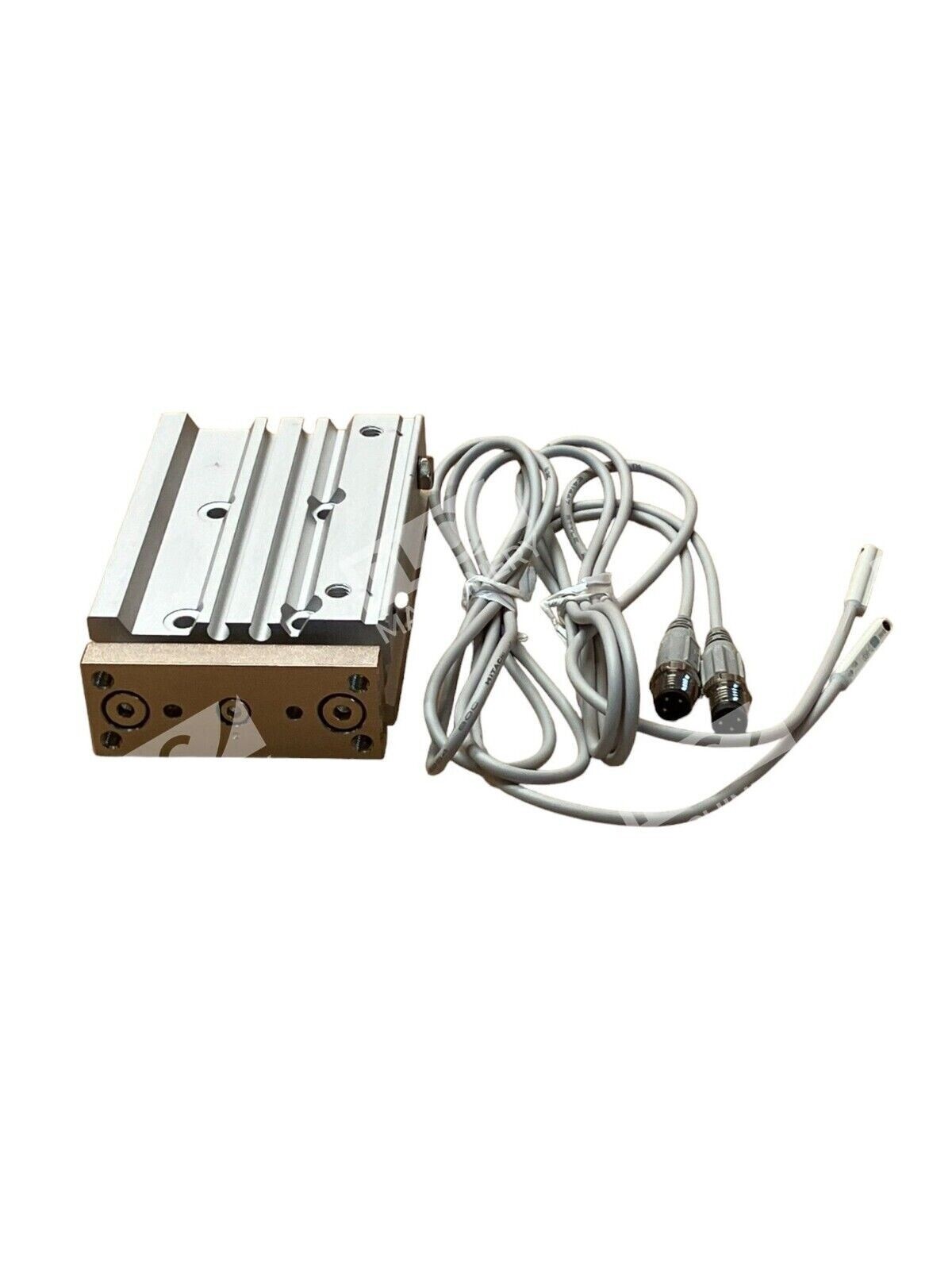

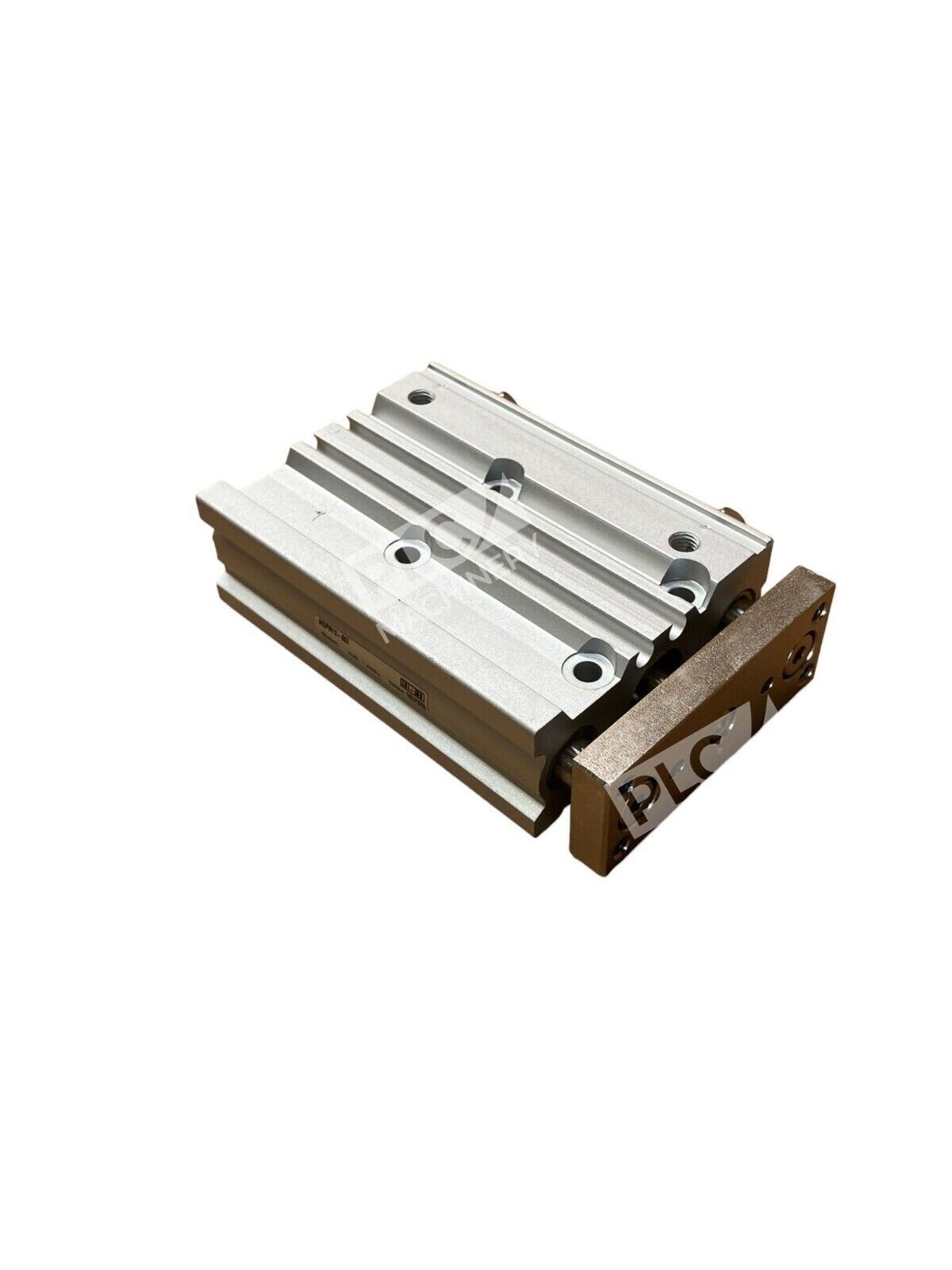

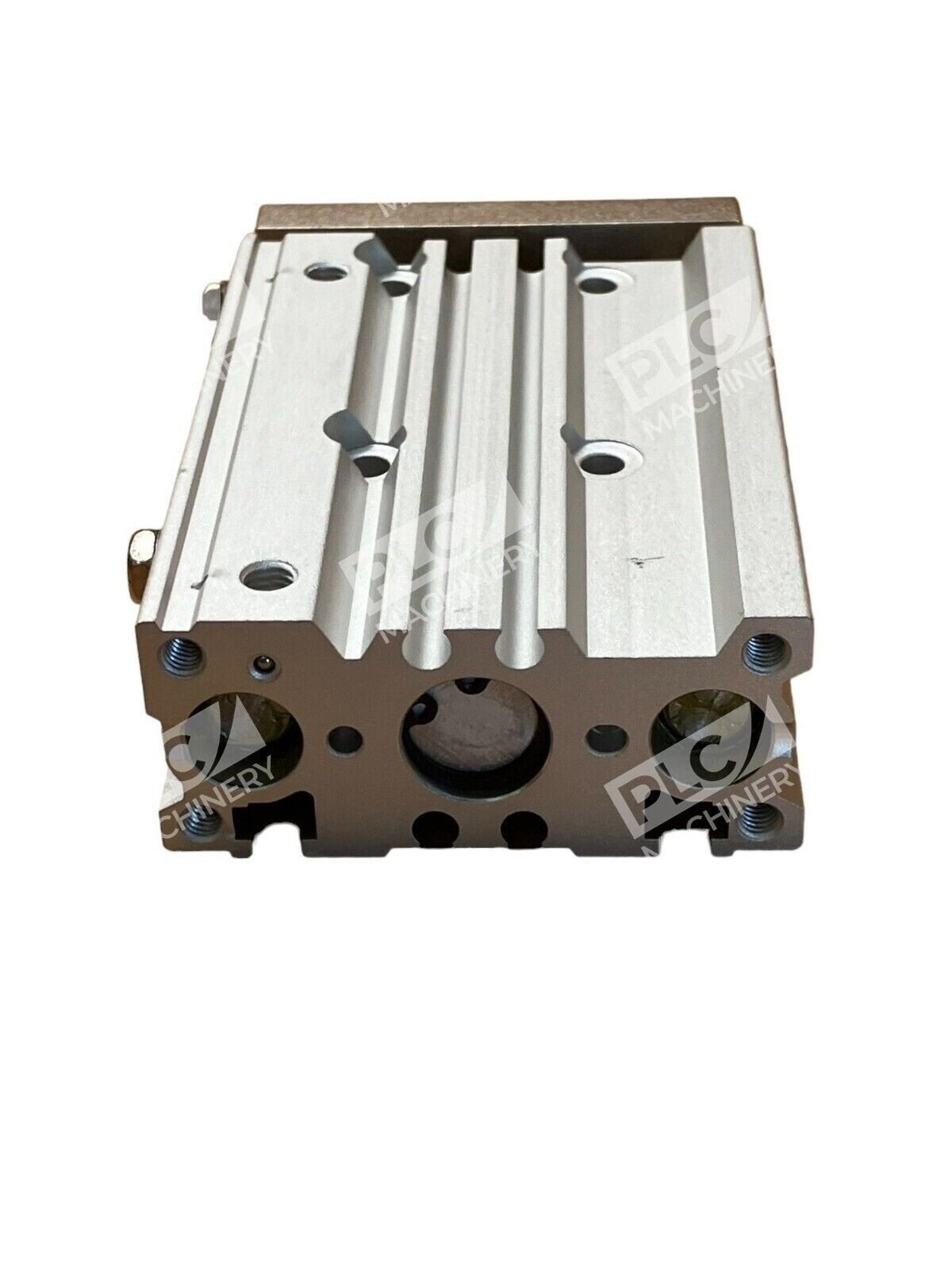

The SMC MGPM12-50Z is a compact guided cylinder designed to deliver precise linear motion in applications where space is limited. Featuring a 12mm bore and a 50mm stroke, this double-acting cylinder integrates internal guide shafts to enhance stability and performance.

Key Features

• Compact Design: The MGPM12-50Z’s reduced weight and shorter guide rods minimize the space required between the cylinder body and equipment, making it ideal for applications with space constraints.
• Enhanced Stability: Equipped with slide bearings, the cylinder offers lateral stability and protection against side load impacts, ensuring reliable operation in various industrial settings.
• Versatile Auto-Switch Options: The cylinder supports the direct mounting of round-type and magnetic field-resistant auto switches without the need for spacers, providing flexibility in automation setups.

Specifications

• Bore Size: 12 mm
• Stroke Length: 50 mm
• Port Thread Type: M5 x 0.8
• Maximum Operating Pressure: 1 MPa
• Maximum Operating Temperature: 60°C
• Overall Width: 22 mm
• Overall Height: 58 mm
• Weight: 360 g

The SMC MGPM12-50Z compact guided cylinder is engineered for applications requiring precise and stable linear motion within confined spaces, making it a reliable choice for various industrial automation tasks.
