Overview

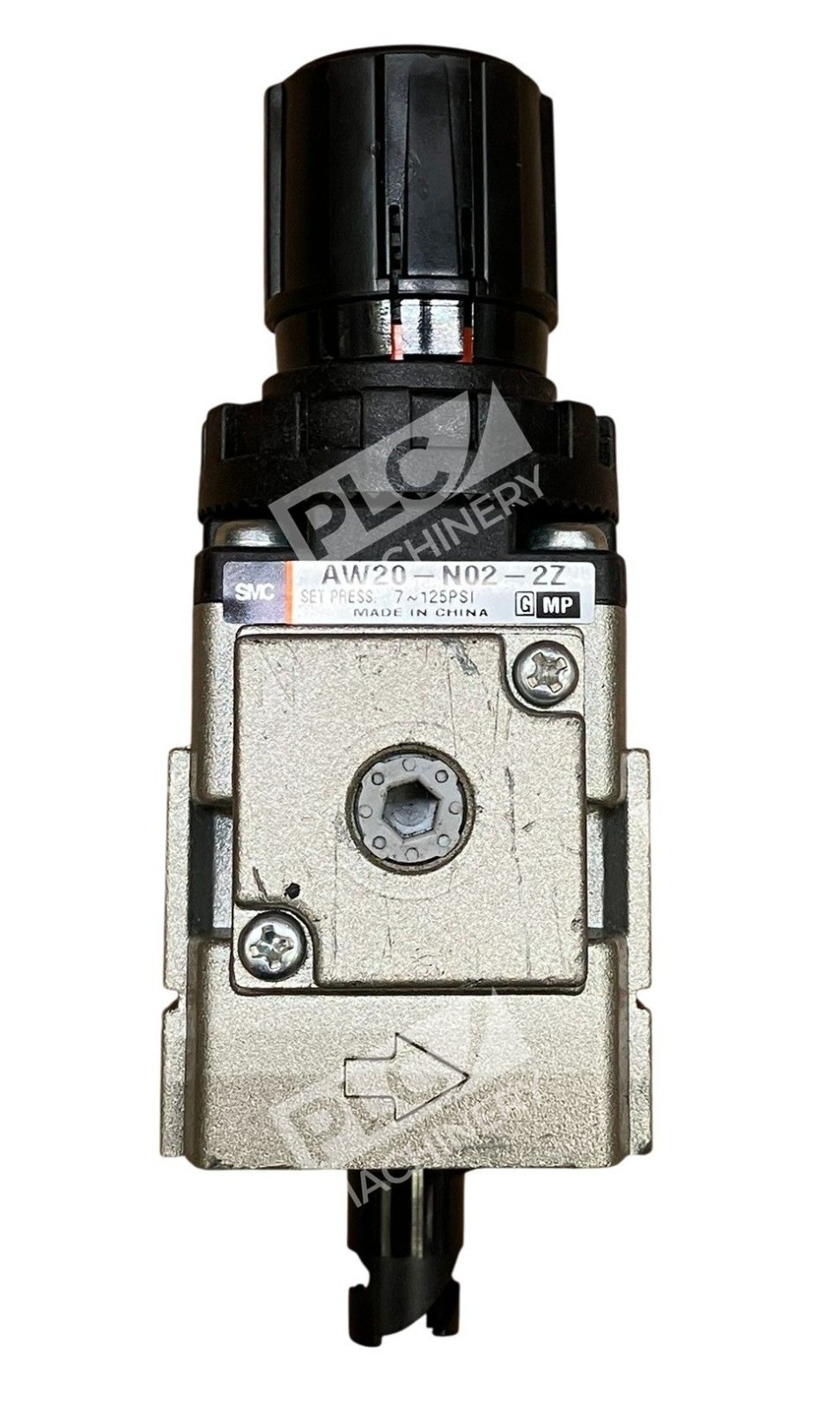

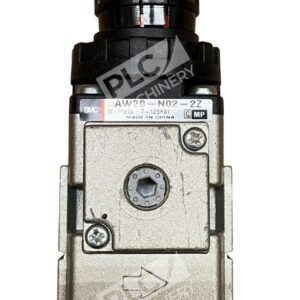

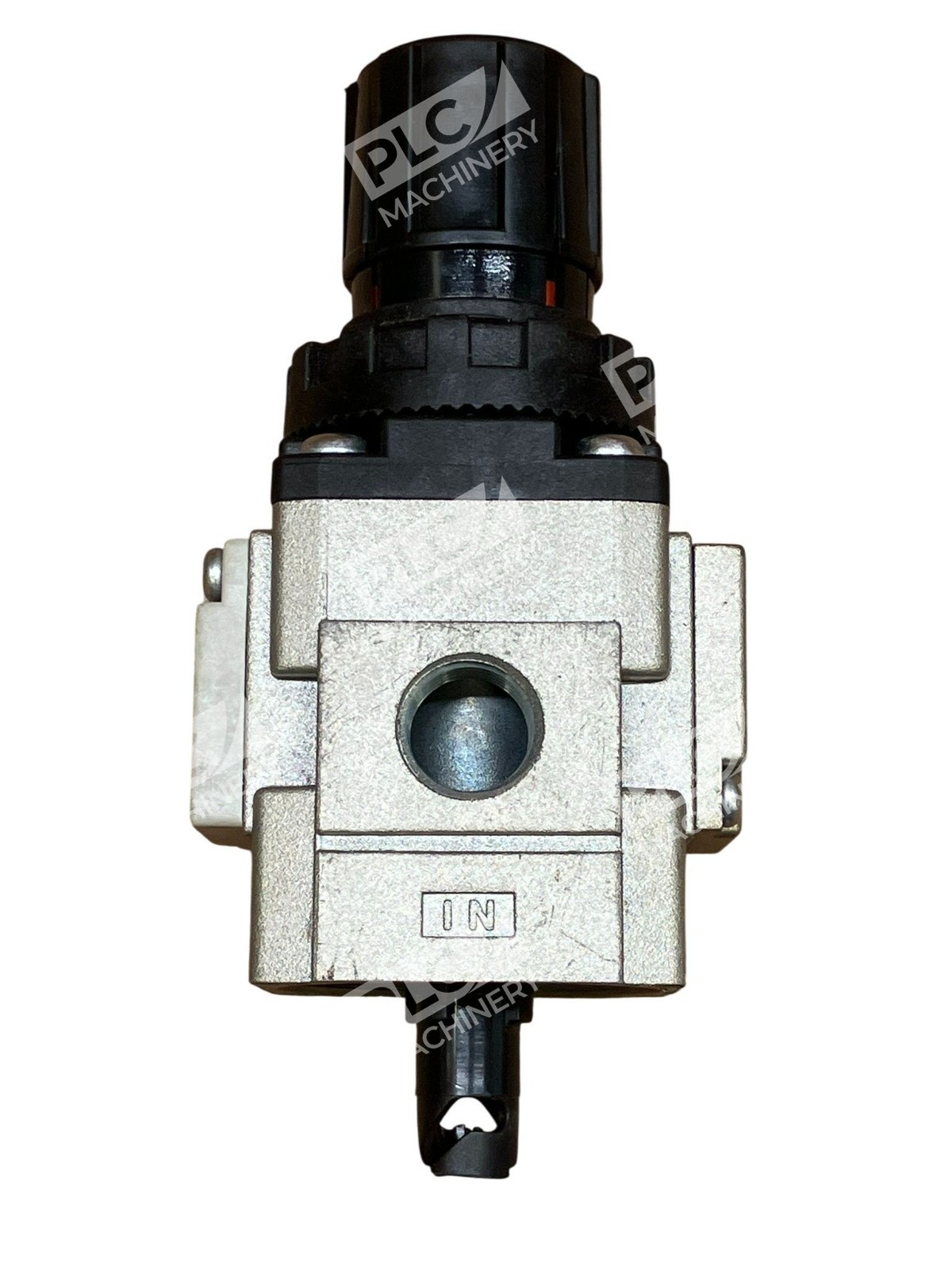

The SMC AW20-N02-2Z is a modular-type pneumatic filter regulator designed to integrate air filtration and pressure regulation into a single compact unit. This combination approach minimizes space requirements and reduces piping complexity in industrial compressed air systems. The unit features a metal bowl construction and is rated for operation up to 125 PSI, making it suitable for general industrial pneumatic applications.
Key Features
- Modular design integrates filter and regulator in one compact unit

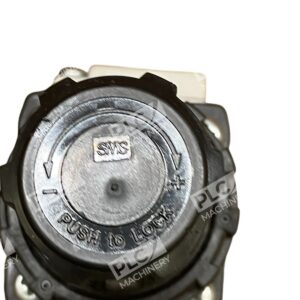

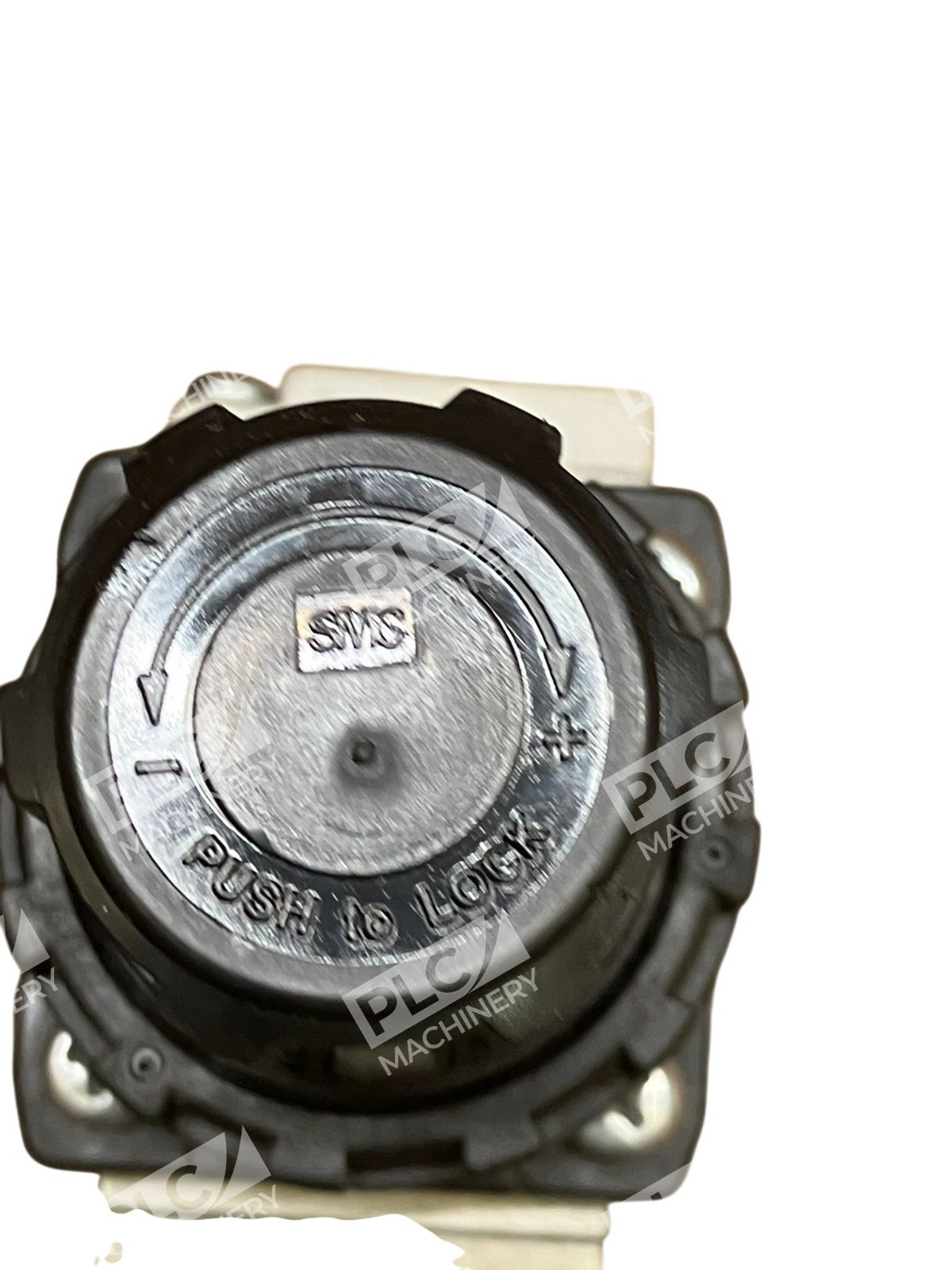

- Fast-lock adjustment knob for quick pressure setting and locking
- Metal bowl construction resists damage from frequent charge/discharge cycles

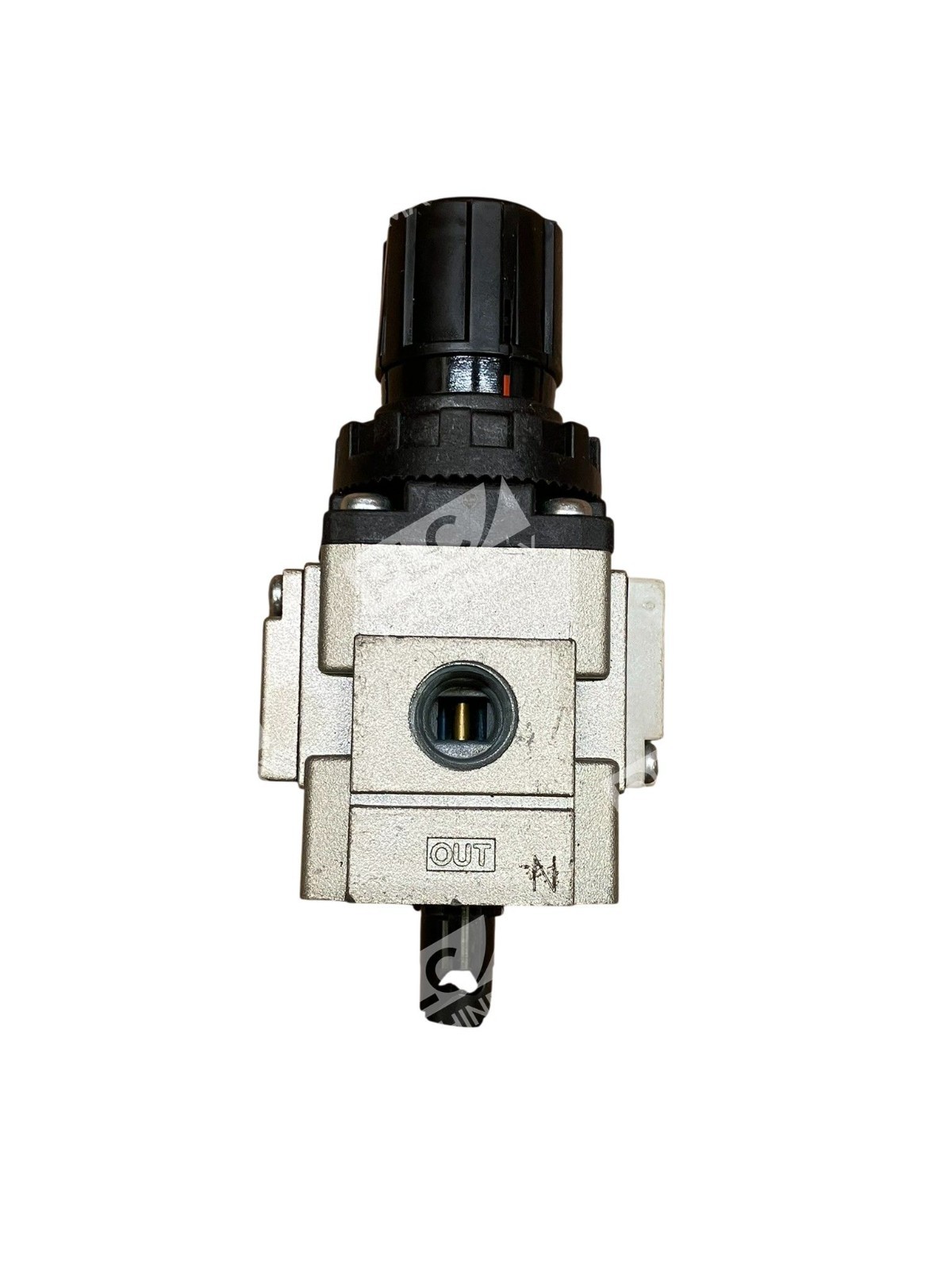

- 1/4″ NPT female ports for standard industrial piping connections
- Relieving-type exhaust mechanism for controlled pressure relief
- Compatible with optional gauges, auto-drain, and pressure switch accessories
Technical Specifications
- Body Size: 20 (compact)
- Port Size: 1/4″ (02 designation)
- Thread Type: NPT (National Pipe Thread)

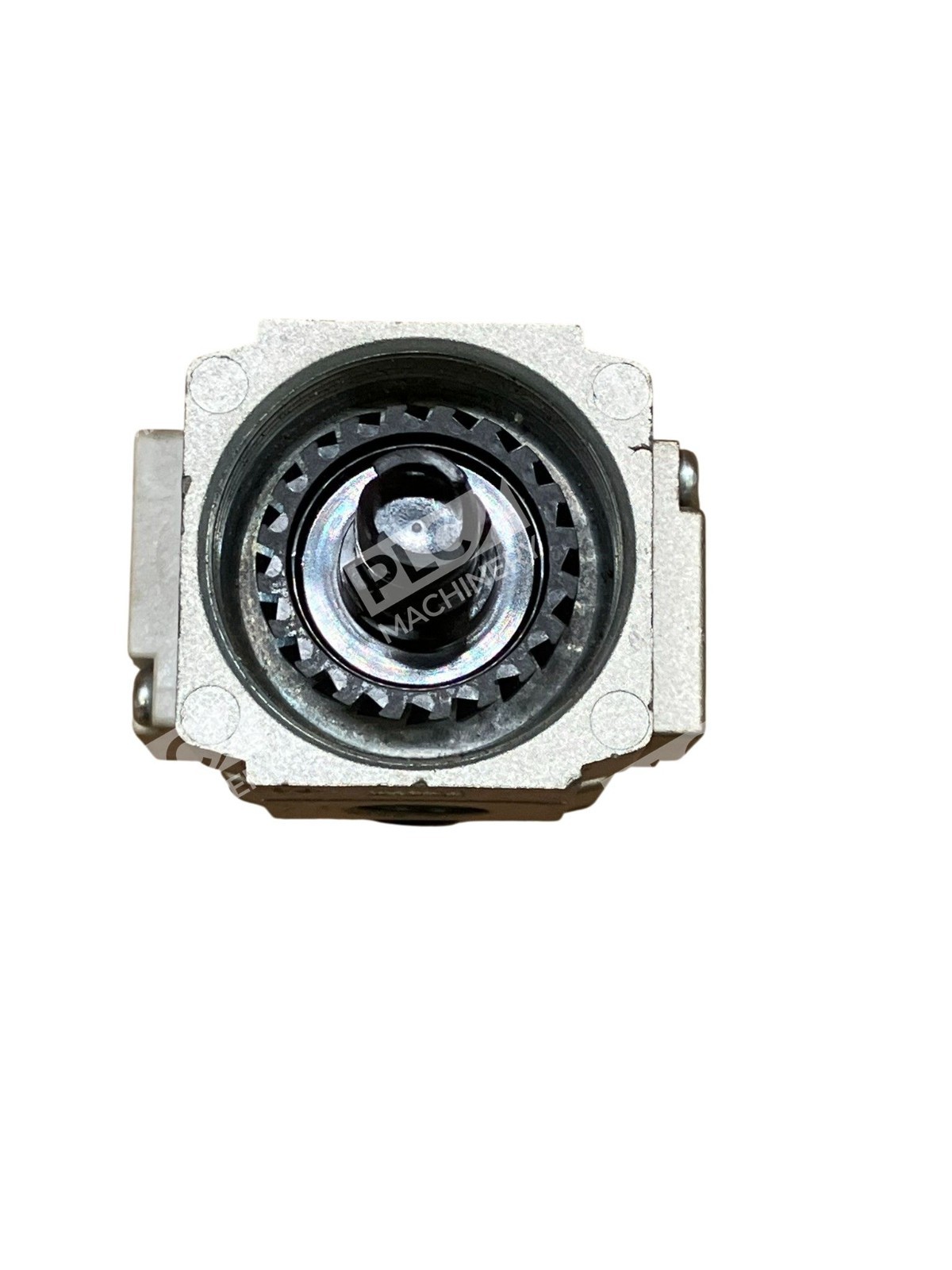

- Bowl Material: Metal

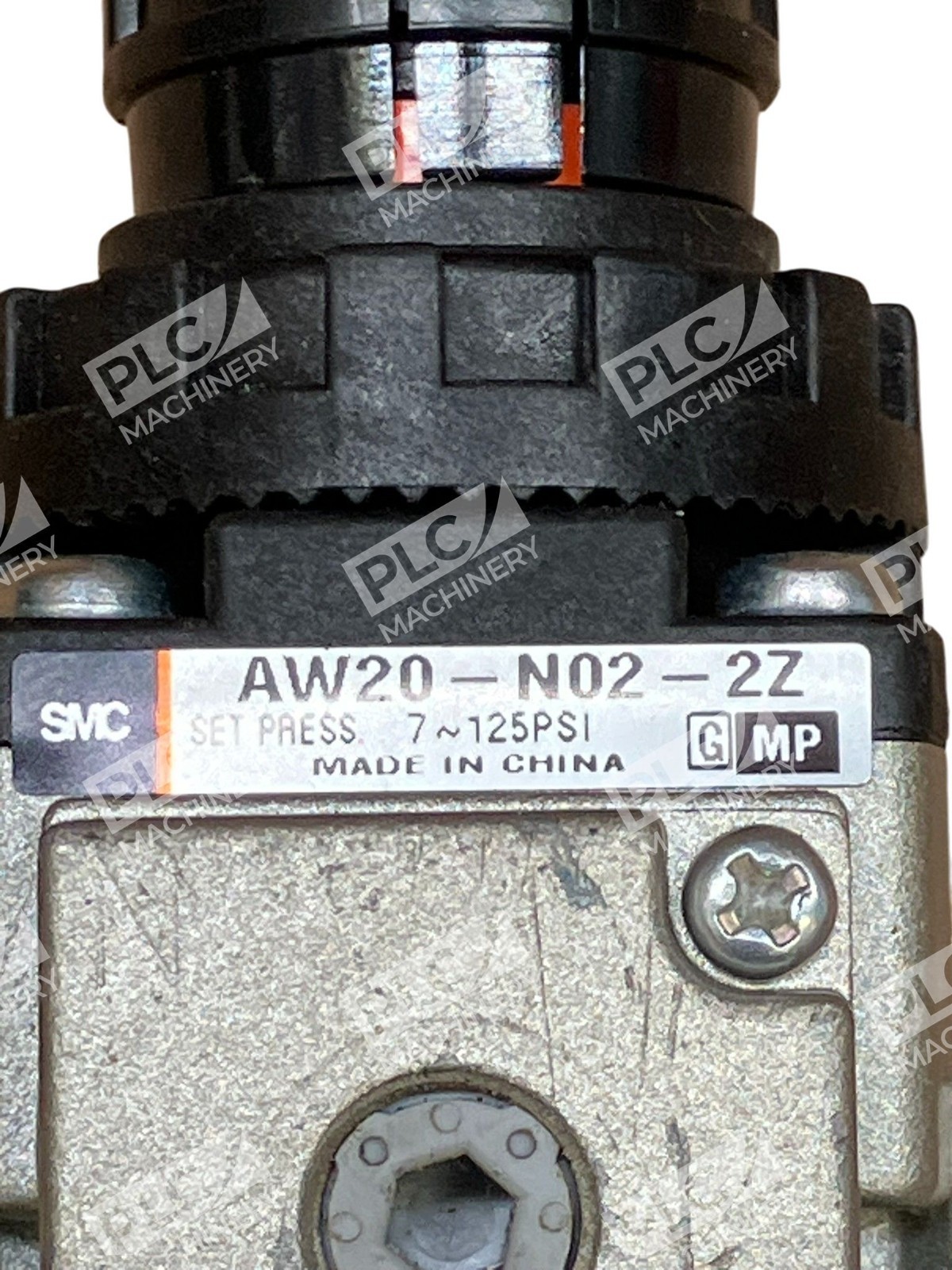

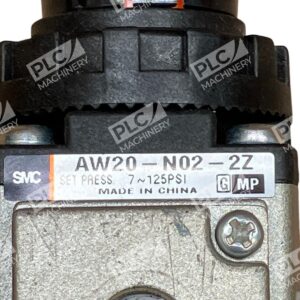

- Maximum Set Pressure: 125 PSI (0.85 MPa)
- Minimum Set Pressure: 5 PSI (0.05 MPa)
- Filtration Rating: Available in 5, 10, 20, 40, 70, or 100 micron options
- Exhaust Mechanism: Relieving type
- Flow Direction: Left to right
- Backflow: Standard without backflow function
- Weight: 0.45 lb
Typical Applications
- General industrial pneumatic systems requiring air preparation
- Machine tool air supply lines and automatic equipment
- Production facilities with space-constrained air line installations
- Systems requiring integrated filtration and pressure regulation
- Pneumatic component protection in manufacturing environments
Compatibility & Replacements
Compatible With
- Standard pneumatic systems operating at 5 to 125 PSI
- Industrial compressed air networks with NPT port connections
- SMC modular air preparation unit family (can combine with similar-sized products)
- Manual pressure adjustment applications
Replaces / Drop-In Replacement For
- SMC AW20 series filter regulators with equivalent specifications
- Verify exact compatibility with your system integrator before ordering
Works With
- SMC pressure gauges and limit indicators (optional)
- SMC auto-drain cartridges (optional)
- Standard pneumatic tubing with 1/4″ NPT female ports
- Compressed air systems compliant with ISO 4414 pneumatic standards
