Overview

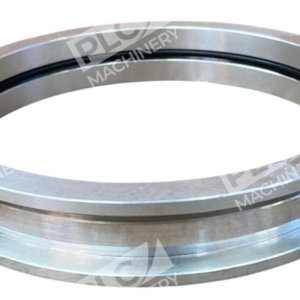

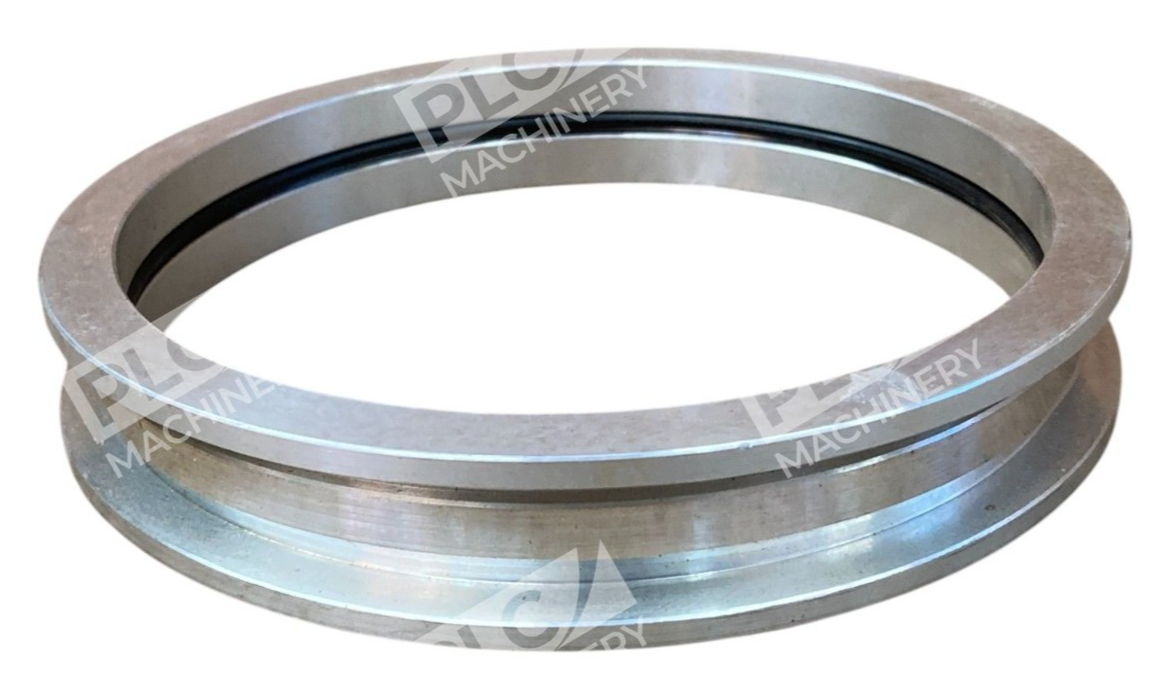

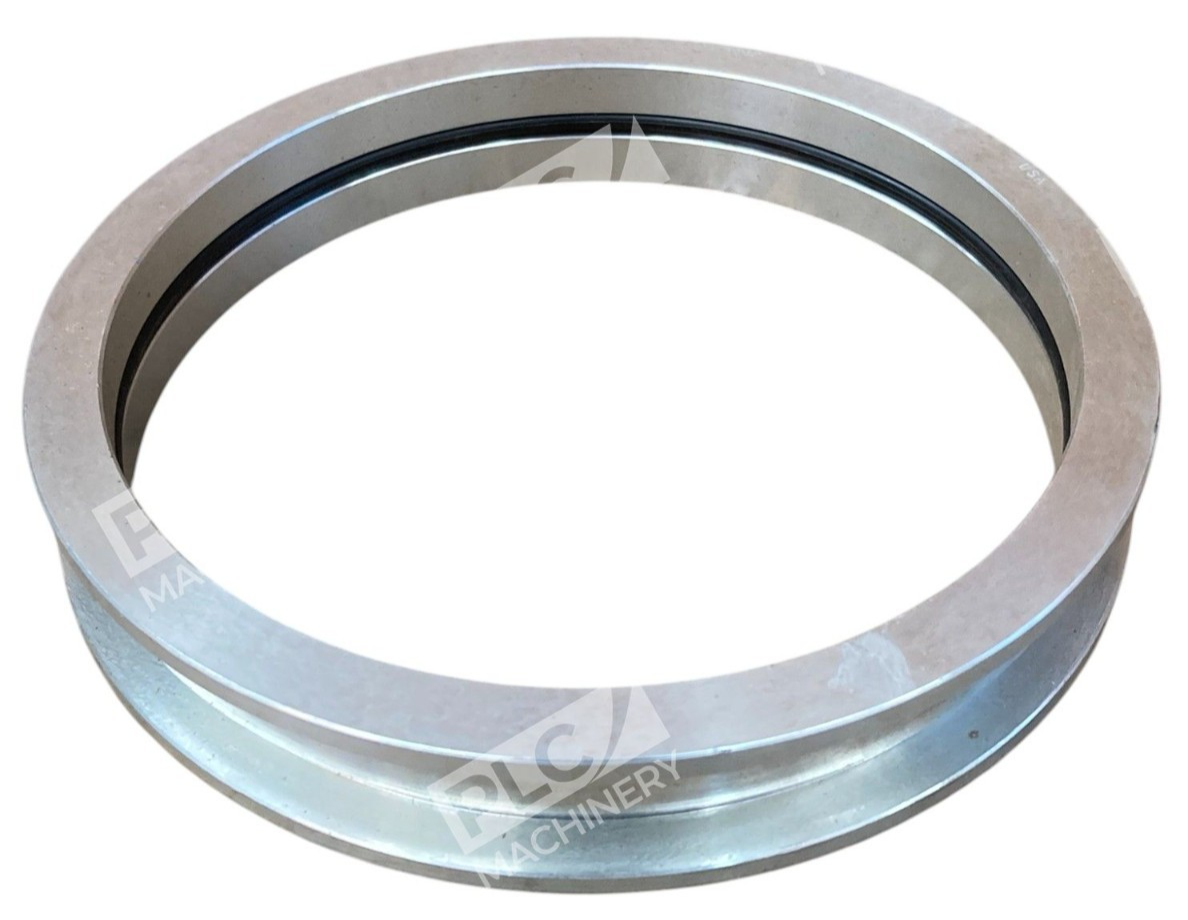

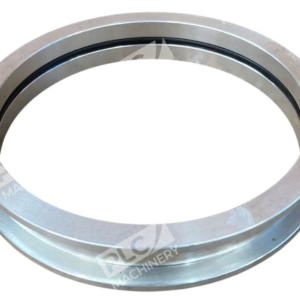

The SKF LOR130 is a PosiTrac labyrinth bearing seal engineered for pedestal-type bearing housings in industrial motion control and rotating machinery applications. This aluminum-constructed seal delivers multi-stage labyrinth protection, isolating internal bearings from external contamination, moisture, and dust ingress. SKF’s precision engineering ensures the seal operates concentrically with the shaft, maintaining effective sealing performance across extended service intervals.
Key Features
- Multi-stage labyrinth design for enhanced sealing effectiveness
- Aluminum construction for lightweight and corrosion-resistant performance
- Bore diameter of 5 7/16 inches (138 mm) for standard pedestal housing applications
- O-ring bore design enables seal rotation with the shaft for reduced wear
- No lubrication required; dry-running design minimizes maintenance
- SKF PosiTrac technology ensures consistent, reliable sealing
Technical Specifications
- Bore Diameter: 5 7/16 inches (138 mm)
- Material: Aluminum
- Seal Type: Labyrinth (PosiTrac)
- Design: Multi-stage with integral O-ring
- Mounting: Pedestal bearing housing groove
- UPC Code: 7316571316994
Typical Applications
- Pillow block and pedestal bearing housings
- Industrial fan and pump drives
- Motor mounting assemblies
- Conveyor system bearings
- Heavy-duty rotating equipment requiring contamination protection
- Agricultural and construction machinery bearing protection
Compatibility & Replacements
Compatible With
- SKF pedestal bearing housings designed for LOR-series seals
- Standard 138 mm (5 7/16 inch) bore diameter bearing applications
- Industrial pillow block assemblies requiring labyrinth sealing
- Rotating shaft applications up to standard industrial speeds
Replaces / Drop-In Replacement For
- Verify compatibility with your equipment documentation or bearing housing manufacturer before ordering. Use SKF’s cross-reference tools or contact distributor technical support to confirm exact replacement suitability.
Works With
- SKF mounted bearing units and pillow block housings
- Standard ISO-standardized bearing housing grooves
- Shaft diameters compatible with 138 mm bore pedestal housings
- Industrial bearing maintenance and predictive condition monitoring systems
