Overview
The SKF 6309JEM is a high-performance, non-shielded deep groove ball bearing engineered for demanding industrial applications. Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. The 6309 JEM Bearing is constructed with a single row of balls, a deep groove raceway in the outer ring, and is known for its robustness and durability. This lot of three bearings provides a reliable power transmission solution for machinery requiring consistent, efficient operation.
Key Features
- Single-row deep groove design for optimized radial and axial load handling
- High load-carrying capacity: it can support heavier radial loads compared to other types of ball bearings
- Non-shielded open closure for easy inspection and relubrication
- Capable of handling both radial and axial loads simultaneously
- Steel construction with precision-ground raceways for accurate performance
- Low friction operation reduces noise and vibration in rotating equipment
Technical Specifications
- Bore Diameter (Inner): 45 mm
- Outer Diameter: 100 mm
- Width (Thickness): 25 mm
- Basic Dynamic Load Rating: 55.3 kN
- Basic Static Load Rating: 31.5 kN
- Reference Speed: 15,000 r/min
- Bearing Type: Single-row deep groove ball bearing
- Closure Type: Non-shielded (open)
- Series: SKF 63 Series

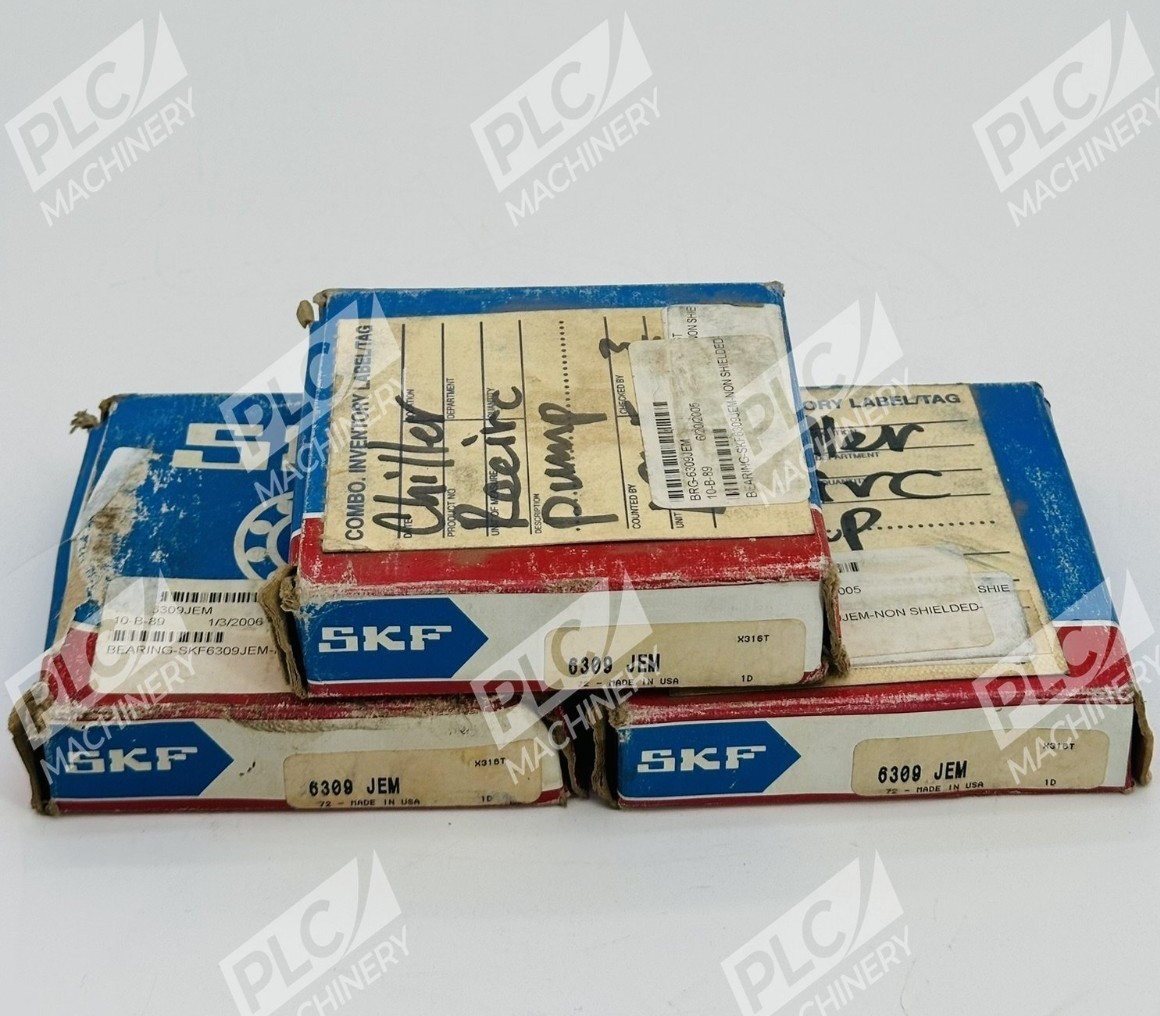

- Quantity: 3 units per lot
Typical Applications
The SKF 6309JEM is commonly used in:
- Electric motor assemblies and rotating machinery
- Gearboxes and power transmission equipment
- Industrial pumps and compressors
- HVAC systems and ventilation units
- Conveyor systems and material handling equipment
- Machine tool spindles and precision equipment
Compatibility & Replacements
Compatible With
- Standard shaft sizes 45mm bore diameter
- Housing sizes designed for 100mm outer diameter bearings
- Industrial equipment and machinery operating at reference speeds to 15,000 rpm
- Applications requiring non-shielded, open-closure bearing configurations
- Standard industrial bearing housings and pillow blocks
Replaces / Drop-In Replacement For
- Other SKF 6309 series open-closure bearings with equivalent dimensions
- Non-shielded deep groove ball bearings with identical bore/OD/width specifications
- Standard 45mm x 100mm x 25mm deep groove ball bearing applications
Works With
- Standard bearing housings rated for 45mm bore diameter
- Industrial equipment with open lubrication systems
- High-speed rotating machinery requiring precision bearings
- Maintenance-accessible bearing installations requiring periodic relubrication
