Overview

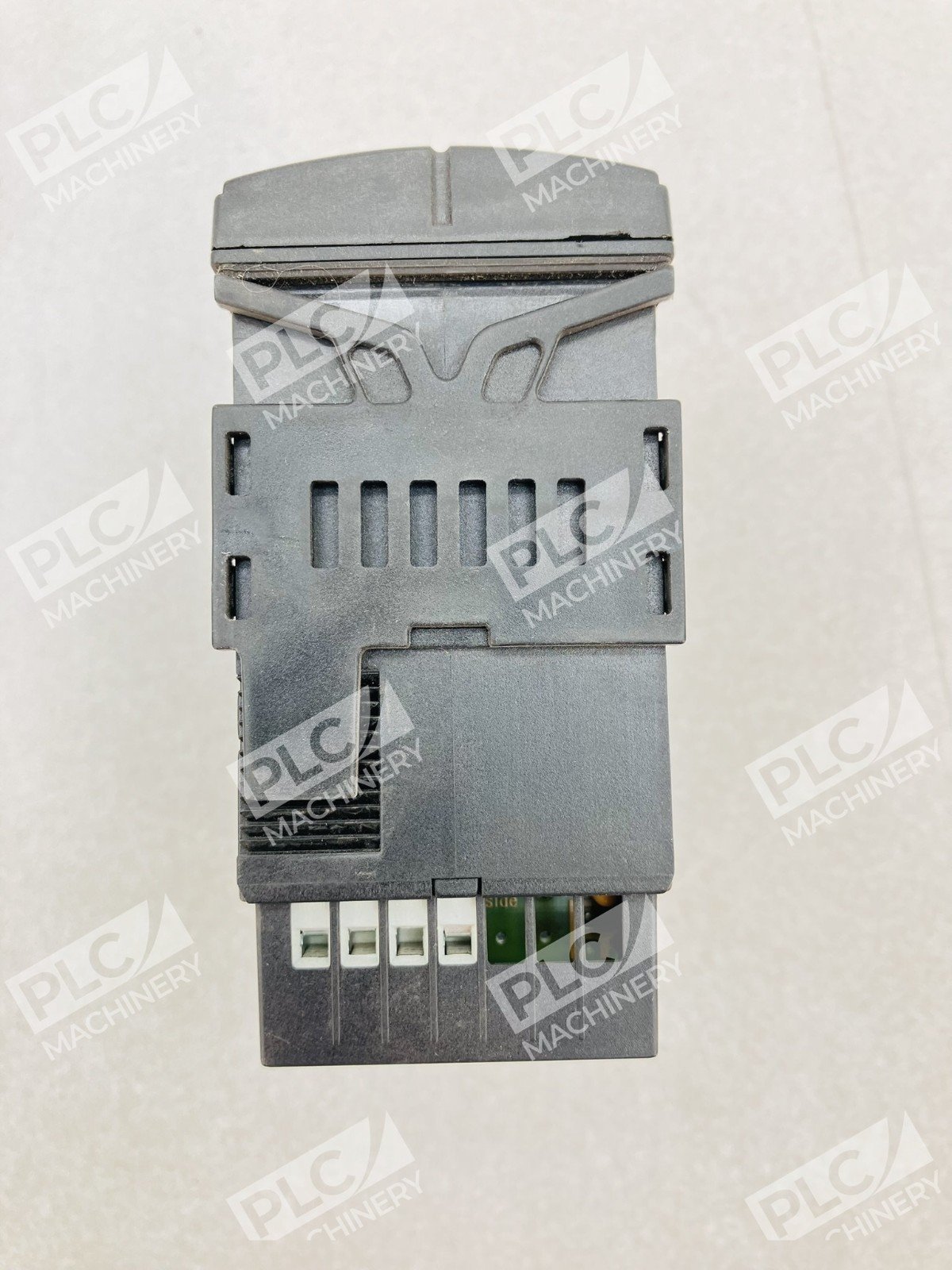

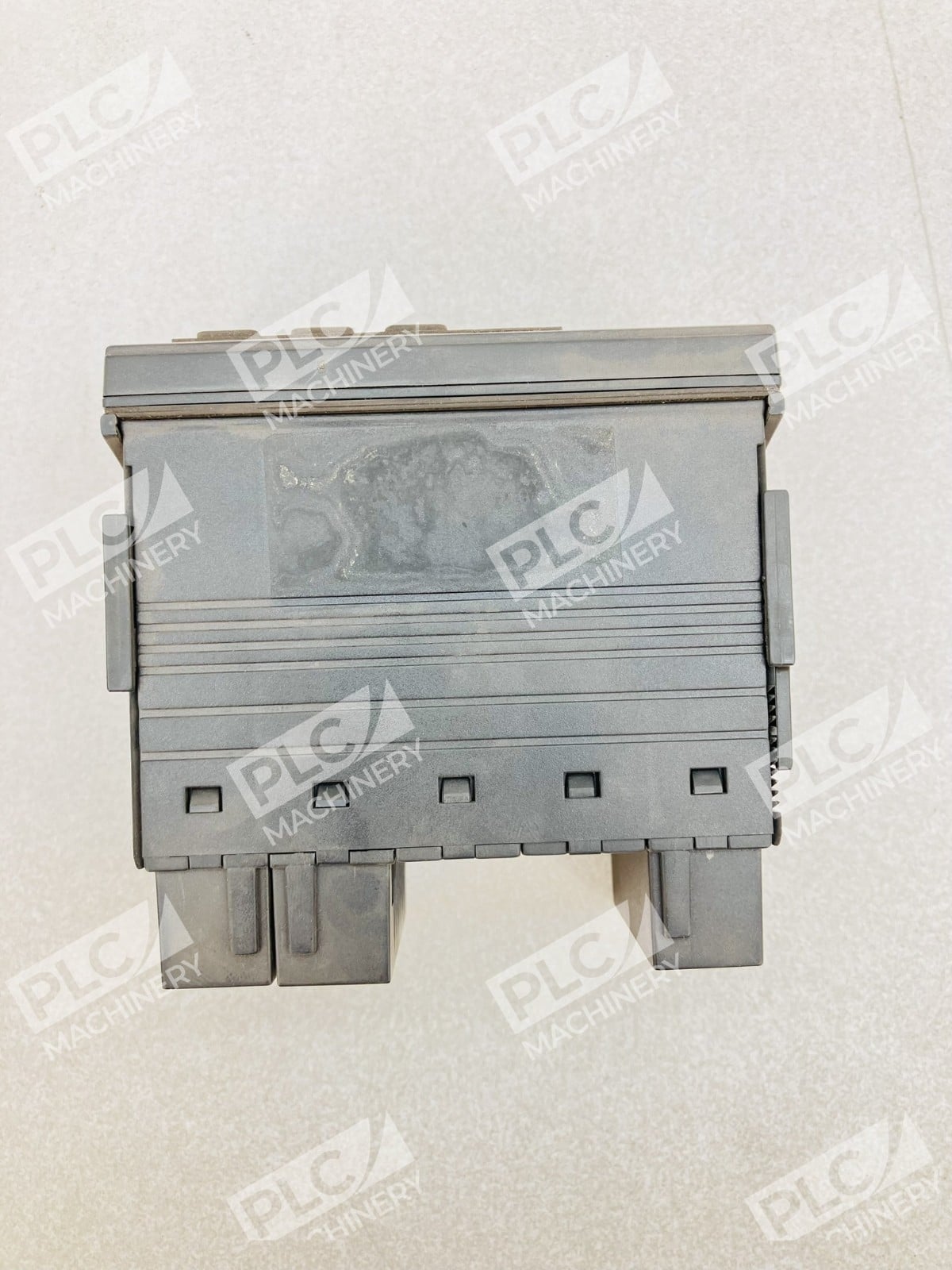

The Simpson Electric H235-1-0460-0-1-0 is a digital panel meter engineered for precise AC current measurement in industrial automation and control environments. This 120VAC-powered instrument delivers accurate readings across a 0-5A AC input range, making it suitable for monitoring electrical current in machinery, control panels, and power distribution systems. Simpson Electric’s digital panel meters are built to provide consistent performance in demanding applications where measurement accuracy is essential.
Key Features
- 120VAC input power supply
- 0-5A AC measurement range for reliable current monitoring

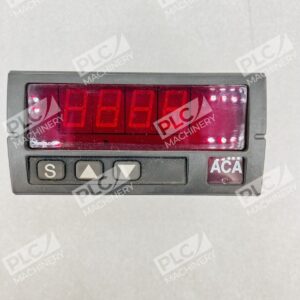

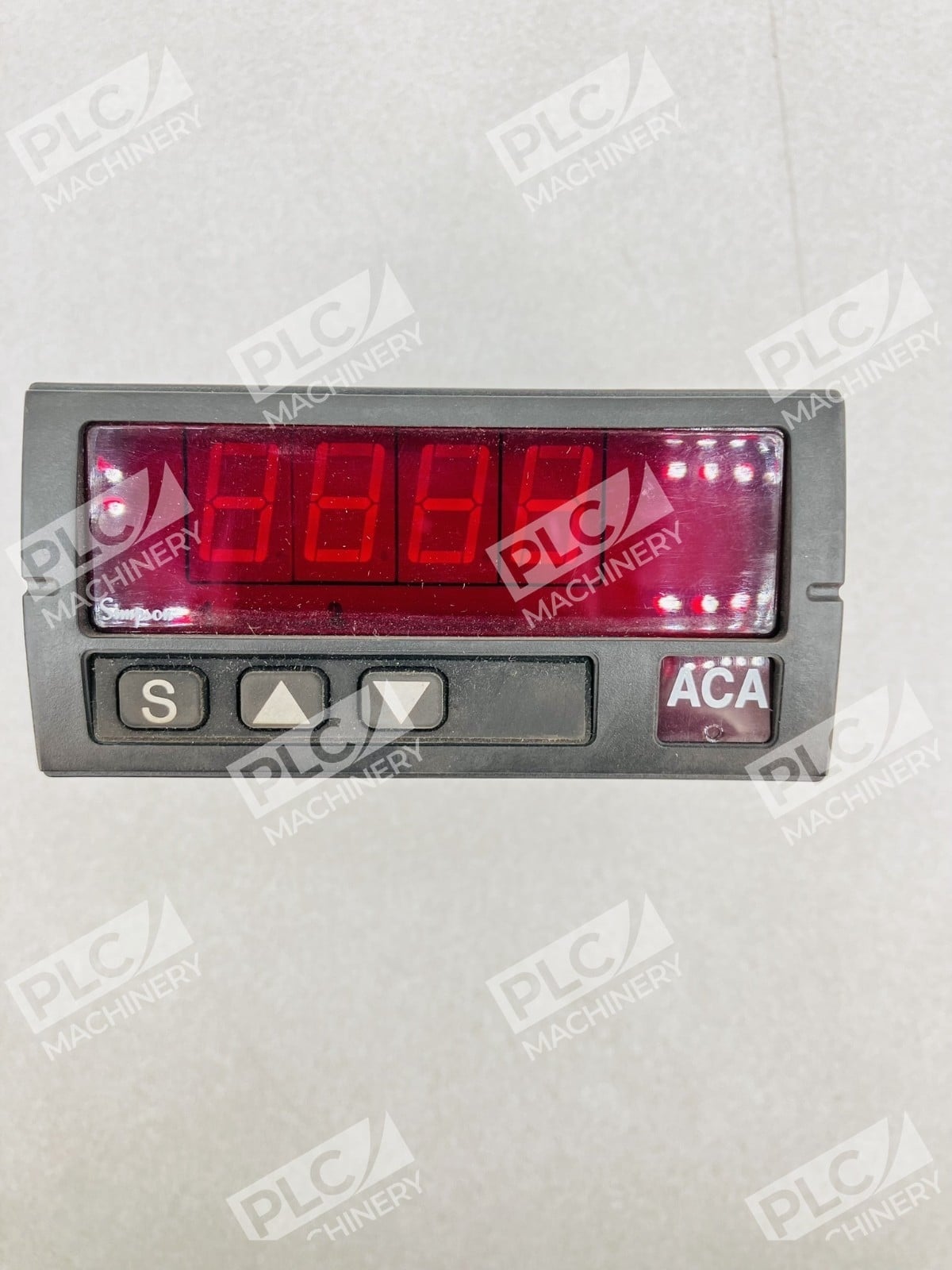

- Digital display for clear, easy-to-read output
- Compact panel-mount design for integration into control cabinets
- Industrial-grade construction for long service life
- Precise measurement accuracy for critical automation applications
Technical Specifications
Display Type: Digital LED/LCD
Input Voltage: 120VAC
Measurement Range: 0-5A AC
Mounting: Panel-mount
Panel Cutout: Standard rectangular
Operating Temperature: Standard industrial range
Manufacturer: Simpson Electric Co.
Typical Applications
- Motor current monitoring in industrial machinery
- Control panel circuit monitoring
- Power distribution system measurement
- Manufacturing and process control applications
- Electrical load analysis and diagnostics
Compatibility & Replacements
Compatible With
- Standard industrial 120VAC power systems
- Panel-mount control cabinets and enclosures
- Industrial automation and machinery applications
- Standard rectangular panel cutout openings
Replaces / Drop-In Replacement For
- Simpson H235 series digital panel meters with matching 120VAC, 0-5A specification
- Verify exact model compatibility with original equipment documentation before substitution
Works With
- AC current measurement systems
- Industrial control and monitoring networks
- Power quality analysis equipment
- Standard industrial electrical measurement standards
