Overview

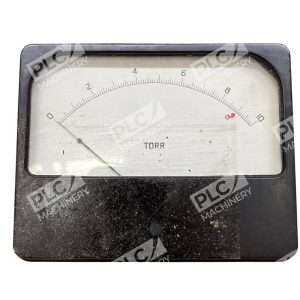

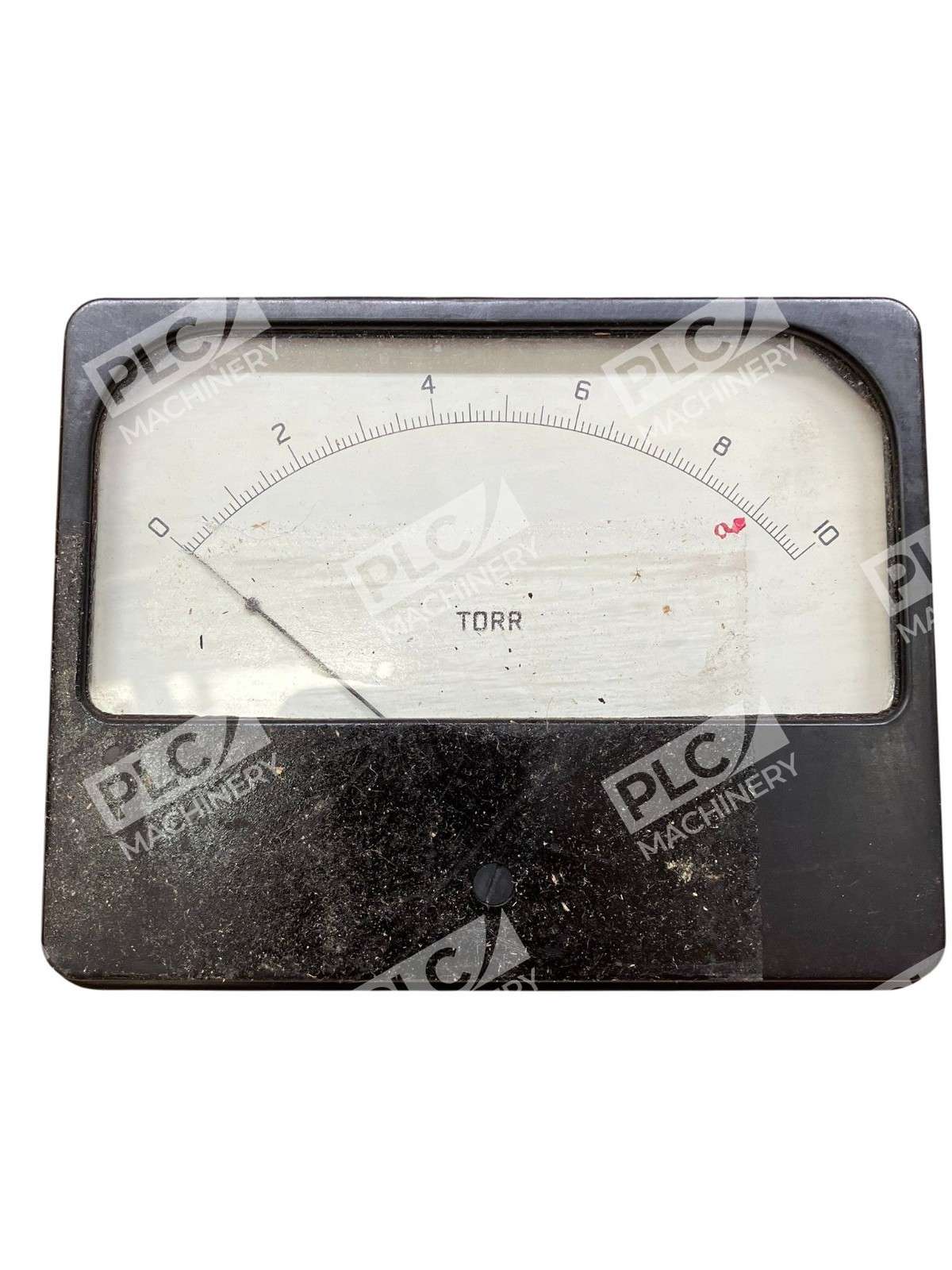

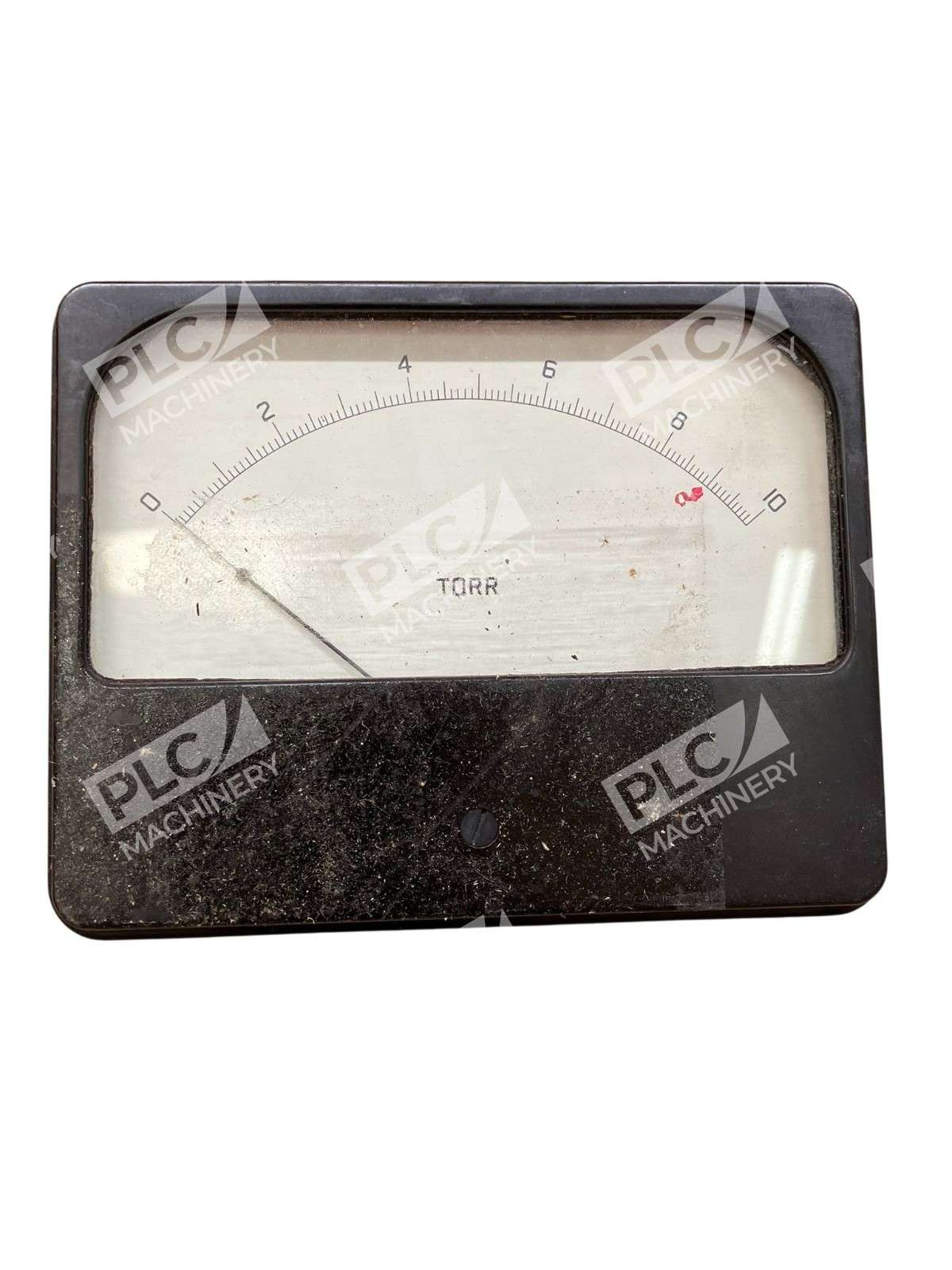

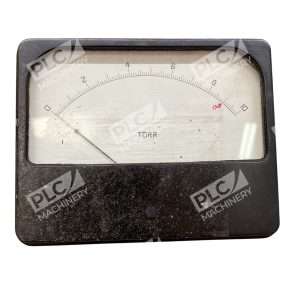

The Weston analog vacuum gauge is a panel-mounted pressure meter designed to measure vacuum in the 0–10 Torr range. Manufactured by Weston Instruments, a trusted producer of precision test meters and instrumentation, this analog gauge provides straightforward, reliable vacuum measurement for research, laboratory, and industrial vacuum applications. The meter reads absolute pressure directly on a calibrated dial face, eliminating the need for external power or digital displays.
Key Features
- Analog dial display with clear, direct Torr scale reading
- 0–10 Torr measurement range suitable for medium vacuum applications
- Panel-mount design fits standard instrument cutouts
- Passive operation — requires no external power supply
- Durable mechanical movement for reliable long-term service
- Industrial-grade construction for laboratory and production environments
Technical Specifications
| Measurement Range | 0–10 Torr |
| Display Type | Analog pointer / dial face |
| Mounting Style | Panel mount (front-facing) |
| Power Requirement | None (passive, mechanical) |
| Manufacturer | Weston Instruments |
| Condition | Used, fully functional |
| Gauge Type | Absolute pressure (aneroid or diaphragm) |
Typical Applications
- Vacuum system monitoring in research laboratories
- Process control in semiconductor and coating processes
- Vacuum pump performance verification
- Industrial vacuum chamber pressure monitoring
- Analytical instrumentation readout
- HVAC evacuation and service applications
Compatibility & Replacements
Compatible With
- Standard panel instrument cutouts (verify dimensions before installation)
- Any vacuum system requiring 0–10 Torr absolute pressure indication
- Pirani, thermocouple, and capacitance vacuum sensors
- Aneroid (mechanical) vacuum measurement systems
Replaces / Drop-In Replacement For
- Weston legacy vacuum gauge models in the 0–10 Torr range
- Comparable analog vacuum gauges from Hastings, Varian, or Televac with matching panel cutout diameter
- Verify mechanical and electrical compatibility with your specific system integrator before ordering
Works With
- Passive vacuum measurement circuits (no software required)
- Analog pressure data logging equipment via mechanical pointer observation
- Vacuum pump systems and controllers (display only — does not provide electrical signal output)
- Laboratory data acquisition where visual gauge reading is acceptable
