Overview

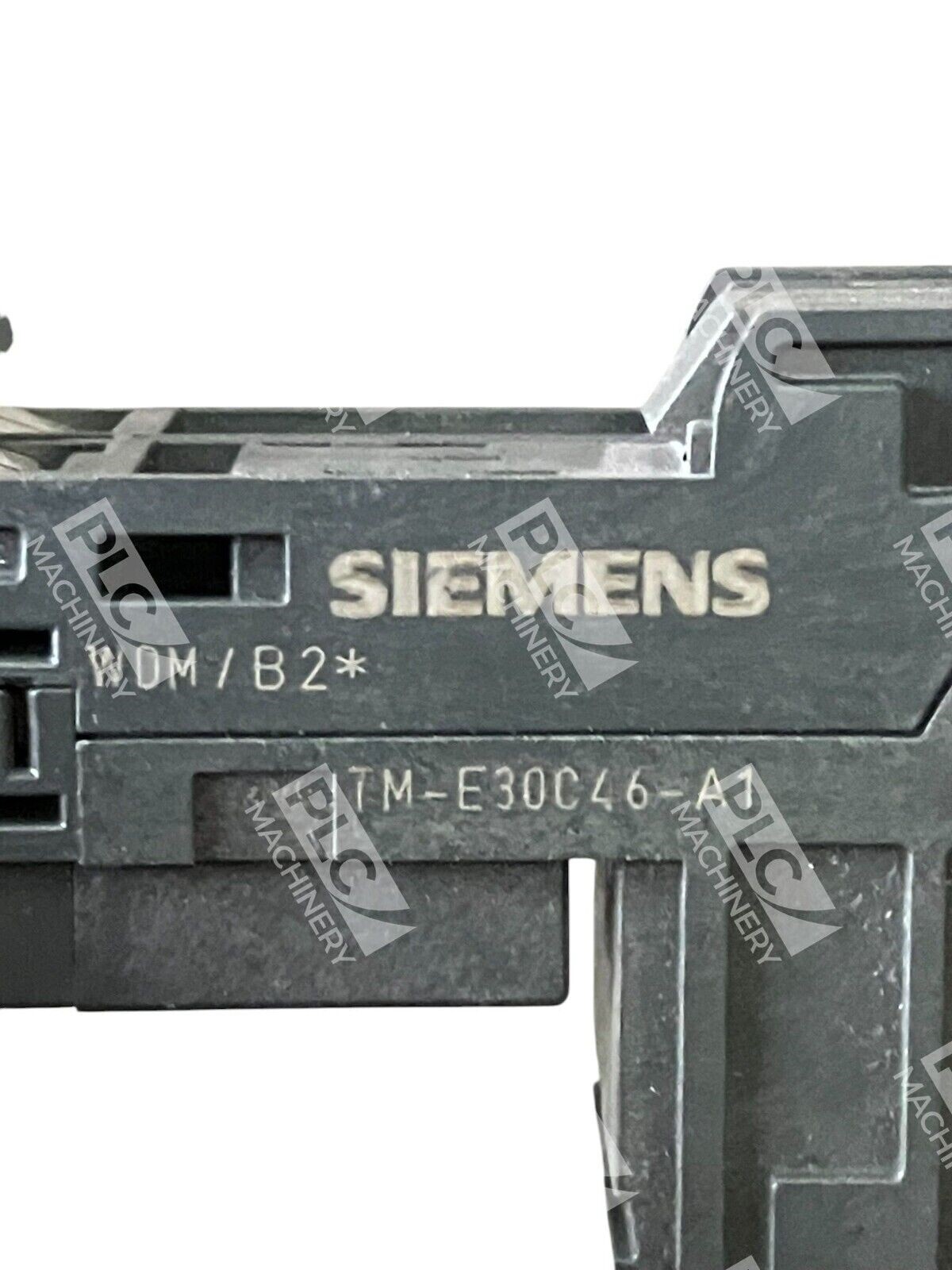

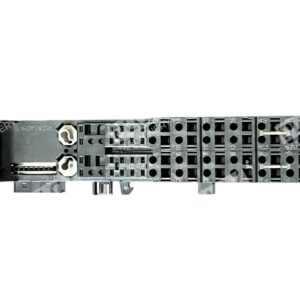

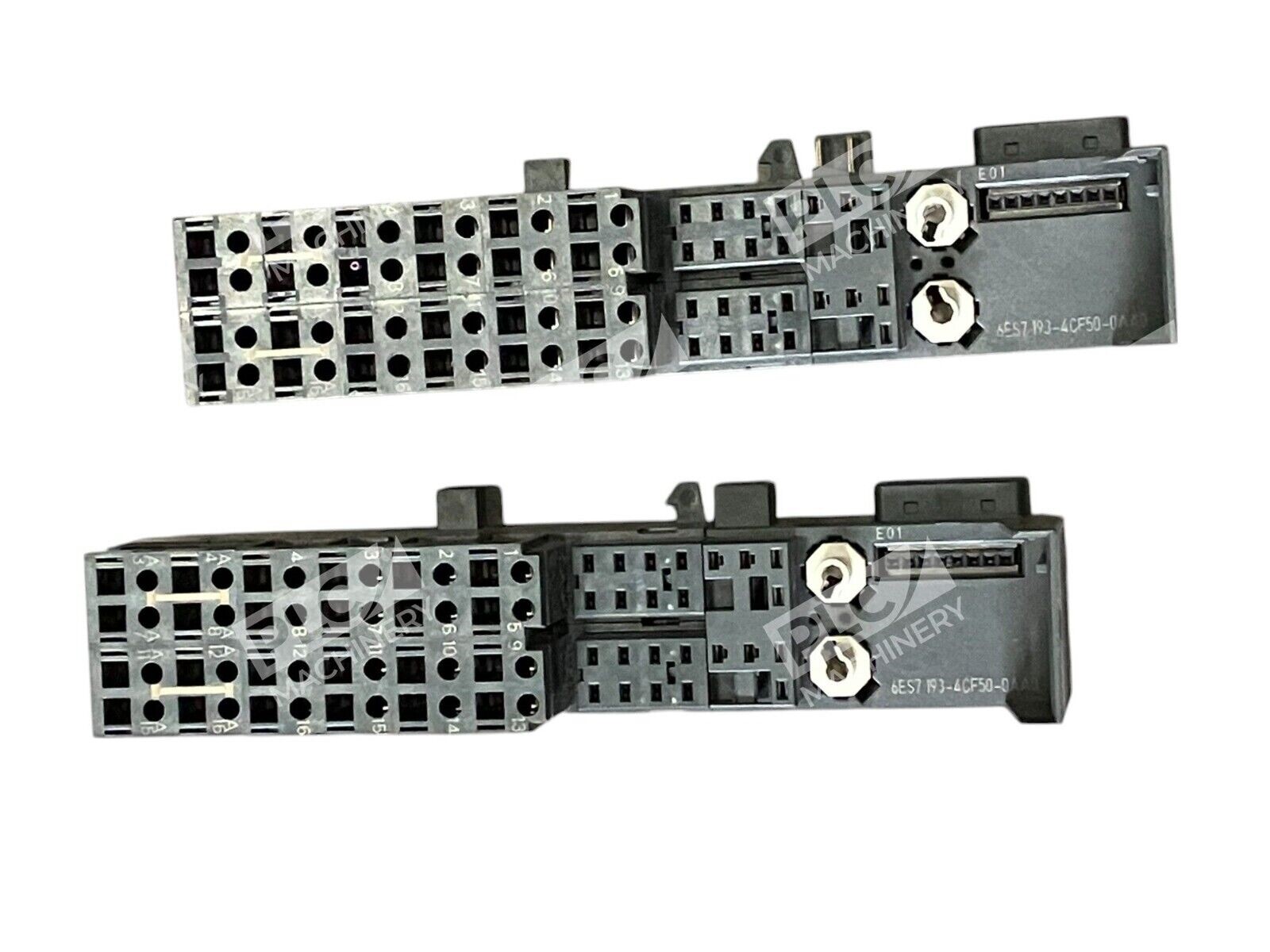

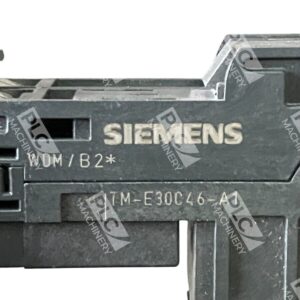

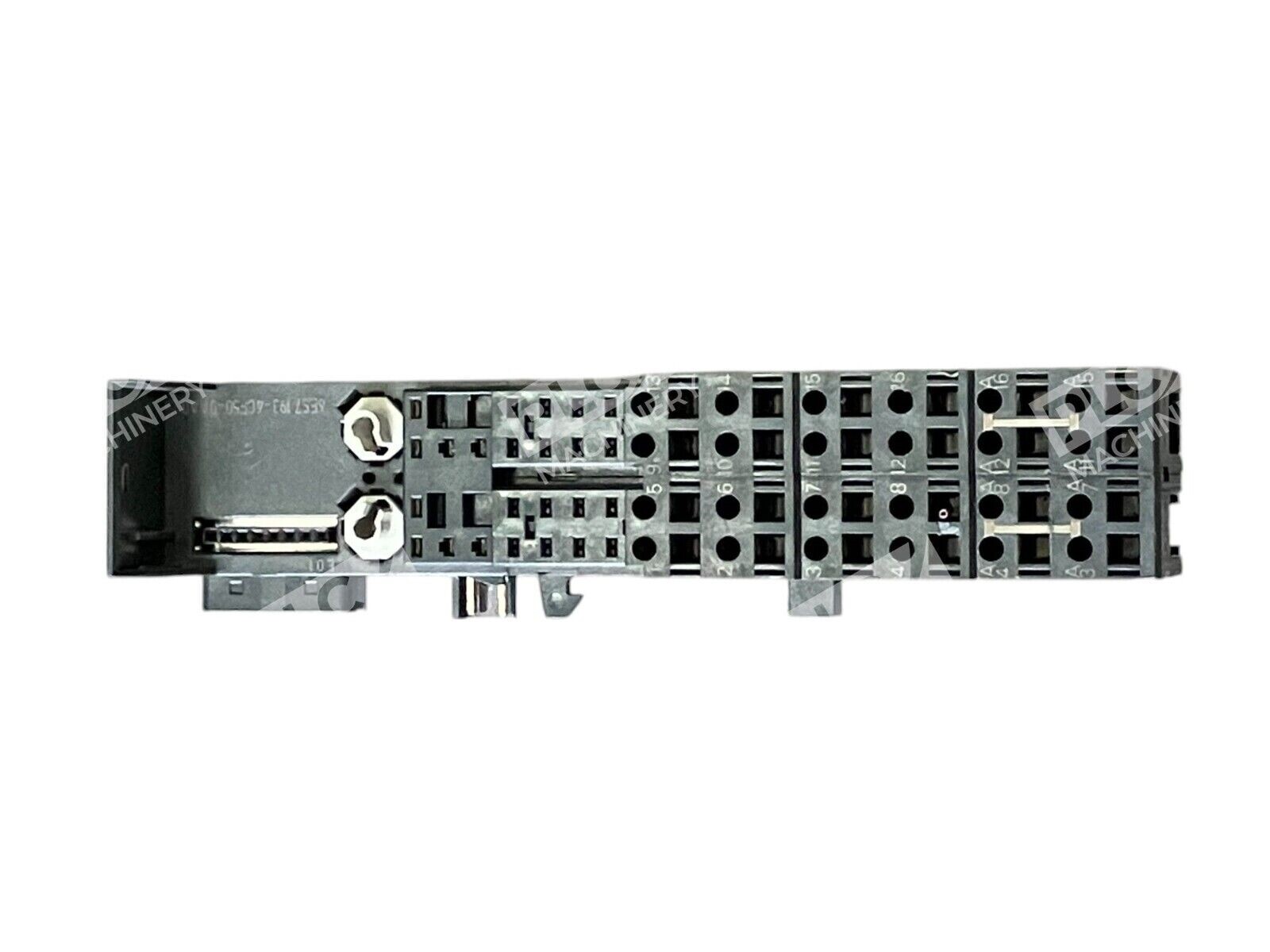

The Siemens 6ES7193-4CF50-0AA0 is a universal terminal module designed for the SIMATIC ET 200S distributed I/O system. This TM-E30C46-A1 module serves as a terminal interface block for all 30 mm wide electronic modules, providing flexible connectivity between field devices and the SIMATIC DP system. Each module features 24 spring-loaded terminal connections arranged in four 6-terminal blocks with dedicated auxiliary (AUX1) terminal access.
Key Features
- Universal terminal module compatible with all 30 mm wide ET 200S electronic modules
- 24 total spring-type terminal connections (4 × 6-terminal blocks)
- Dedicated auxiliary (AUX1) and continuous AUX1 terminal leads for flexible wiring
- Compact 30 mm width fits standard ET 200S mounting rails
- Module assignment determined by installed electronic component (plug-and-play compatibility)
Technical Specifications
Spring-type terminal design ensures reliable, vibration-resistant connections without the need for crimp connectors. The module is module-agnostic—the electronic module you install determines the functional assignment to terminals 1–16, allowing one terminal module design to serve multiple automation tasks. Mounting follows standard SIMATIC DP rail specifications for the ET 200S distributed I/O system.
Typical Applications
- SIMATIC ET 200S distributed input/output systems
- Industrial automation field device terminal interface
- Machine control and process automation systems
- Modular I/O expansion in decentralized control architectures
Compatibility & Replacements
The 6ES7193-4CF50-0AA0 is a direct replacement for other TM-E30C46-A1 variants and is designed specifically for SIMATIC ET 200S 30 mm module slots. It is not compatible with 20 mm, 40 mm, or other width ET 200S modules. Verify your installed electronic module specifications before ordering to ensure correct terminal-to-function assignment.
