Overview

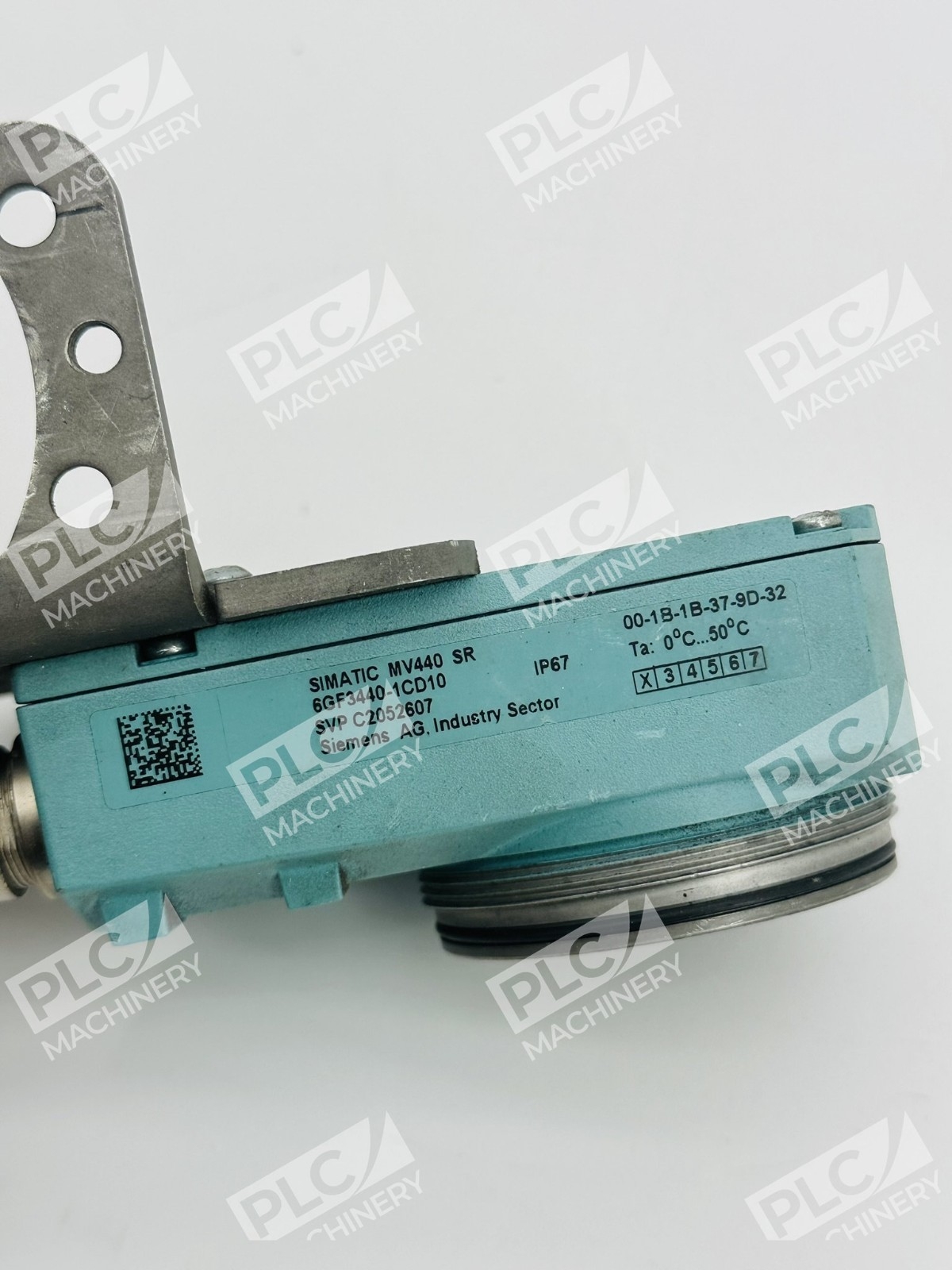

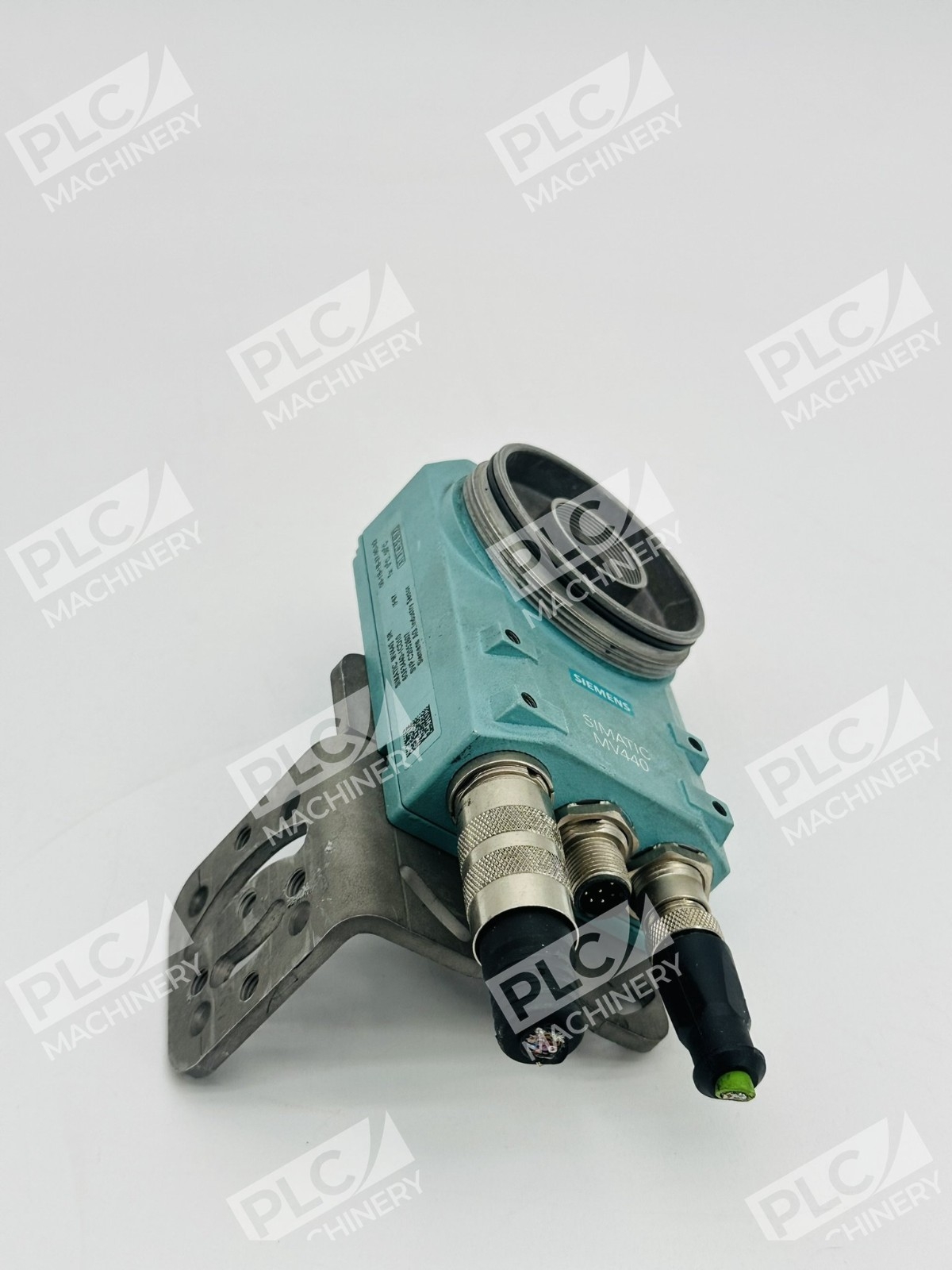

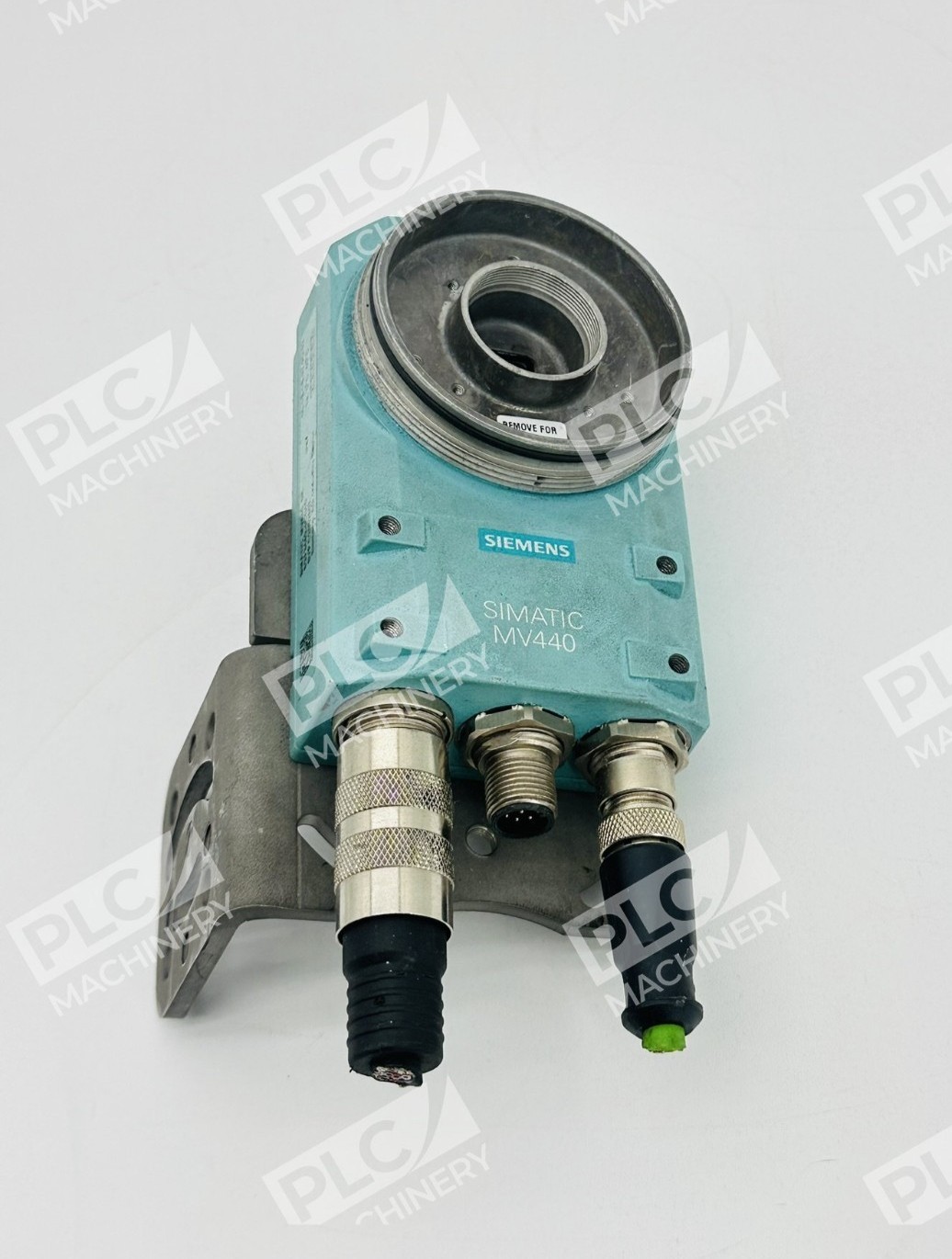

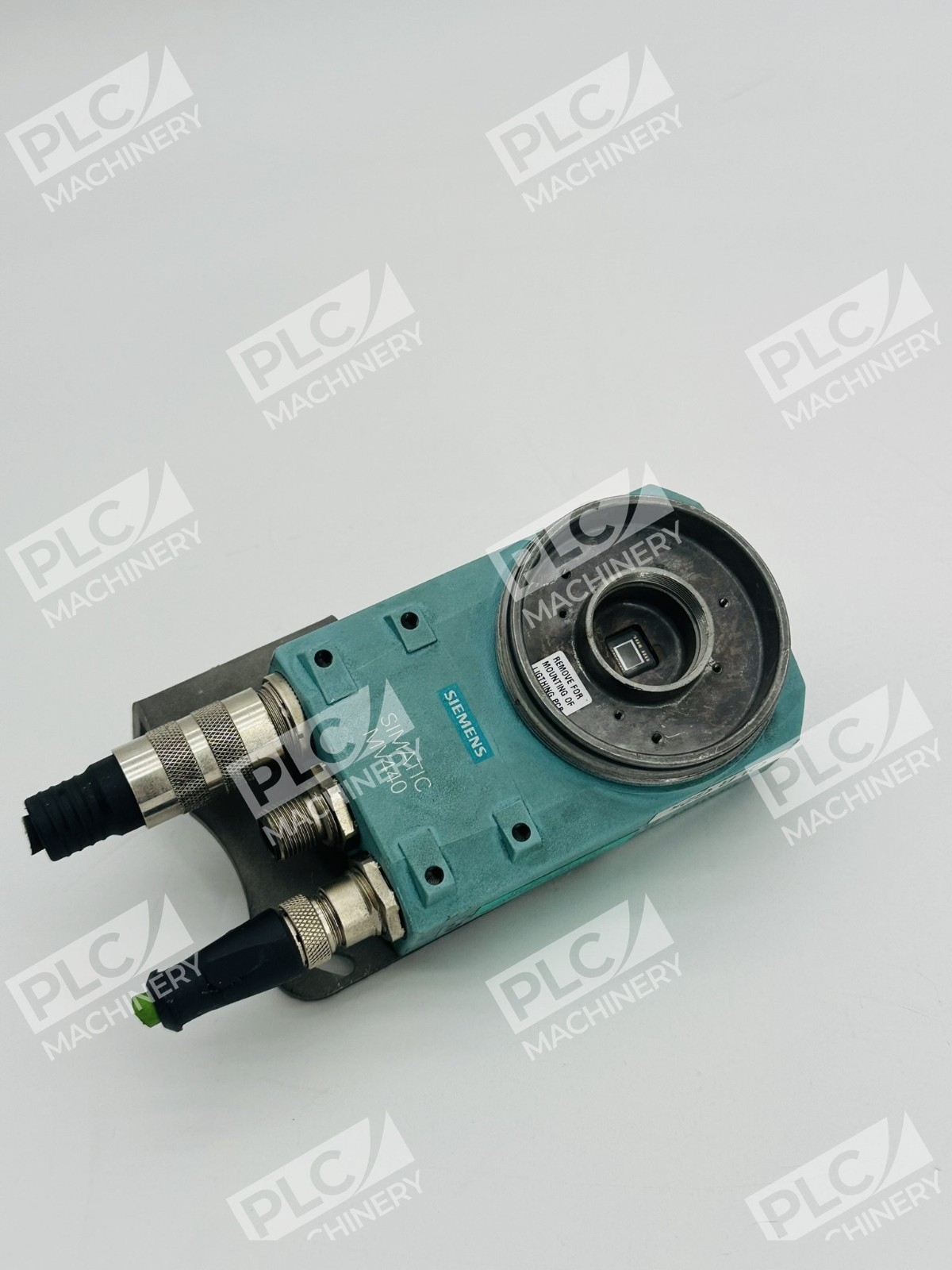

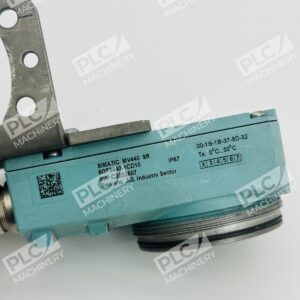

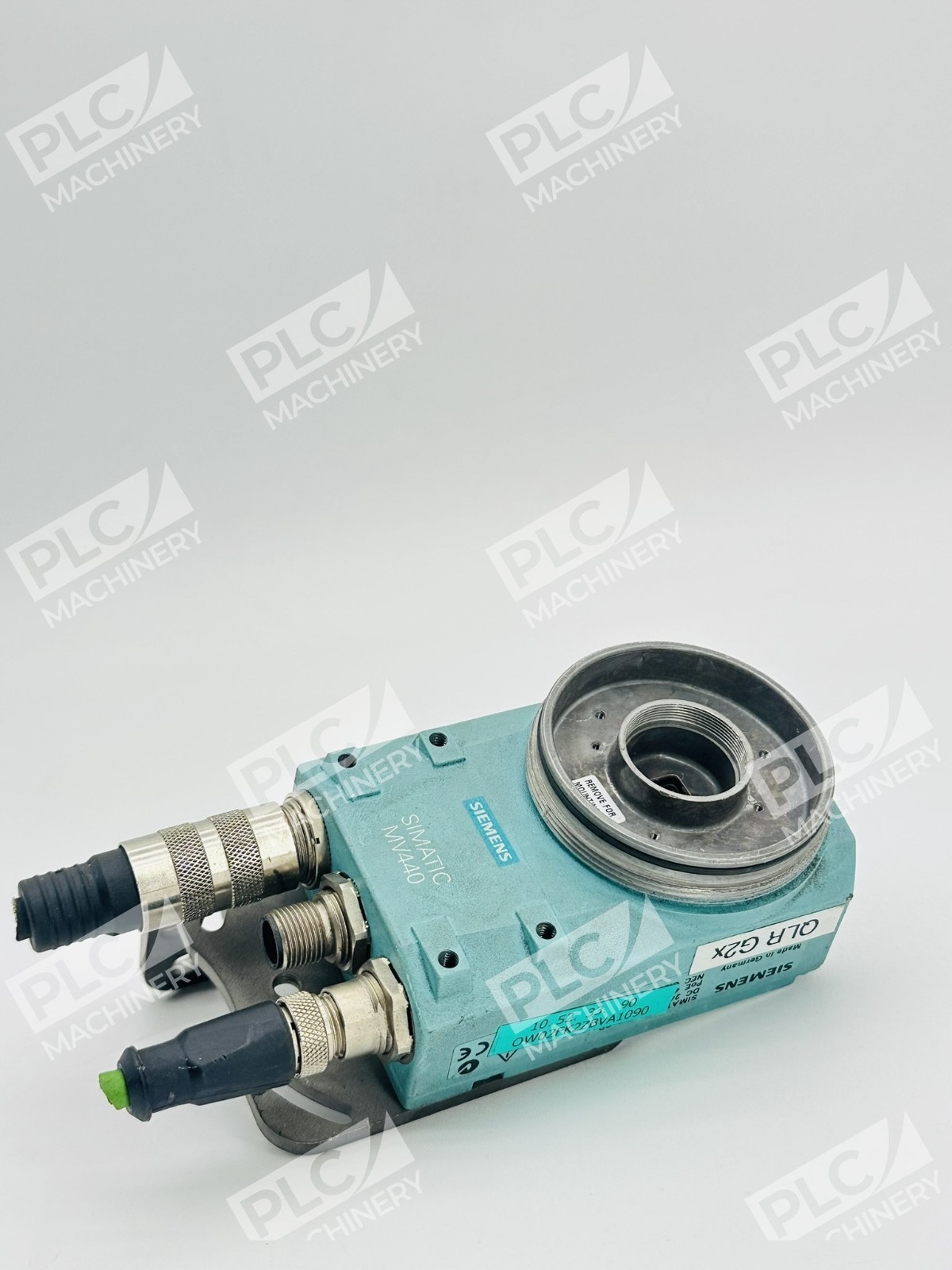

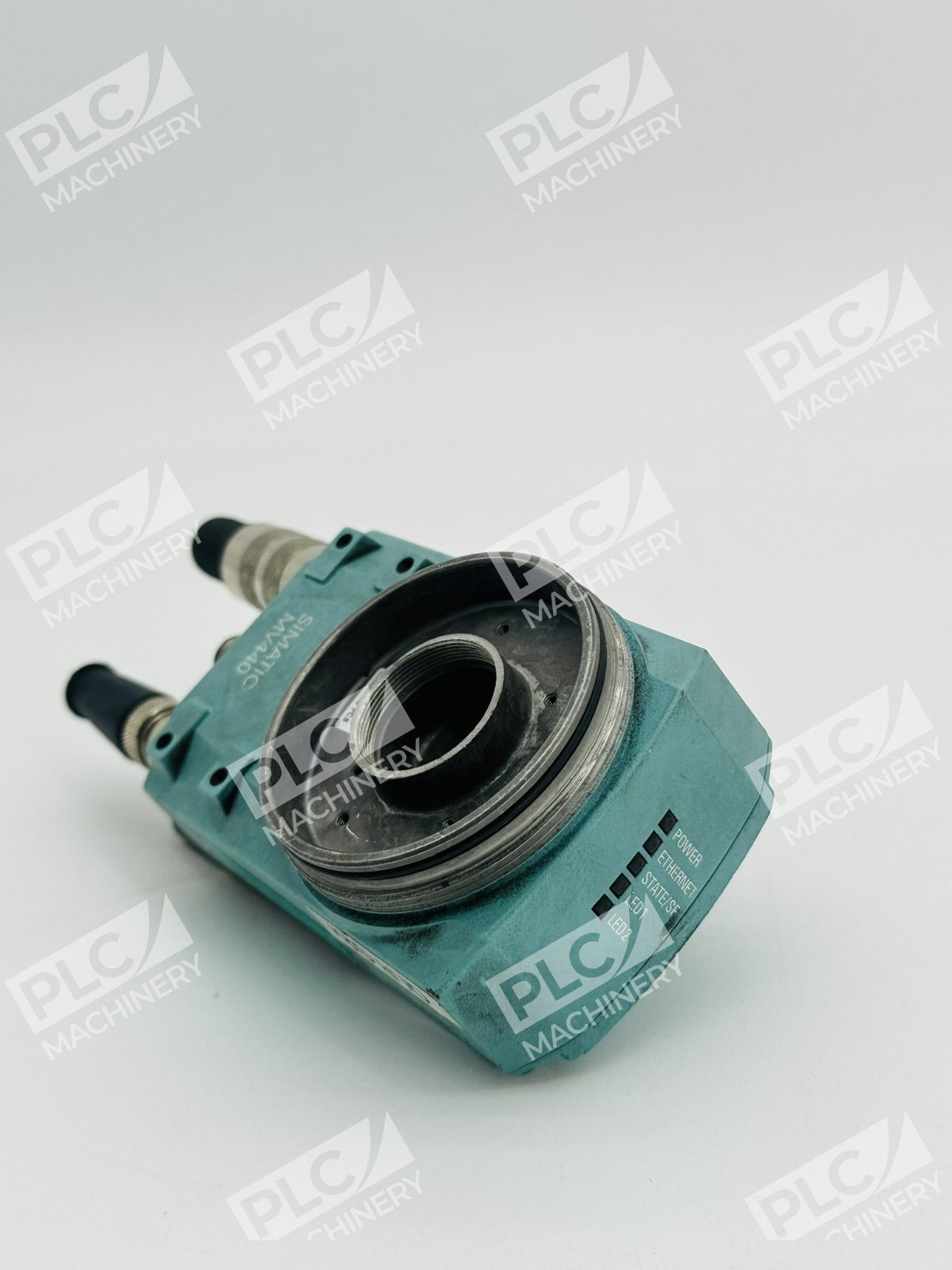

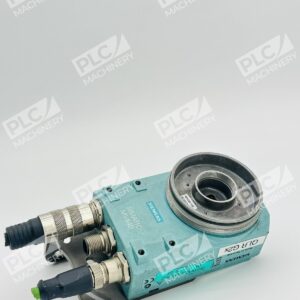

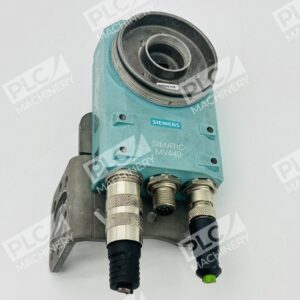

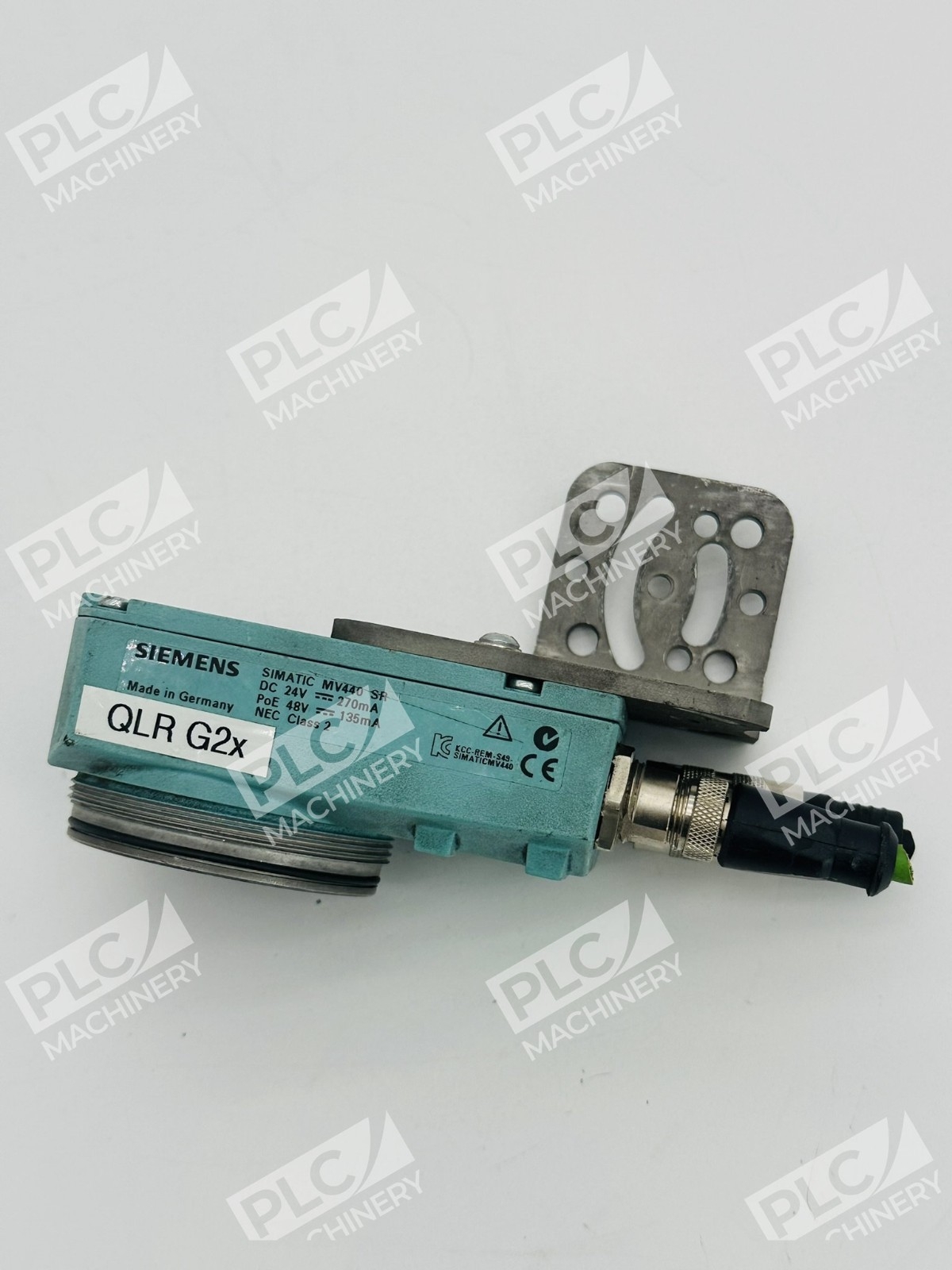

The Siemens Simatic MV440 SR optical code reader (6GF3440-1CD10) is a fixed-mount optical identification device engineered for automated barcode and 2D code reading in manufacturing and logistics environments. With 640×480 pixel resolution, it supports 1D/2D code reading, text recognition, and object detection with variable field of view and distance. This reader integrates seamlessly into Siemens automation architectures and provides fast, accurate data capture for production tracking and quality control workflows.
Key Features
- High-resolution imaging: 640×480 pixel resolution enables reliable code capture across variable distances
- Multi-code support: Reads 1D codes (Int. 2/5, Code 128, Code 93, Code 39, Code 32, EAN 13, EAN 8, UPC-A, UPC-E, GS1, Pharmacode, Postnet) and 2D codes (DMC, dot code, PDF417, QR, Vericode)
- Power over Ethernet (PoE): PoE capability reduces installation complexity in networked environments
- Industrial-grade protection: IP67 rating with optional IP67 (with 6GF3440-8AC1X) housing for washdown and dusty applications
- Text recognition (OCR): OCR-A and Semifont M13 text recognition capability for label and marking inspection
- Multiple communication protocols: Ethernet, PROFINET IO, RS-422, and RS-232 communication capability
Technical Specifications
Optical and Imaging Performance
- Image Resolution: 640×480 pixels
- Focus: Variable field of image and distance
- Code Types: 1D codes, 2D codes (DMC, QR, PDF417, etc.), and text recognition
- Object Detection: Yes
Electrical and Communication
- Supply Voltage: 19.2–28.8 Vdc (24 Vdc nominal)
- Communication: Ethernet, PROFINET IO, RS-422, RS-232
- Power Delivery: PoE
Physical and Environmental
- Mounting: C-mount type
- Connector: M12 (D-coded) connector (with POE), 12-pin M16 male connector, 8-pin M12 male connector
- IP Rating: IP67
- Operating Temperature: 0°C to +50°C ambient
- Color: Petrol blue
Package Contents
- Delivery includes: Reader, CD-ROM, and plastic protective tube (without cable, luminaire, lens, licenses)
Typical Applications
The Siemens MV440 SR is ideal for:
- Automatic label and barcode verification in production lines
- Pharmaceutical and food traceability systems
- Parcel and logistics tracking
- Serialization and anti-counterfeiting inspection
- Quality control and defect detection in automotive manufacturing
- Warehouse automation and sorting systems
- Supply chain management and inventory control
Compatibility & Replacements
Compatible With
- Siemens SIMATIC automation controllers (S7-1200, S7-1500, S7-1500F)
- PROFINET IO networks
- Ethernet-based industrial networks
- Siemens TIA Portal software (programming and diagnostics)
- RS-422 and RS-232 serial communication systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit is the current production version; consult Siemens documentation for legacy MV440 variants.
Works With
- Siemens TIA Portal (STEP 7)
- PROFINET IO protocol
- Ethernet TCP/IP
- RS-422 and RS-232 serial protocols
- Third-party MES and ERP systems via Ethernet integration
