Overview

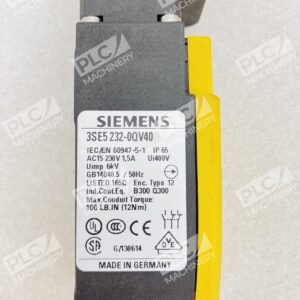

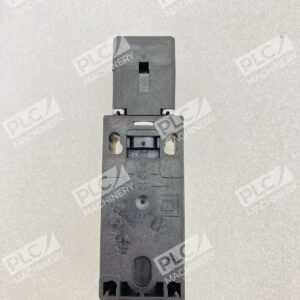

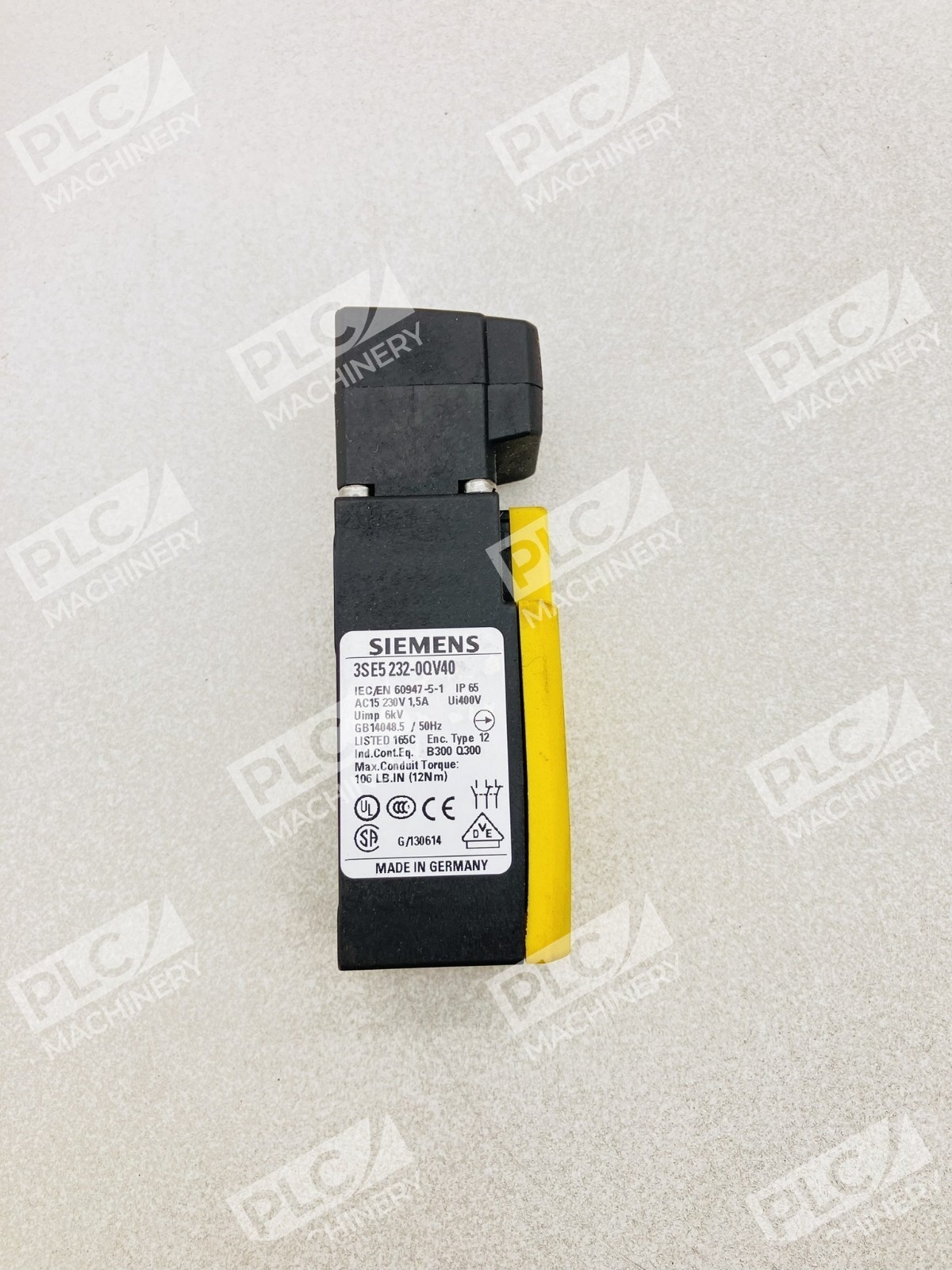

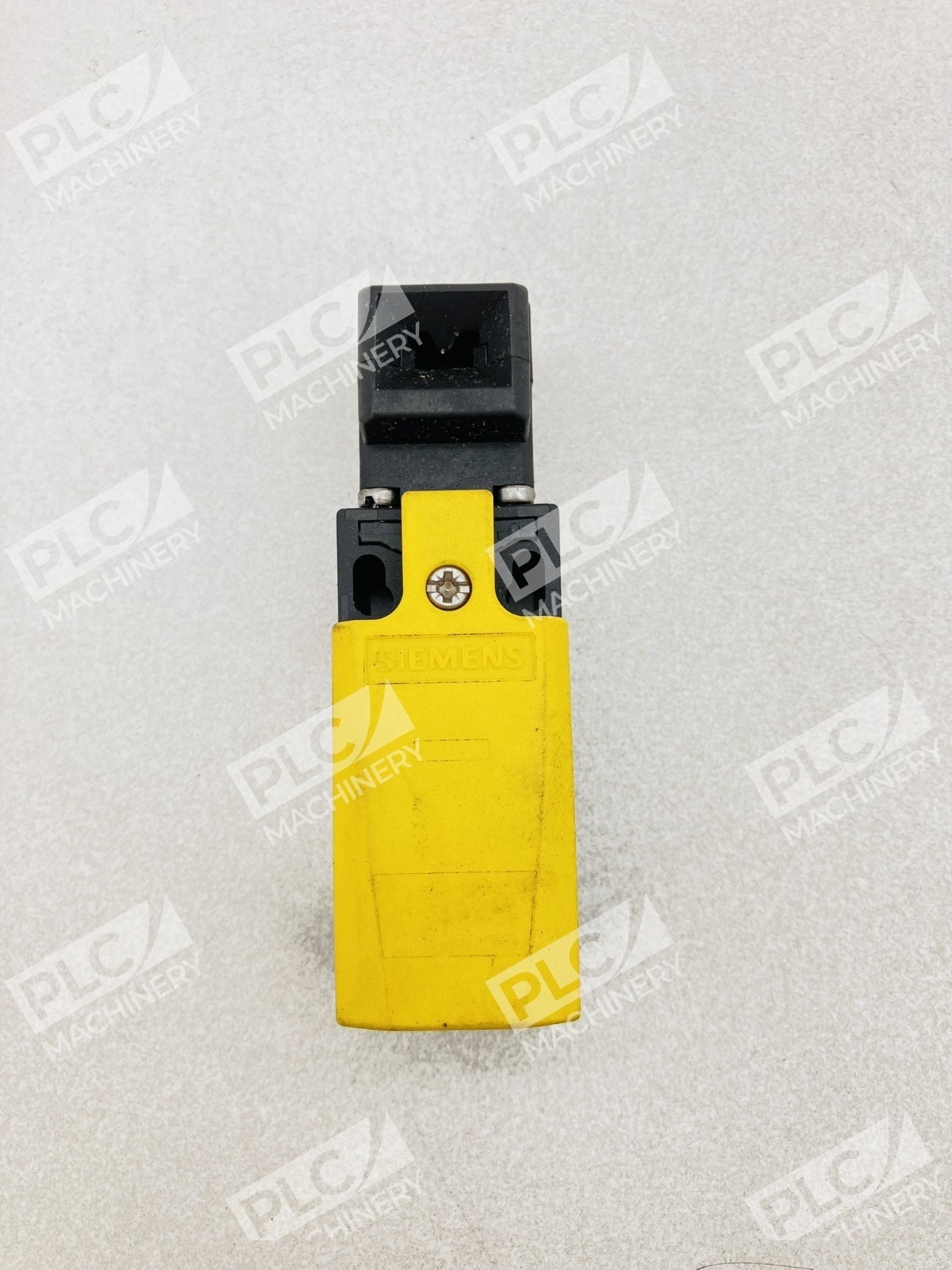

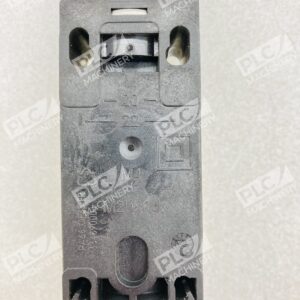

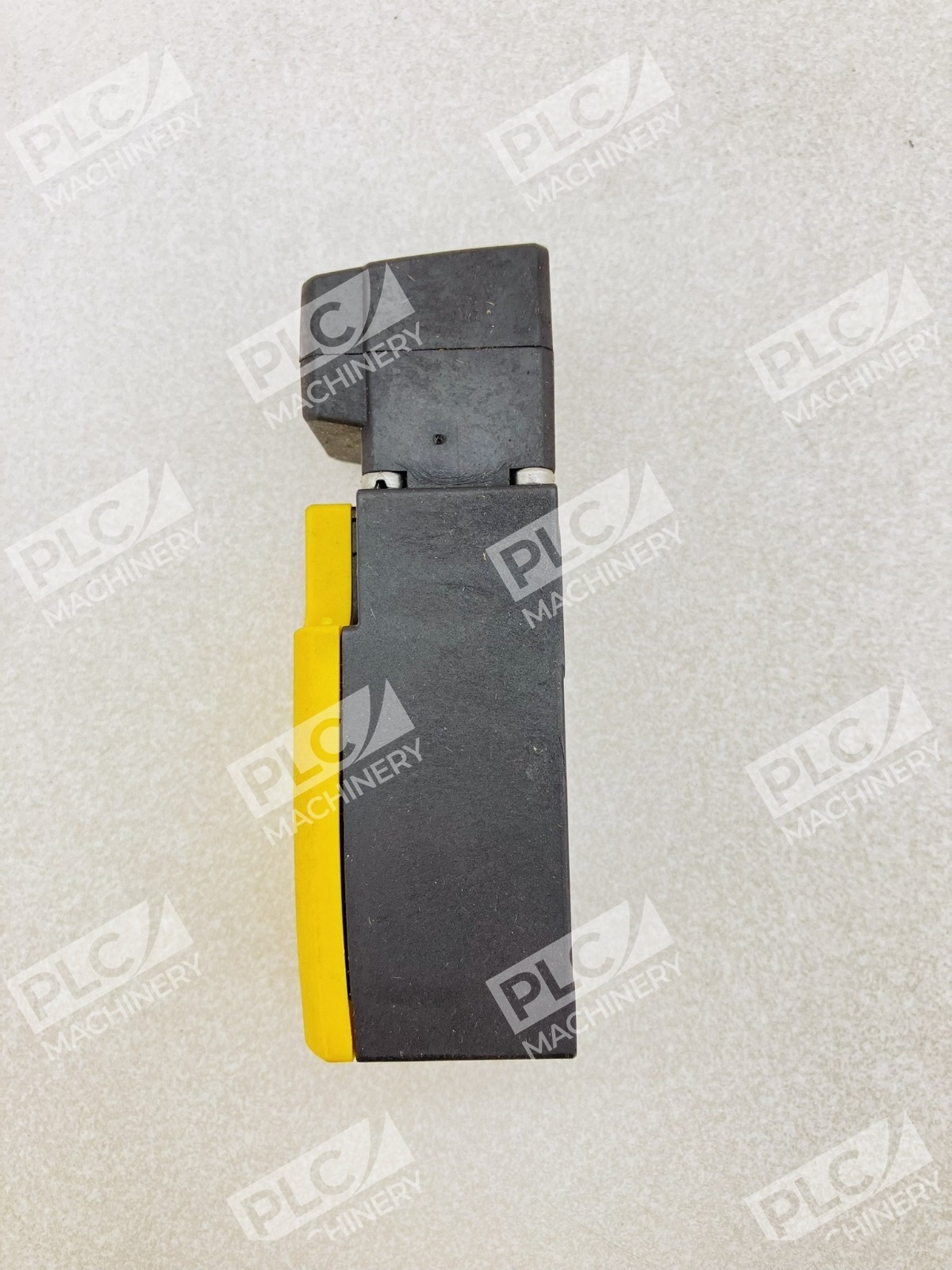

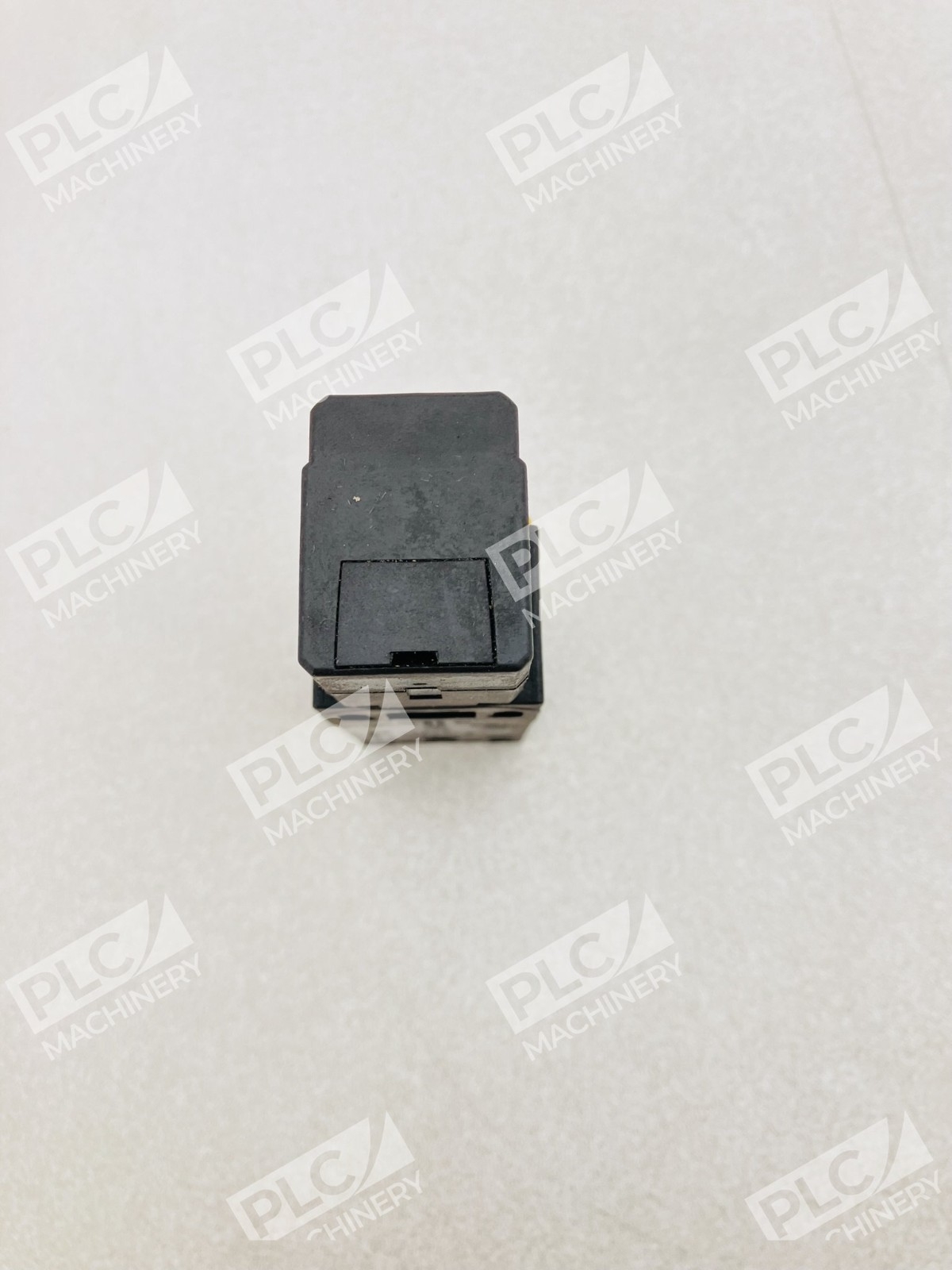

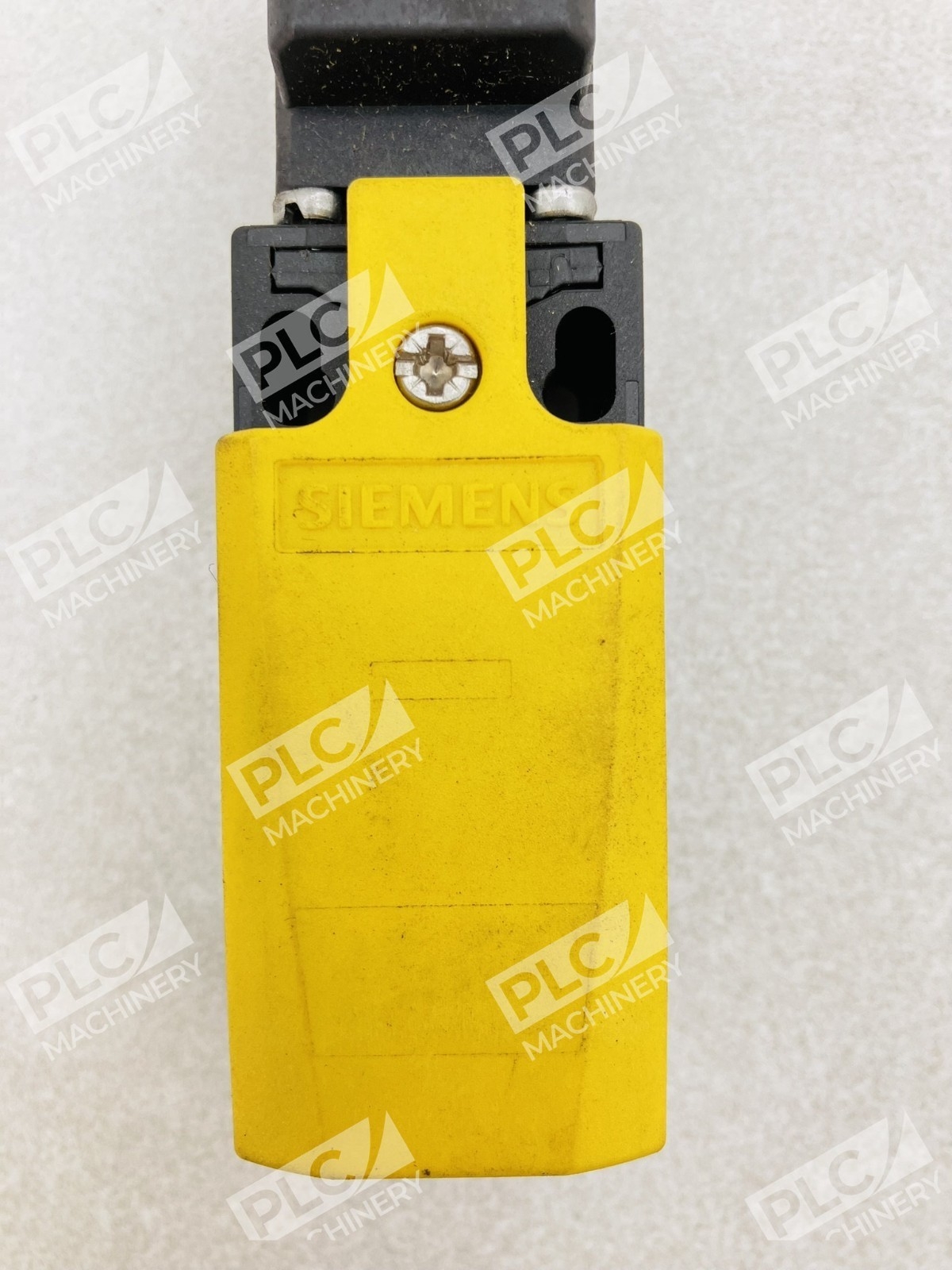

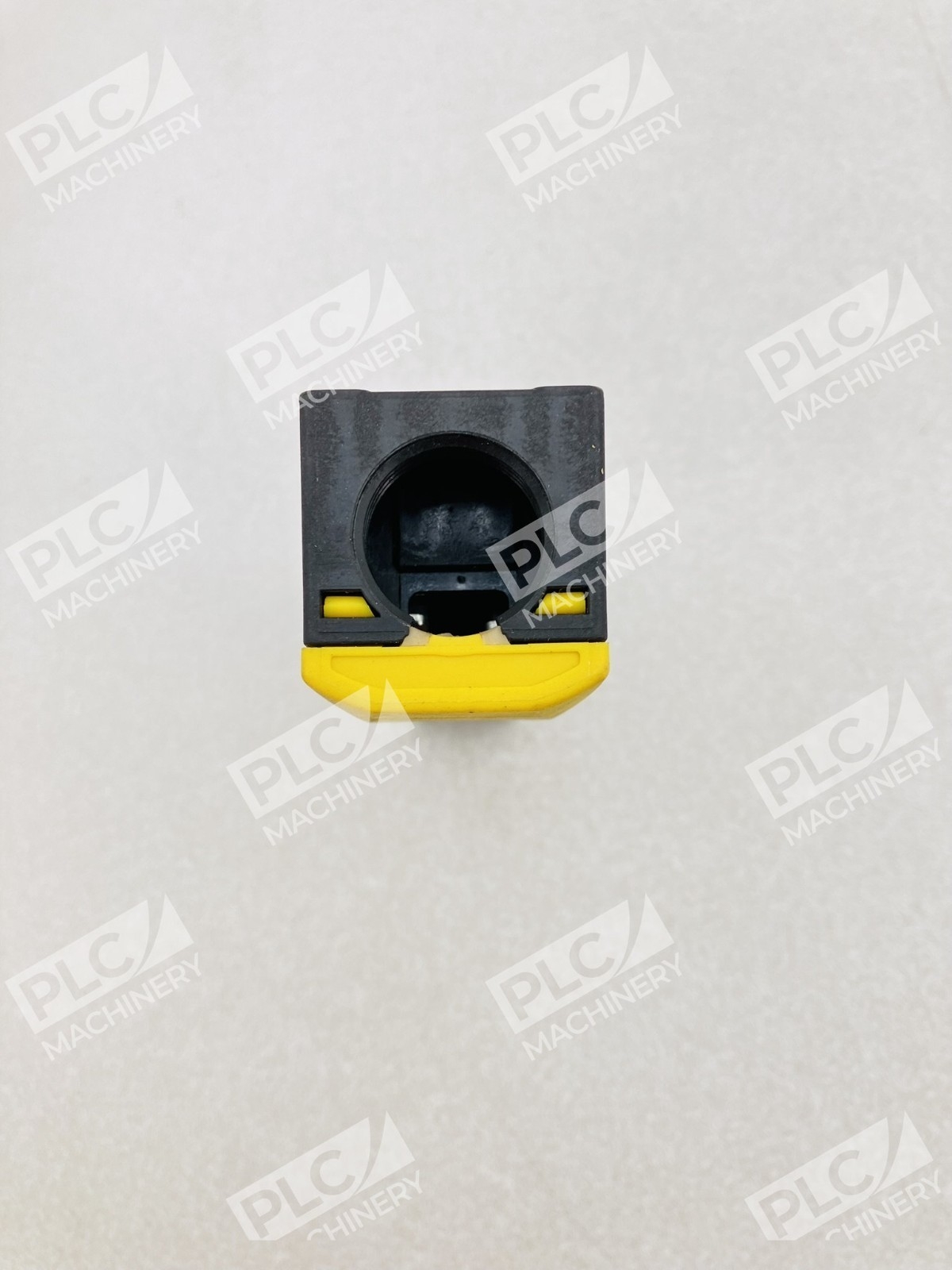

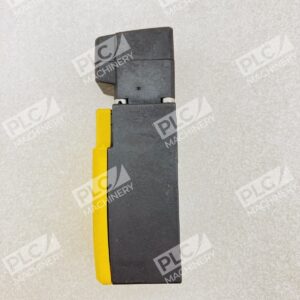

The Siemens 3SE5232-0QV40 is a mechanical safety position switch from the SIRIUS 3SE5 product line. It features a plastic enclosure with 31 mm device connection, 2 NC/1 NO slow-action contacts, and supports 5 directions of approach. These mechanical safety switches are designed for position monitoring of moving protection equipment such as doors, covers, or protective grilles, with actuator heads that can be rotated by 4×90 degrees.
Key Features
- 400 VAC rated, 6 A contact current with threaded M20x1.5 mounting
- Slow-action 2 NC/1 NO contact configuration for enhanced safety
- Operating temperature range of -25 to +85°C with IP65 enclosure rating
- Five directions of approach possible, with one approach from the front
- Contact blocks ensure high contact stability and are coded to prevent manipulation
- Devices have worldwide IEC and UL approvals; capable of meeting highest safety requirements for PL e or SIL 3 with appropriate configuration
Technical Specifications
See specifications table below for complete electrical and mechanical details.
Typical Applications
- Interlocking safety systems for machinery access doors
- Position sensing for protective equipment and guards
- Industrial automation safety circuits requiring certified position feedback
- Machine protective grille and cover monitoring
- Emergency stop and hazard prevention circuits
Compatibility & Replacements
Compatible With
- Siemens SIRIUS control components and safety relays
- Standard industrial control circuits with 400 VAC power
- Switchgear and machine safety systems requiring position monitoring
- Systems complying with EN 50047 and EN 50041 standards
Replaces / Drop-In Replacement For
- Matches with separate actuator models 3SE5000-0AV01 (standard), 3SE5000-0AV02 (vertical fixing), 3SE5000-0AV03 (transverse fixing), 3SE5000-0AV04 (radius approach left), 3SE5000-0AV05 (universal), 3SE5000-0AV06 (radius approach right), 3SE5000-0AV07 (Heavy Duty), plus stainless steel variants
Works With
- Siemens SIRIUS safety relay modules and contactors
- Industrial control systems and PLCs with 400 VAC input modules
- Standardized position monitoring networks in machinery safety circuits
