Overview

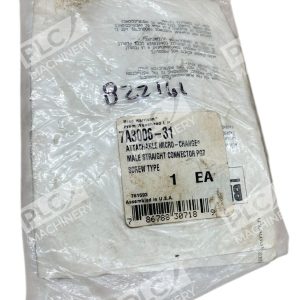

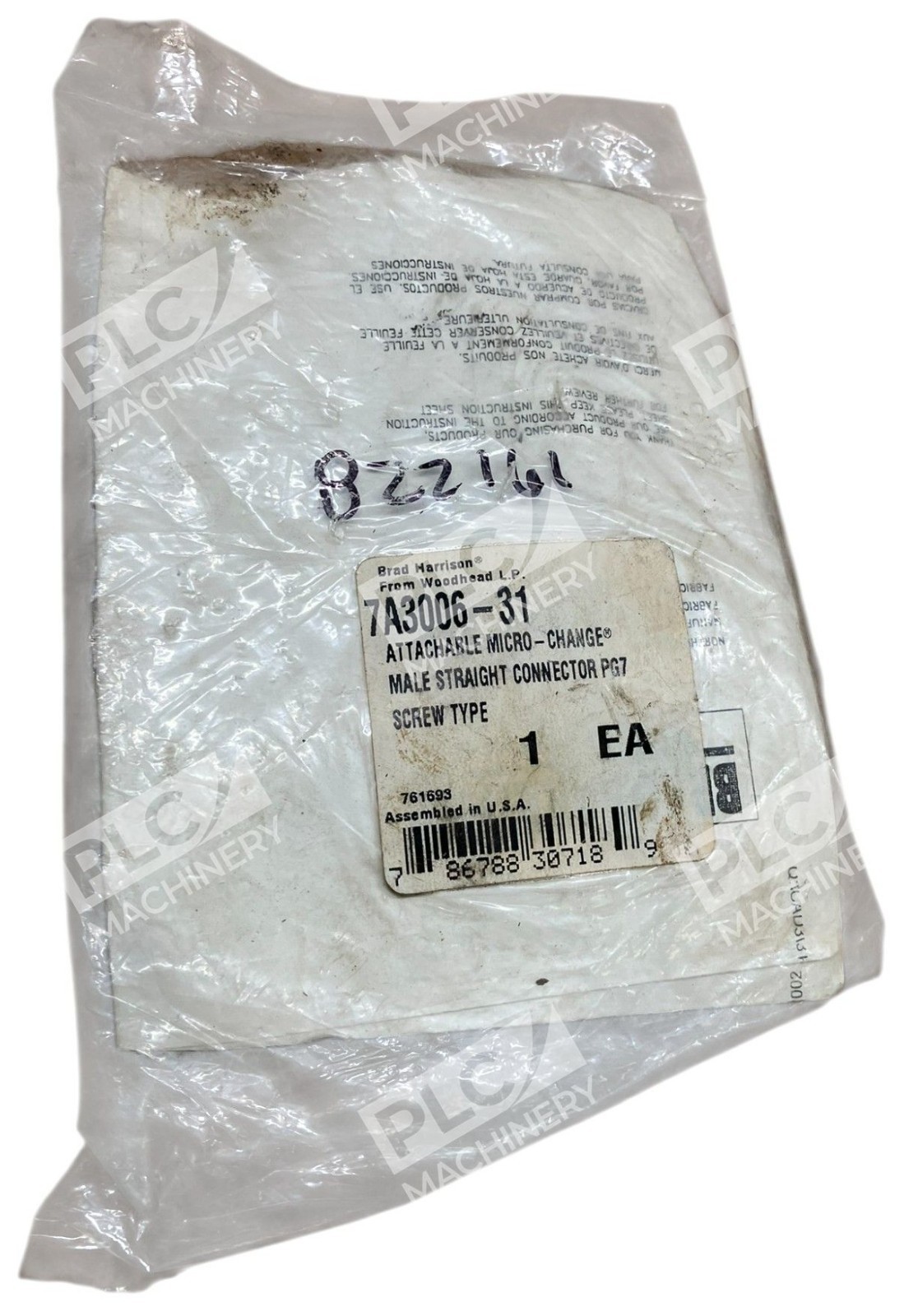

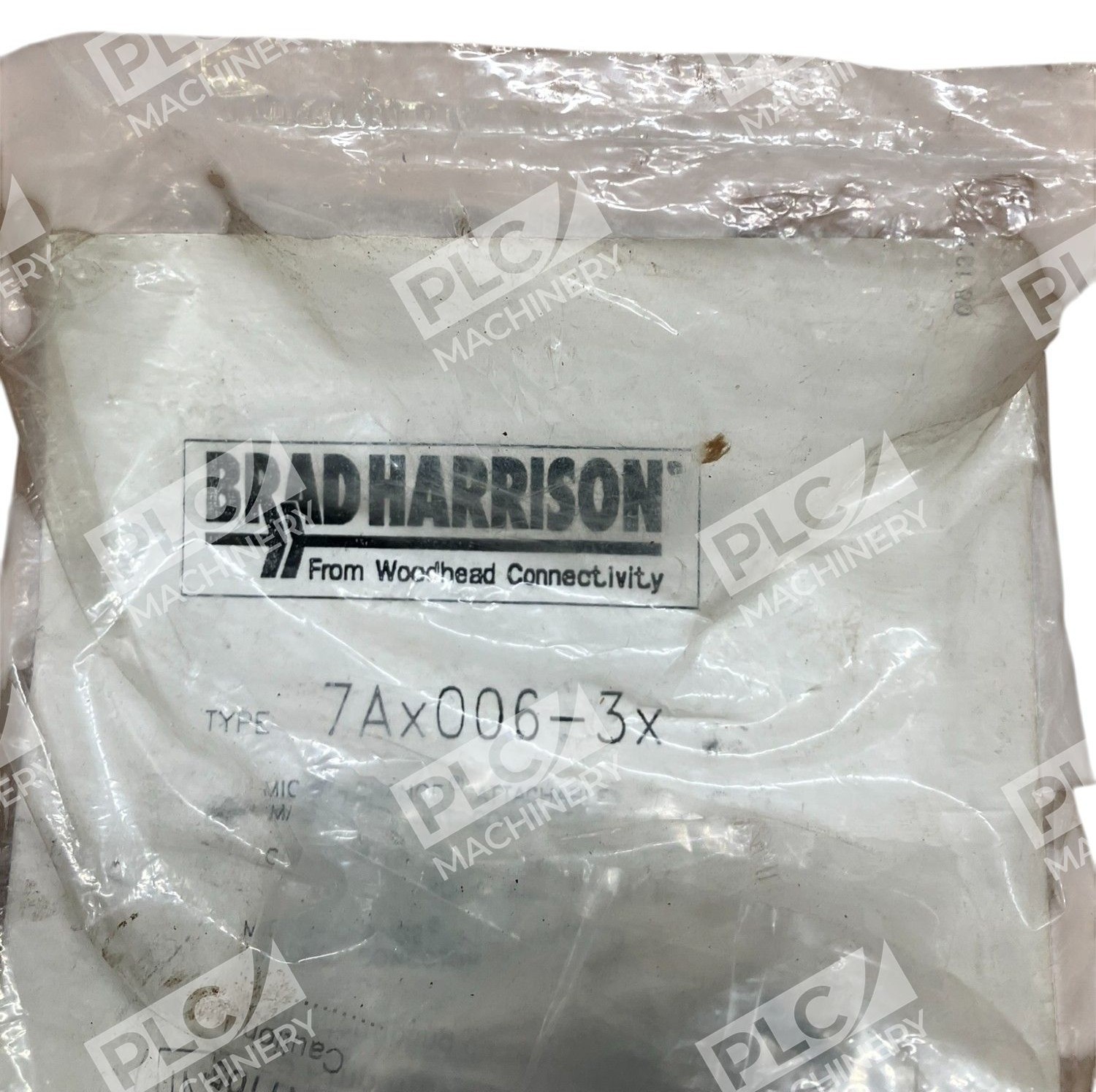

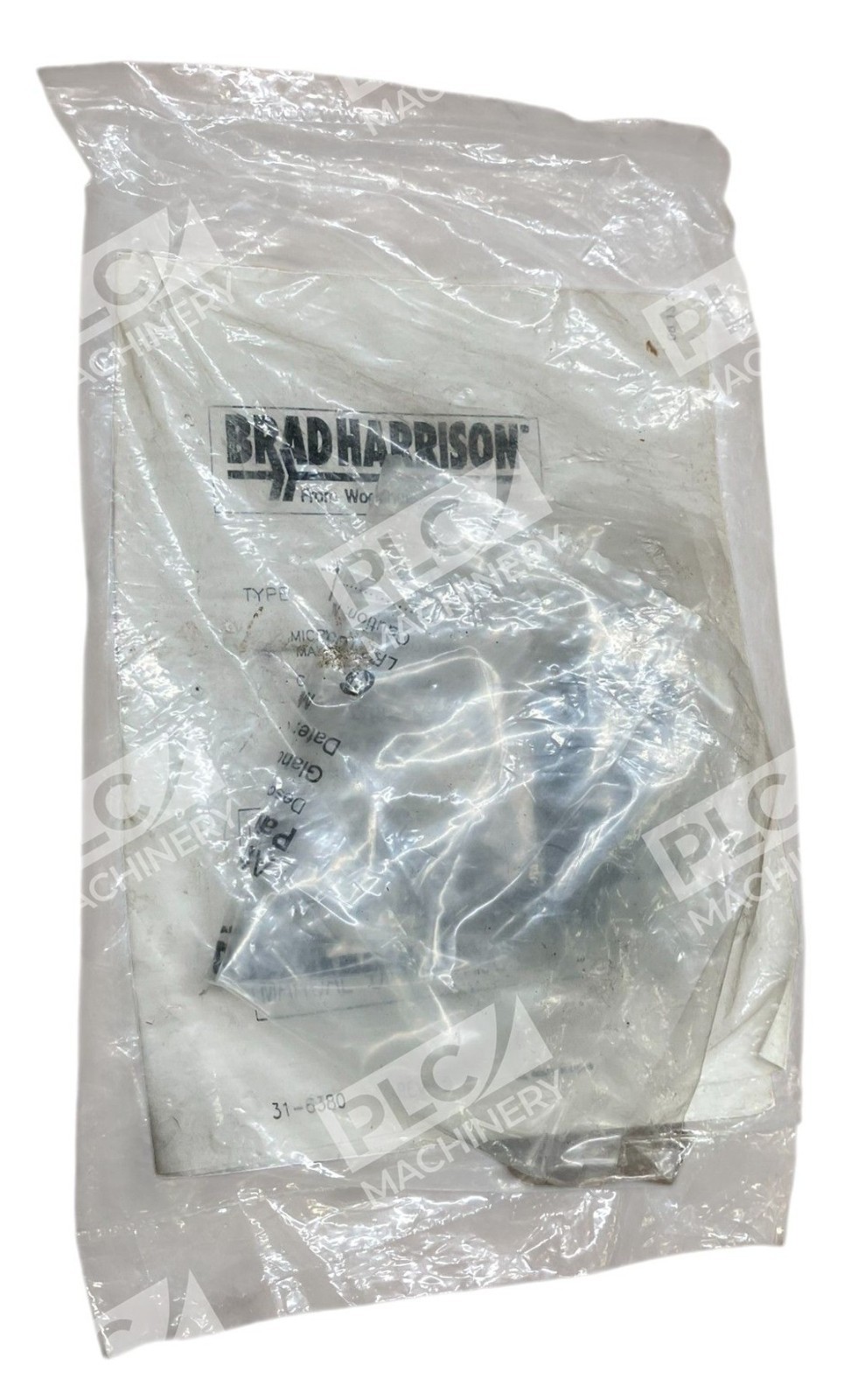

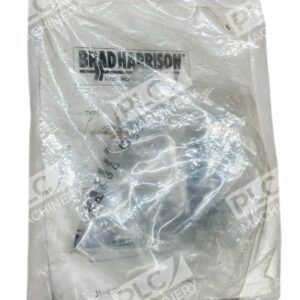

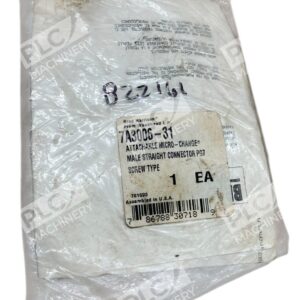

The Brad Harrison 7A3006-31 is a male straight field attachable connector engineered for industrial sensor and receptacle applications. Featuring a PG7 cable fitting with single keyway alignment, this connector delivers reliable sealed connections suitable for harsh environments. Rated for 4 amps at 250 VAC and 300 VDC with IP67 ingress protection, the 7A3006-31 provides secure push-to-lock operation and repeatable mating cycles.
Key Features
- Male straight connector configuration for field attachment applications
- PG7 cable fitting with single keyway design ensures proper orientation
- IP67 sealed rating provides protection in wet and dusty industrial environments
- Push-to-lock mating mechanism reduces installation time
- Compact profile suitable for space-constrained applications
- Nickel-plated brass hardware resists corrosion
Technical Specifications
- Connector Style: Male Straight, Field Attachable
- Part Number: 7A3006-31
- Cable Fitting: PG7
- Keyway: Single Keyway
- Current Rating: 4 Amps
- Voltage Rating: 250 VAC / 300 VDC
- Ingress Protection: IP67
- Mating Cycles: Repeatable push-to-lock design
- Material: Nickel-plated brass nut, durable nylon body
Typical Applications
The 7A3006-31 is commonly deployed in sensor installations, machine tool connectivity, food processing equipment, conveyor systems, and general industrial automation where field attachment and sealed connections are required. The compact footprint and robust IP67 rating make it suitable for washdown environments and outdoor installations.
Compatibility & Replacements
Compatible With
- Brad Harrison cordsets and mating receptacles
- Standard M12 sensor networks utilizing PG7 fittings
- Industrial equipment with PG7 cable entry standards
- Field-terminated cable assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 7A3006-31 serves as a direct replacement for equivalent male straight PG7 connectors in the Brad Harrison Micro-Change series with matching 4-amp and 250/300V ratings.
Works With
- Brad Harrison cordsets and cable assemblies
- Standard industrial connectors with M12 sensor interfaces
- PG7 threaded cable glands and fittings
- Field attachment tooling and crimp terminals
