Overview

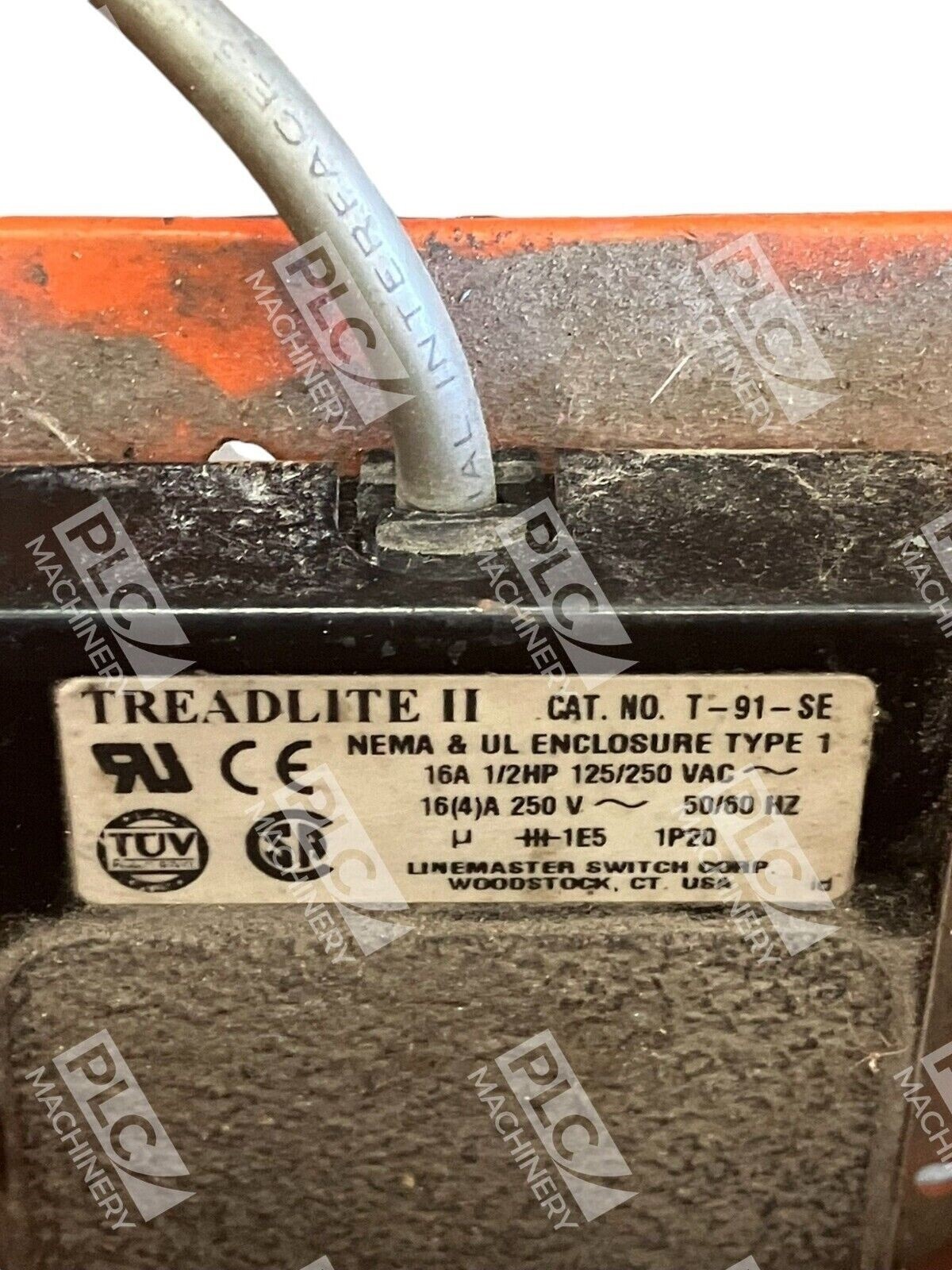

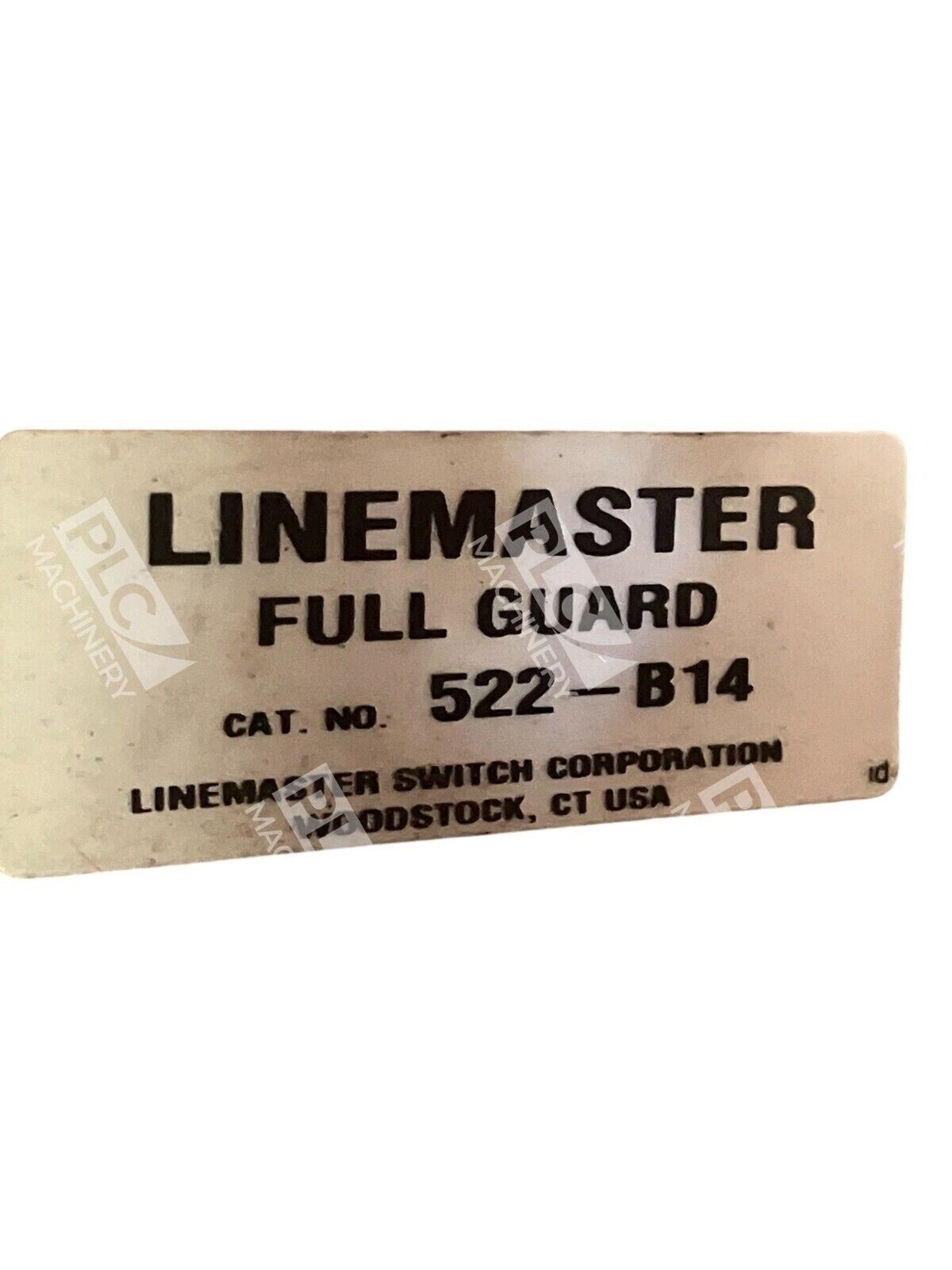

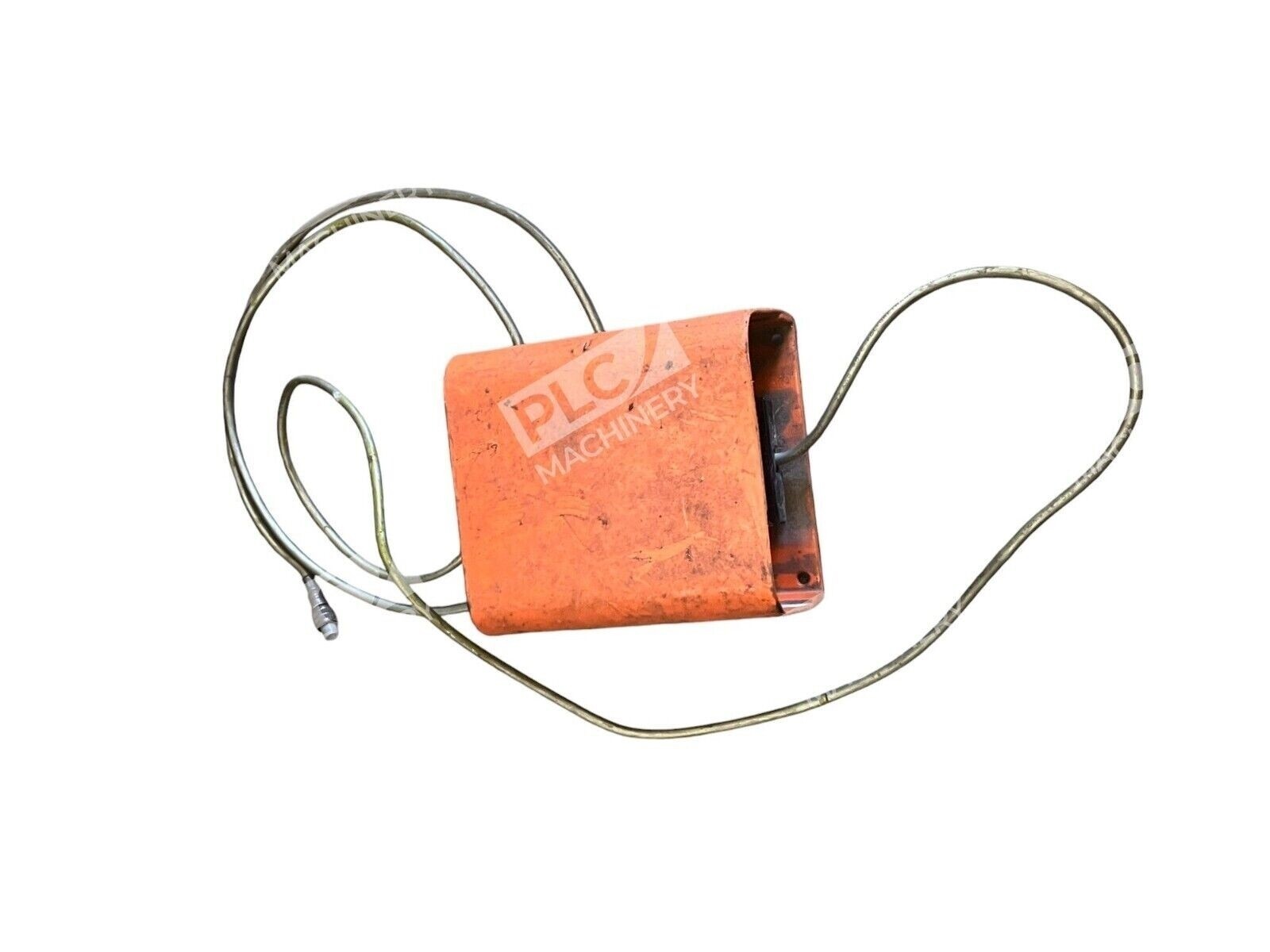

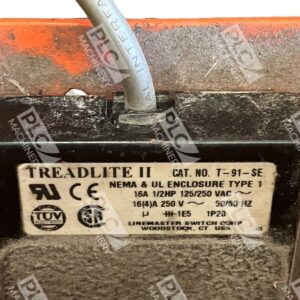

The Linemaster T-91-SE is a Treadlite II series foot-operated switch designed for general-purpose and light-duty industrial control applications. This unit ships paired with the 522-B14 full guard, a steel-constructed protective enclosure that shields the switch mechanism while providing secure floor mounting. Together, they form a complete foot control assembly suitable for machinery control, press operation, and similar industrial foot-switch applications.
Key Features
- Momentary operation: Single pedal design for on-demand foot activation
- Heavy-duty steel guard: 522-B14 full guard measures 11 in L x 6-1/4 in W x 6 in D
- Alert orange finish: Full guard made from steel and painted alert orange color for high visibility
- Non-skid feet: Stable base pads prevent accidental movement during operation
- Welded construction: Robust steel frame for long service life in industrial environments
- Adjustable strain relief: Integral cable management and protection
Technical Specifications
- Contact Configuration: Normally Open (SPDT)
- Rated Current: 15A @ 120-250 VAC
- Horsepower Rating: 1/2 HP @ 120-250 VAC
- Cable Type: Type CM 3C 22AWG with 3-pin connector
- Cable Length: 12 feet
- Guard Dimensions: 11 in × 6-1/4 in × 6 in (L × W × D)
- Guard Material: Steel with welded construction
- Guard Color: Alert Orange
- IP Rating: IP20 standard (IP68 available on request)
- Mounting: Floor or rigid surface mounting via provided holes
- Foot Pad: Non-skid rubber
Typical Applications
The Linemaster T-91-SE with 522-B14 guard is commonly used in:
- Industrial machinery press control and activation
- Production line equipment requiring momentary foot control
- Assembly operations where hands-free operation is needed
- Shearing, punching, and forming equipment control
- Hydraulic and pneumatic system activation
- Machine tool and CNC equipment operation
- Material handling and conveyor system control
Compatibility & Replacements
Compatible With
- Industrial machinery requiring 120-250 VAC control circuits
- Equipment designed for momentary switch activation
- Electrical control systems rated for 15A @ 250 VAC
- NEMA and IEC standard control applications
Replaces / Drop-In Replacement For
- Other Linemaster Treadlite II single-pedal models with standard guard compatibility
- General-purpose foot switches requiring similar electrical ratings and dimensions
- Verify compatibility with your system integrator before ordering.
Works With
- Standard industrial control relays and contactors
- PLC input modules via control circuit wiring
- Variable frequency drives (VFDs) with external control input
- Programmable automation controllers
- Manual machine tool circuits
- Pneumatic and hydraulic control systems
