Overview

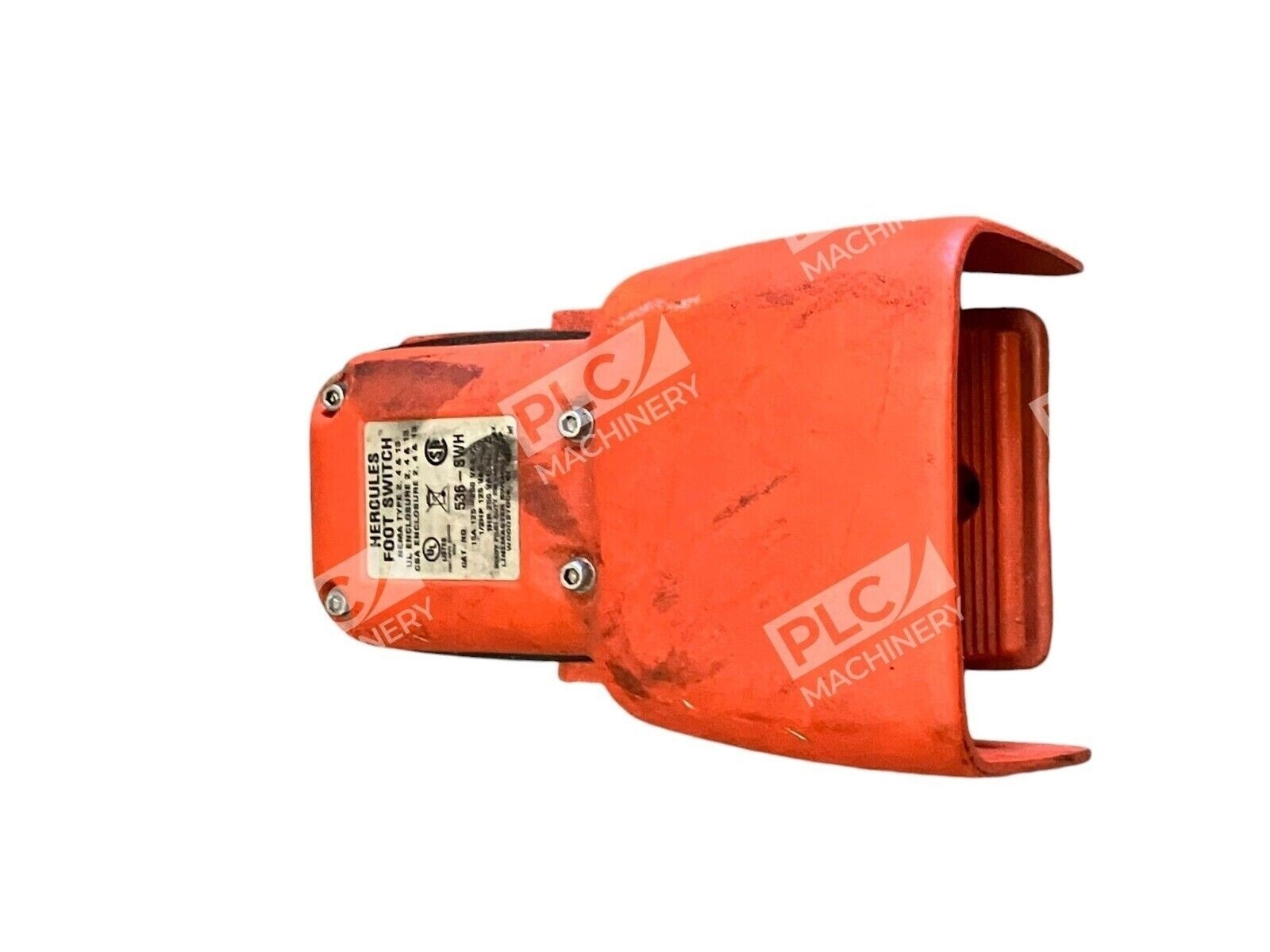

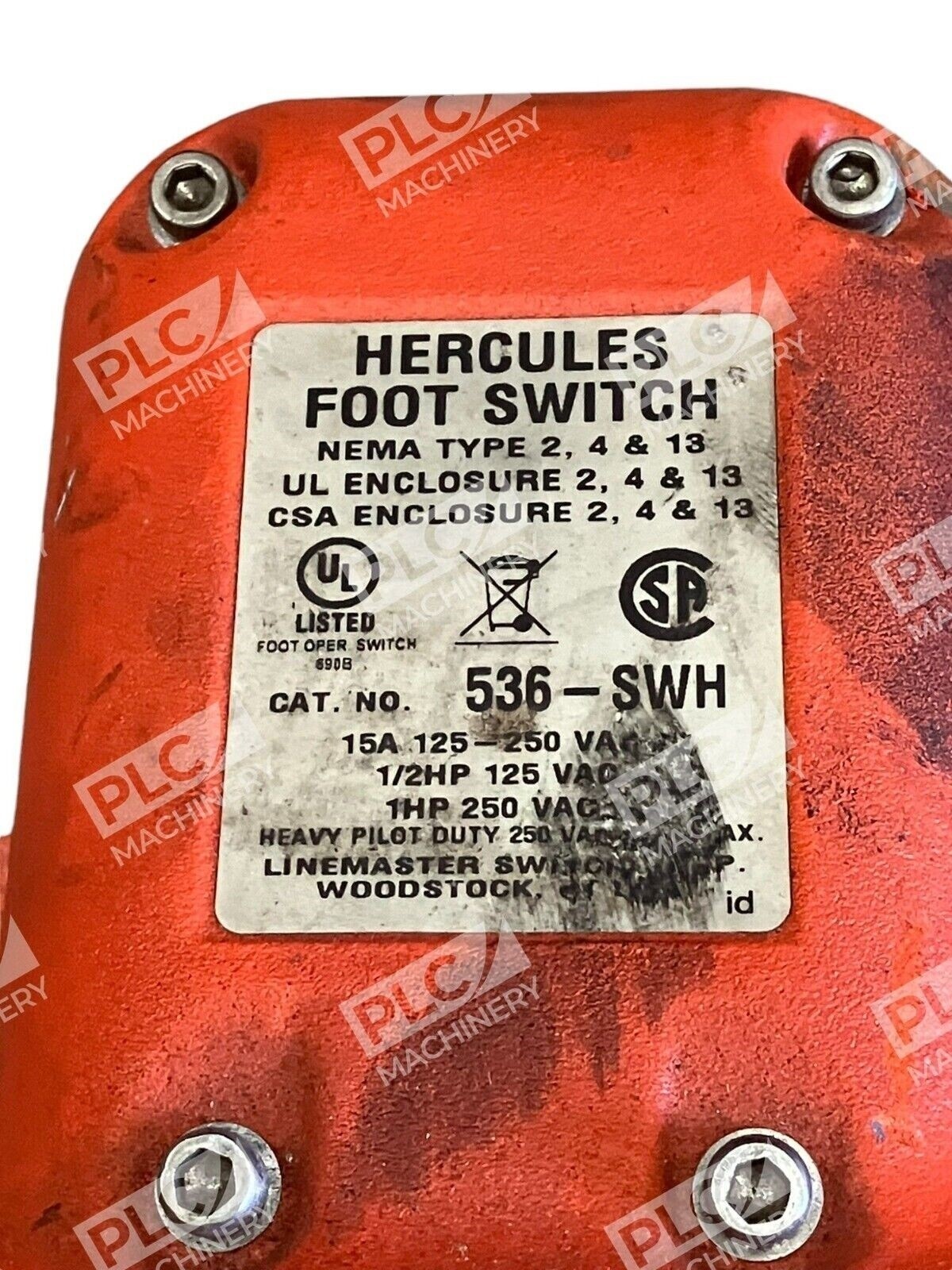

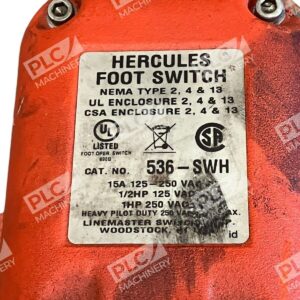

The Linemaster 536-SWH is a heavy-duty foot-operated control switch designed for industrial machinery, power tools, and equipment requiring hands-free actuation. Built with a rugged cast iron Hercules Full Shield enclosure, this momentary-action switch delivers reliable performance in demanding environments. The unit is rated for 15A at 125-250VAC and features NEMA Type 2, 4, and 13 enclosure ratings, making it suitable for wet, dirty, and corrosive environments.
Key Features
- Rugged cast metal enclosure with sufficient weight to prevent sliding during operation
- Neoprene cover gasket and O-rings on actuating shaft ensure environmental sealing
- Single pole double throw (SPDT) contact configuration for momentary switching
- NEMA Type 2, 4, and 13 ratings with IP56 protection degree per EN 60529
- Standard 3/4″-14 NPT threaded conduit entry
- Three mounting holes for rigid floor or equipment mounting
- Alert orange finish for high visibility
- Separate ground screw for equipment grounding
Technical Specifications
- Current Rating: 15A
- Voltage Rating: 125-250VAC
- Contact Configuration: SPDT (Single Pole Double Throw)
- Switch Function: Momentary
- Horsepower: 1/2 HP @ 125VAC, 1 HP @ 250VAC
- Enclosure Material: Cast Iron
- Enclosure Type: Hercules Full Shield
- NEMA Rating: Type 2, 4, 13
- IP Rating: IP56
- Conduit Entry: Single 3/4″-14 NPT
- Width: 5 7/8 inches
- Depth: 4 3/8 inches
- Length: 9 inches
- Standards Compliance: UL, CSA, EN 60529
Typical Applications
The Linemaster 536-SWH is ideal for hands-free control in:
- Industrial machinery and production equipment
- Power tools and equipment requiring foot actuation
- Medical and surgical devices
- Industrial presses and cutting machines
- Assembly and manufacturing operations
- Wet and corrosive industrial environments
Compatibility & Replacements
Compatible With
- Industrial control circuits rated for 15A at 125-250VAC
- Standard 3/4″-14 NPT conduit systems
- Electrical equipment with SPDT momentary contact requirements
- Systems requiring NEMA 2, 4, or 13 environmental ratings
Replaces / Drop-In Replacement For
- Older Linemaster 536-SWH units
- Verify compatibility with your specific application before ordering
Works With
- Standard industrial control systems
- PLC and automation equipment rated for 15A switching
- Equipment with 125-250VAC power supplies
- Any application requiring momentary SPDT foot switch control
