Overview

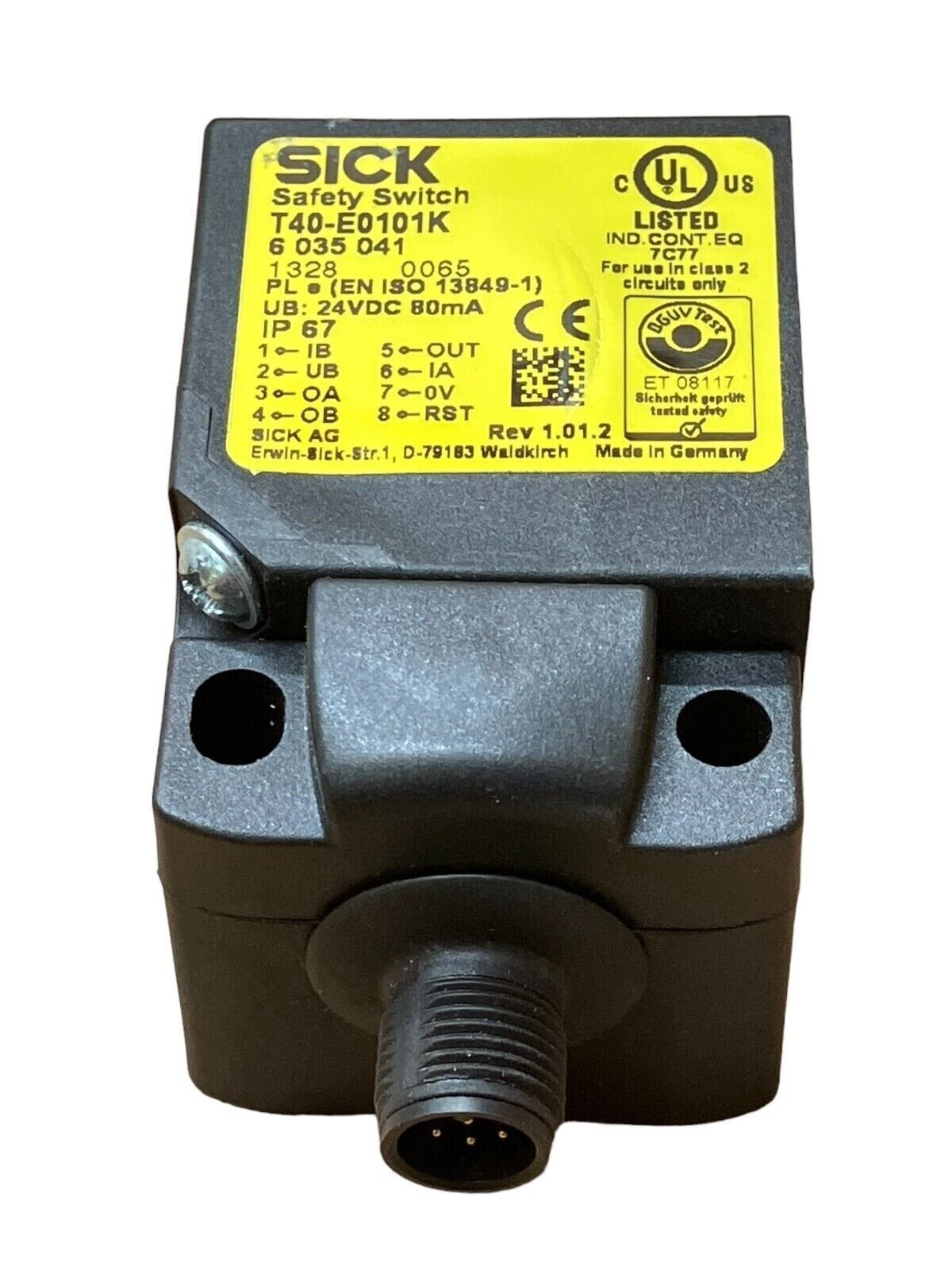

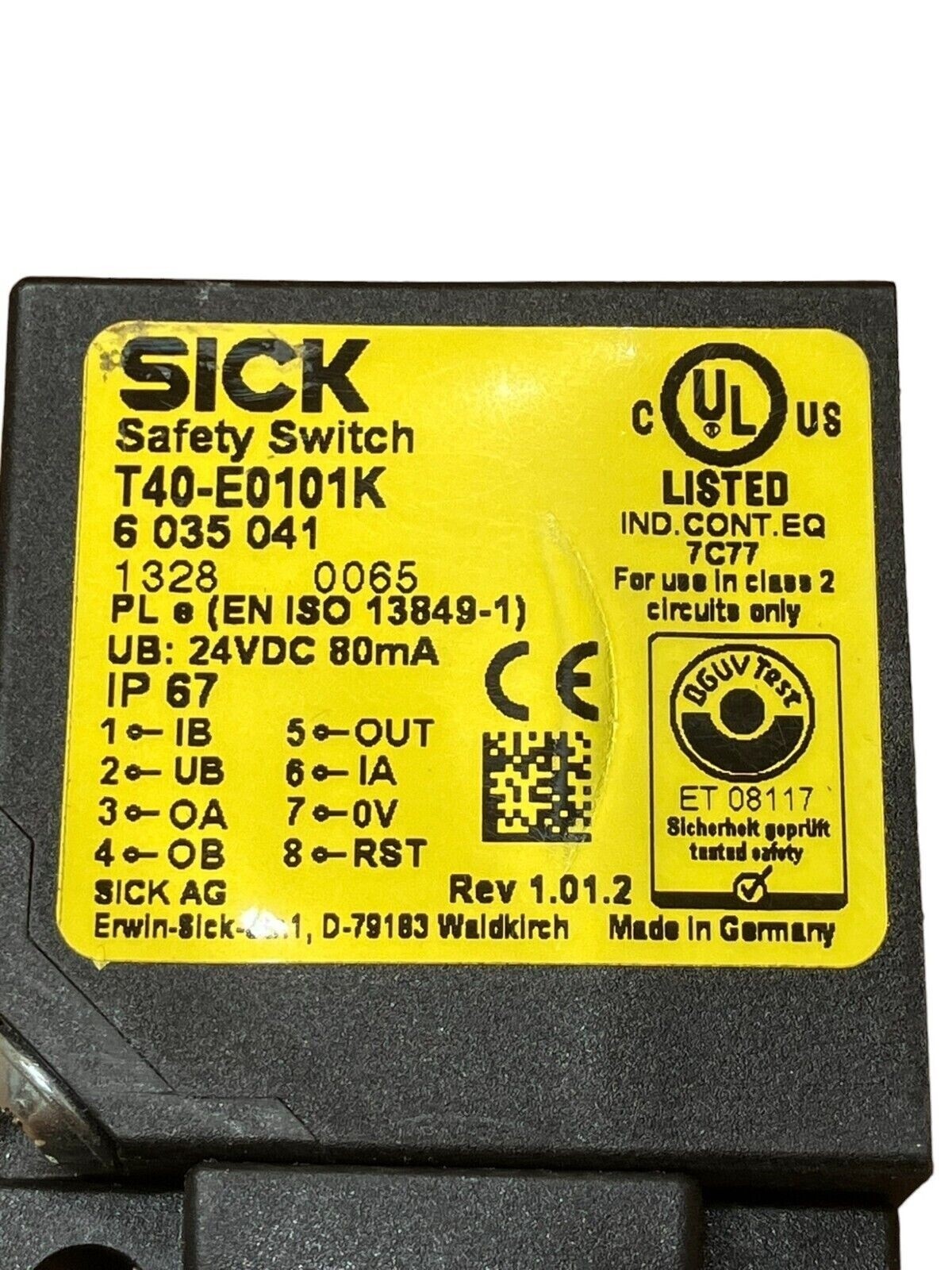

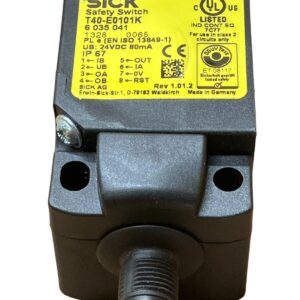

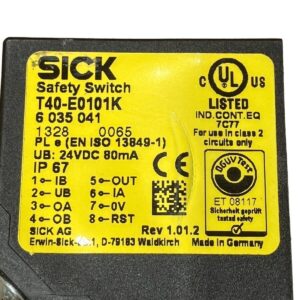

The Sick T40-E0101K (part number 6035041) is a non-contact transponder safety switch designed for machinery protection and safety interlock applications. Part of SICK’s T4000 Direct series, this switch provides PLe Cat4 Type 4 rated safety performance with universal actuator coding per EN ISO 14119. The sensor-only design (actuator sold separately) enables flexible machine integration across five actuation directions.
Key Features
- Non-contact operation: Eliminates wear from mechanical contacts, improving reliability and uptime.
- Two OSSD safety outputs: Dual semiconductor outputs for safety-critical control circuits.
- PLe Cat4 Type 4 rated: Meets EN ISO 13849-1 performance level e and IEC 61508 SIL 3 requirements.
- Universal actuator coding: Works with multiple T4000-1KBA, T4000-1KBQ, and T4000-1KBR actuators.

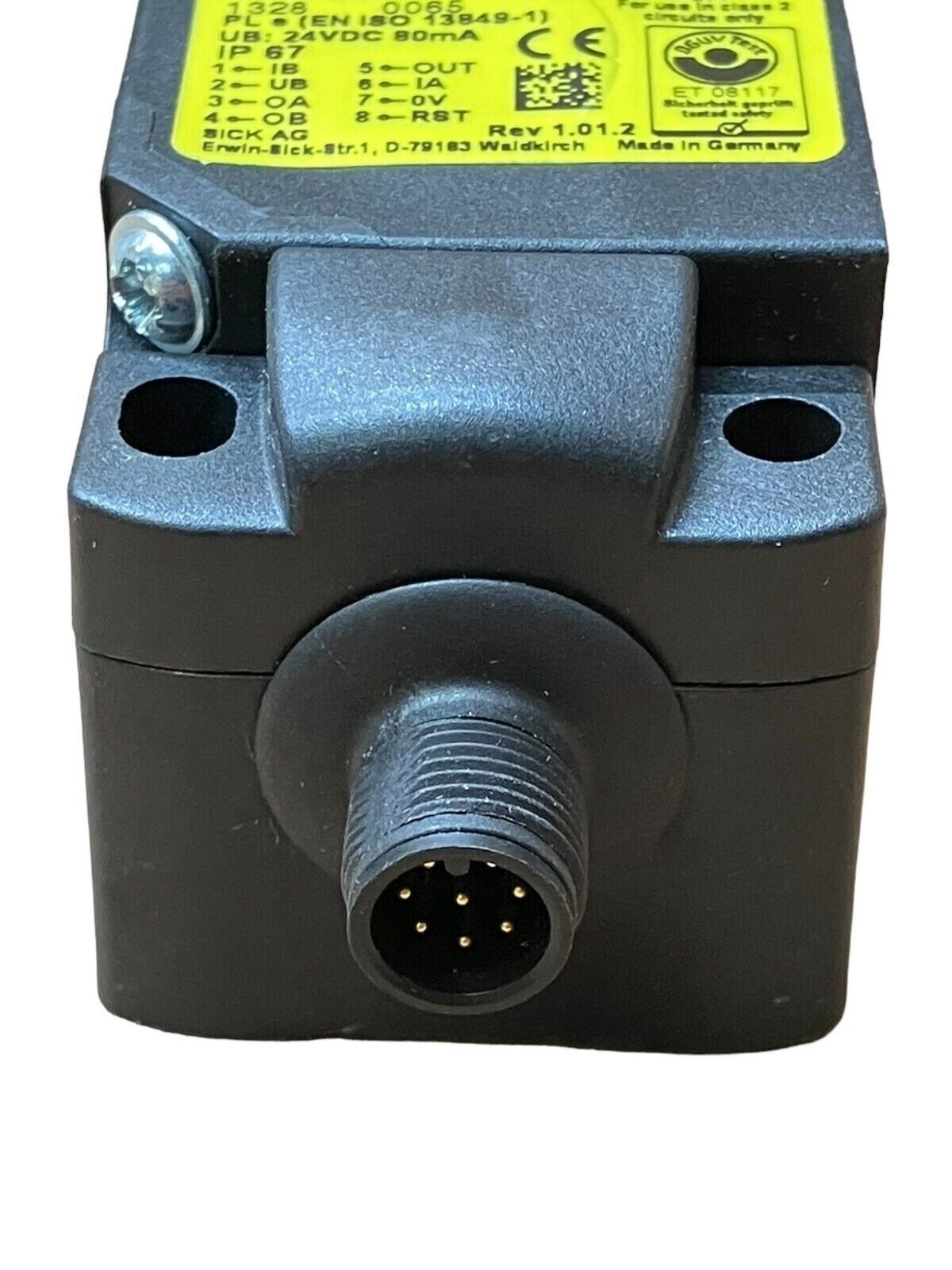

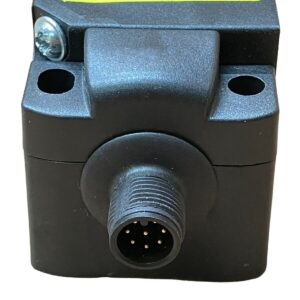

- M12 connector: 8-pin M12 interface with 0.2M pre-equipped cable for plug-and-play integration.
- IP67 rated: Sealed plastic PBT housing for washdown and harsh industrial environments.
Technical Specifications
Electrical:
Supply voltage: 24 VDC nominal (20.4–27.6 VDC operating range)
Rated output current: 0.4 A @ 24 VDC
Output type: 2× digital OSSD (semiconductor safety outputs)
Connection: M12 connector, 8-pin
Physical & Environmental:
Housing material: Plastic PBT
Protection rating: IP67
Operating temperature: −20 °C to +55 °C
Storage temperature: −20 °C to +70 °C
Design: 5 actuation directions, rectangular shape
Safety & Performance:
Safety classification: PLe, Cat4, Type 4 (EN ISO 13849-1)
Coded design: Universally coded (EN ISO 14119)
Detection range: 15 mm (with T4000-1KBA actuator)
Typical Applications
- Guard interlock switches for machine access doors and protective enclosures
- Emergency stop interlocks on automated production lines
- Safety gate and hinge-gate applications
- Conveyor and roller table safety systems
- Die-casting machines and press-brake safeties
- Horizontal and vertical carousel interlocks
Compatibility & Replacements
Compatible With
- T4000 Direct family controllers and safety relays
- Any safety control module accepting dual OSSD (semiconductor safety outputs)
- 24 VDC industrial automation systems
- M12 connector-based fieldbus networks (Profinet, EtherCAT)
- EN ISO 13849 PLe/SIL 3 safety logic solvers
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The T40-E0101K sensor replaces earlier IN40-E0101K non-contact safety switches in T4000 Direct migration projects.
Works With
- T4000-1KBA, T4000-1KBQ, T4000-1KBR actuators (ordered separately)
- SICK TIM781 and SICK LMS111 safety scanners in networked systems
- Standard 24 VDC power supplies with 0.25–4 A external protection
- Industrial Ethernet and Profibus safety modules
