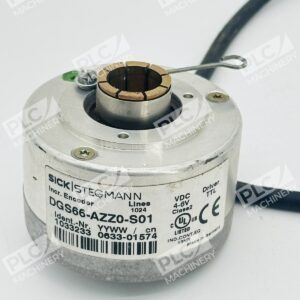

The Sick Stegmann DGS66-AZZ0-S01 is a high-precision incremental encoder engineered for demanding industrial automation and motion control applications. This 1024-line encoder delivers precise rotational feedback in machine tools, textile machinery, woodworking equipment, packaging systems, and other industrial environments requiring robust position and speed measurement.
Overview
The DGS66-AZZ0-S01 combines rugged construction with reliable signal output for applications demanding both durability and accuracy. Sick Stegmann encoders are recognized across the automation industry for delivering consistent performance in harsh factory conditions where temperature fluctuations, vibration, and contamination are common challenges.
Key Features
- 1024 lines of resolution for precise rotational feedback
- IP67-rated housing protects against dust and moisture ingress
- HTL or TTL electrical interface options for flexible system integration
- Rugged construction designed for industrial environments
- Compact form factor suitable for tight mounting spaces
- Available in multiple shaft configurations for diverse coupling requirements
Technical Specifications
The DGS66-AZZ0-S01 encoder is built to withstand harsh conditions while maintaining signal integrity. Key operational parameters include robust electrical isolation and industry-standard mounting interfaces for straightforward integration into existing machinery.
- Resolution: 1024 lines per revolution
- Housing Rating: IP67 protection class
- Electrical Interface: TTL or HTL output (model dependent)
- Power Supply: Typical 12–30 V DC (verify with configuration)
- Operating Temperature: Industrial range for factory environments
- Shaft Type: Multiple configurations available (solid or hollow shaft)
- Mounting: Flange, face mount, or servo coupling options
- Max Output Frequency: Supports industrial control loop refresh rates
Typical Applications
The DGS66-AZZ0-S01 encoder is ideal for:
- Machine tool spindle position feedback and speed measurement
- Textile machinery web drive synchronization
- Woodworking equipment cutting and feed rate control
- Packaging machinery product indexing and registration
- Industrial robotic arm joint feedback
- Servo drive velocity monitoring and closed-loop control
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLC systems (via EtherNet/IP)
- Siemens S7-1200, S7-1500, and SIMATIC systems
- Mitsubishi FX and Q-series controllers
- Omron CP and CJ-series controllers
- Standard industrial servo drives supporting TTL/HTL pulse feedback
- Motion control cards and counter modules with pulse input channels
- Industrial PC-based motion control systems
Replaces / Drop-In Replacement For
The DGS66-AZZ0-S01 is a direct replacement for other DGS66 series variants with identical shaft diameters and mounting footprints. Verify exact mounting configuration (solid vs. hollow shaft, flange type) before ordering to ensure mechanical compatibility with existing installations.
Works With
- Studio 5000 (Allen-Bradley) encoder input modules
- TIA Portal (Siemens) counter and pulse-train functions
- Mitsubishi GX Developer / GX Works2 pulse input programming
- Omron CX-Programmer counter and speed measurement blocks
- PROFINET and EtherCAT gateway devices for encoder networking
- Standalone pulse counters and frequency-to-voltage converters
