Overview

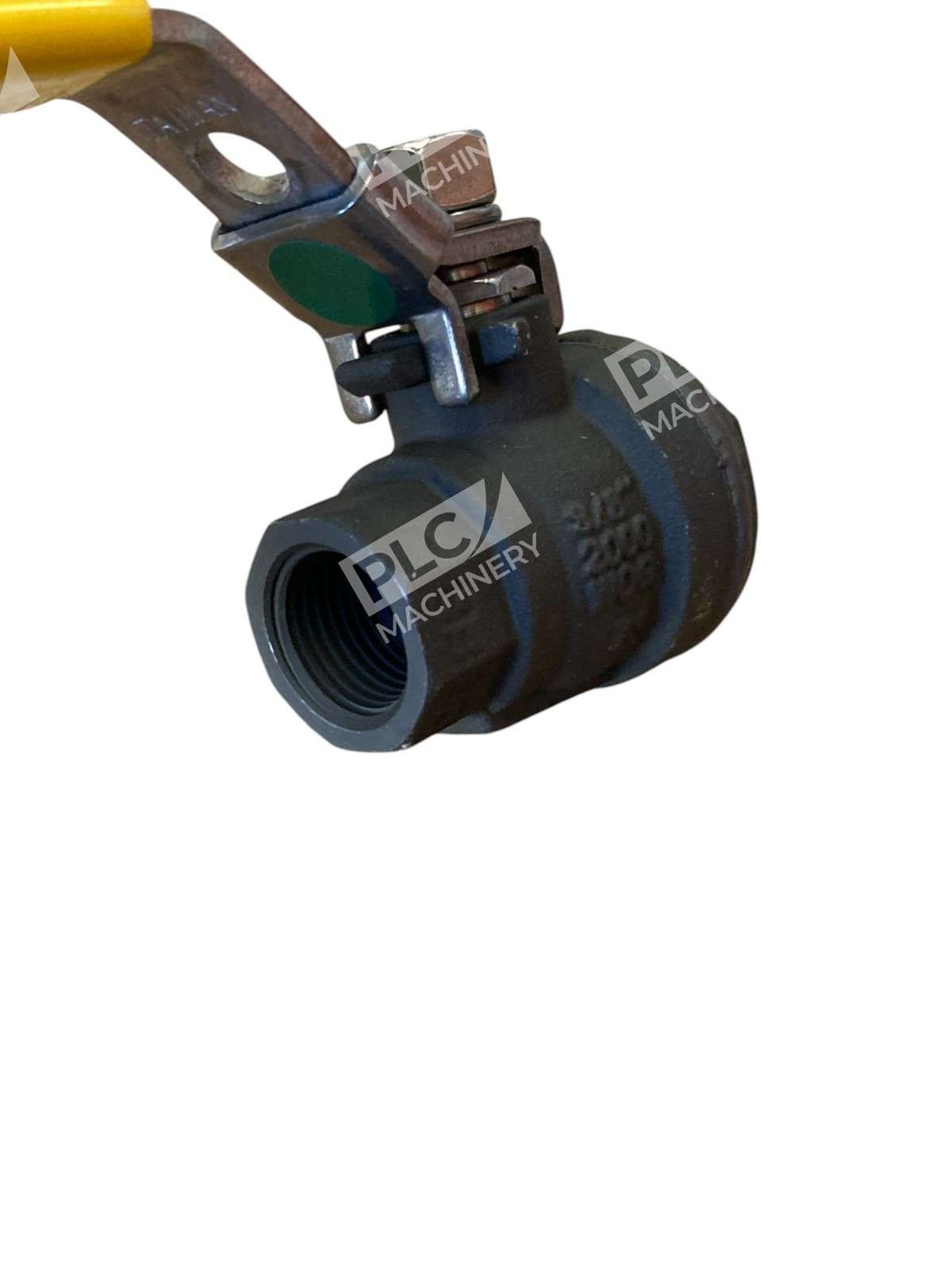

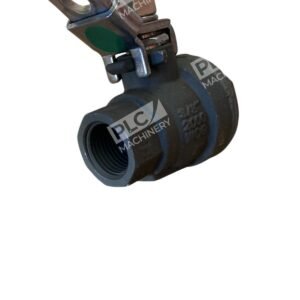

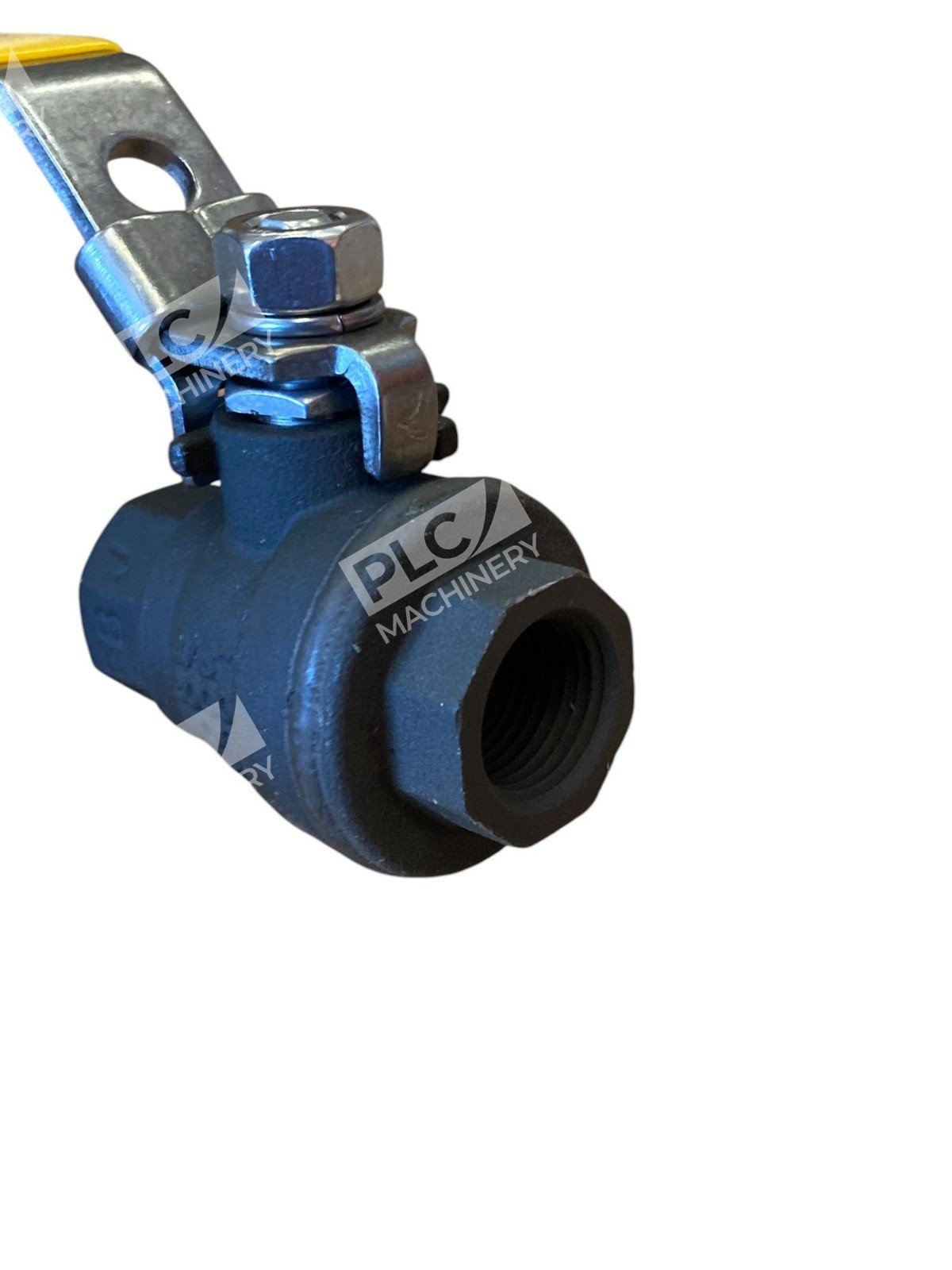

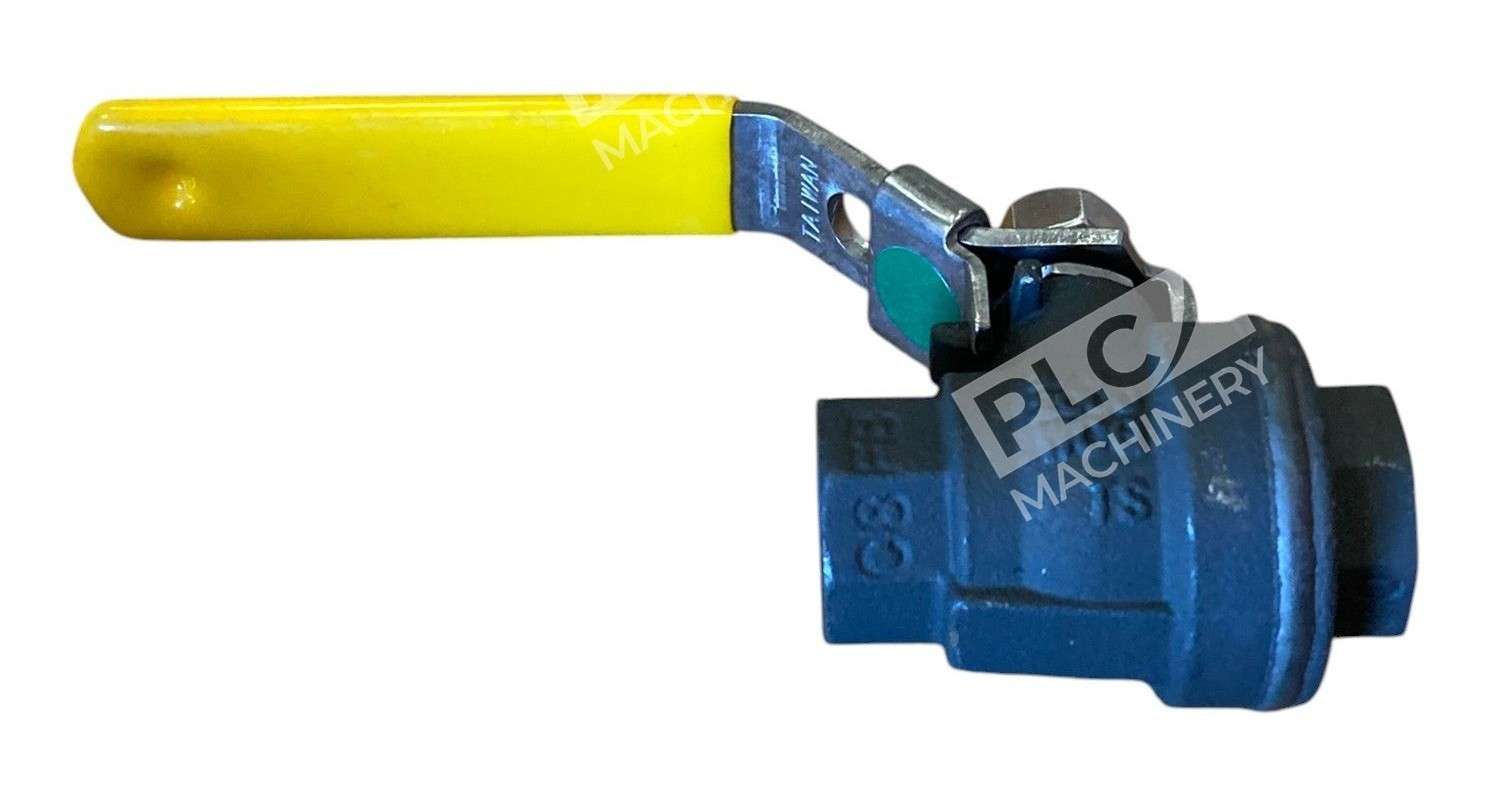

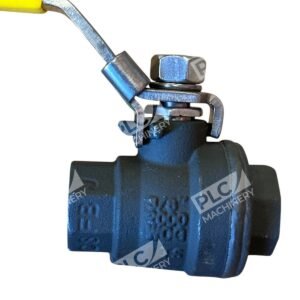

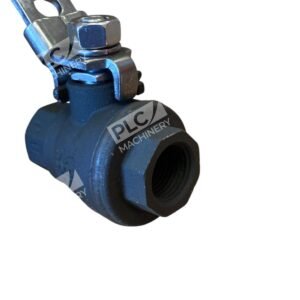

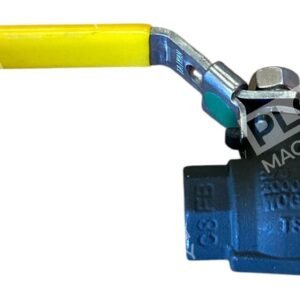

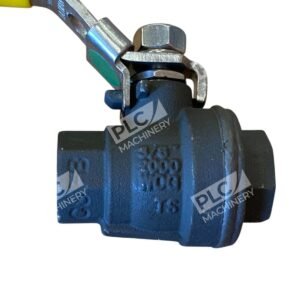

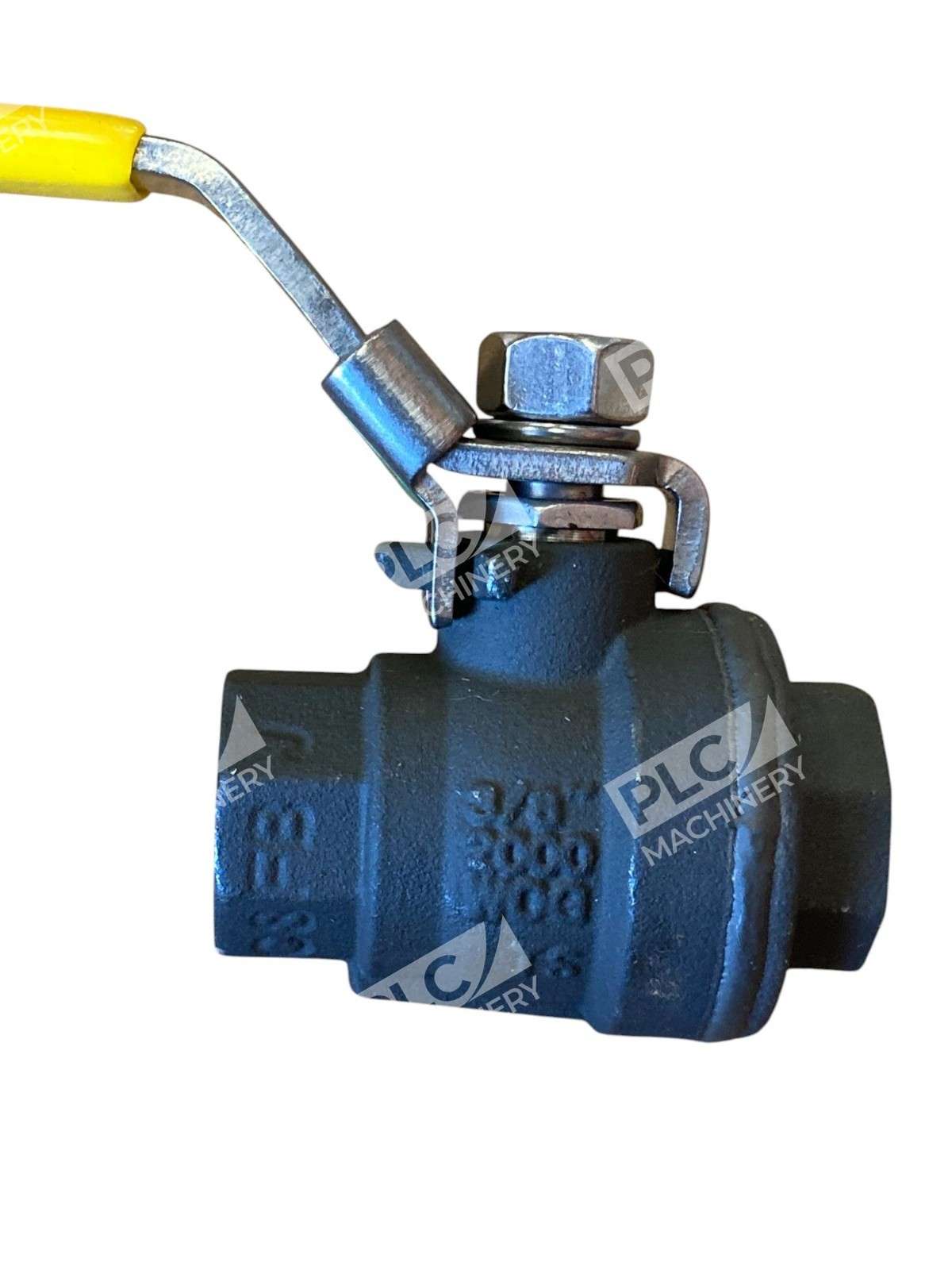

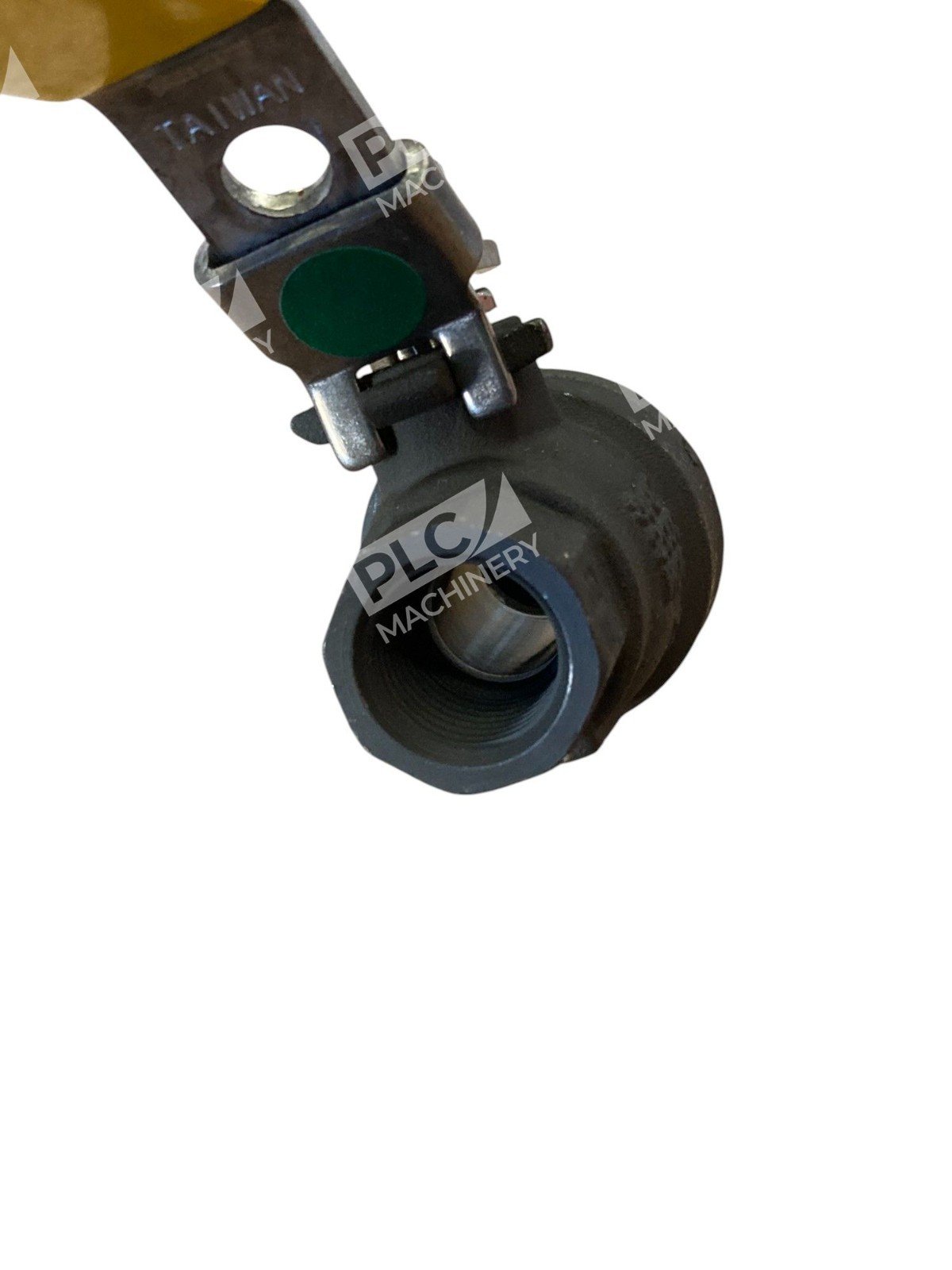

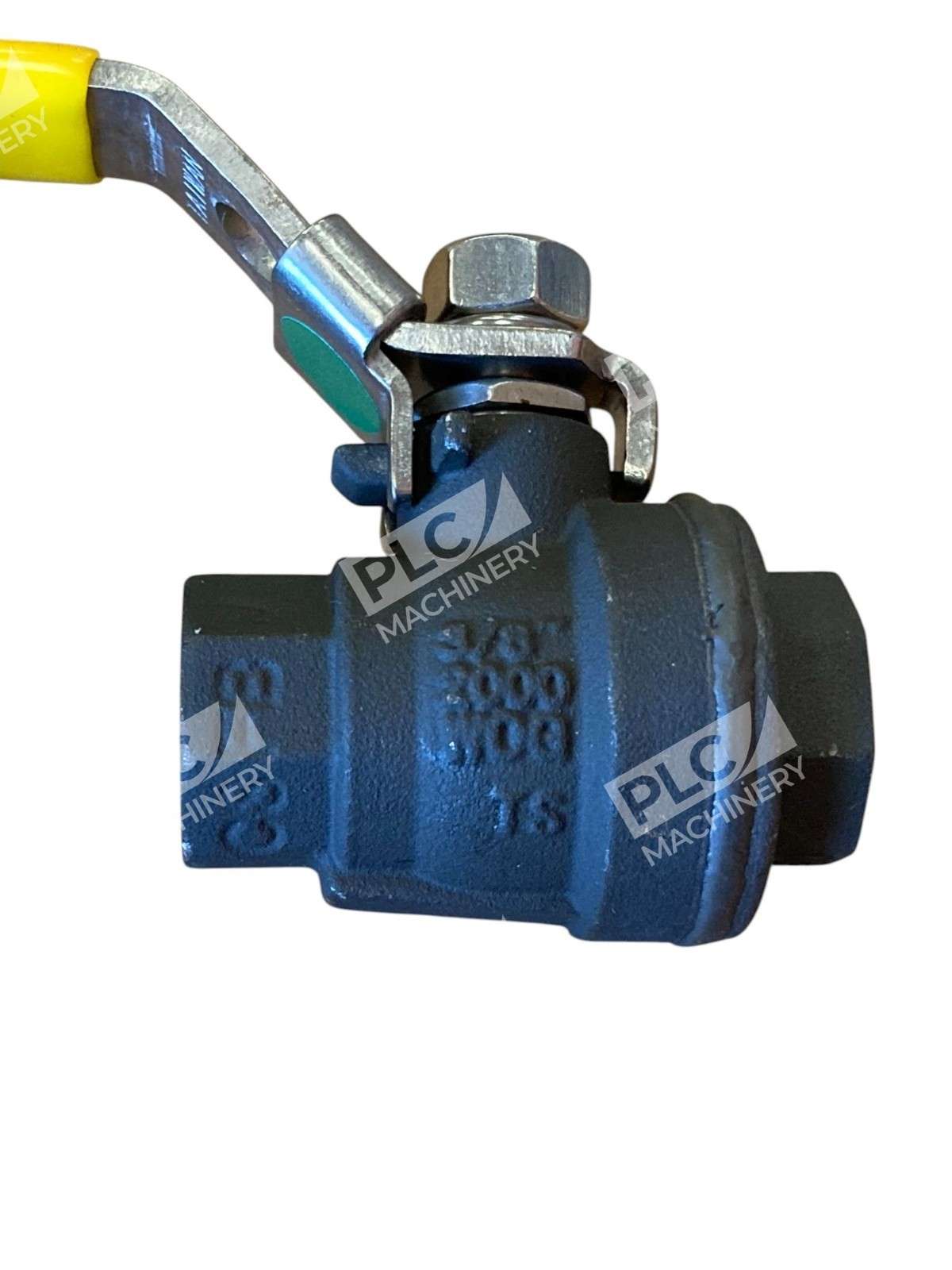

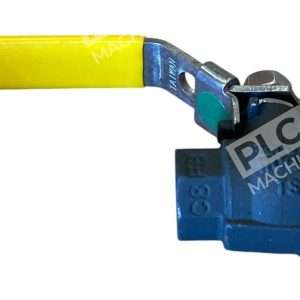

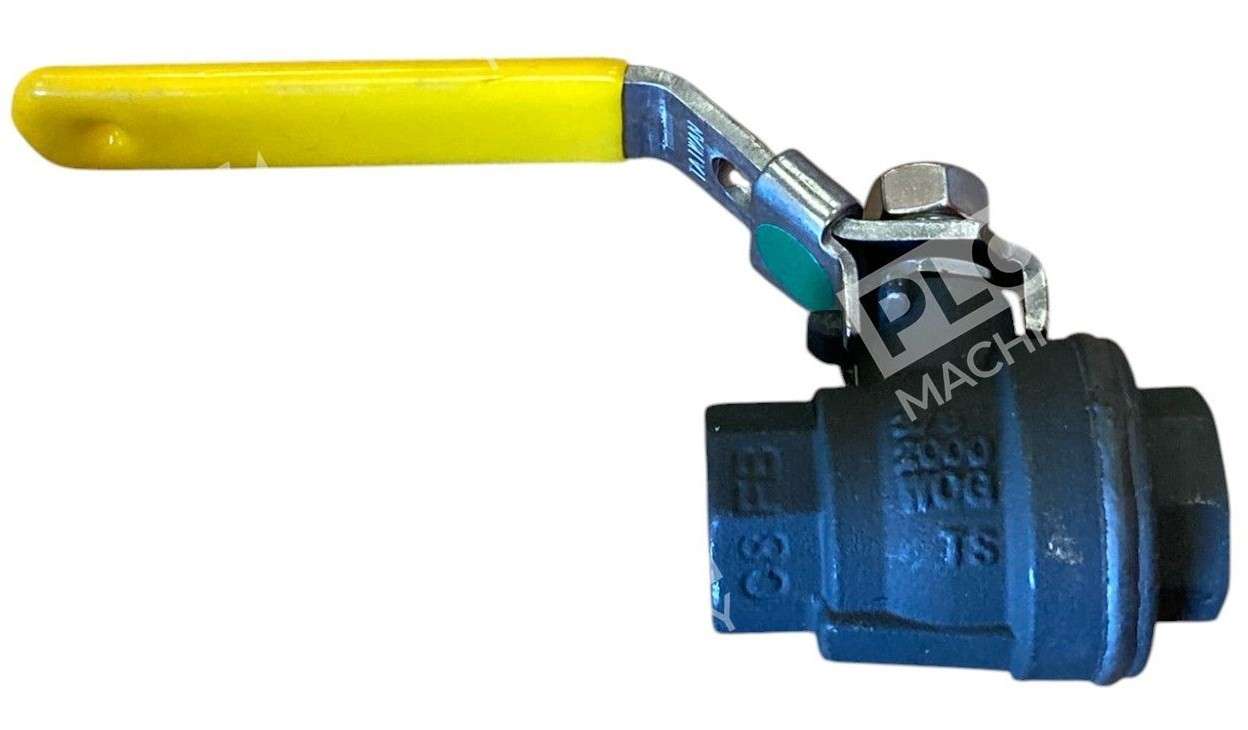

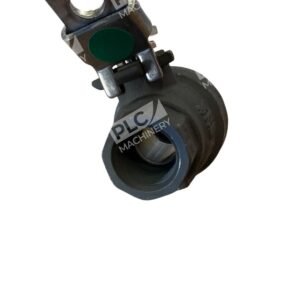

The Sharpe 3/8″ 2000 WOG TS ball valve is a professional-grade manual shut-off valve constructed from 316 stainless steel, designed for demanding applications in hydraulics, pneumatics, pumps, and corrosive-environment plumbing. The “TS” designation indicates threaded stainless construction with NPT (National Pipe Thread) female connections. Rated at 2000 WOG (Water, Oil, Gas), this full-port ball valve provides minimal flow restriction and reliable on-off control in industrial and utility settings.
Key Features
- Full Port Design — Maximum flow with minimal pressure drop for efficient operation
- Blowout-Proof Stem — Enhanced safety feature prevents stem ejection under pressure
- RTFE Seals — Reliable seat material rated for water, oil, gas, and moderate steam service

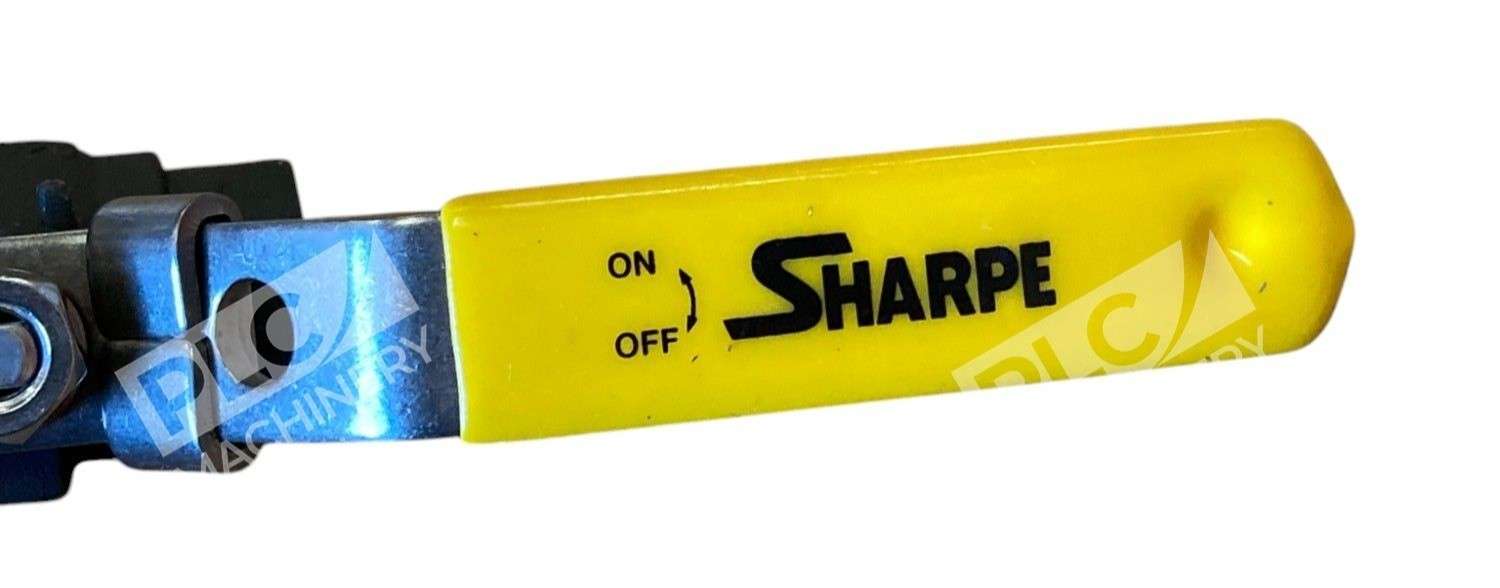

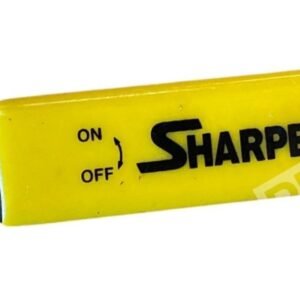

- Locking Lever Handle — Manual operation with secure open/closed position indication
- 316 Stainless Steel Body — Superior corrosion resistance for harsh and marine environments
- NPT Threaded Connections — Standard female connections for direct integration into piping systems
Technical Specifications
- Pressure Rating (WOG): 2000 PSI
- Port Type: Full Port
- Connection Size: 3/8 inch NPT
- End Connections: Female NPT Threaded
- Body Material: 316 Stainless Steel
- Ball Material: Stainless Steel
- Seat Material: RTFE (Reinforced PTFE)
- Stem Type: Blowout-Proof
- Handle: Lockable Lever
- Steam Rating: 150 lb saturated (with RTFE seats)
- Operating Temperature Range: -50°F to 450°F
Typical Applications
The Sharpe 3/8″ 2000 WOG TS ball valve is suitable for:
- Hydraulic systems and fluid control lines
- Pneumatic equipment and air distribution networks
- Industrial pump discharge and inlet isolation
- Oil and gas production and transfer operations
- Plumbing systems in corrosive or marine environments
- Chemical processing and corrosion-resistant fluid handling
- Low-pressure steam applications (saturated, 150 lb rating)
Compatibility & Replacements
Compatible With
- Standard 3/8 inch NPT female threaded connections
- Hydraulic and pneumatic system manifolds
- Industrial piping networks (water, oil, gas, chemicals)
- Pump inlet and outlet assemblies
- Portable and stationary fluid transfer equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Common Sharpe Series alternatives in similar ratings include Series 50B76 (seal-welded variants) and other 3/8″ 2000 WOG Sharpe models, though mechanical and port configurations may differ.
Works With
- Standard NPT-threaded pipe fittings and adapters
- Hydraulic and pneumatic hoses with JIC or SAE adapters
- ANSI/ASME piping standards for 2000 PSI service
- Industrial control and manual isolation systems
