Overview

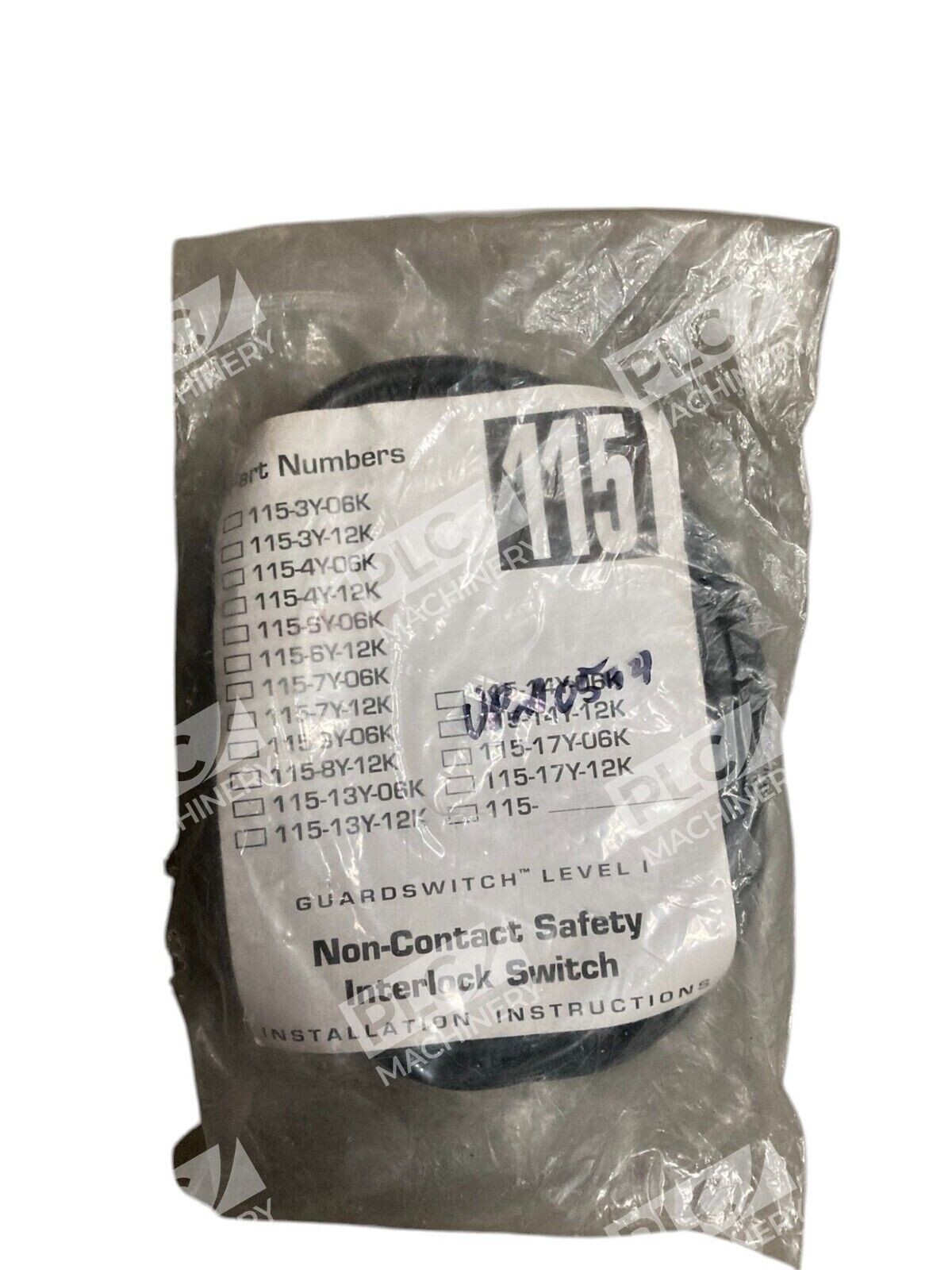

The Sentrol 115-6Y-06K GuardSwitch Level 1 is a non-contact safety interlock position switch built for industrial safety applications. Manufactured by Edwards Signaling, this unit features a durable nylon 6/6 enclosure, SPST-NO contact configuration, and a compact form factor suitable for machinery guarding, door interlocks, and access control. The non-contact design eliminates wear and improves reliability compared to mechanical switches.
Key Features
- Non-contact magnetic sensing technology — no physical contact wear or degradation
- SPST-NO (Single Pole Single Throw, Normally Open) relay output
- Wide operating voltage range: 120VAC/DC at 0.2A maximum
- 1-inch nominal sensing range for flexible mounting
- Nylon 6/6 housing rated IP67 for moisture and dust resistance
- Wire-leaded terminals (18/2 SJTOW, 6 ft leads standard)
- Operating temperature range: −40°F to +180°F (−40°C to +82°C)
- 25VA/W power rating — suitable for relay circuits and low-voltage control
- Easy to install and conceal in machine frames
Technical Specifications
- Operating Voltage: 120VAC/DC
- Maximum Current: 0.2A (200mA)
- Power Rating: 25VA/W
- Contact Configuration: SPST-NO (Normally Open)
- Sensing Range: 1 inch nominal
- Housing Material: Nylon 6/6
- Enclosure Rating: IP67
- Lead Type: 18/2 SJTOW (6 feet standard)
- Operating Temperature: −40°F to +180°F
- Series: 115 GuardSwitch Level 1
- Terminal Type: Wire-leaded
Typical Applications
- Machine tool safety interlocks and guards
- Access control for hazardous machinery areas
- Cabinet and enclosure door position verification
- Safety gate position monitoring
- Conveyor and production line safeguards
- General industrial presence-sensing safety applications
Compatibility & Replacements
Compatible With
- Standard 120VAC/DC control circuits and relay logic systems
- Industrial motor controls and safety PLCs
- Door interlock systems and gate locking mechanisms
- Magnetic actuators and mounting brackets (Sentrol brand and equivalent)
- Direct-wired 24VDC to 120VAC safety chains
Replaces / Drop-In Replacement For
- Earlier production runs of Sentrol 115-6Y-06K (same part number across manufacturing dates)
- Verify compatibility with your system integrator or machine builder before ordering alternative models
Works With
- Edwards Signaling GuardSwitch 115 series accessories and mounting hardware
- Standard low-voltage safety relay modules and contactor circuits
- Industrial wiring standards (SJTOW gauge 18/2 shielded leads)
- IP67-rated enclosures and IP-rated control panels
