Overview

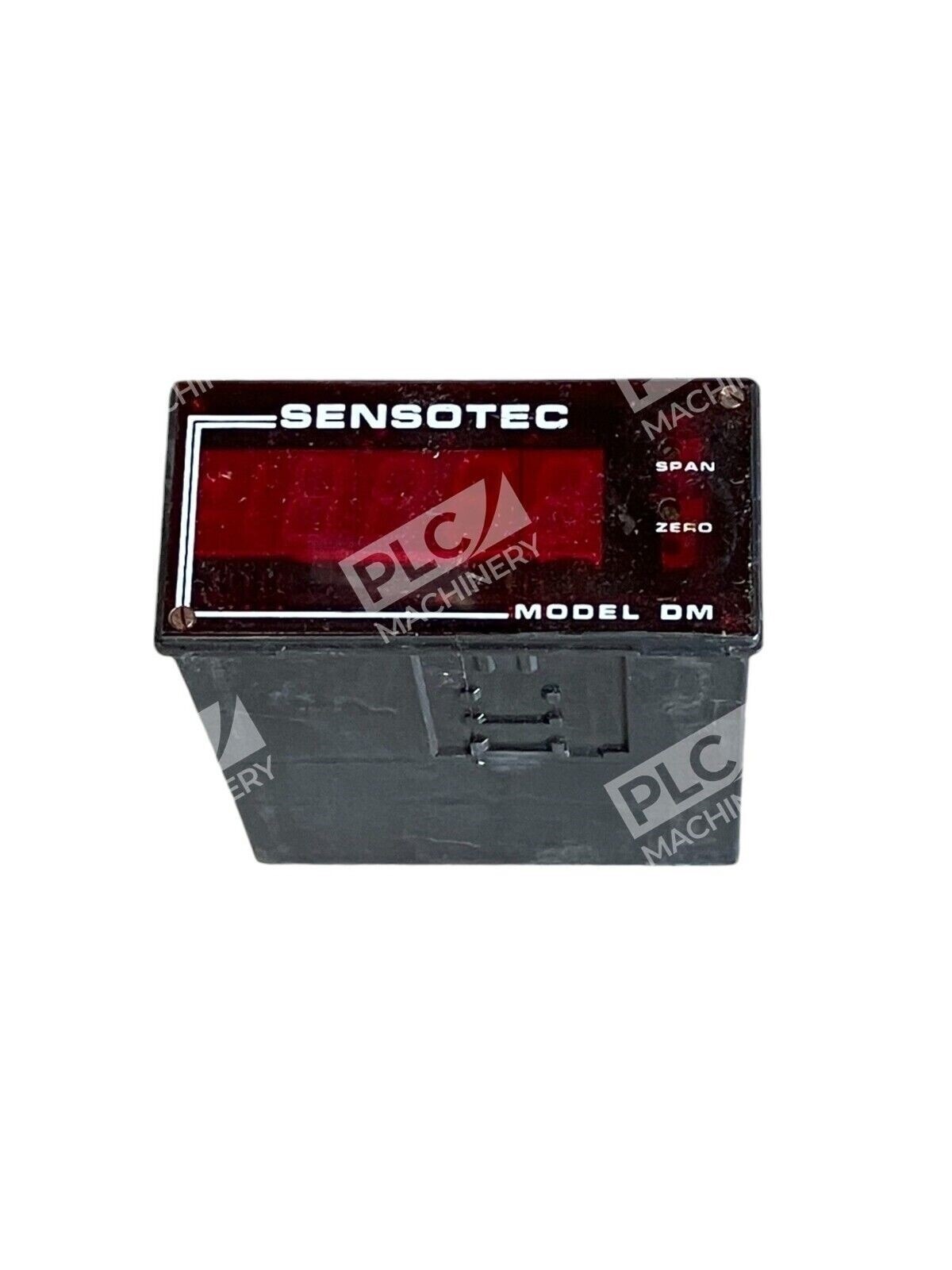

The Honeywell Sensotech DM 060-3157-01 is a digital signal conditioner designed for precise measurement signal conditioning in industrial automation environments. This Model DM unit processes analog signals from AC-powered displacement transducers, load cells, and pressure sensors, converting them to digital or analog outputs suitable for PLC and data acquisition systems. The 060-3157-01 variant includes digital display functionality for local readout, making it ideal for standalone measurement applications and integration into larger control systems.
Key Features
- Digital display output for real-time measurement readout
- Configurable high and low limit outputs for alarm functions
- AC-powered operation for reliable, continuous use
- Compact design suitable for panel mounting or field installation
- Honeywell Sensotec heritage — proven reliability in industrial measurement
Technical Specifications
- Manufacturer: Honeywell Sensing and Control / Sensotec
- Model: DM Digital Signal Conditioner

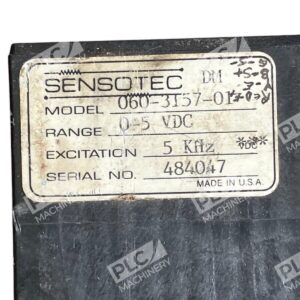

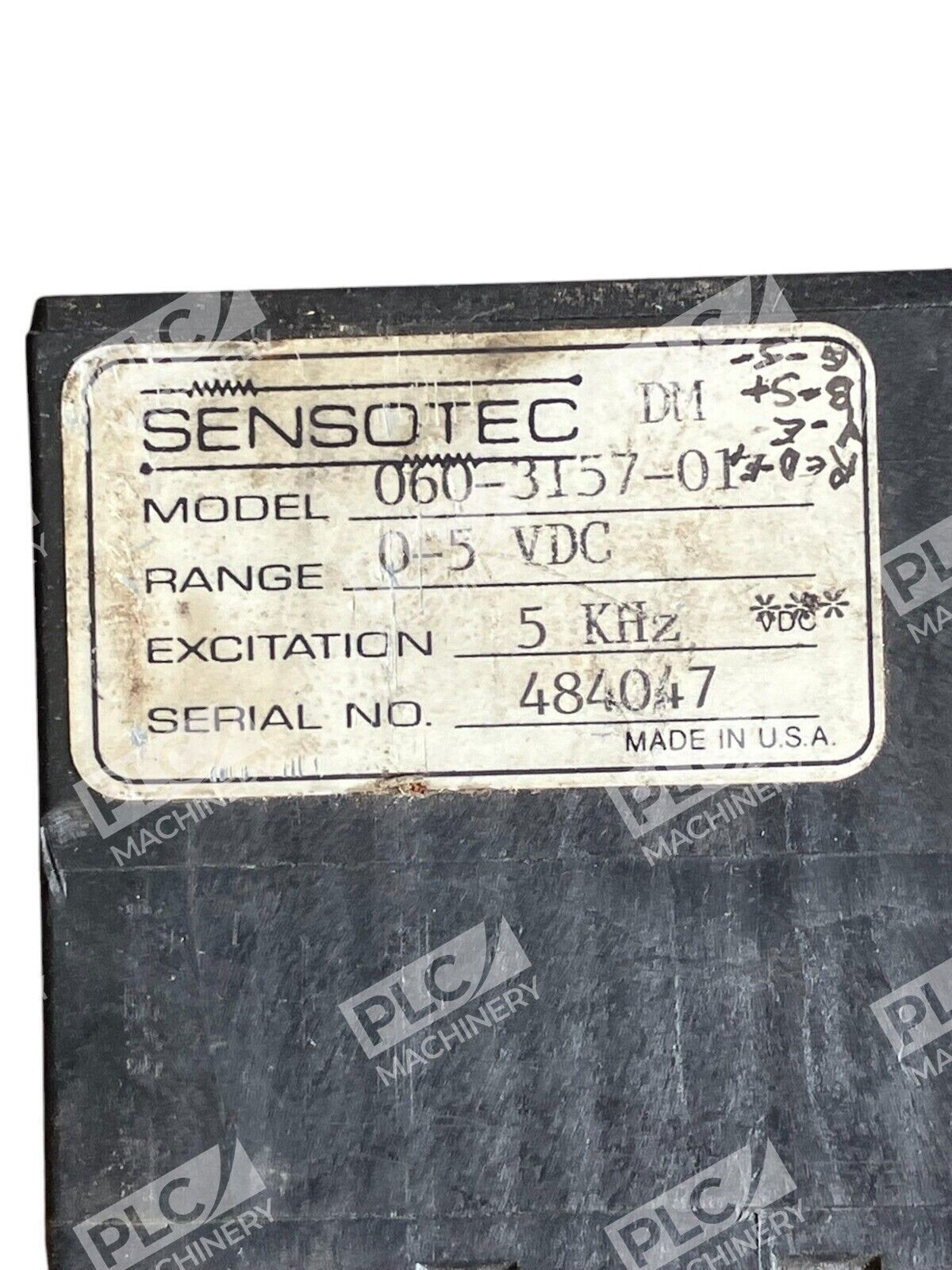

- Part Number: 060-3157-01
- Transducer Input: AC-powered displacement transducers
- Output: Digital display with configurable limits

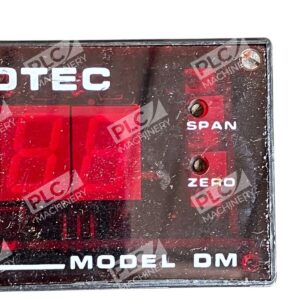

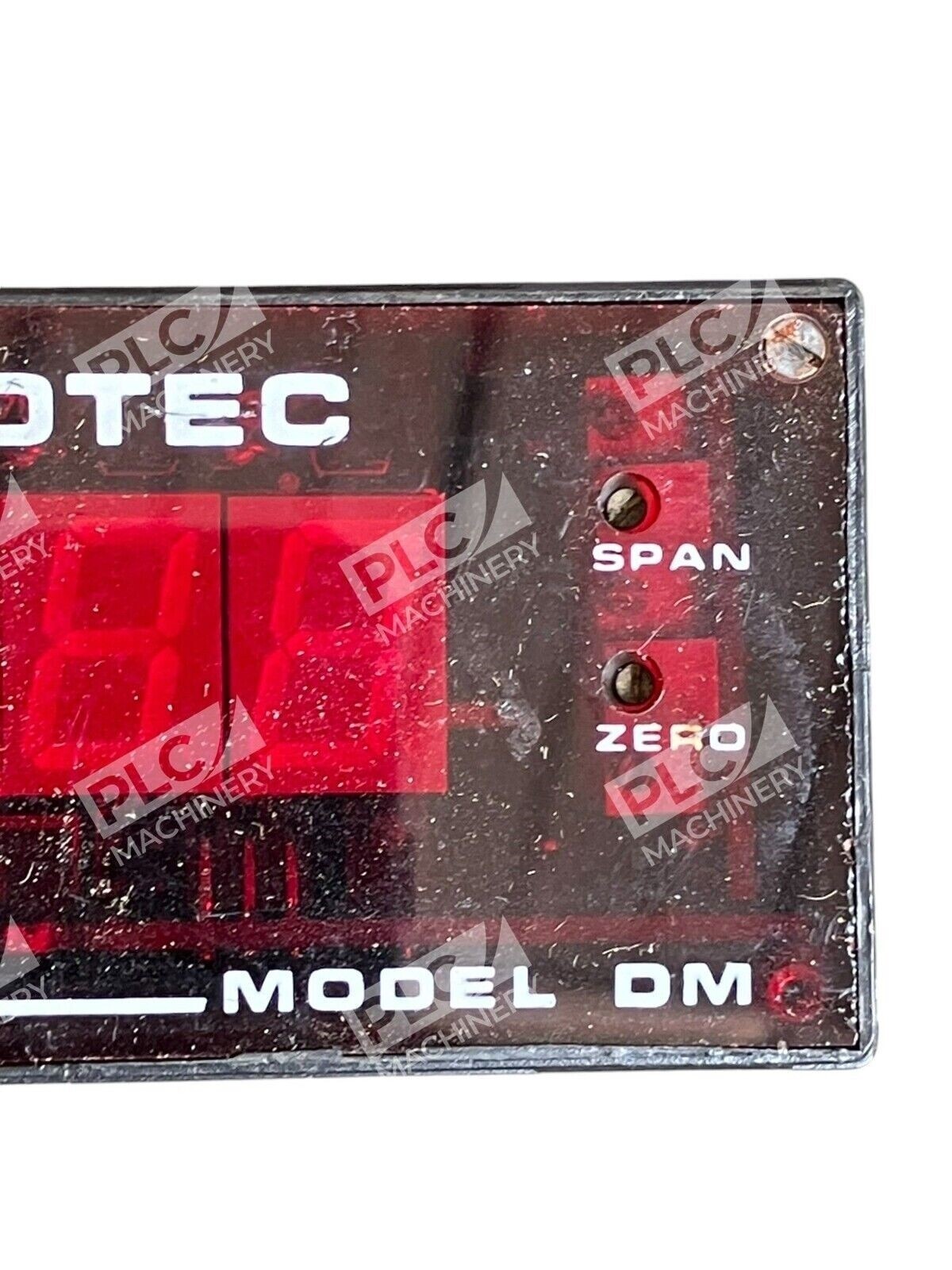

- Display Type: Digital readout with Hi/Low limit indicators
- Mounting: Panel or DIN rail mountable (standard industrial form factor)
- Operating Environment: Industrial automation, test and measurement
Typical Applications
- Displacement and position measurement in manufacturing processes
- Load cell signal conditioning for weighing and force measurement
- Pressure transducer signal conversion for hydraulic and pneumatic systems
- Strain gauge measurement in structural testing and machine condition monitoring
- Industrial process control and data acquisition in test stands and production lines
Compatibility & Replacements
Compatible With
- AC-powered displacement transducers (Honeywell and third-party)
- Load cells with standard signal outputs
- Pressure and strain gauge transducers
- Industrial PLC systems via limit relay outputs
- Data acquisition and control systems
Replaces / Drop-In Replacement For
- Honeywell 060-3157-03 (variant with similar signal conditioning functionality)
- Verify compatibility with your system integrator or applications engineer before ordering
Works With
- Allen-Bradley and Siemens PLC systems (via discrete signal outputs)
- Industrial measurement and test platforms
- Standard industrial 24 VDC control circuits
- SCADA and HMI systems (through analog or relay interfaces)
