Overview

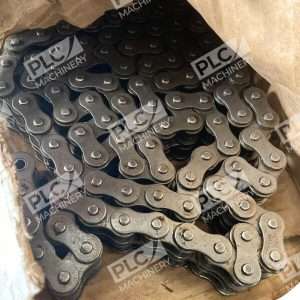

The SDRC 60-2Riv ANSI roller chain is a double-strand (duplex) industrial power transmission component manufactured to meet ANSI B29.1 standards. Supplied in new condition with 160 links spanning 10 feet, this 3/4″ pitch chain delivers dependable performance across standard-duty applications requiring smooth, consistent power delivery.
Key Features
- Double-Strand Design: Two parallel strands distribute load evenly, reducing wear on individual rollers and pins.
- Riveted Pin Construction: Riveted pins provide permanent joint assembly without the need for removable fasteners.
- Carbon Steel Material: Standard carbon steel throughout—plates, rollers, pins, and bushings—for cost-effective durability in dry indoor environments.
- Standard Rollers and Pins: Compatible with conventional sprockets designed for #60 chain geometry.
- ANSI B29.1 Compliance: Meets American National Standards Institute specifications for interchangeability and performance.
- New in Box Condition: Factory-sealed packaging ensures no prior use or wear.
Technical Specifications

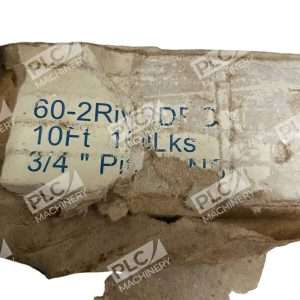

- Chain Pitch: 3/4″ (0.750″)
- Chain Size/Number: #60
- Strand Configuration: 2 (Double/Duplex)

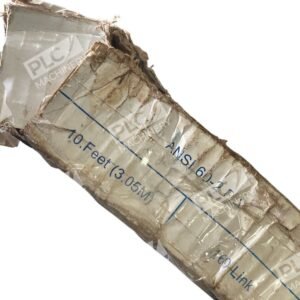

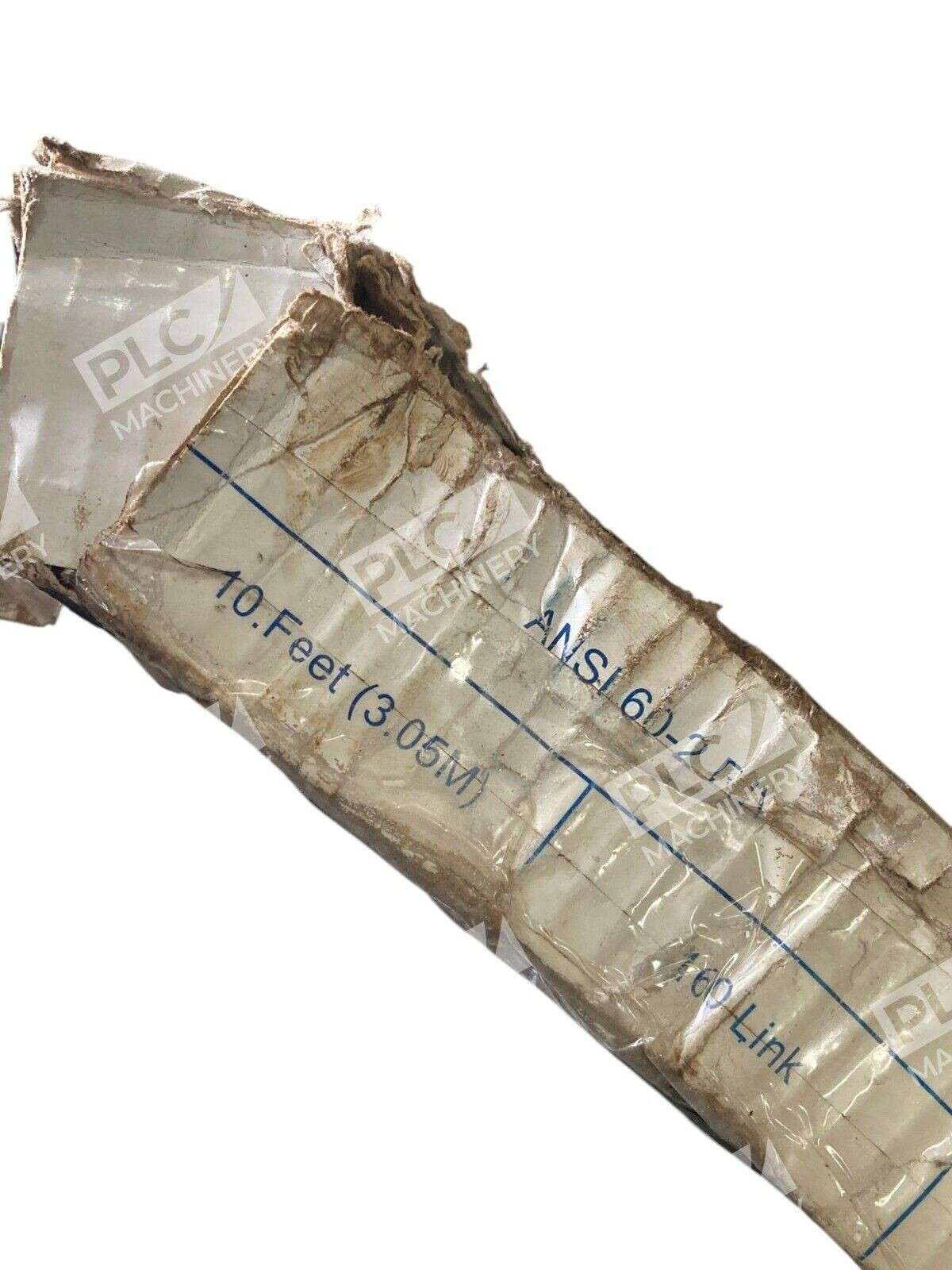

- Total Length: 10 feet

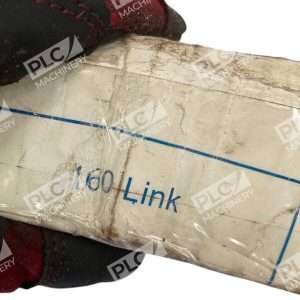

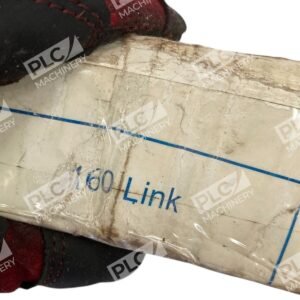

- Link Count: 160 links
- Overall Chain Width: 1.988 inches
- Roller Diameter: 15/32 inch
- Inside Link Width: 0.5 inch
- Pin Construction: Riveted
- Tensile Strength: 19,840 lbf (minimum breaking load)
- Working Load Limit: 3,360 lbs (maximum safe operating load)
- Material: Carbon steel
- Series Type: Standard duty, standard riveted

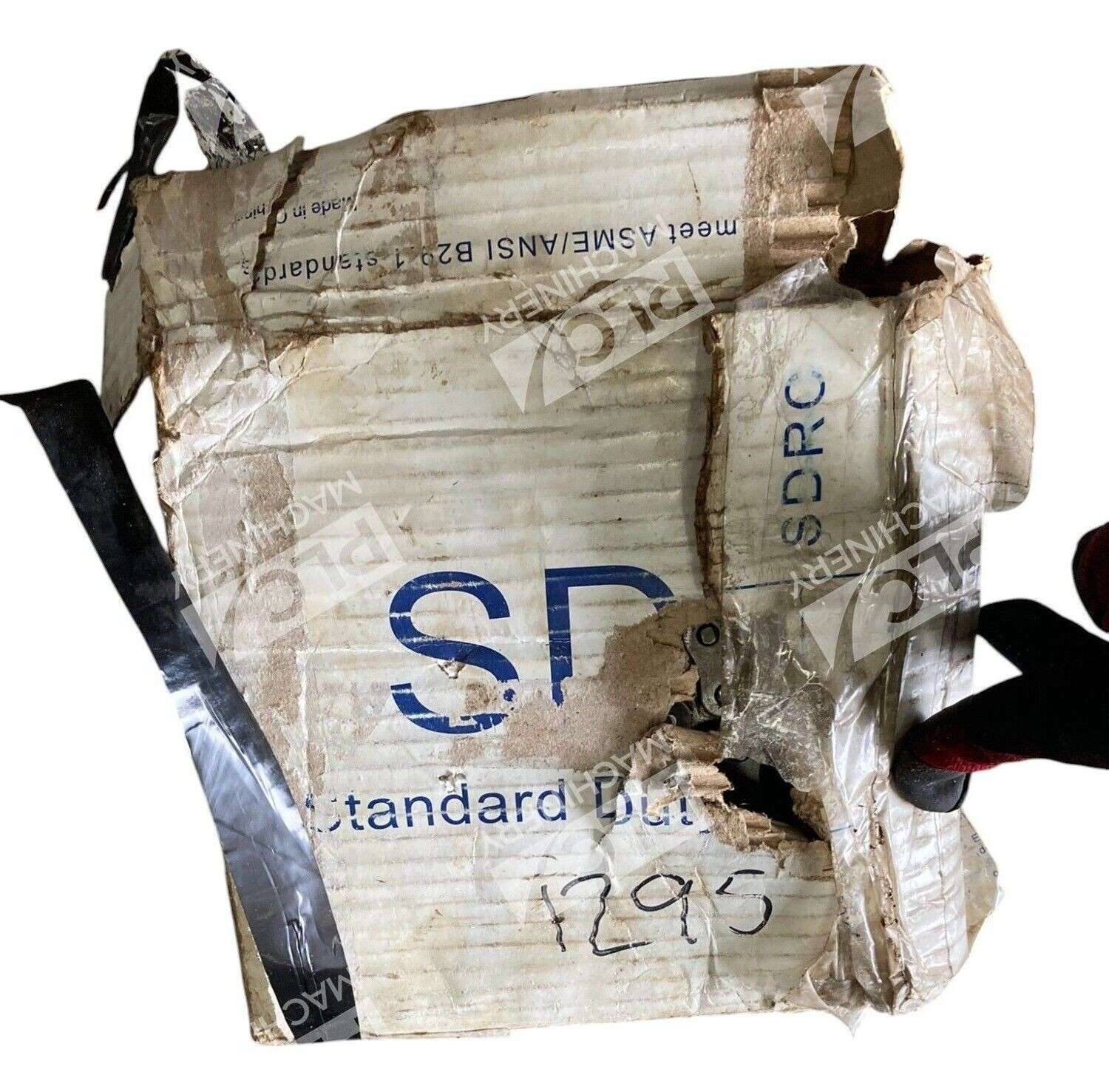

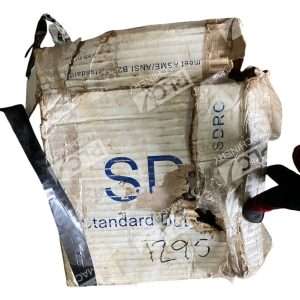

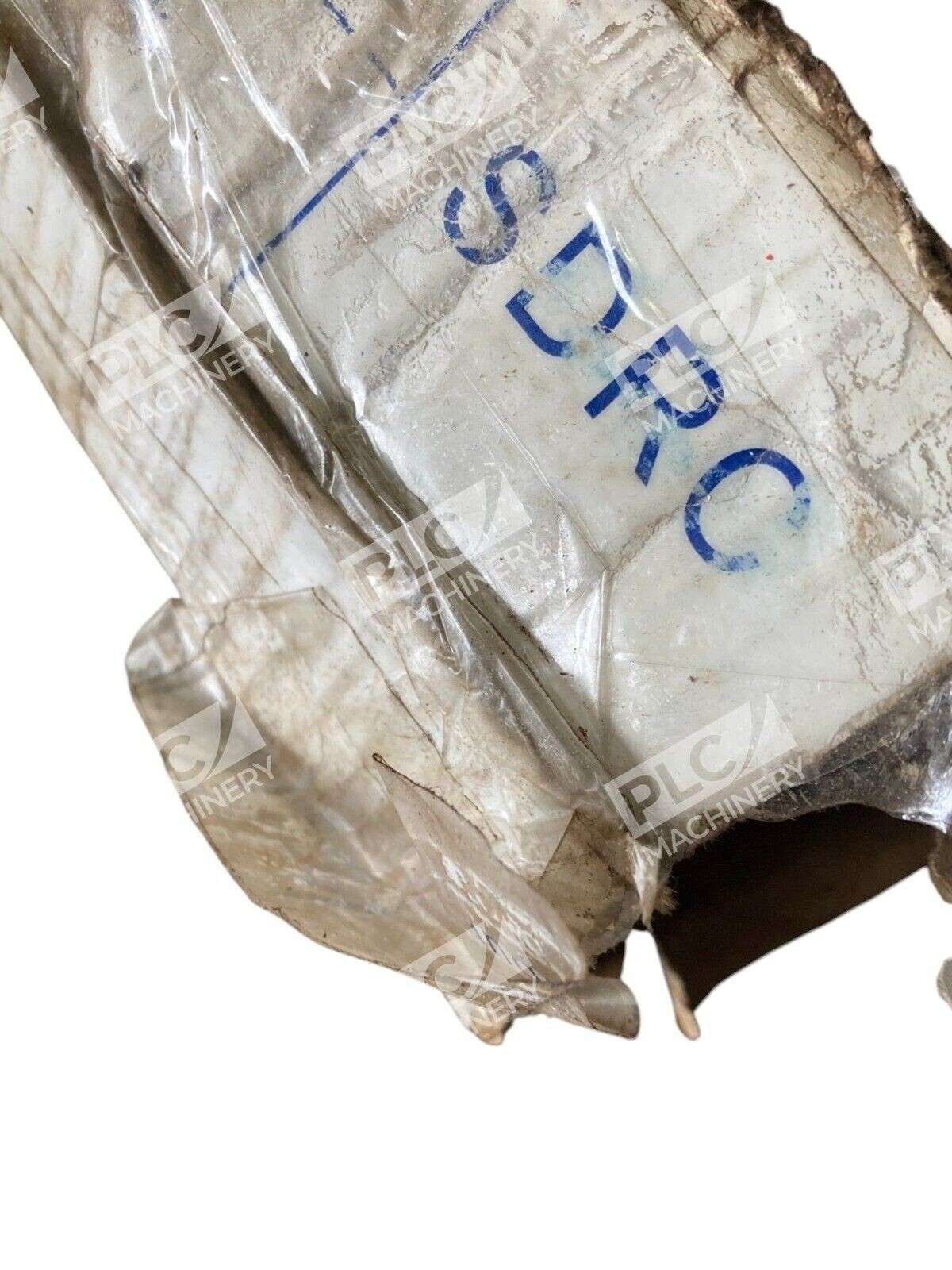

- Condition: New in Box
- Standards Compliance: ANSI B29.1
Typical Applications
60-2Riv roller chain is widely used in:
- Conveying systems (agricultural, materials handling, food processing)
- Plant and industrial machinery drives
- Power transmission between intermeshing sprockets
- Automation equipment requiring smooth, linear motion
- Drive shafts and coupling applications where riveted pin permanence is preferred
Compatibility & Replacements
Compatible With
- Any sprocket with #60 ANSI B29.1 geometry (standard double-strand compatible)
- Industrial drive systems rated for 3/4″ pitch chains
- Conveying equipment and power transmission machinery from major OEMs (Tsubaki, Morse, Renold, etc.)
- Standard bearing housings and supports for #60 chain
Replaces / Drop-In Replacement For
- Other ANSI B29.1 compliant 60-2 double-strand roller chains (riveted or roller-link styles)
- Equivalent Tsubaki, Morse, Renold, and GoldSpec 60-2Riv products with matching pitch and strand count
- Any surplus or worn 10-foot 60-2 roller chain in the same configuration
Works With
- ANSI B29.1 standard #60 sprockets (both driver and driven)
- Industrial chain breakers and joining tools for #60 chain
- Standard chain lube and maintenance protocols for steel roller chains
- Tensioning devices designed for 3/4″ pitch duplex chains
