Overview
The Schroeder KZ1 is a 1-micron synthetic microglass filter cartridge designed for high-performance hydraulic system filtration. Part of Schroeder Industries’ proven filter element lineup, the KZ1 delivers reliable contamination removal in pressure-line applications. Its Beta 200 efficiency rating ensures that 99.5% of particles at 1 micron and larger are captured, protecting pumps, motors, and actuators from wear and failure.
Key Features
- 1-Micron Synthetic Microglass Media — removes fine contaminants while maintaining low differential pressure and extended service life
- Beta 200 Ratio — 99.5% capture efficiency at 1 micron and larger particles
- Outside-In Flow Direction — typical for pressure-line applications where fluid enters the outer pleated media surface
- Buna Seal Material — compatible with mineral HH, HL, HM, and HV hydraulic fluids
- 145 psi Collapse Rating — robust construction for standard industrial hydraulic systems

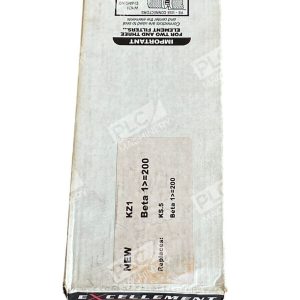

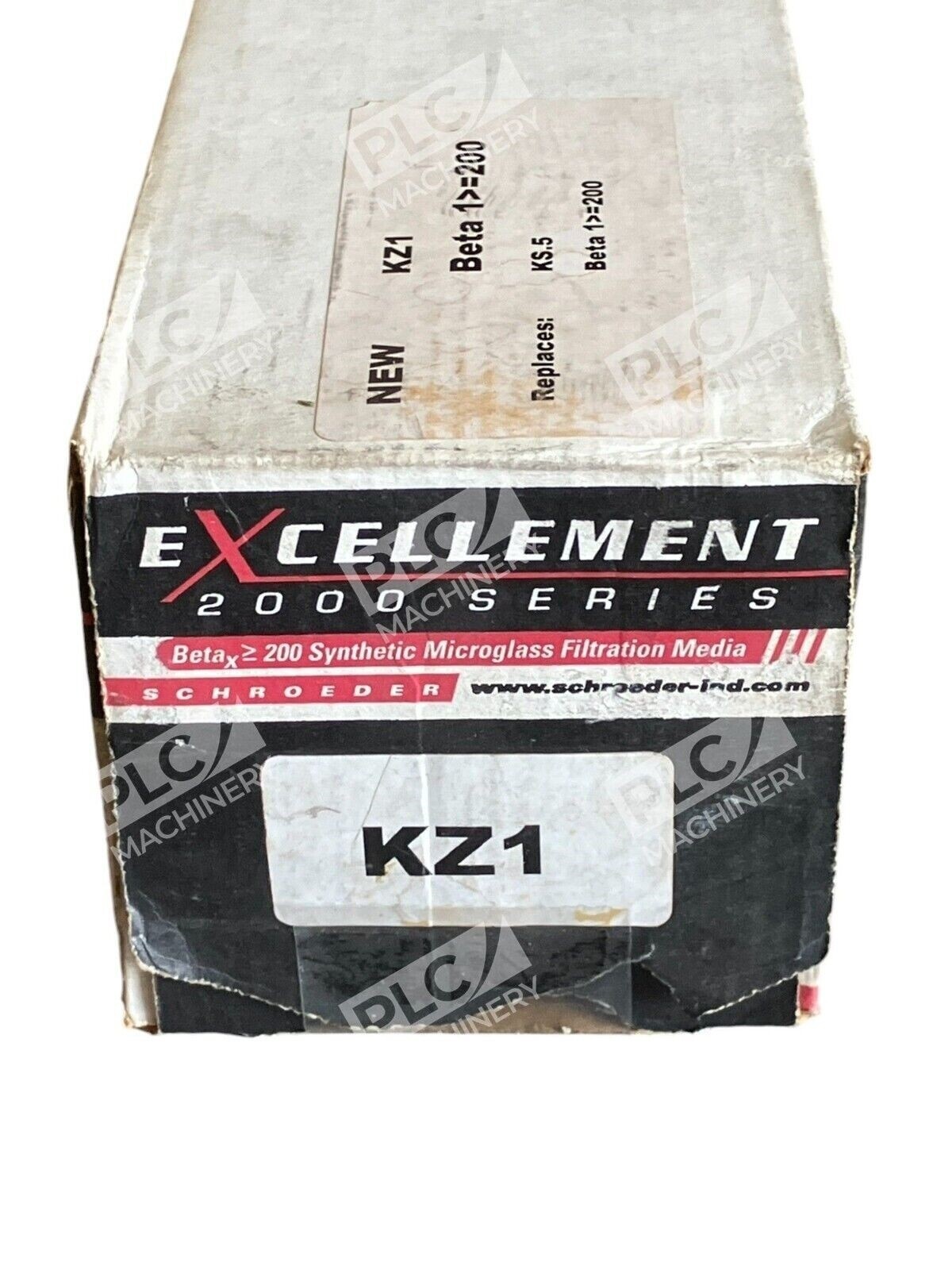

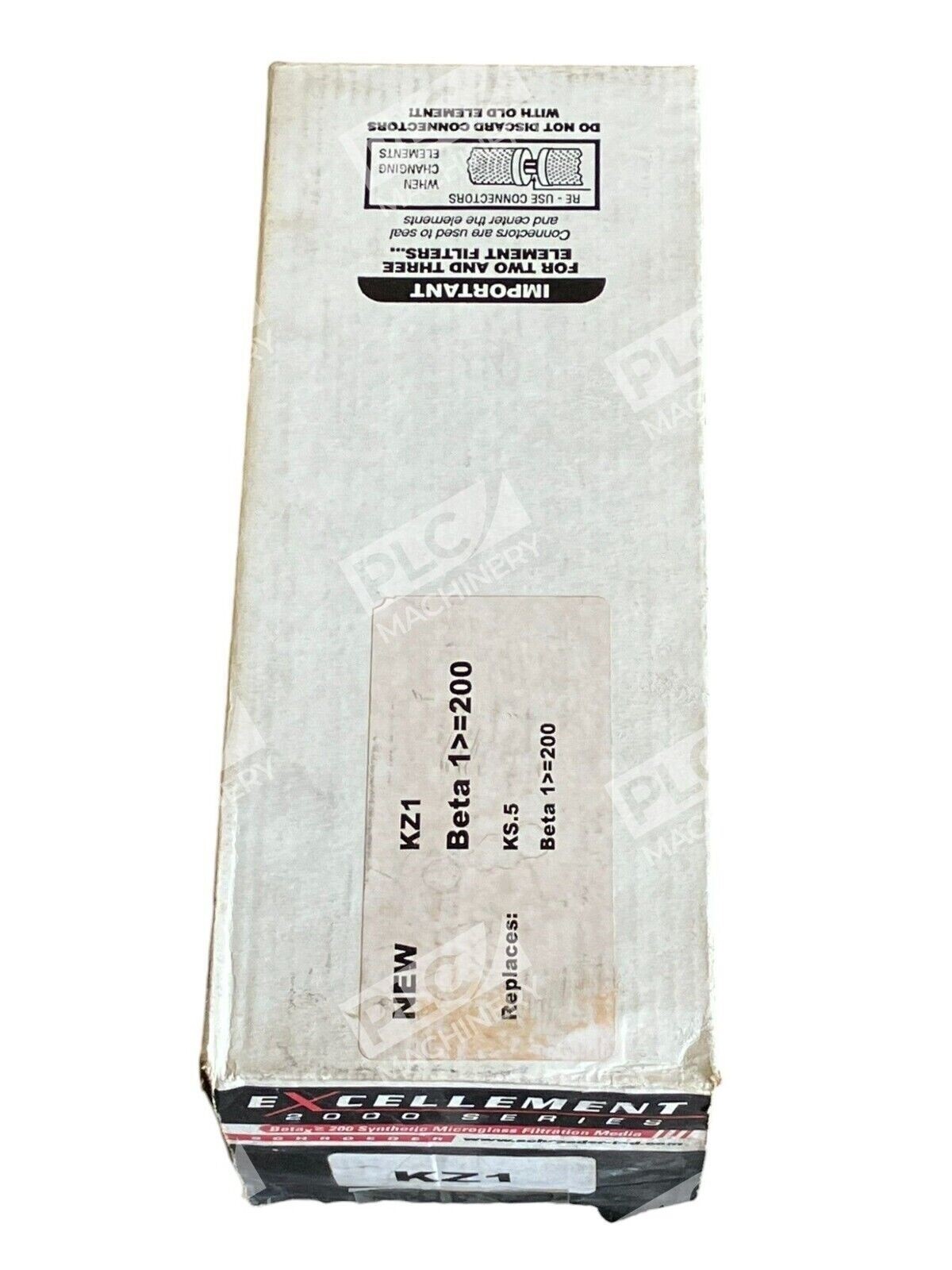

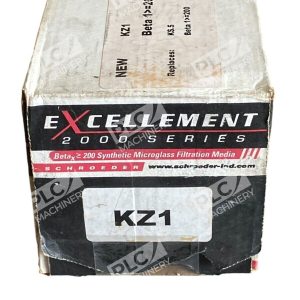

- New in Box Condition — factory-sealed and ready for immediate deployment
Technical Specifications
- Overall Height: 9.25 inches
- Media Type: Synthetic Microglass
- Micron Rating: 1 µm
- Beta Ratio: 200/1
- OD Top: 3.85 inches
- ID Top: 1.61 inches
- OD Bottom: 3.85 inches
- ID Bottom: 1.61 inches
- Collapse Pressure: 145 psi
- Operating Temperature Range: –13°F to +250°F
- Flow Direction: Outside-In
- Seal Material: Buna (Nitrile)
- ISO Fluid Compatibility: HH, HL, HM, HV
Typical Applications
The Schroeder KZ1 is commonly used in:
- Heavy construction and mining equipment hydraulic systems
- Industrial machinery and machine tools
- Mobile hydraulics (loaders, excavators, cranes)
- Power generation and utility equipment
- Oil & gas field equipment and pumping stations
- Manufacturing and processing systems requiring reliable ISO Cleanliness Code 1000 or better
Compatibility & Replacements
Compatible With
- Standard industrial hydraulic systems with pressure-line (main line) filtration
- Mobile and stationary equipment using ISO VG 22–68 hydraulic fluids
- Systems requiring ISO Cleanliness Code 1000 (17/15/12) or cleaner
- Hydraulic circuits operating between –13°F and +250°F
- Equipment with 145 psi nominal collapse pressure rating or higher
Replaces / Drop-In Replacement For
- Schroeder KZ1 OEM filter cartridges
- Big Filter BFS-ED92 (compatible form, fit, and function)
- Main Filter MF0343053 (aftermarket equivalent)
- Fluitek FLK02-18365 (synthetic replacement)
- Parker and Pall cross-references available (consult OEM compatibility charts)
Works With
- Filter Housing Standards: Schroeder spin-on and cartridge housings designed for KZ-series elements
- Hydraulic Fluids: All mineral oils ISO HH, HL, HM, HV; water-glycol and synthetic oils (verify with system OEM)
- ISO Standards: ISO 16889 (multi-pass filter test), ISO 3968 (fluid compatibility), ISO 2941 (flow fatigue)
- System Integrators: Verify housing compatibility and system pressure rating before installation. Consult your equipment manual or system integrator for proper element selection.
