Overview

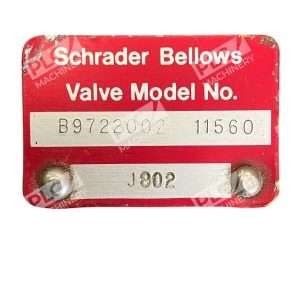

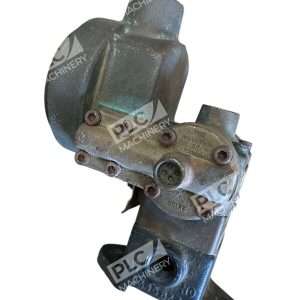

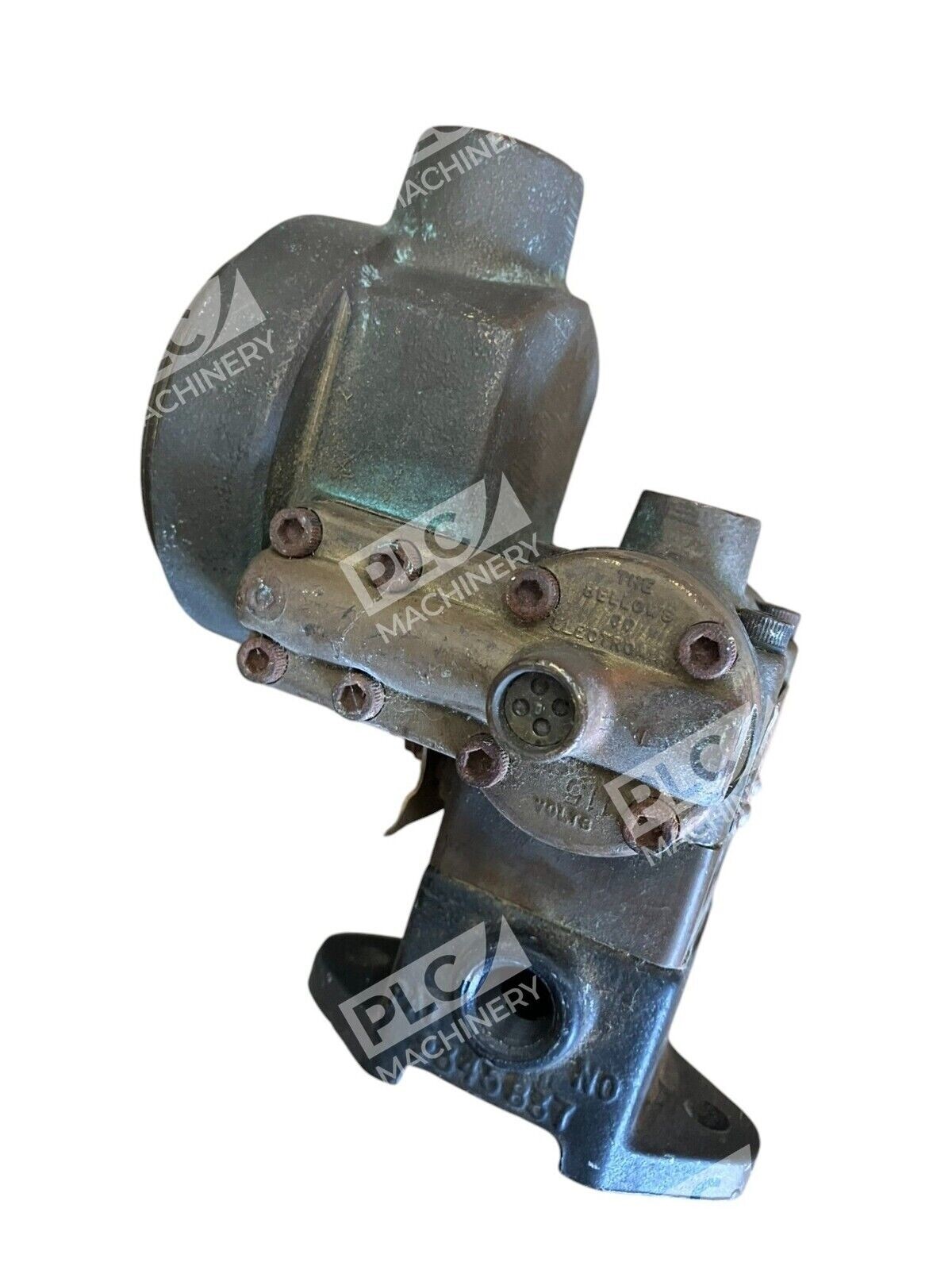

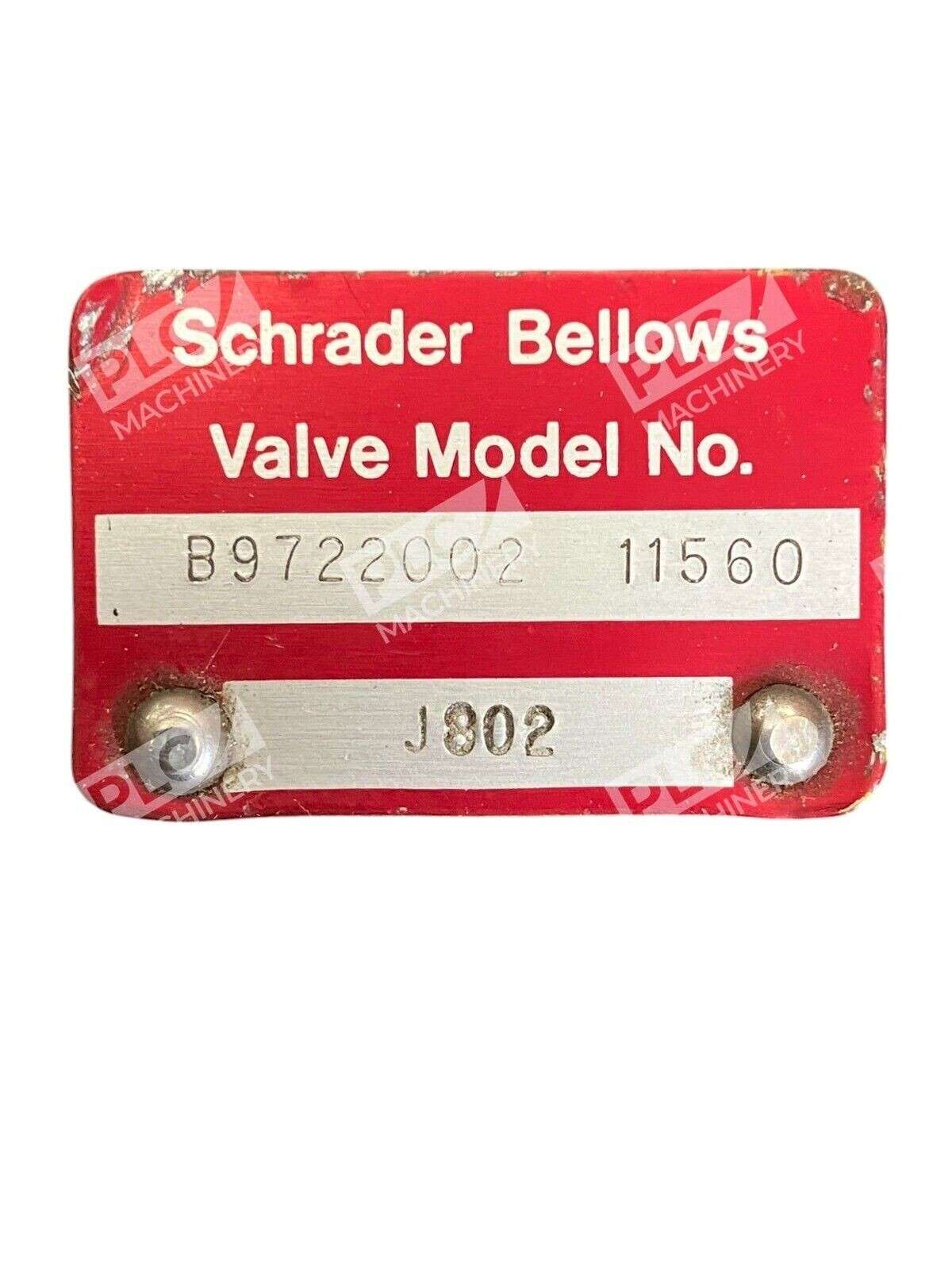

The Schrader Bellows J802 B972200211560 is a 120V AC solenoid-operated directional control valve engineered for pneumatic systems in industrial automation, machine tools, and manufacturing equipment. As a Parker company, Schrader Bellows delivers proven reliability in air valve technology. The J802 series provides dependable on-off switching and directional control for pneumatic cylinders, motors, and actuators.
Key Features
- 120V AC solenoid coil for standard industrial power supply compatibility
- Compact, modular design suitable for manifold integration
- Manual override capability for emergency actuation
- Ported for both inlet and exhaust air flow control
- Long service life with proven pneumatic valve design
Technical Specifications
The J802 is configured for 2/2 or 3/2 directional control in standard pneumatic applications. Typical operating parameters include standard industrial air pressure ranges (typically 0–150 PSI) and 120V AC solenoid energization. Mounting compatibility includes standard DIN NG6 and NG10 manifold substrates, making the J802 a drop-in solution for legacy and new system builds alike.
Typical Applications
- Pneumatic cylinder directional control in manufacturing and assembly lines
- Air motor speed and direction switching
- Machine brake and clutch actuation circuits
- Automated material handling equipment
- Industrial test stands and hydraulic press automation
Compatibility & Replacements
Compatible With
- DIN NG6 and NG10 manifold systems
- Standard industrial 120V AC single-phase power supplies
- ISO 4401 (CETOP-05) cavity porting standards
- Pneumatic cylinders and motors rated for standard air pressure
- PLC and relay-based pneumatic control circuits
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm direct replacement compatibility with your existing valve cavity or manifold configuration.
Works With
- Standard industrial solenoid control relays and timers
- PLC pneumatic valve modules (Allen-Bradley, Siemens, Omron-compatible)
- 24V DC coil solenoid adapter kits (if upgrading from legacy 120V systems)
- Manifold-mounted pilot-operated pressure switches
- Industrial compressed air systems (ISO 4406 Class 18/16/13 air quality standard)
