Overview

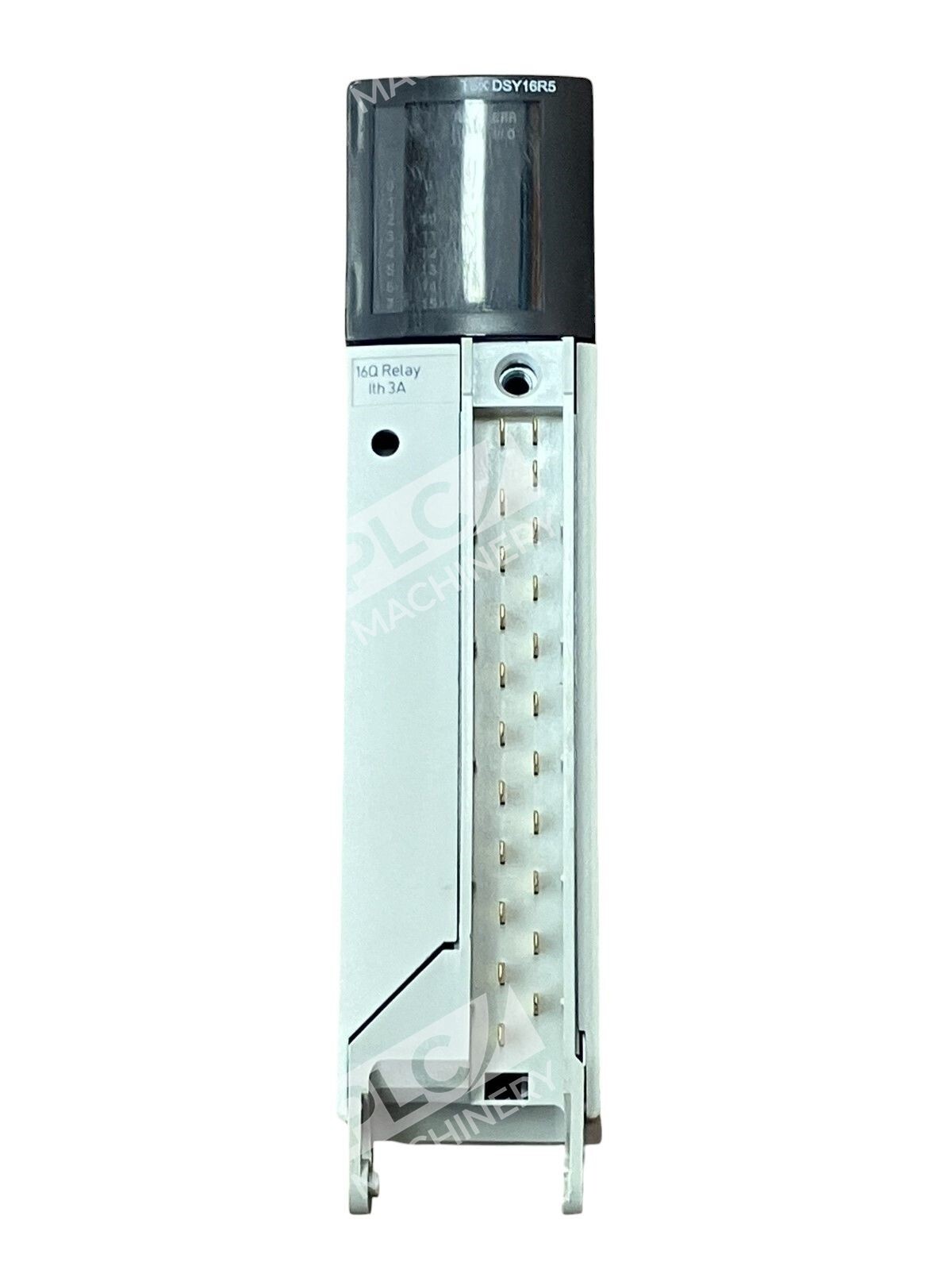

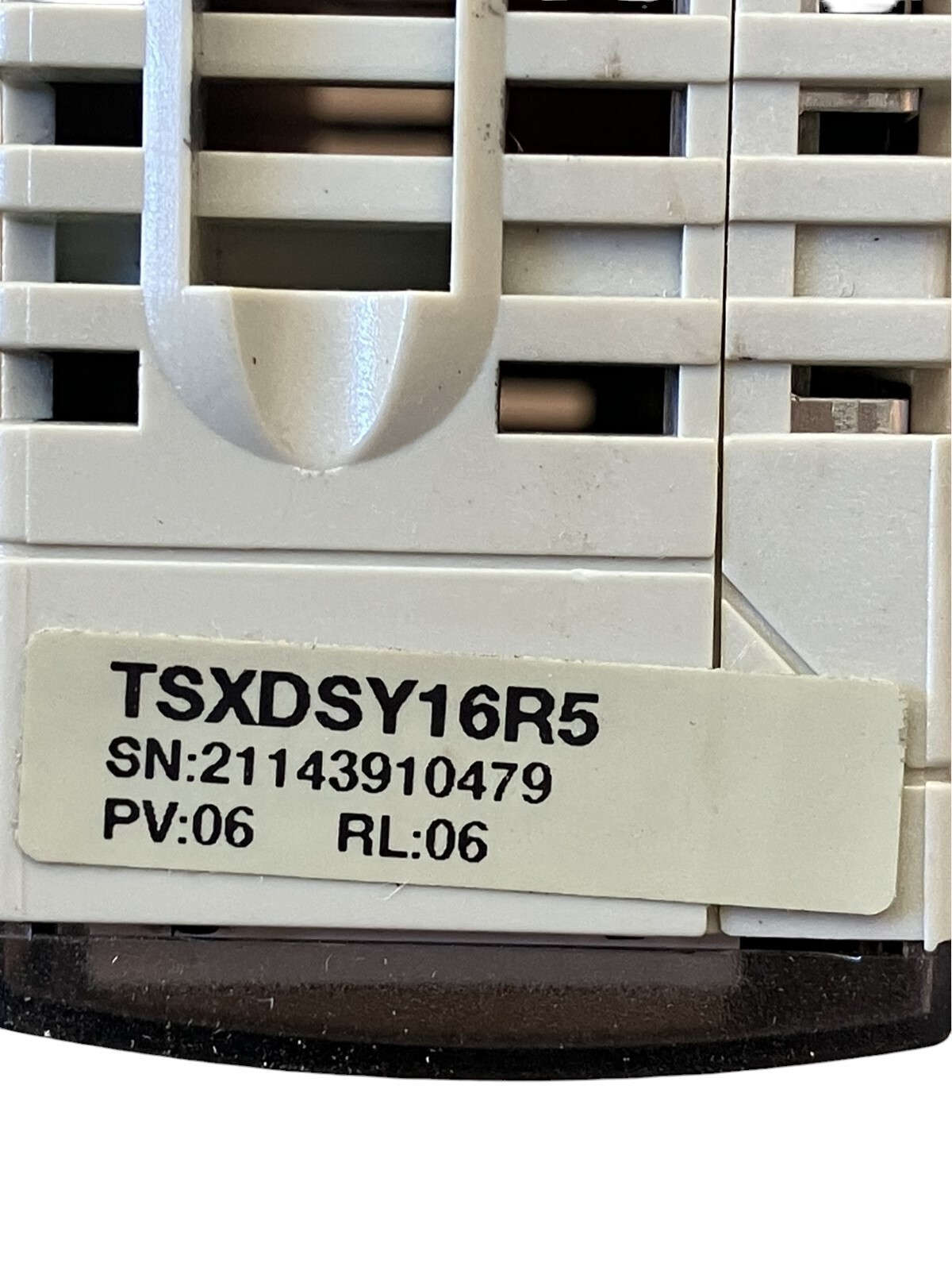

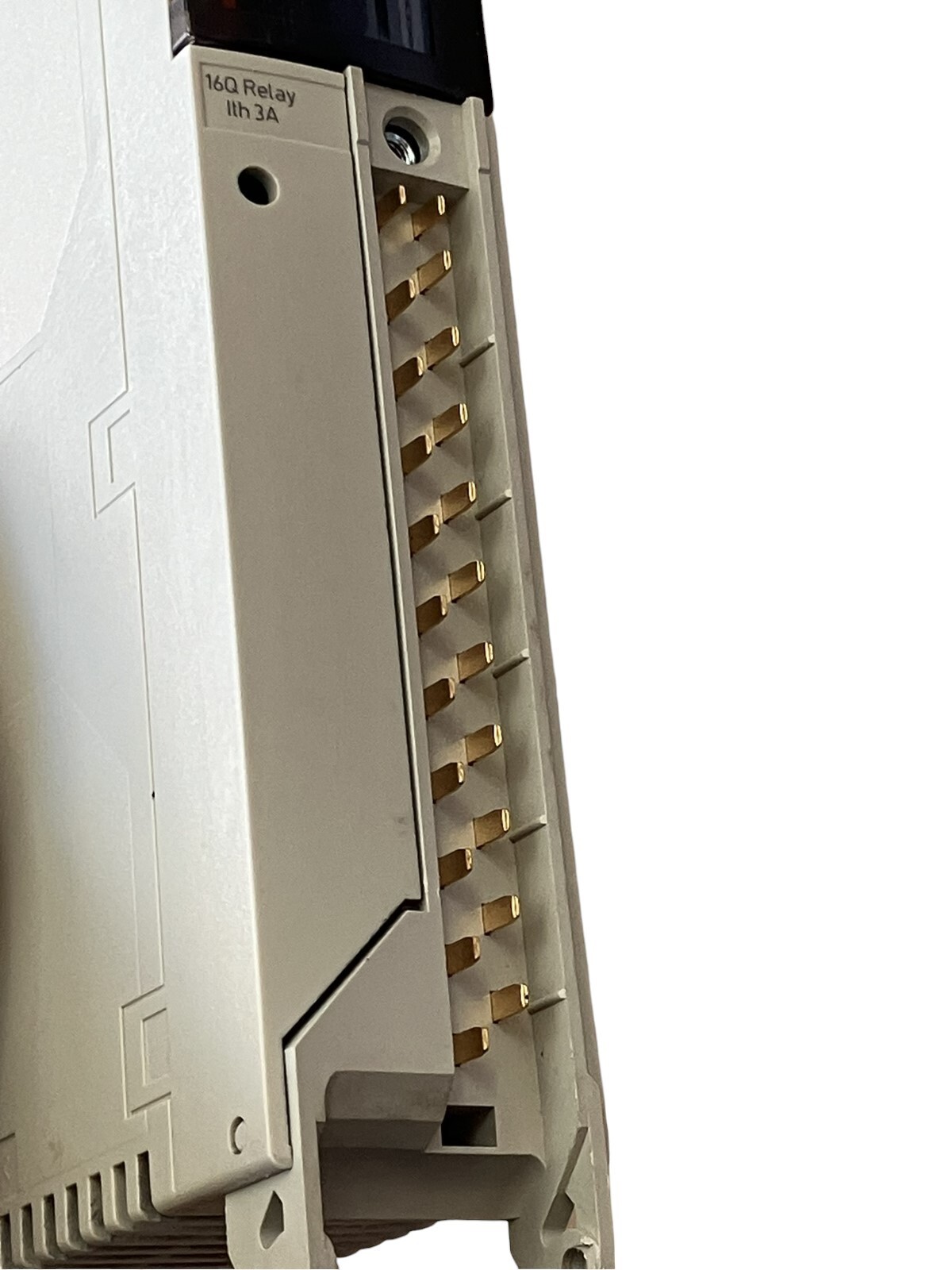

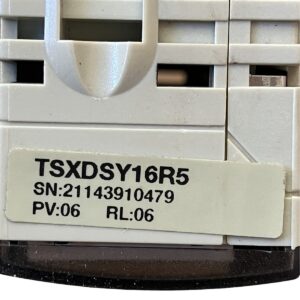

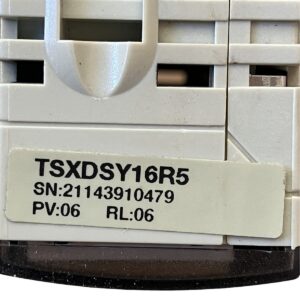

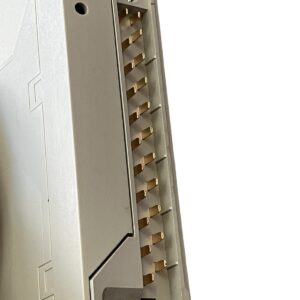

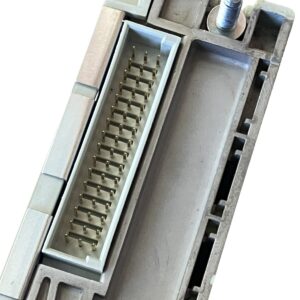

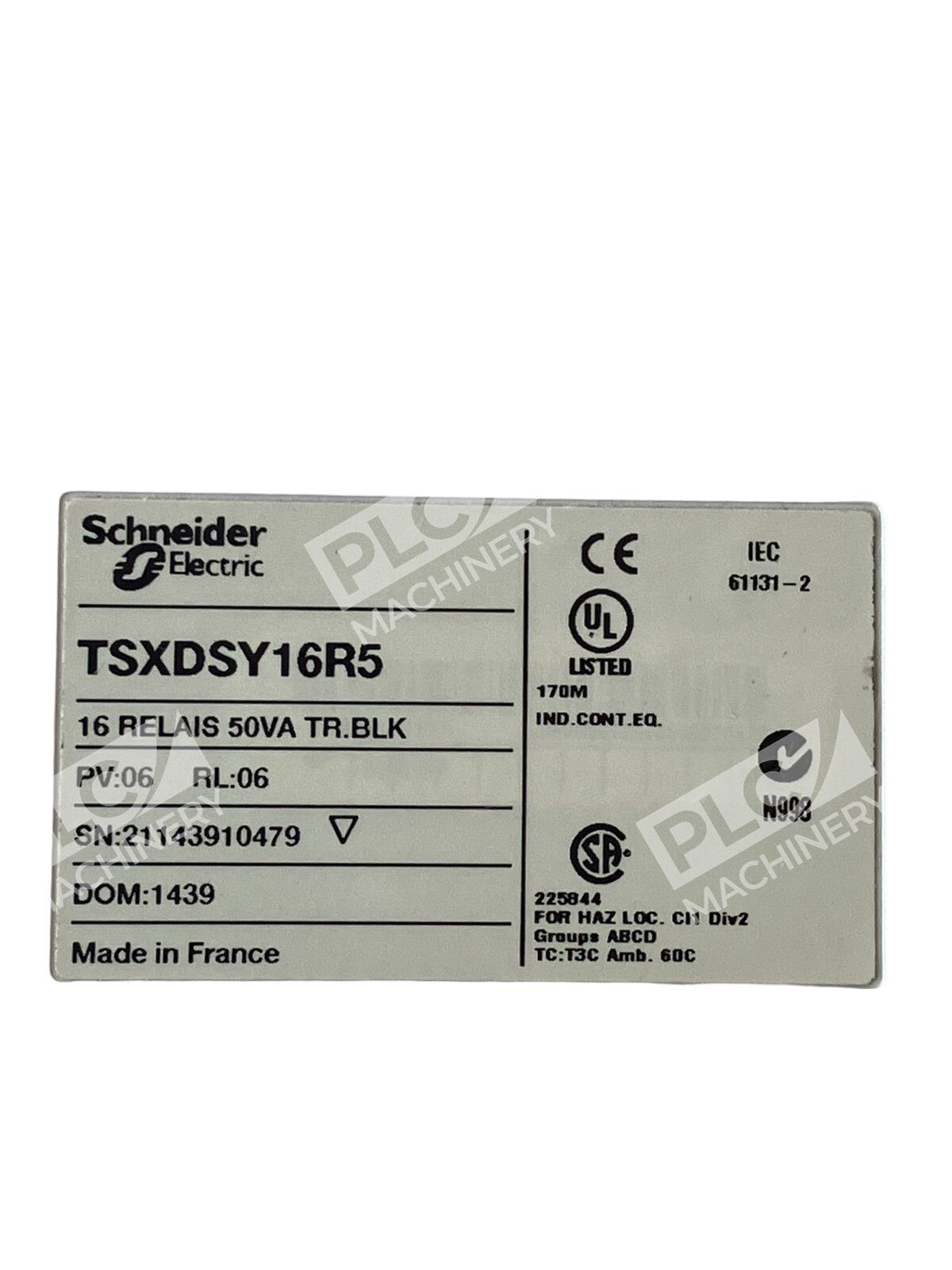

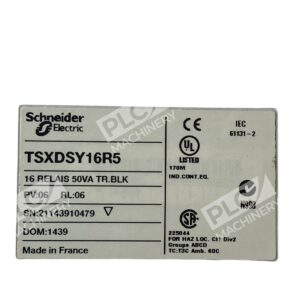

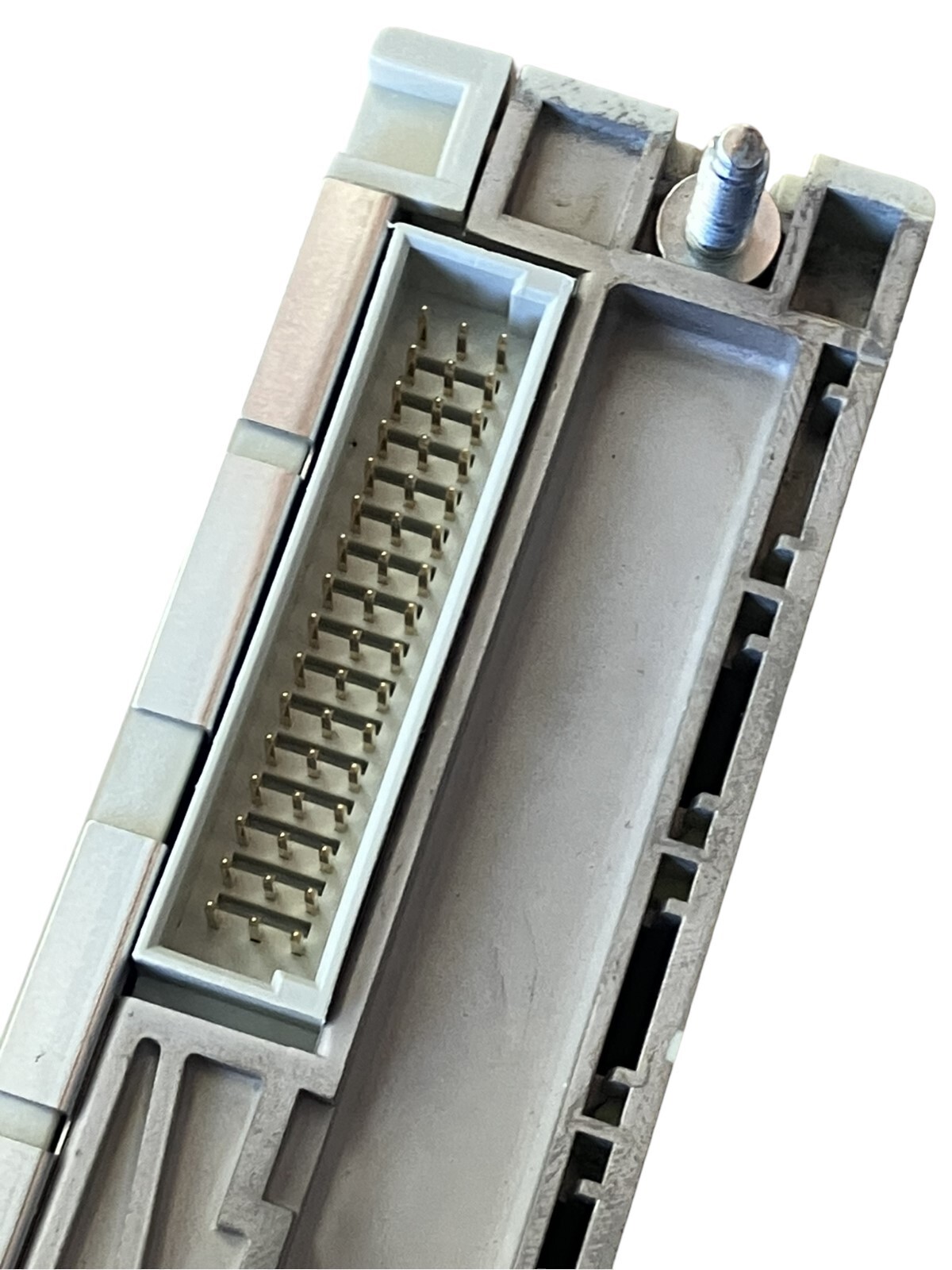

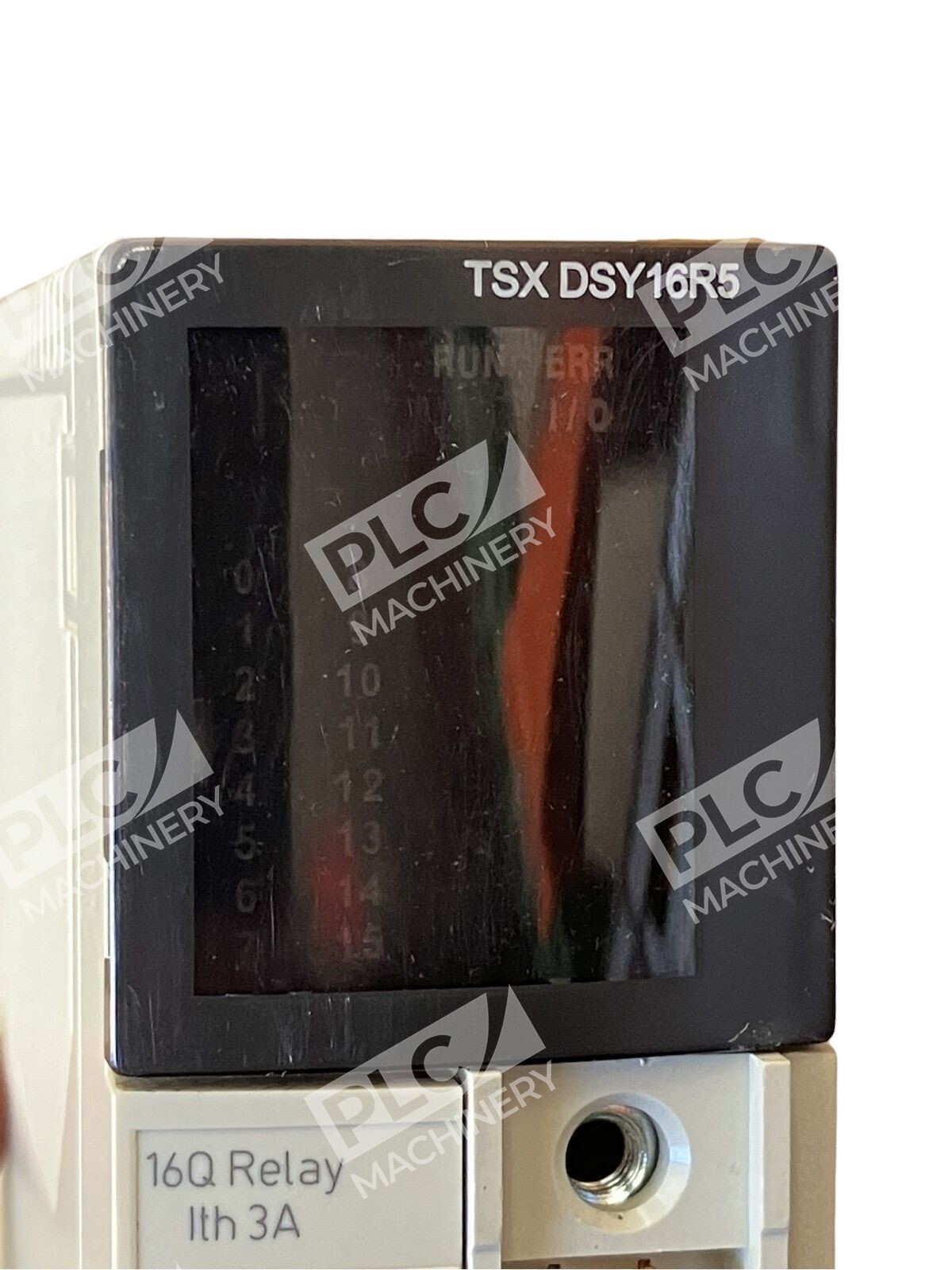

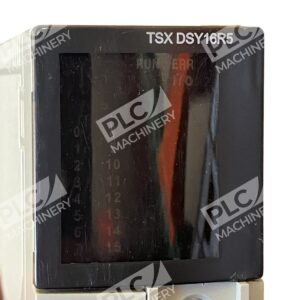

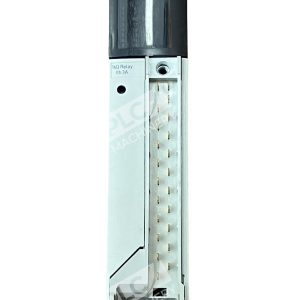

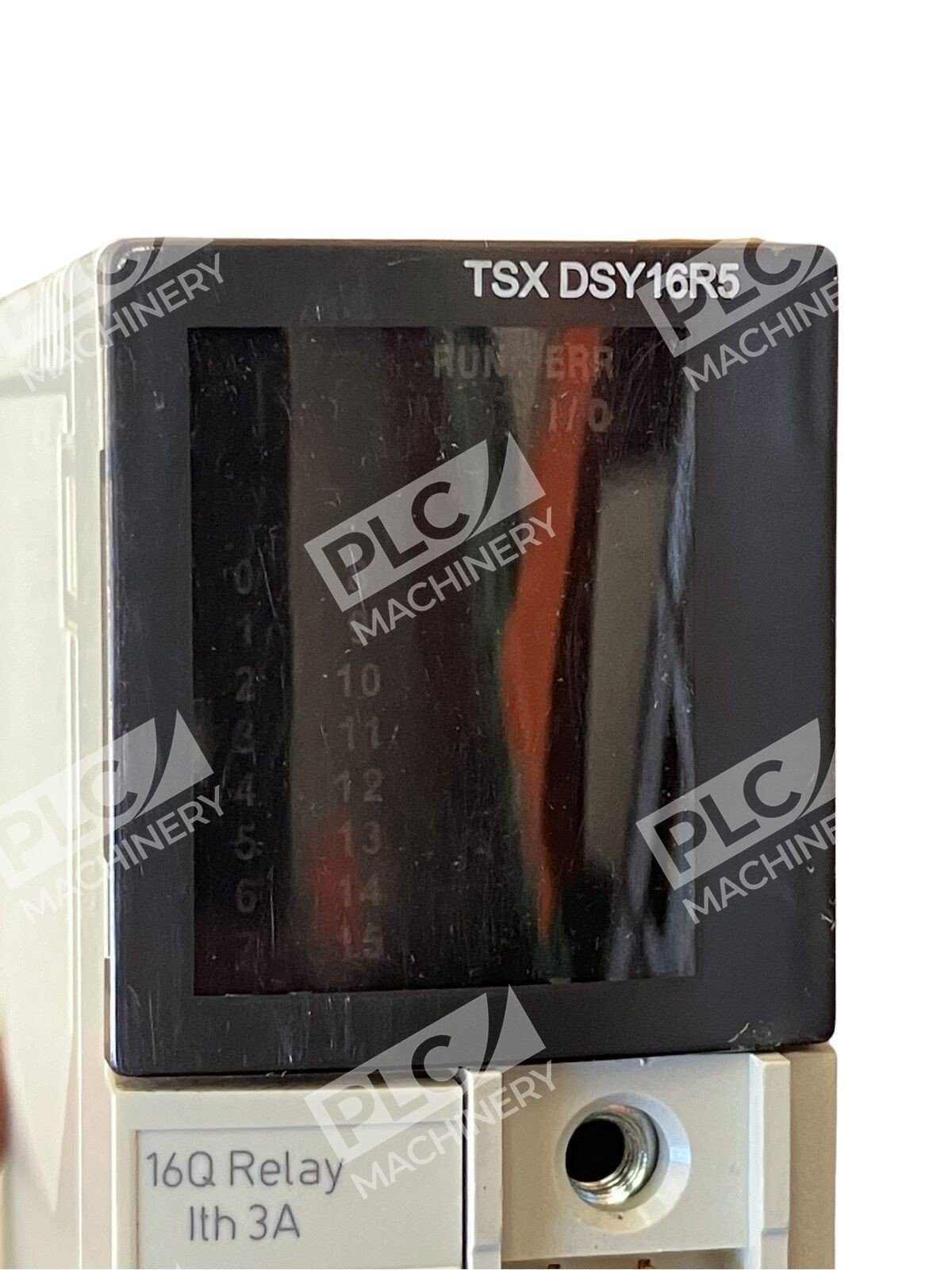

The Schneider Electric TSXDSY16R5 is a discrete relay output module engineered for the Modicon Premium automation platform. This 16-channel module provides reliable dry-contact switching for both AC and DC voltages, making it ideal for controlling motors, solenoids, contactors, lamps, and other electromechanical devices in industrial automation environments.
Key Features
- 16 relay output channels with dry-contact switching and full galvanic isolation from the PLC backplane
- AC/DC versatility: supports AC voltages from 24 to 240V and DC voltages from 12 to 24V
- Fast response time: less than 8 ms for activation and less than 10 ms for deactivation
- High cycle durability: up to 5 million cycles for specific loads
- Built-in protection: AC inductive loads safeguarded with RC circuit MOV (ZNO), while DC inductive loads have protection from a discharge diode on each actuator
- External fusing support: fast-blow fuse per channel or channel group for overload and short-circuit scenarios
Technical Specifications
- Output channels: 16 relay outputs (dry-contact, normally open)
- Relay rating: 50VA per output
- AC voltage range: 24–240VAC
- DC voltage range: 12–24VDC
- Current per channel: Up to 2A (resistive load)
- Power consumption: 0.25W per output
- Response time: <8 ms activation, <10 ms deactivation
- Operating temperature: 0–60°C
- IP rating: IP20
- Enclosure: Black translucent casing
- Certifications: EN/IEC 61131-2, CSA C22.2, CE compliant
- Platform: Modicon Premium
Typical Applications
The TSXDSY16R5 is ideal for automation systems requiring discrete relay outputs, including control of motors, actuators, and other electromechanical devices in industrial settings. Common uses include motor starter control, solenoid valve switching, signaling beacon activation, and equipment lockout/safety circuit logic in manufacturing, energy, and infrastructure industries.
Compatibility & Replacements
Compatible With
- Modicon Premium PLC platform (Schneider automation controllers)
- Modicon Premium backplane and rack configurations
- Control systems requiring 24–240VAC or 12–24VDC relay switching
- EN/IEC 61131-2 compliant automation environments
- Field devices: motor contactors, solenoids, valve coils, pilot lights, alarms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This module is a discrete relay output option in the Modicon Premium family; exact replacement models should be confirmed against your system configuration.
Works With
- Modicon Premium engineering environments and commissioning tools
- Dry-contact relay switching for AC and DC loads
- External fast-blow fuse protection schemes
- Standard 24VDC and 120VAC control voltage supplies
- Galvanically isolated circuits for immunity to external electrical surges
