Overview

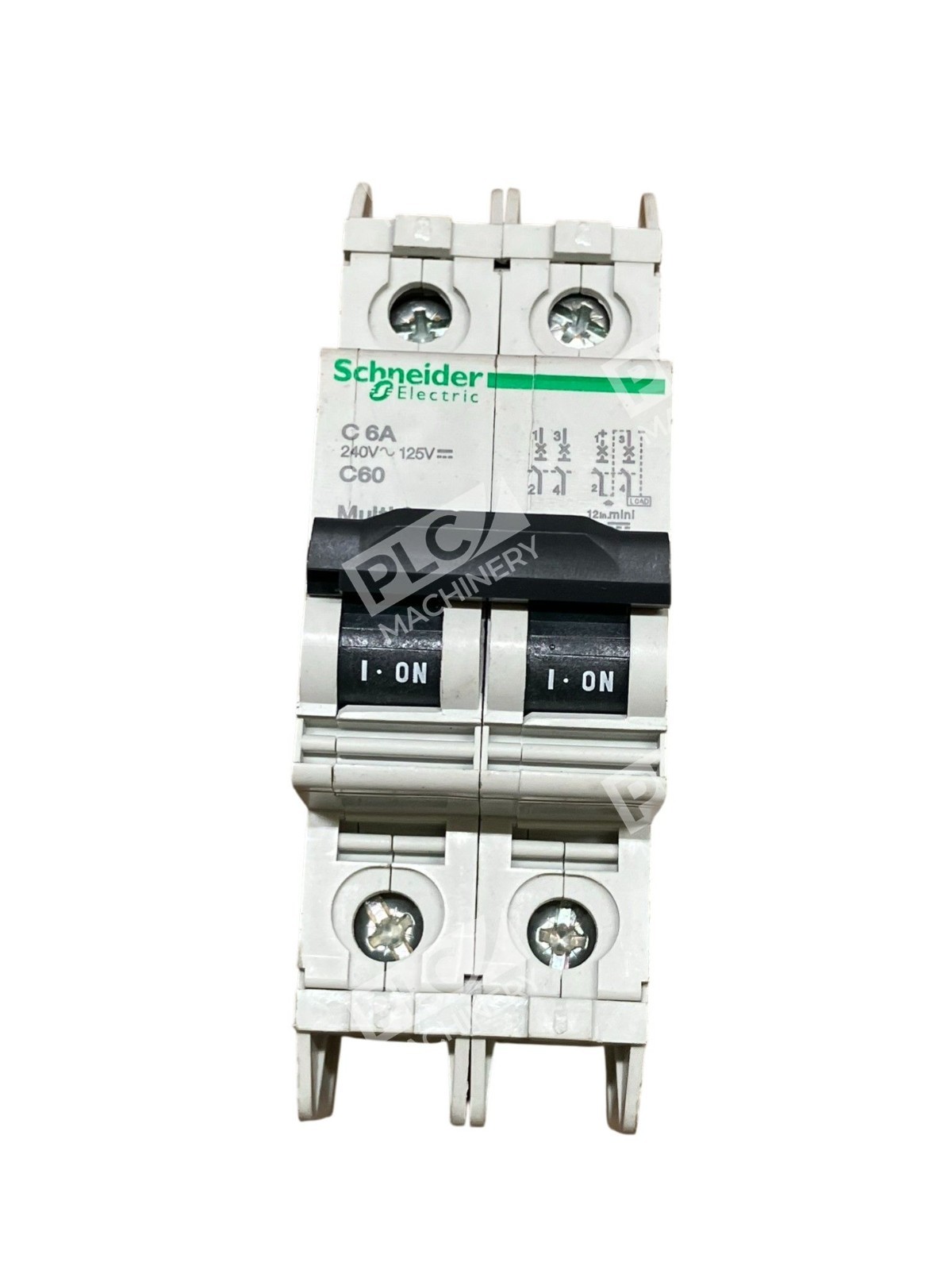

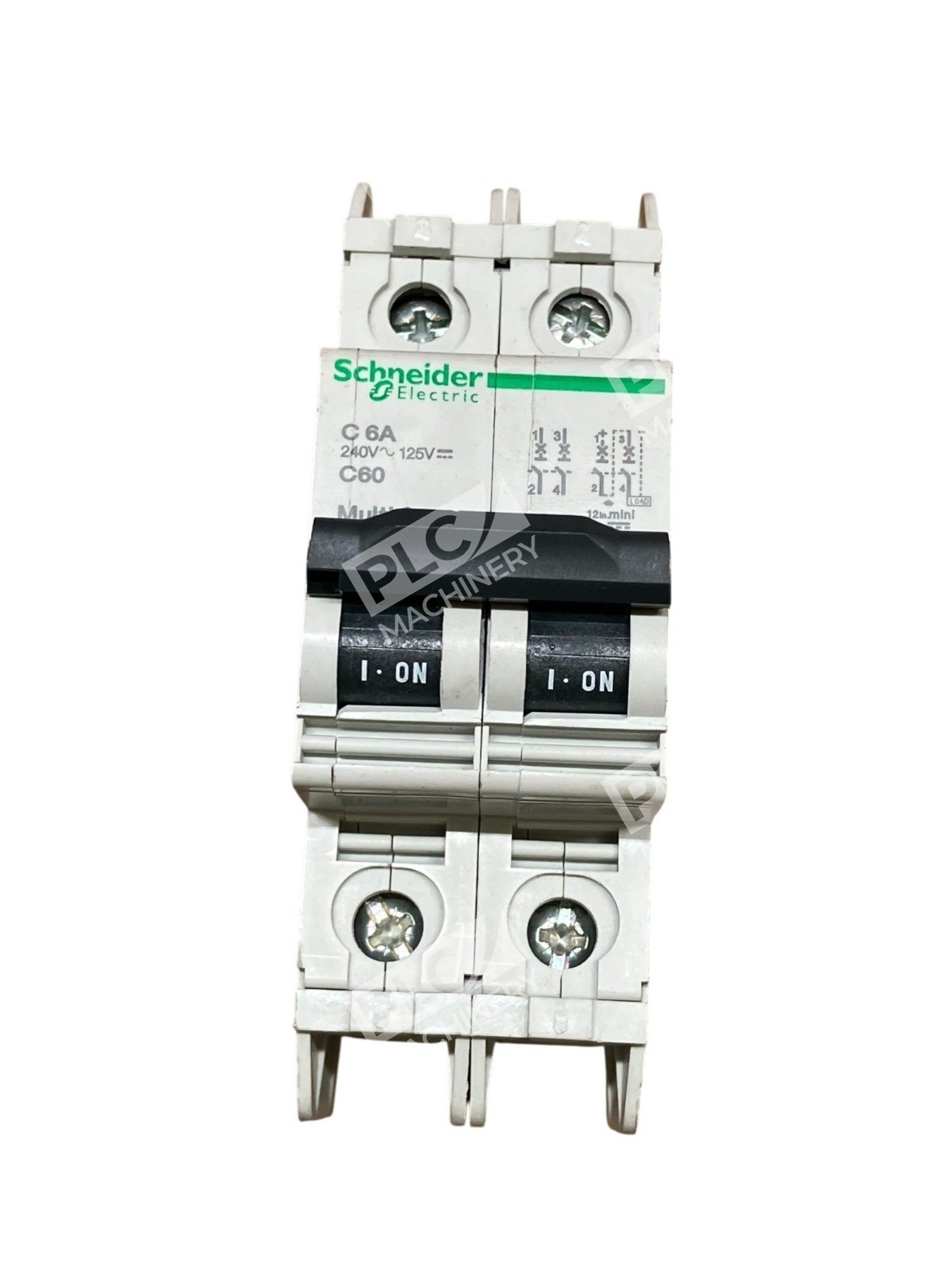

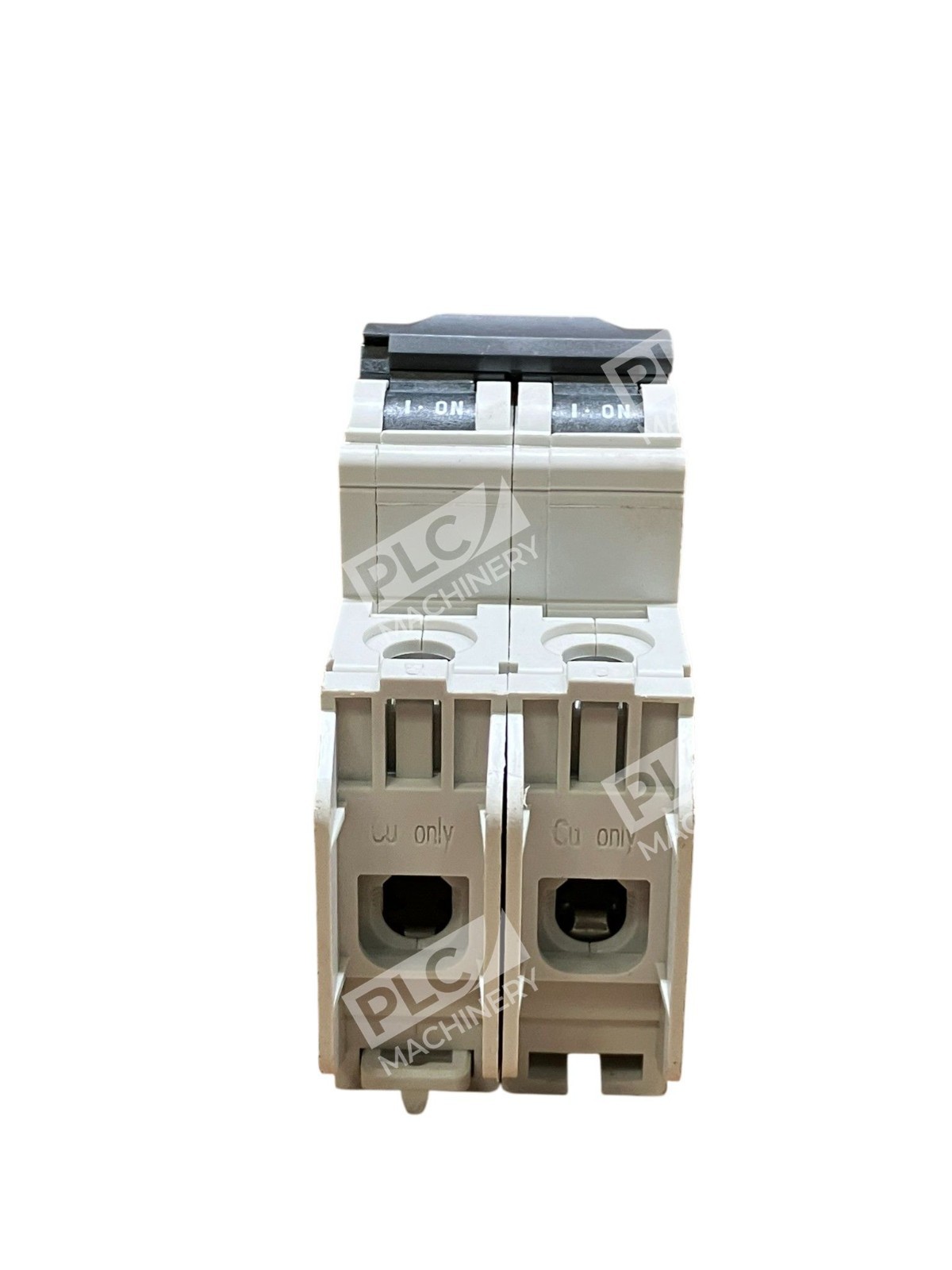

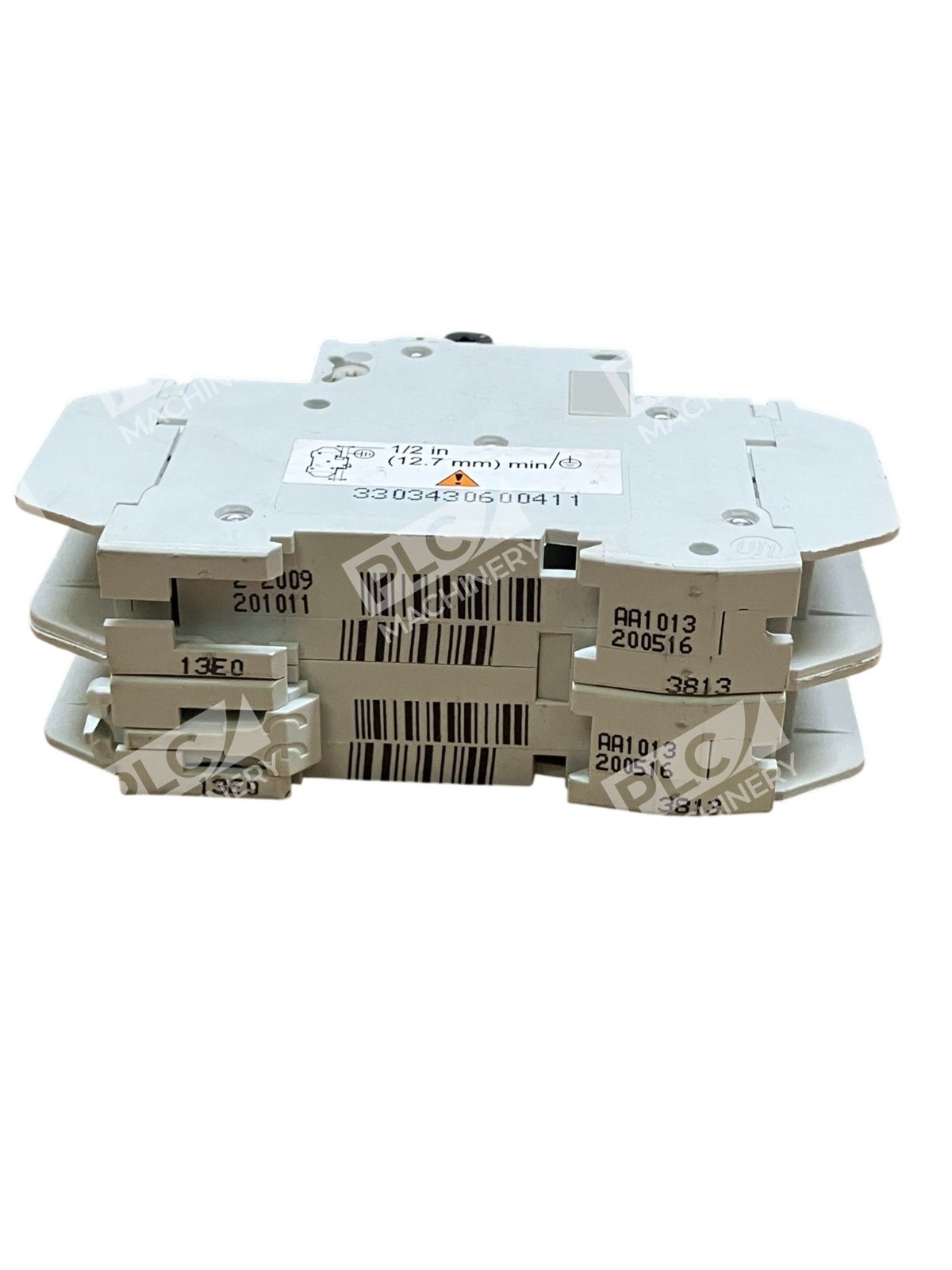

The Schneider Electric C60 MCB 2P 6A Type C is a two-pole miniature circuit breaker (MCB) designed for low-voltage industrial power distribution and control circuits. This breaker provides circuit protection, control, isolation, and protection against short circuits, overloads, and indirect contact. The Type C tripping curve is optimized for conventional loads, with magnetic trip units operating between 5 and 10 In, making it ideal for motors, transformers, and general industrial equipment.
Key Features
- Thermal-magnetic tripping mechanism with rocker actuator and screw terminal contacts
- DIN rail mounting for standard 35 mm top-hat rail installation
- Available in 2-pole configuration with 6A rating
- Complies with both industrial standard EN/IEC 60898-1 and EN/IEC 60947-2
- Electrical endurance up to 10,000 cycles and mechanical endurance up to 20,000 cycles
- Positive contact indication for isolation status

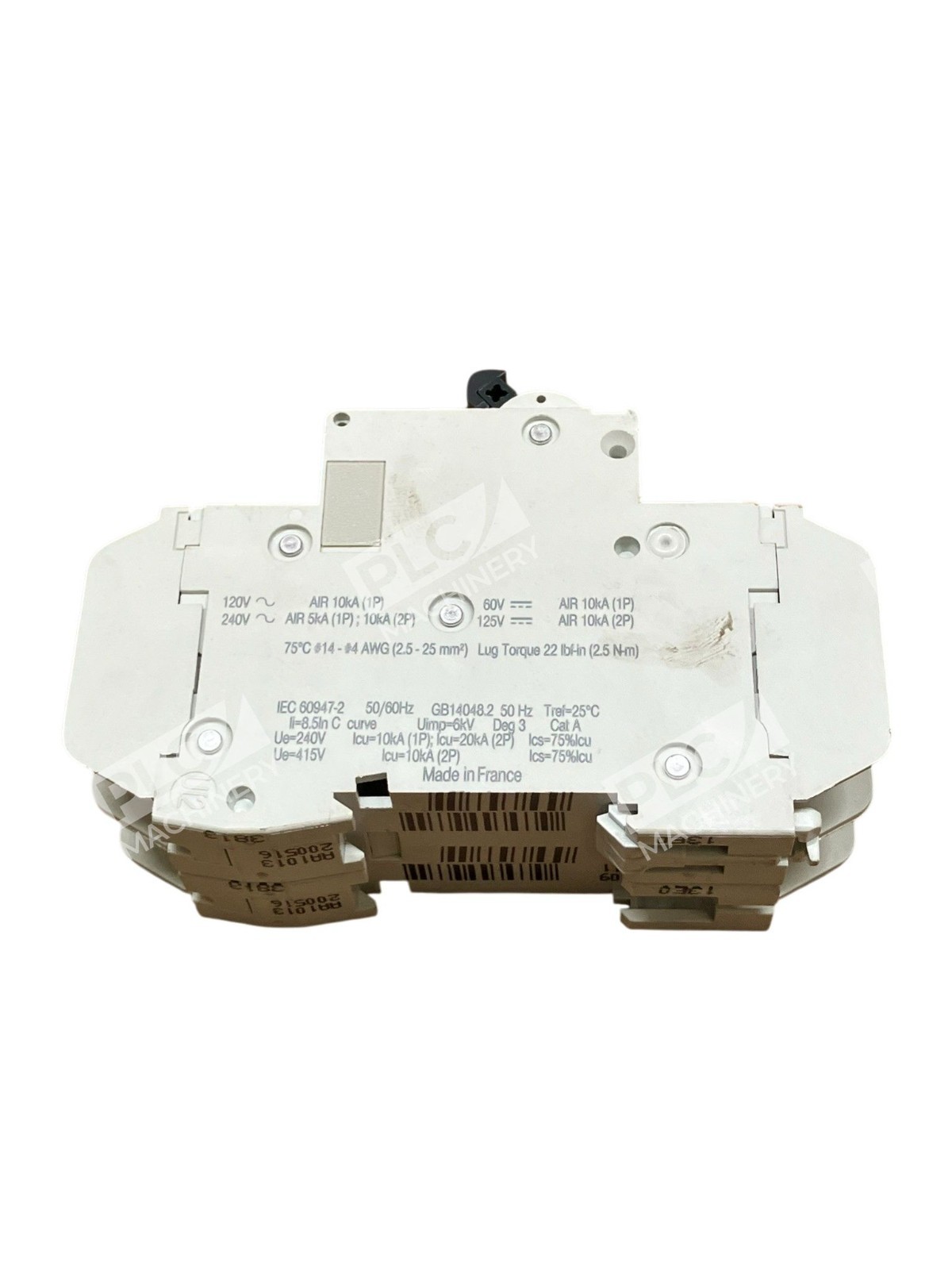

Technical Specifications
The following specifications apply to this 2-pole, 6A Type C breaker:
- Rated Voltage: 240V AC (also operates at 220V, 380-415V)
- Current Rating: 6A
- Tripping Curve: Type C (5-10 x In)
- Breaking Capacity: 10 kA
- Number of Poles: 2
- Mounting: DIN Rail
- Terminal Type: Screw terminals with moving barrier design
- Tripping Mechanism: Thermal-magnetic
- Reset Actuator: Rocker type
- Dimensions: 85 mm (L) Ă— 36 mm (W) Ă— 78.5 mm (D)
- Rated DC Voltage: 100-133V
Typical Applications
- General industrial control panel protection
- Motor circuit protection in automation systems
- Protection of transformers and distribution boards
- Industrial equipment branch circuits requiring thermal-magnetic characteristics
- OEM and control panel builder integration
Compatibility & Replacements
Compatible With
- Standard 35 mm DIN rail systems (EN 60715)
- Schneider Electric Multi 9 panel infrastructure
- Industrial control systems requiring 240V AC branch protection
- Electrical enclosures and distribution panels (industrial & tertiary sectors)
Replaces / Drop-In Replacement For
This C60 2P 6A Type C unit replaces earlier versions of the Schneider Multi 9 C60 series at the same current and voltage rating. Verify exact model compatibility with your system integrator before ordering to confirm terminal type (screw vs. tunnel) and breaking capacity requirements match your application.
Works With
- EN/IEC 60898-1 (industrial standard for MCBs)
- EN/IEC 60947-2 (low-voltage switchgear standard)
- IEC 60068-1 (environmental conditions, tropical treatment level 2)
- Standard 3-phase and single-phase AC distribution systems
