Overview

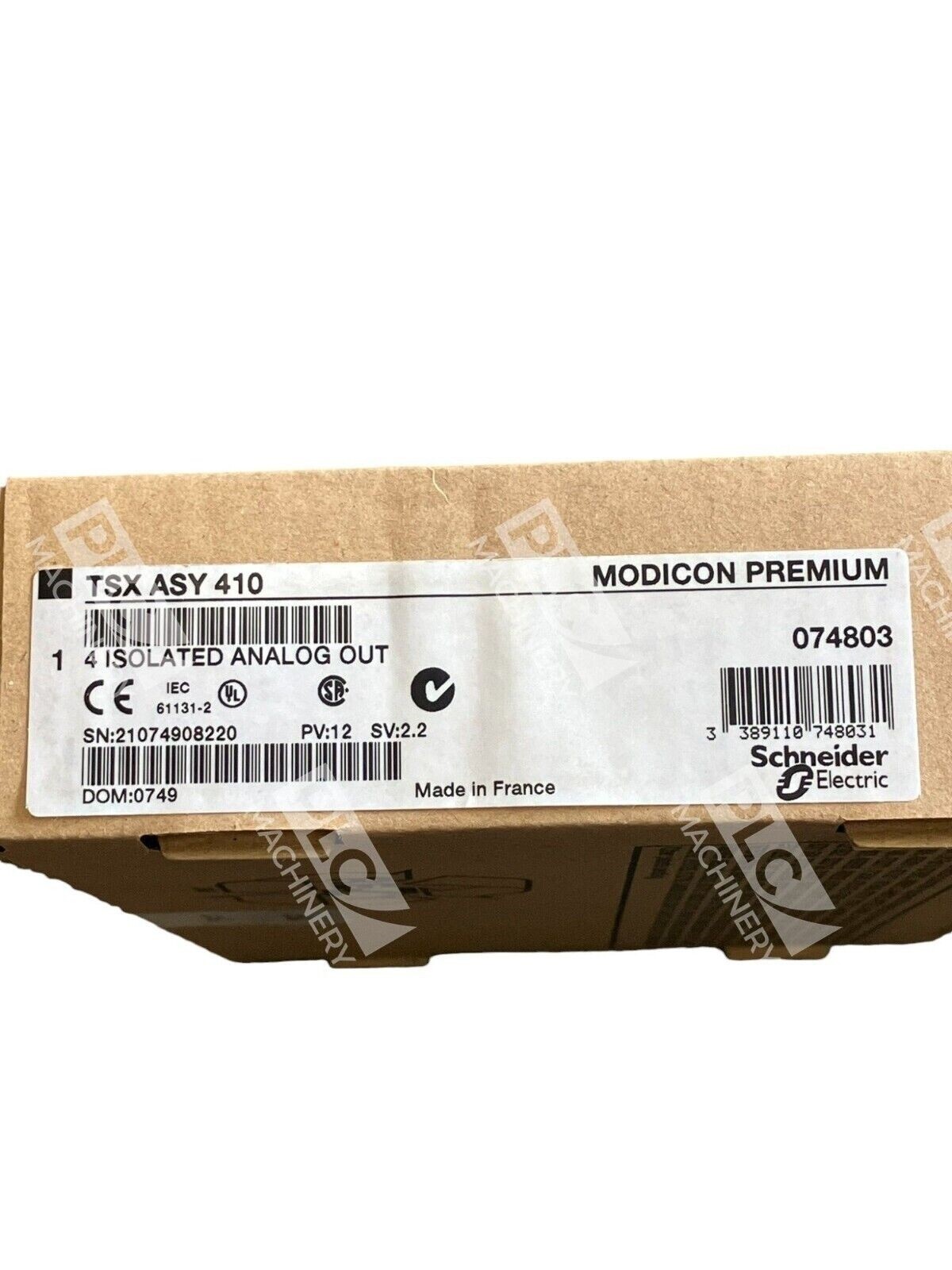

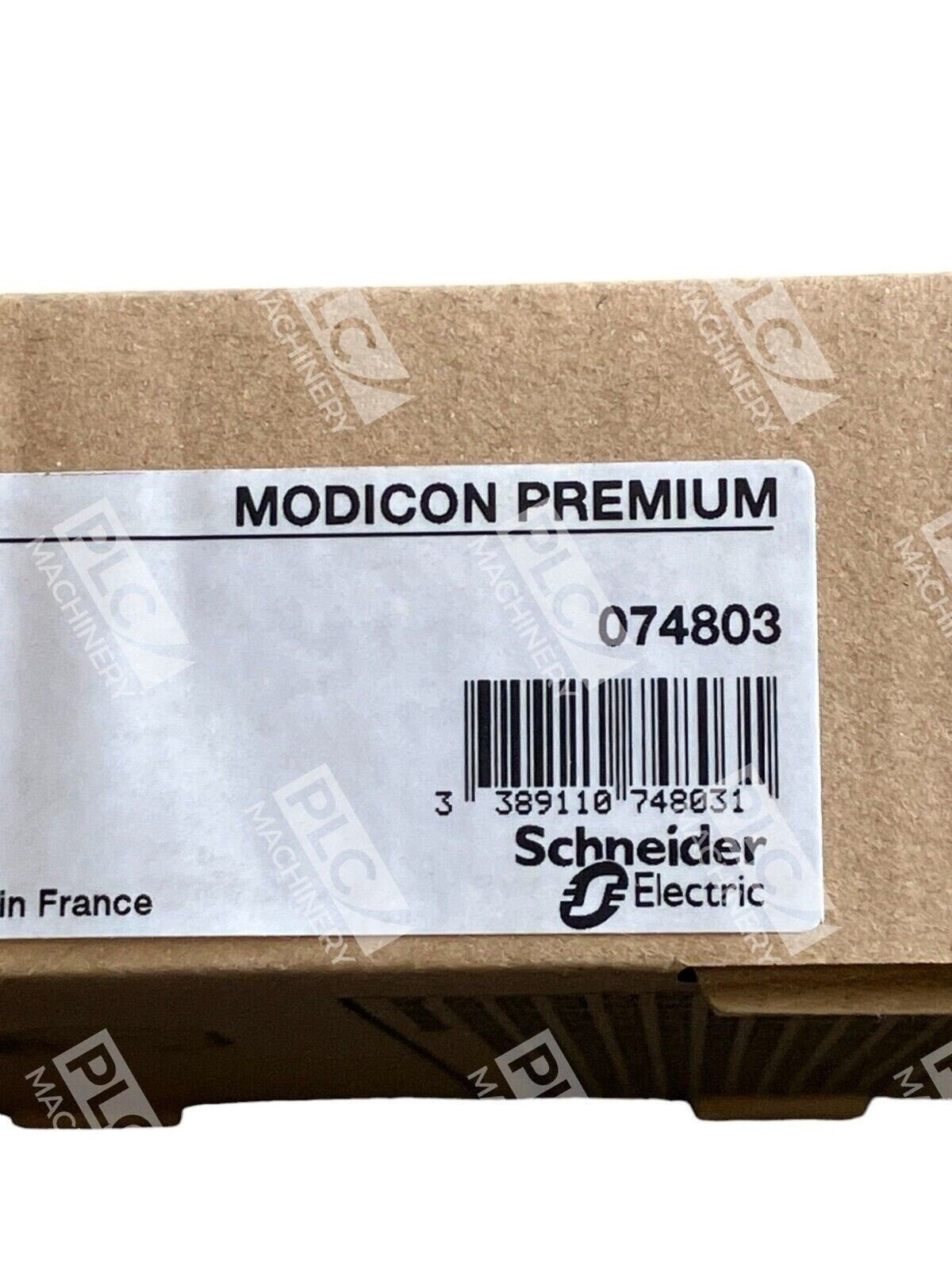

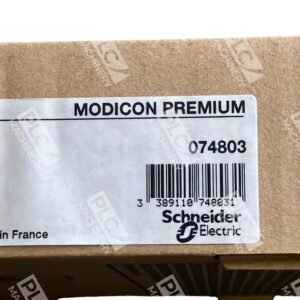

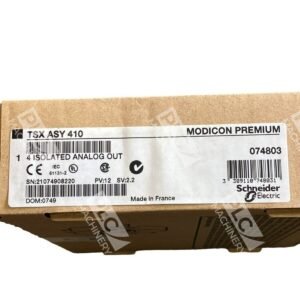

The Schneider TSXASY410 is a standard-format analog output module for the Modicon Premium TSX PLC platform. This 4-channel module provides isolated analog outputs with 12-bit conversion resolution and multirange flexibility, supporting both voltage (±10 V) and current (0–20 mA, 4–20 mA) signals. Engineered for industrial automation applications requiring precise signal control and electrical isolation, the TSXASY410 integrates seamlessly into existing TSX Modicon Premium control systems.
Key Features
- Four Isolated Analog Output Channels: Each channel supports multirange selection (voltage or current output modes)
- 12-Bit Conversion Resolution: Delivers ±0.2% accuracy of full scale with 2.5 ms conversion time per channel
- Multirange Support: Flexible signal compatibility with 0–20 mA, 4–20 mA current outputs and ±10 V voltage outputs
- High-Level Isolation: 1500 Vrms isolation between channels and between channels and bus, plus 500 V isolation between channels and ground
- Overload & Short-Circuit Protection: Built-in safeguards protect the module and connected equipment
- Screw Terminal Block Connectivity: Screw terminal block electrical connections for secure and reliable connectivity in industrial environments
Technical Specifications
- Power Supply: 5 V DC, 900 mA nominal
- Output Channels: 4 analog outputs
- Output Ranges: 0–20 mA, 4–20 mA, ±10 V (multirange, software selectable)
- Resolution: 12-bit conversion; 5.12 mV for ±10 V; 10.25 µA for current ranges
- Conversion Time: 2.5 ms per channel
- Accuracy: ±0.2% of full scale
- Isolation Voltage: 1500 Vrms (channel-to-channel, channel-to-bus); 500 V (channel-to-ground)
- Output Impedance (typical): 2 kΩ minimum (voltage mode); 500 Ω maximum (current mode)
- Operating Temperature: 0°C to 60°C
- Storage Temperature: –40°C to +70°C
- Humidity: 5% to 95% non-condensing
- Dimensions: 125 mm (W) × 100 mm (H) × 40 mm (D)
- Weight: 200 g
- Mounting Format: Standard TSX rack-mount module (single position)
- Power Consumption: 3 W at 24 V DC auxiliary supply
Typical Applications
- Process control and valve/damper positioning in HVAC systems
- Precision speed control for industrial motors and drives
- Analog signal conditioning for analog sensor feedback loops
- 4–20 mA transmitter interfaces in manufacturing and batch processing
- Pump and compressor output regulation
- Flow and pressure signal distribution in process plants
Compatibility & Replacements
Compatible With
- Modicon Premium TSX PLC controllers (TSX 3721, 3722, 3741, 3742, and compatible variants)
- TSX RKY rack systems (all positions except PS and 00 slots)
- Schneider Electric Modicon programming software (Concept, ProWORX 32, Unity Pro)
- Industrial automation networks requiring 0–20 mA or 4–20 mA signal distribution
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The TSXASY410 is the current standard multirange analog output module for Modicon Premium. Confirm your existing module part number to ensure direct replacement compatibility.
Works With
- Concept, ProWORX 32, and Unity Pro programming platforms
- Modicon Premium analog I/O libraries and function blocks
- Third-party SCADA and HMI systems interfacing via analog signal chains
- Distributed 4–20 mA sensor and actuator networks
- Standard industrial analog signal protocols (voltage and current loop standards)
