Overview
The Schneider Electric GP477R-EG11 is a Pro-face operator interface panel designed for industrial automation and process control applications. Built into the GP477R/577R series, this 8.9-inch monochrome HMI delivers reliable operator feedback through a high-intensity amber EL display. Although discontinued by Schneider Electric (end of sales June 2009), this legacy unit remains widely installed in manufacturing facilities and is available as new surplus stock for system replacement, retrofit, and maintenance inventory.
Key Features
- 8.9-inch amber monochrome EL display — high-intensity output with improved readability in industrial environments
- Dual brightness levels — adjustable display brightness for ambient light conditions
- 2MB Flash + 96KB backup memory — sufficient capacity for complex HMI applications
- Expandable character display — character size up to 8x enlargement; supports ASCII, Chinese (simplified), Korean Hangul, and Japanese fonts
- Internal clock — ±65 seconds/month accuracy at room temperature
- AC power supply — 50/60 Hz, AC85V–132V rated input; <50VA power consumption
- Serial communications — RS232C/RS422 asynchronous connections; supports multiple PLC/device protocols via optional interface modules
- Compact design — fits standard 8″ QuickPanel mounting cutouts compatible with GP4000 series panel dimensions
Technical Specifications
- Display Type: 8.9-inch amber monochrome EL, high-intensity
- Memory: 2MB Flash; 96KB backup RAM
- Power Supply: AC 50/60 Hz, 85–132 VAC nominal
- Power Consumption: ≤50VA
- Communication Ports: 1× RS232C/RS422 asynchronous (auxiliary interface, printer output, tool connector for barcode reader)
- Operating Temperature: 0–50°C ambient
- Storage Temperature: −10–60°C
- Vibration Resistance: 10–25 Hz for 30 minutes
- Clock Accuracy: ±65 seconds per month at room temperature
- Font Support: ASCII/Alphanumeric, simplified Chinese, Korean Hangul, Japanese
- Series: Pro-face GP477R/577R QuickPanel
- Mounting: Panel cut-out compatible with GP4000 series dimensions
- End of Sales: June 30, 2009 | End of Repair Service: March 31, 2016

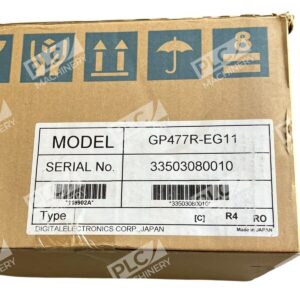

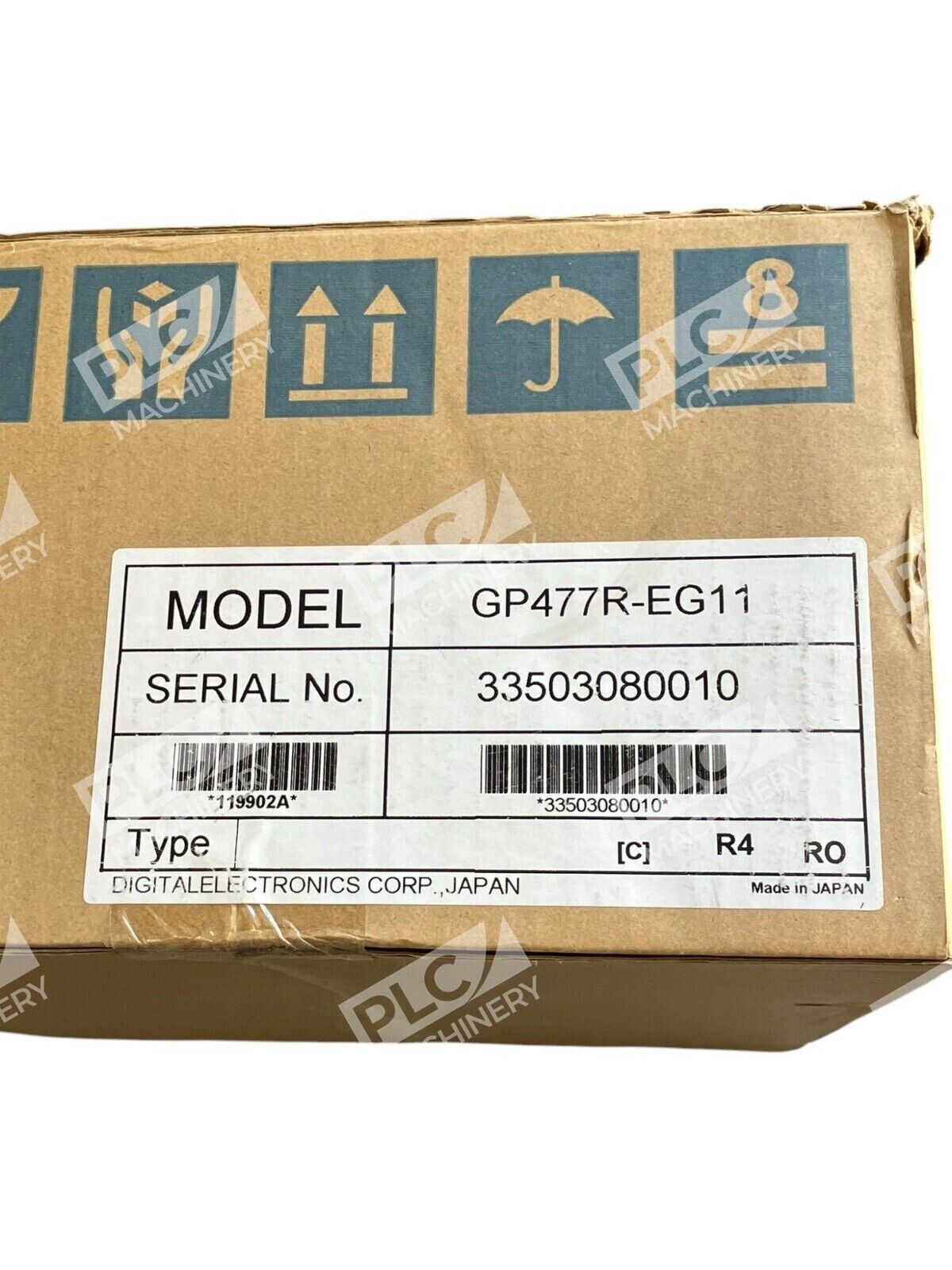

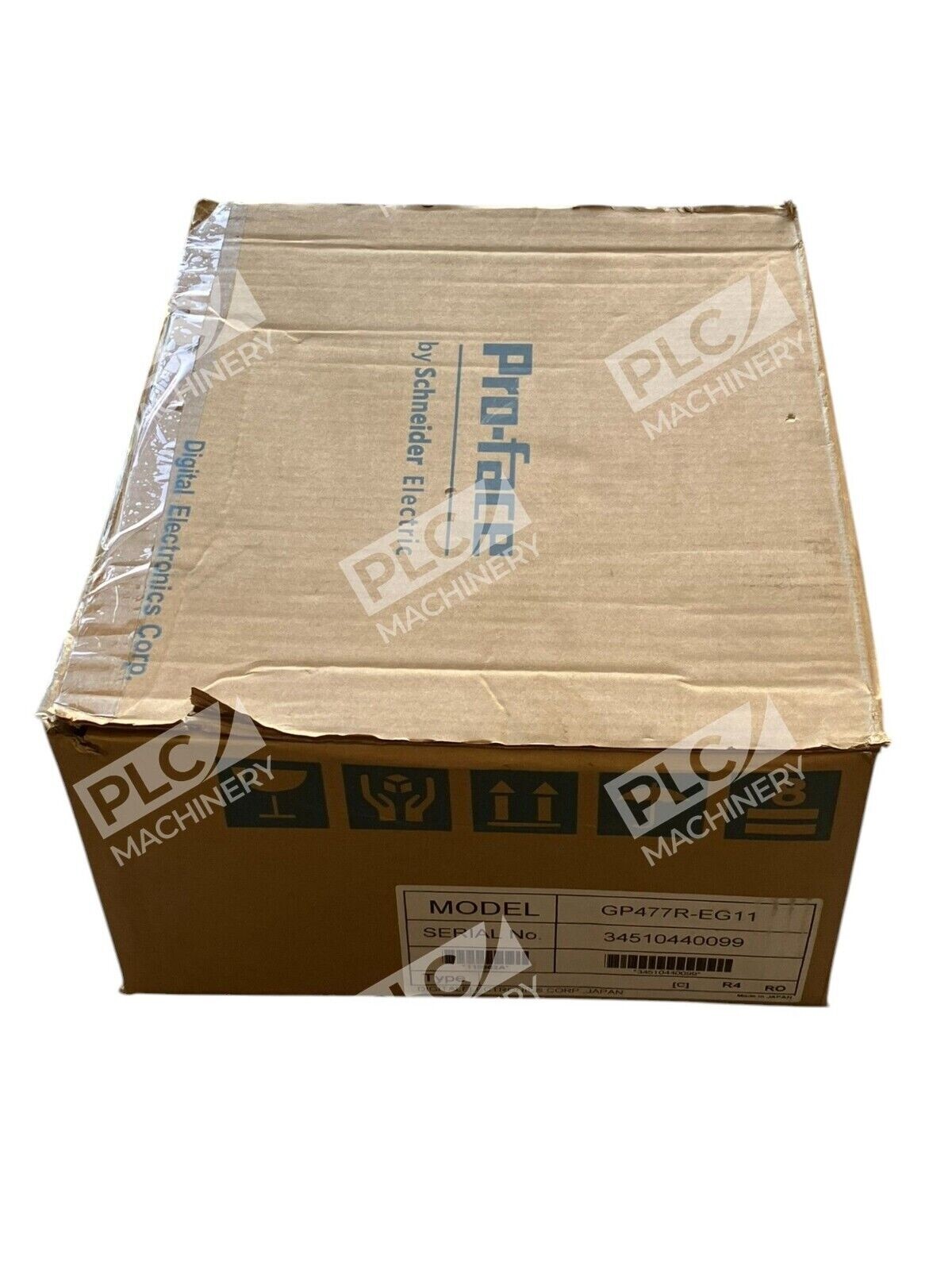

- Condition: New in Box
Typical Applications
The GP477R-EG11 is well-suited for:
- Manufacturing equipment control and production monitoring
- Process automation and supervisory interfaces in industrial plants
- Legacy system maintenance and spare-part stocking (retrofit applications)
- Food, beverage, and pharmaceutical production lines requiring high-contrast displays
- Environments where amber monochrome displays provide superior readability and operational reliability
- PLC communication and data logging in production environments
Compatibility & Replacements
Compatible With
- Allen-Bradley Data Highway Plus (via QPI-ABD-201 interface module)
- Allen-Bradley 1771 Remote I/O (via QPI-ABR-201 interface module)
- Mitsubishi CC-Link (via GP070-CL11 interface module)
- PROFIBUS DP (via GP070-PF11 or CA1-PFSALL-21 interface modules)
- DeviceNet Slave (via GP070-DN41 interface module)
- Modbus Plus (via QPI-MBP-XA1 interface module)
- RS232C/RS422 serial devices, barcode readers, printers, memory loaders
- Pro-face GP070 series software (programming and download)
Replaces / Drop-In Replacement For
The GP477R-EG11 is a legacy unit. For direct replacements with same mechanical fit (panel cut-out dimensions), Schneider Electric recommends:
- PFXGP4501TAA — GP4000 series TFT color LCD, AC power supply, same panel cut-out size
- PFXGP4501TMA — GP4000 series TFT color LCD with 2-point touch, AC power supply
Note: Newer replacement models (e.g., PFXGP4501TADWF0C) require power supply and mechanical adaptation. Verify compatibility with your system integrator before ordering, as panel dimensions and electrical requirements may differ.
Works With
- Pro-face Designer and Studio programming software
- Pro-face GP070-AT01 installation fasteners and mounting hardware
- GPW-CB02 (RS-232 9-pin D-sub programming cable)
- GPW-CB03 (USB programming cable for application download)
- GP470/477-DF10 protective hard-type sheet for 9″ panels
- Optional communication modules for PROFIBUS, CC-Link, DeviceNet, Modbus Plus, and AB interfaces
- Standard industrial PLC protocols and control systems requiring HMI operator interface
