Overview

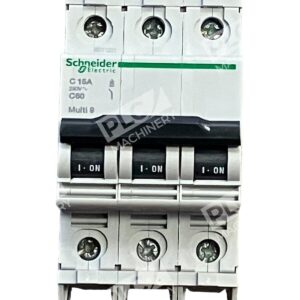

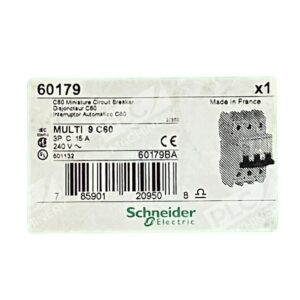

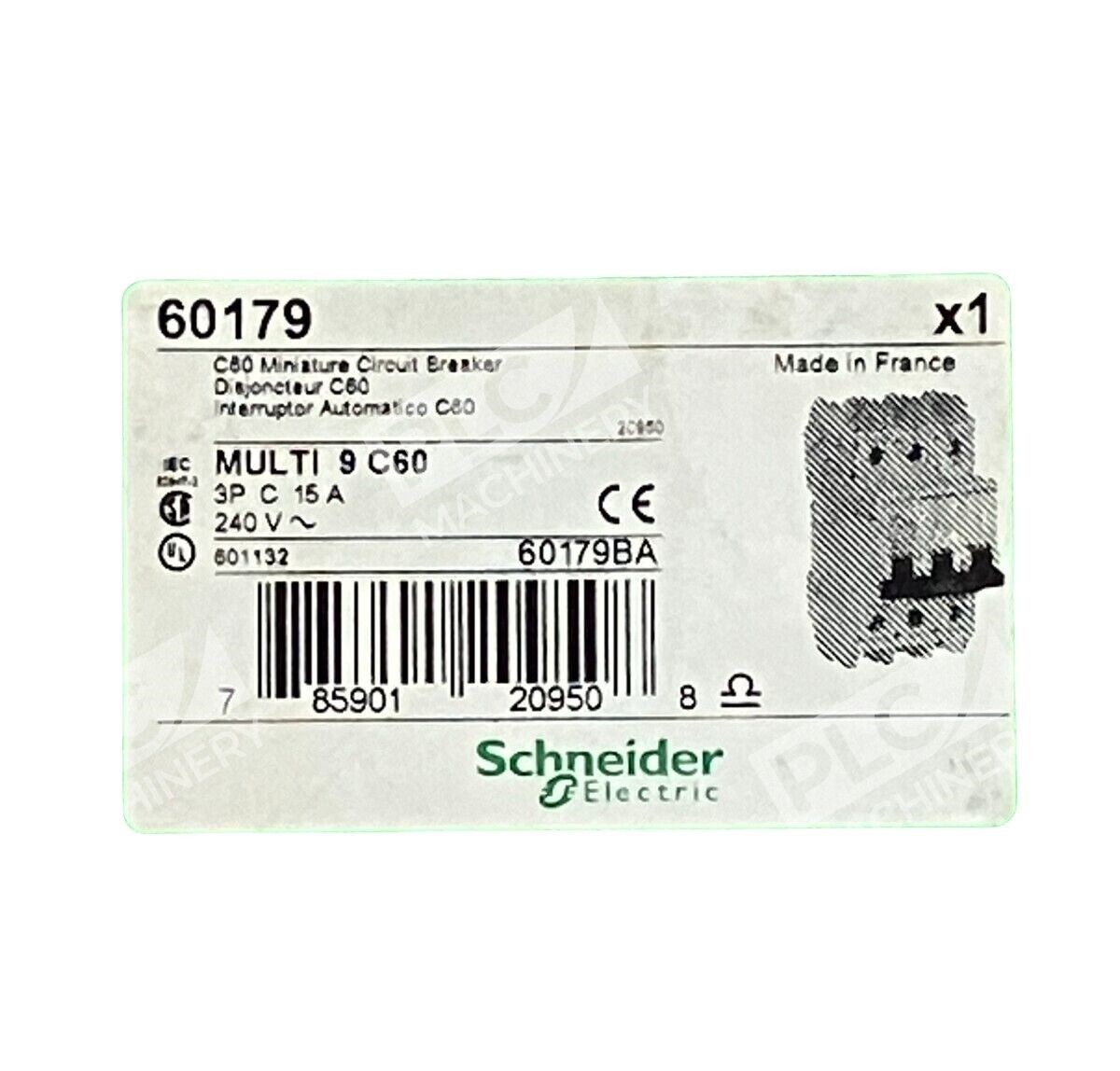

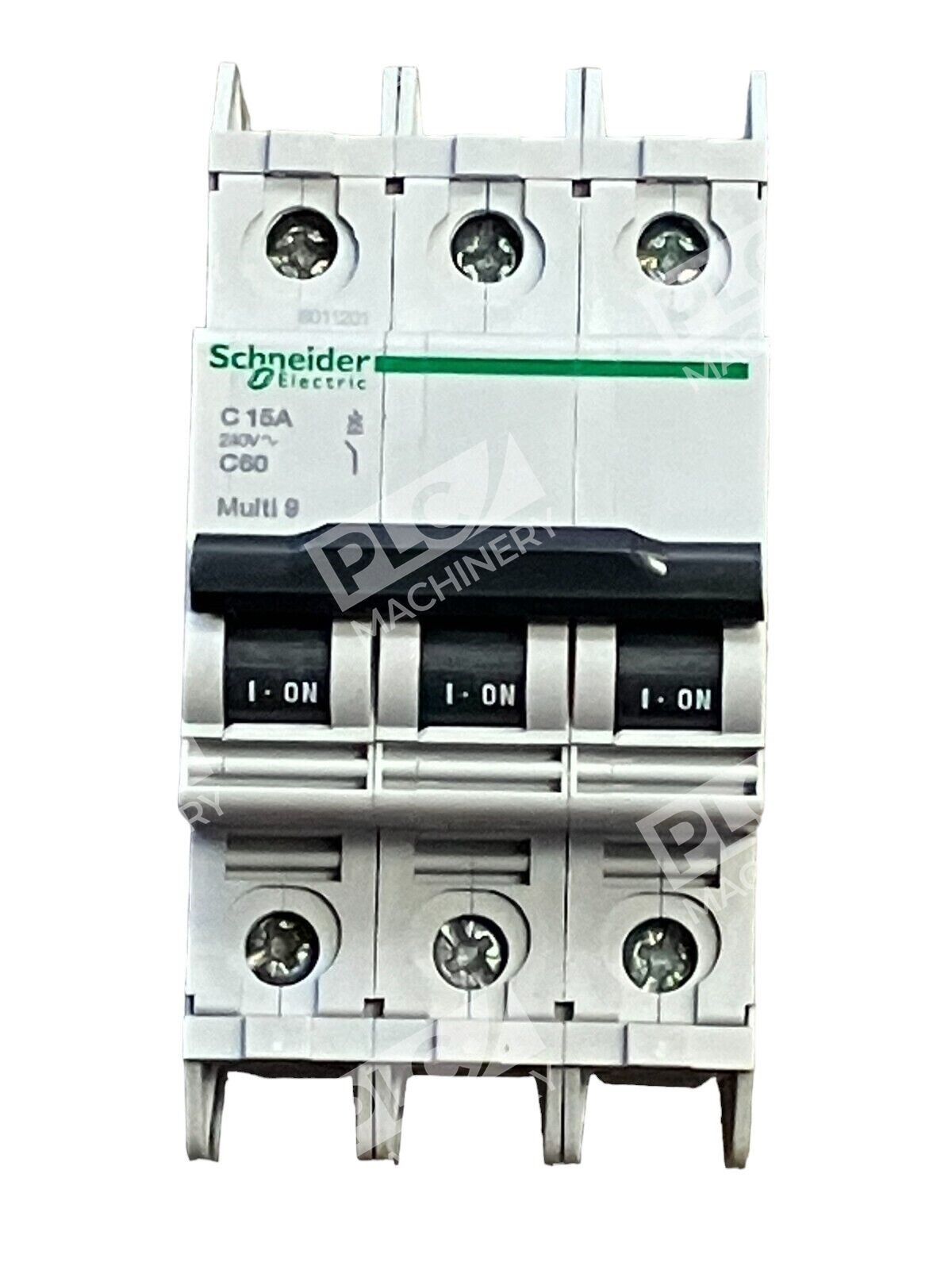

The Schneider Electric 60179 Multi 9 C60 is a three-pole miniature circuit breaker designed for industrial control and distribution applications. This UL 489-listed MCB combines reliable overload and short-circuit protection in a compact form factor suitable for DIN-rail installation in control cabinets and panel enclosures.
Key Features
- Three-pole configuration for balanced three-phase protection
- C-curve tripping characteristic (5–10× rated current) for typical industrial loads
- Trip-free mechanism prevents manual override during fault condition
- Toggle actuator with distinct on/off/tripped positions
- Clip-on DIN-rail mounting for fast, tool-free installation
- Compact size and lightweight design for space-constrained panels
Technical Specifications

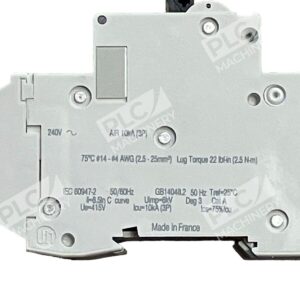

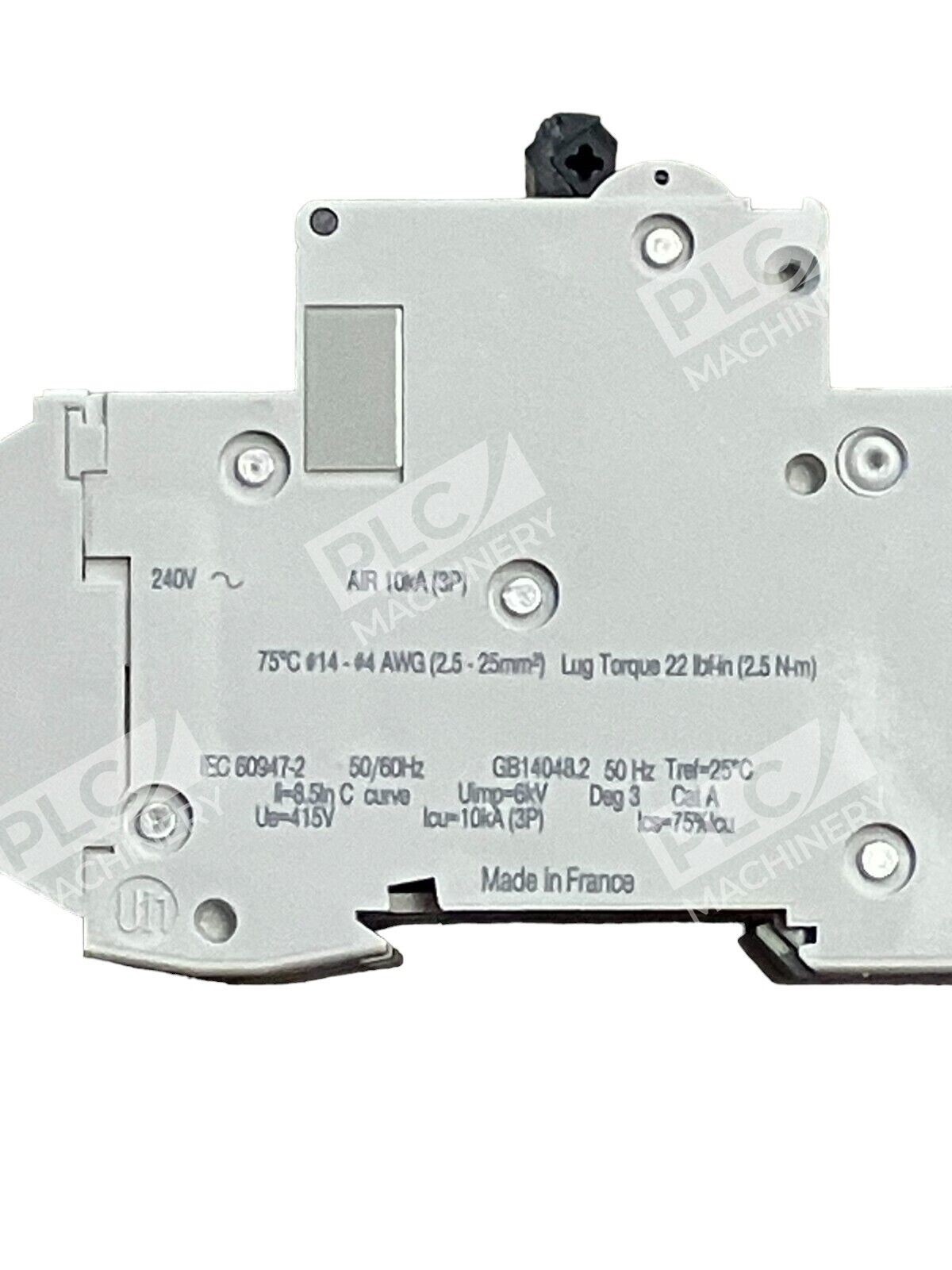

The 60179 delivers thermal-magnetic protection with a 10 kA asymmetric interrupt rating (AIR). Wire compatibility spans 18 AWG through 4 AWG, with insulated terminals rated IP20 and an IP40 case rating. This breaker operates reliably across industrial temperature ranges and meets multiple international standards for low-voltage circuit protection.
Typical Applications
- Three-phase motor control and distribution panels
- Industrial automation and PLC systems
- Manufacturing equipment and machinery protection
- HVAC and water pump systems
- Backup power and UPS systems
- General-purpose industrial control cabinets
Compatibility & Replacements
Compatible With
- DIN-rail enclosures and control panels
- Three-phase AC distribution systems (120–240VAC)
- Industrial DC systems (60–125VDC)
- Standard terminal lugs and wire lugs (AWG 18–4)
Replaces / Drop-In Replacement For
- Square D 60179 (Schneider Electric acquired Square D)
- Other C60 series 3-pole 15A breakers with matching frame size 35A
Works With
- Standard 35mm DIN-rail systems
- Multi 9 complementary devices (auxiliary switches, voltage releases)
- Industrial PLC and motor control systems
- Thermal-magnetic protection schemes per IEC 60947-2 and UL 489
