Overview

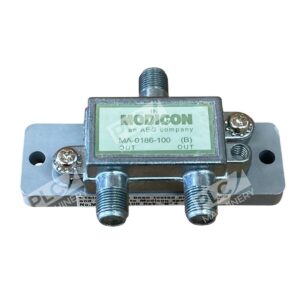

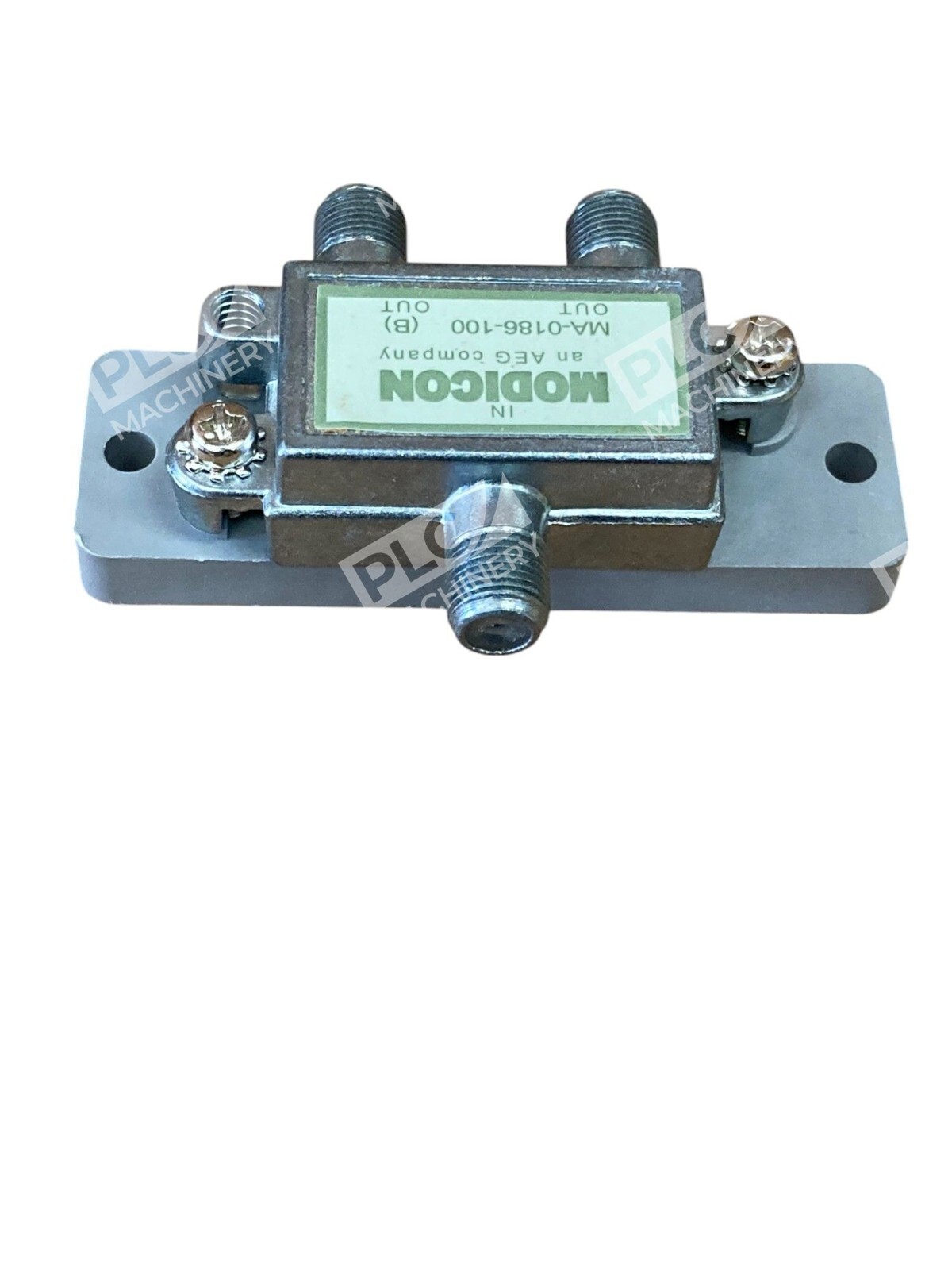

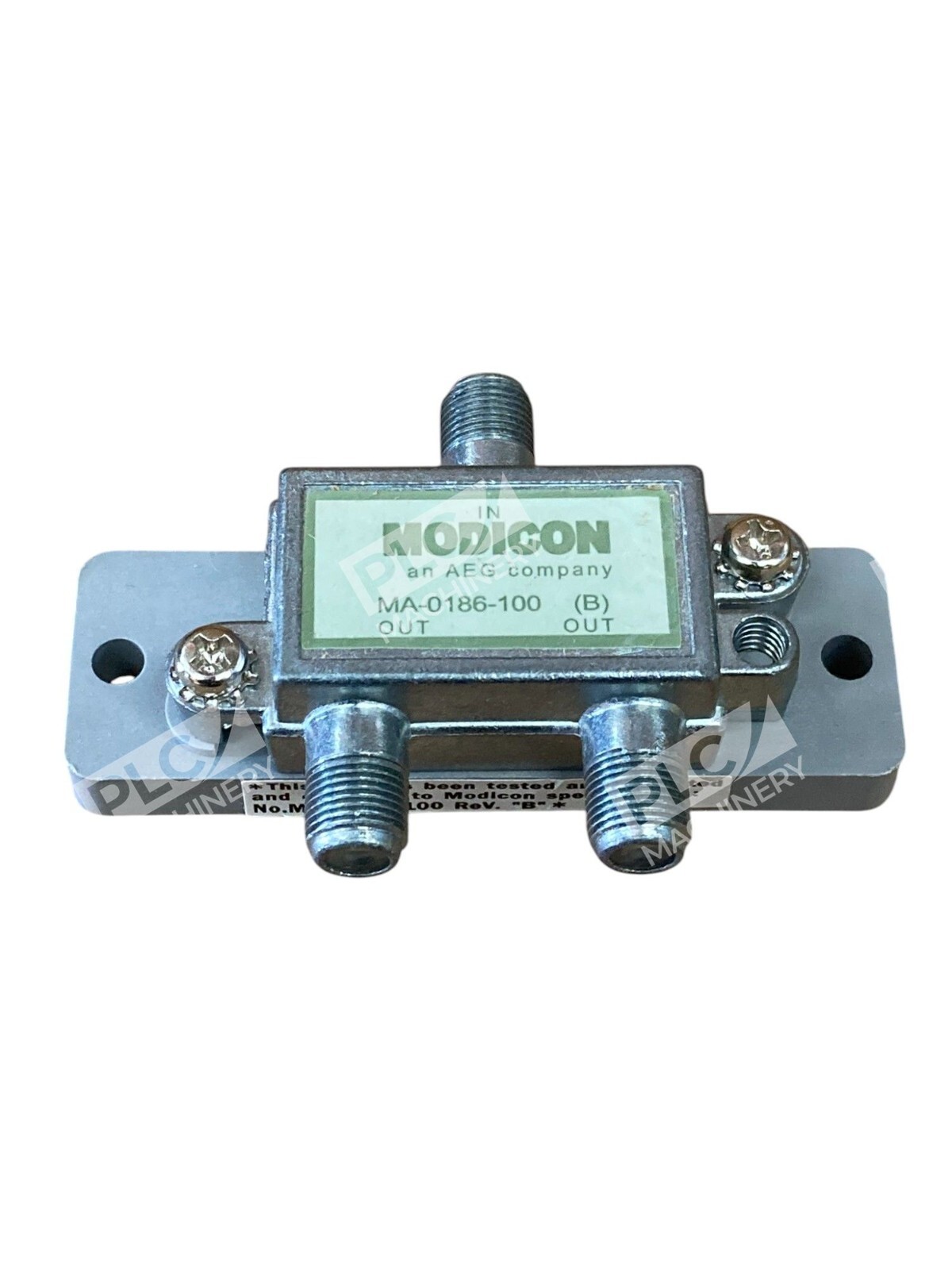

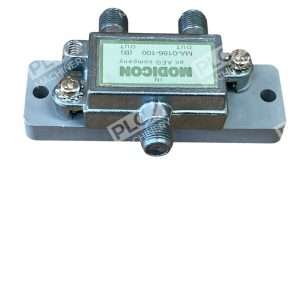

The Schneider MA-0186-100 is a coaxial cable splitter and repeater designed for the Modicon Quantum automation platform. This communication line accessory enables signal repetition from a single cable to support two-cable configurations, maintaining the 75 Ohm impedance required for reliable data transmission in industrial automation networks. The unit is housed in a compact design suitable for ring topology network installations.
Key Features
- 75 Ohm coaxial impedance—critical for signal integrity in Modicon networks
- Signal repeater function—extends communication across dual cable segments
- Compact form factor—lightweight at approximately 98 grams
- Modicon Quantum platform—verified compatibility with legacy automation systems
- Ring topology support—enables flexible network configuration
- Industrial-grade construction—designed for factory and control room installations
Technical Specifications
- Product Type: Coaxial Cable Splitter / Repeater
- Impedance: 75 Ohm
- Platform Compatibility: Modicon Quantum
- Application: Single-to-dual cable communication extension
- Network Topology: Ring configuration
- Weight: 98 grams
- Package Dimensions (Height): 3 cm
- Package Dimensions (Width): 8.5 cm
- Condition: New in Box
- Manufacturing Origin: Schneider Electric automation accessories
Typical Applications
The Schneider MA-0186-100 is commonly used in legacy Modicon Quantum control systems where coaxial communication lines must be extended or split for multi-node network topologies. Typical applications include:
- Material handling and packaging machine automation
- Textile machine control systems
- Modicon 984 Series PLC network expansion
- Industrial communication line redundancy and ring network configurations
- Factory automation systems requiring coaxial connectivity between remote I/O modules and controllers
Compatibility & Replacements
Compatible With
- Modicon Quantum automation platform
- Modicon 984 Series PLCs
- Coaxial cable communication networks (75 Ohm impedance)
- Ring topology automation networks
- Legacy Schneider Electric industrial control systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The MA-0186-100 is a specific accessory for Modicon Quantum platforms; direct replacement compatibility depends on your existing network topology and cable configuration.
Works With
- Modicon Quantum communication protocol
- Coaxial F-type connector networks
- Ring topology network configurations
- Factory automation communication buses compatible with 75 Ohm impedance specifications
