Overview

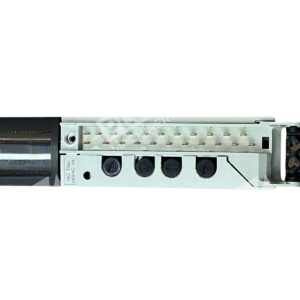

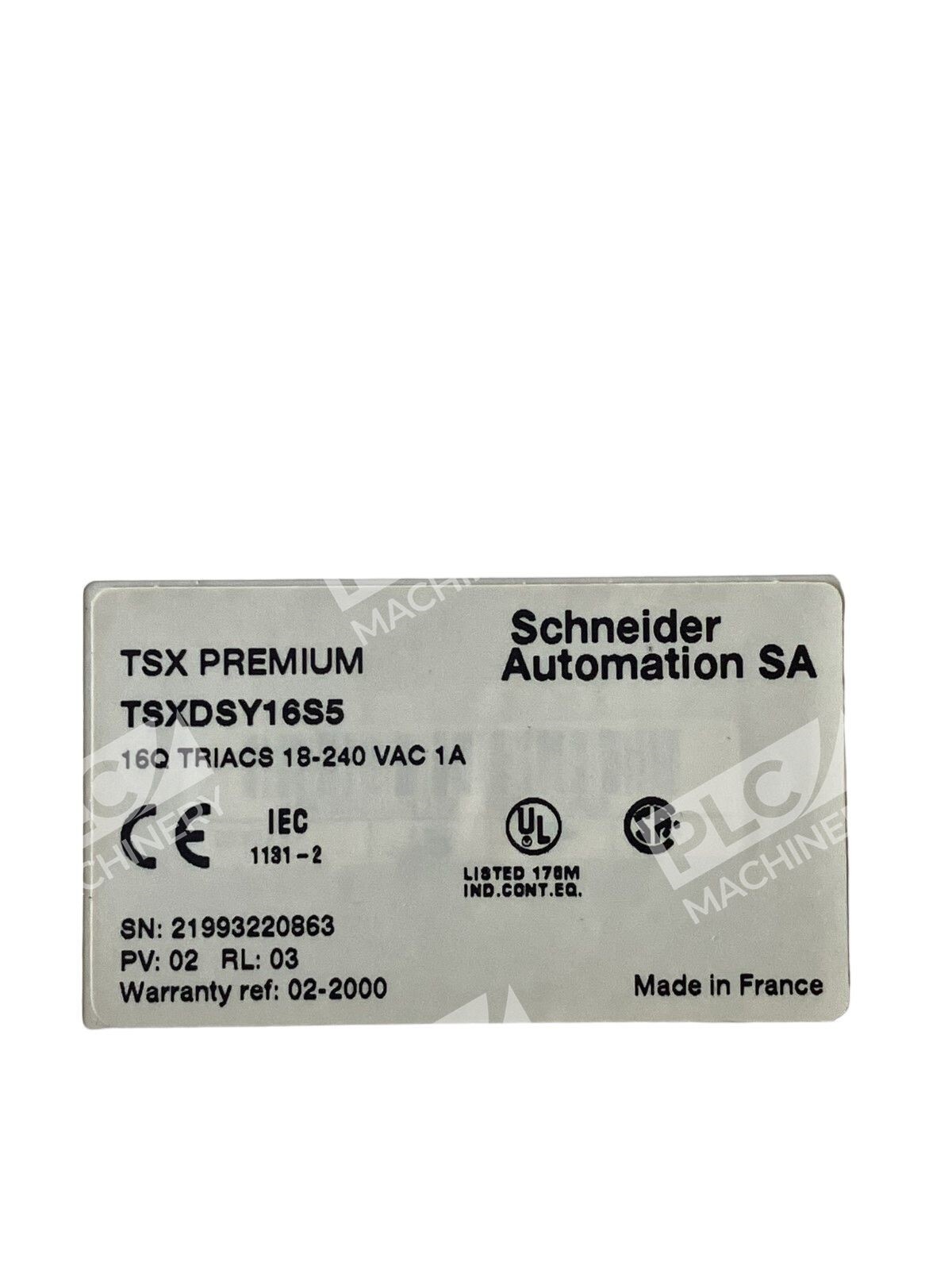

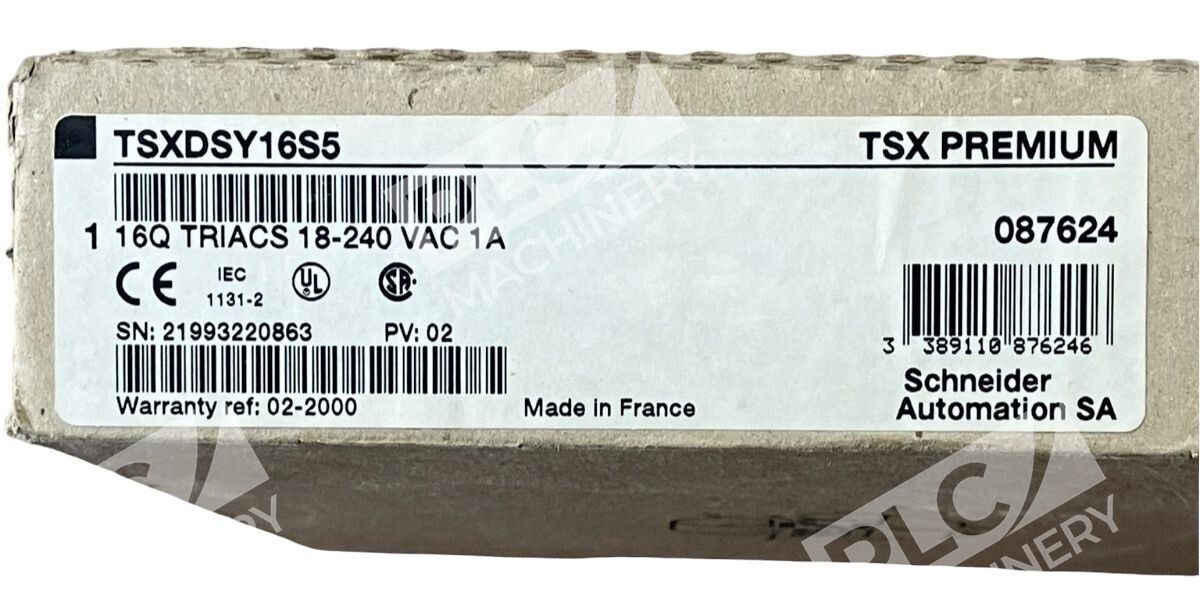

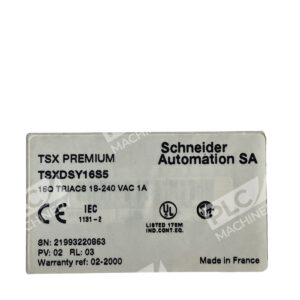

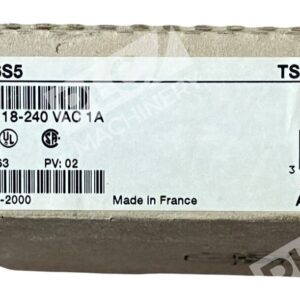

The Schneider Electric TSXDSY16S5 is a discrete output module engineered for the Modicon Premium PLC platform. This 16-point solid-state TRIAC output module provides precise control over AC loads with rated voltage spanning 48 to 240 VAC, conforming to EN/IEC 61131-2 standards. TRIAC-based protection ensures reliable switching and safeguards against voltage transients common in industrial environments.
Key Features
- 16 discrete solid-state TRIAC outputs for AC load control
- Operating voltage: 48–240 VAC (compliant with EN/IEC 61131-2)
- TRIAC-protected outputs shield against voltage fluctuations and switching transients

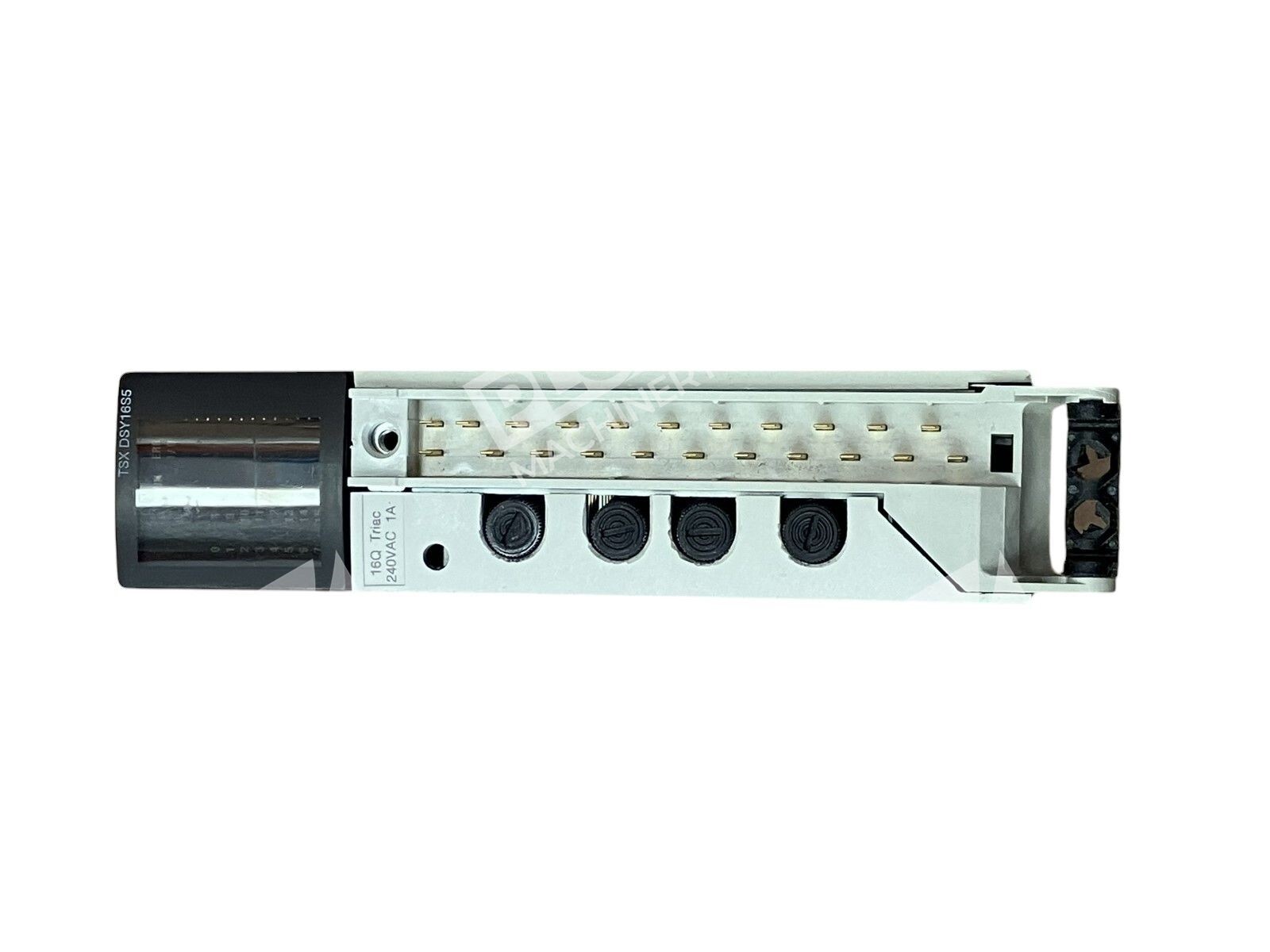

- Screw terminal block connections for secure and reliable wiring
- Compact standard DIN-rail mounting form factor
- CE-marked for European regulatory compliance
Technical Specifications

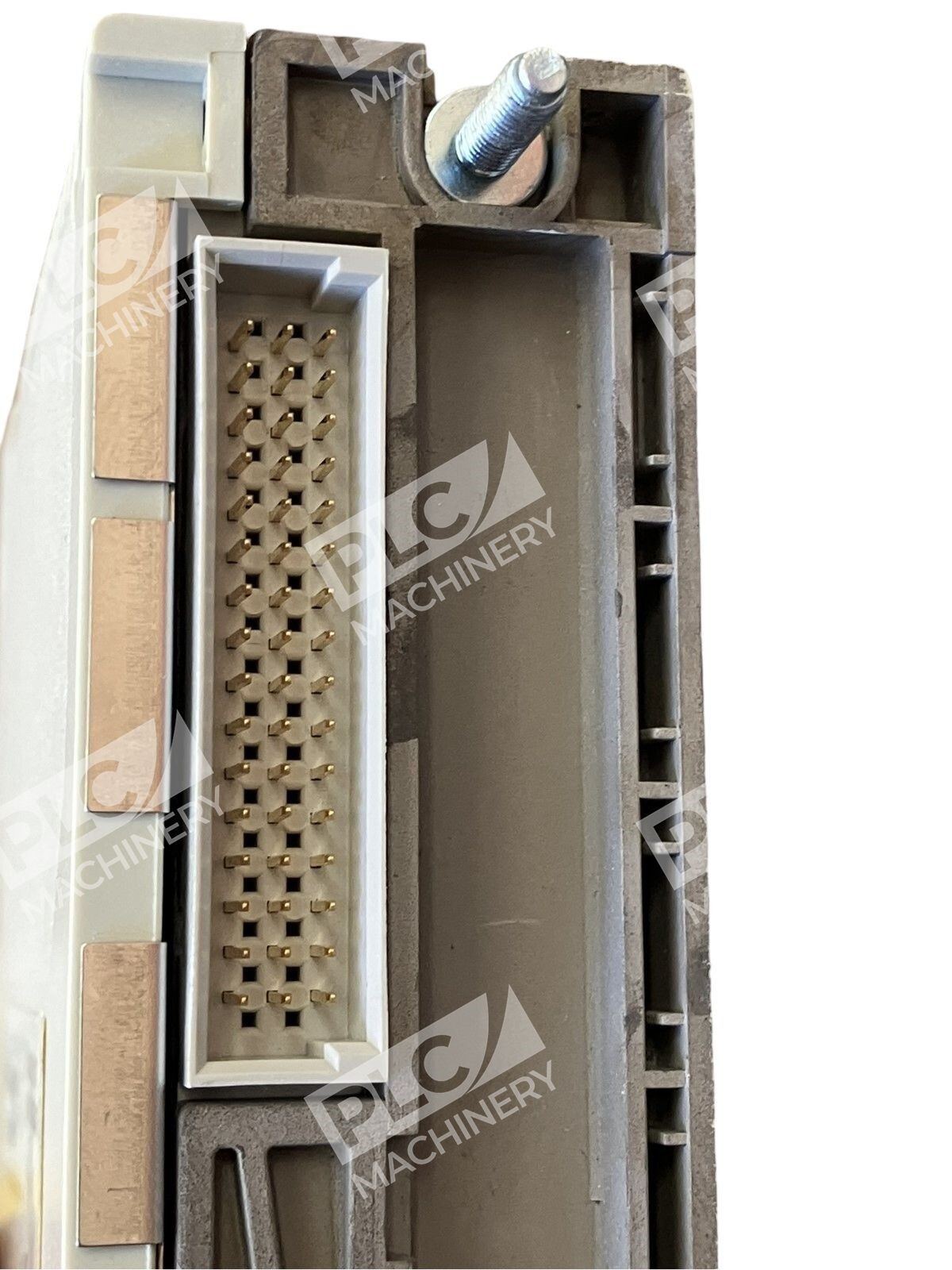

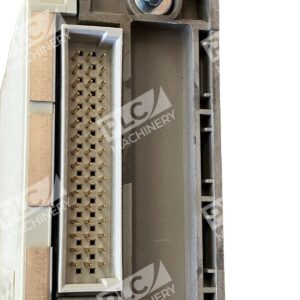

The TSXDSY16S5 delivers 16 independent output channels suitable for controlling AC-powered solenoids, contactors, lighting circuits, and motor starters. Each output is TRIAC-protected to prevent damage from inductive load kickback and switching noise. The module mounts directly to standard DIN rail alongside other Modicon Premium I/O modules and communicates with the controller via the Premium backplane connection.
Typical Applications
- AC solenoid and contactor switching in industrial machinery
- Lighting control and On/Off switching for AC circuits
- Motor starter and pump control in manufacturing facilities
- Process automation requiring multiple discrete AC outputs
- Legacy system upgrades and modernization retrofits
Compatibility & Replacements
Compatible With
- Schneider Modicon Premium PLC controllers and racks
- Standard Modicon Premium I/O carriage and backplane
- Modicon Telemecanique automation platforms
- Unity Pro and Legacy TIA Portal programming environments
- EN/IEC 61131-2 compliant control systems
Replaces / Drop-In Replacement For
- TSXDSY16S4 (legacy solid-state output variant)
- Other Modicon Premium 16-point discrete output modules with compatible voltage ratings
- Verify compatibility with your system integrator before ordering when substituting legacy modules
Works With
- Modicon Premium controller firmware and software
- EN/IEC 61131-2 discrete I/O protocols
- Standard PLC backplane communication
- Industrial automation systems requiring 16-point AC switching capability
