Overview

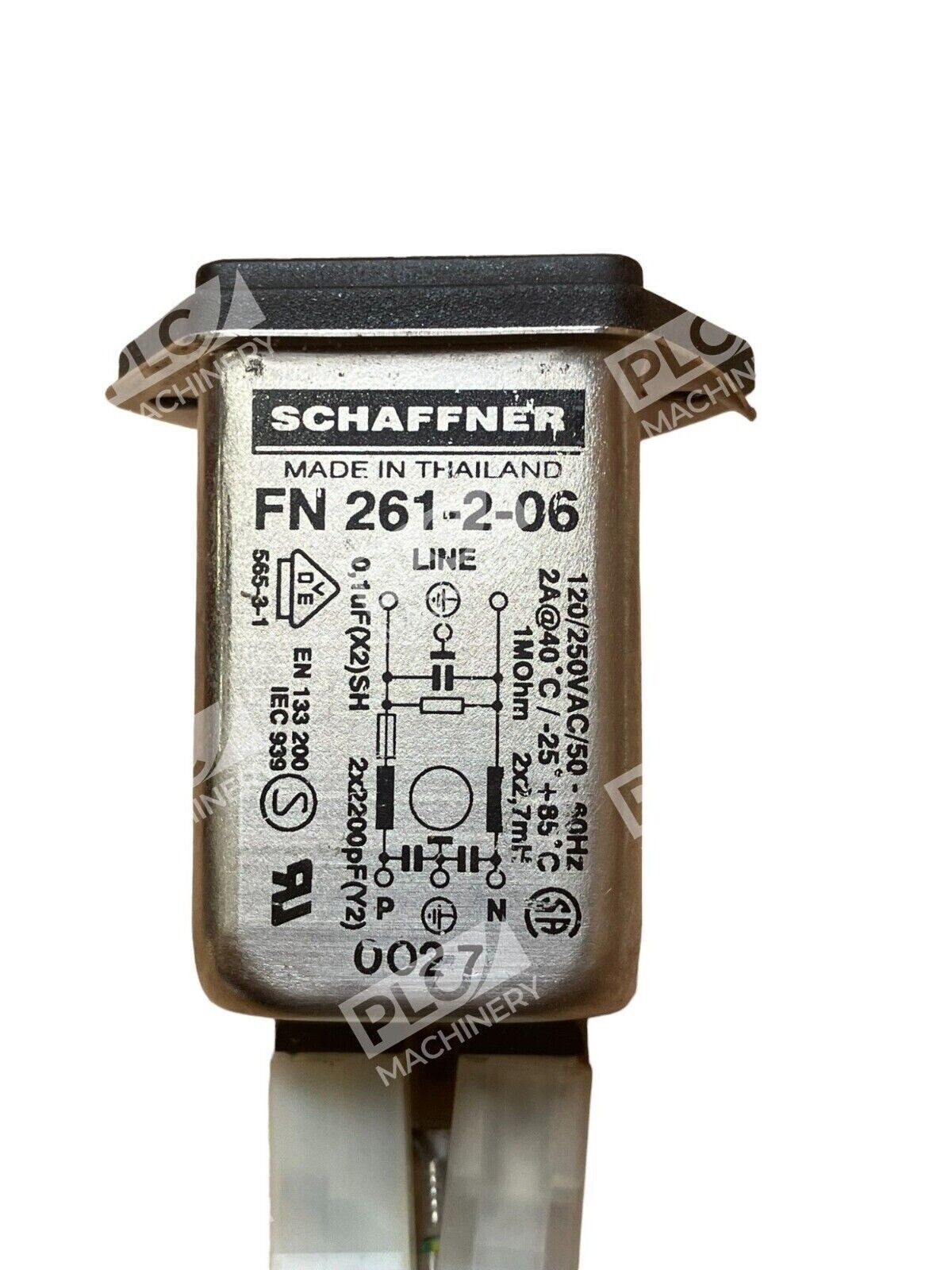

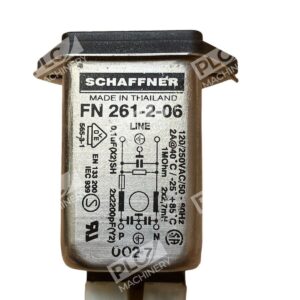

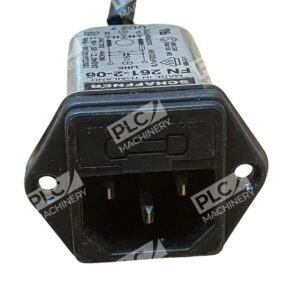

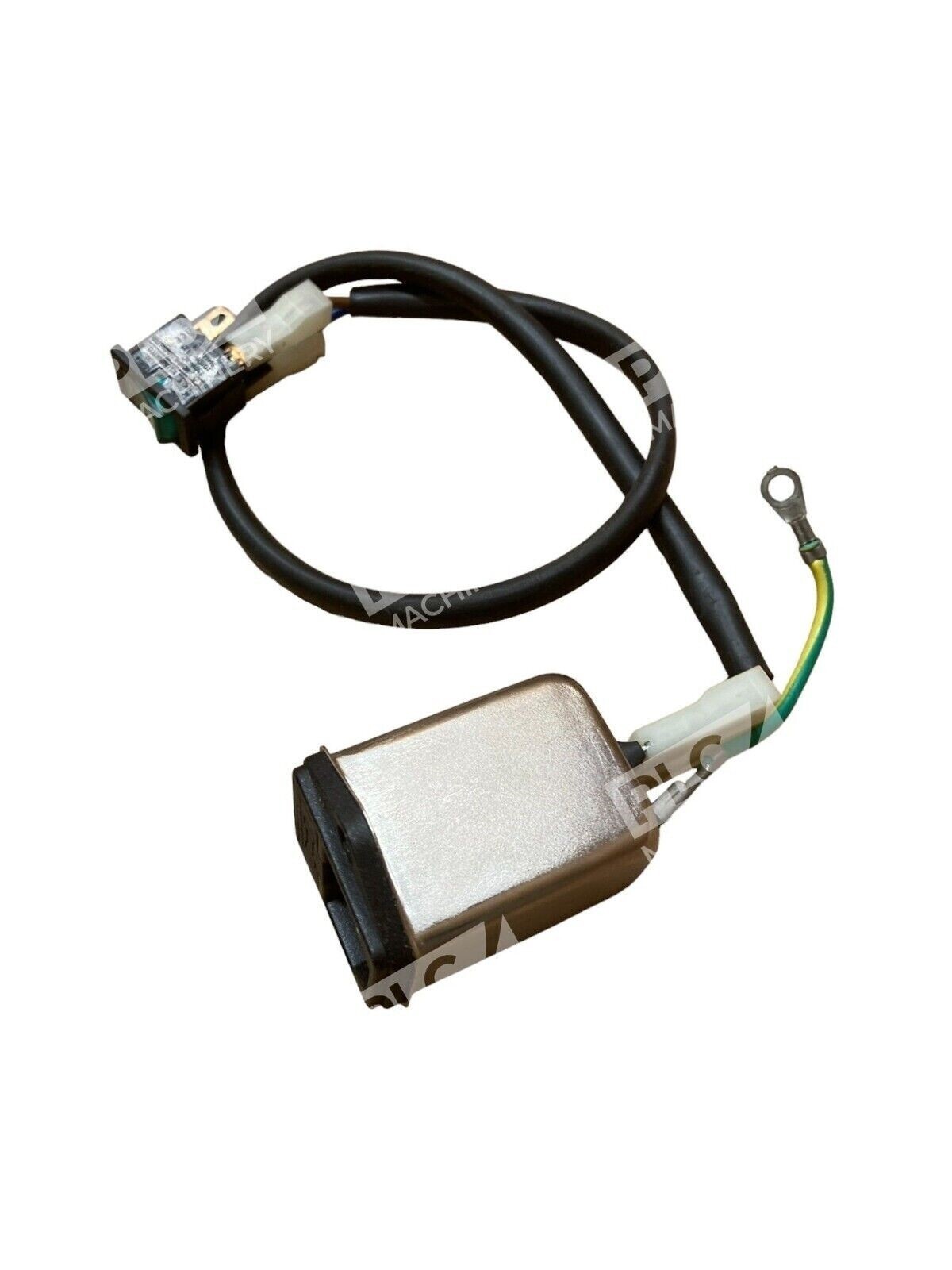

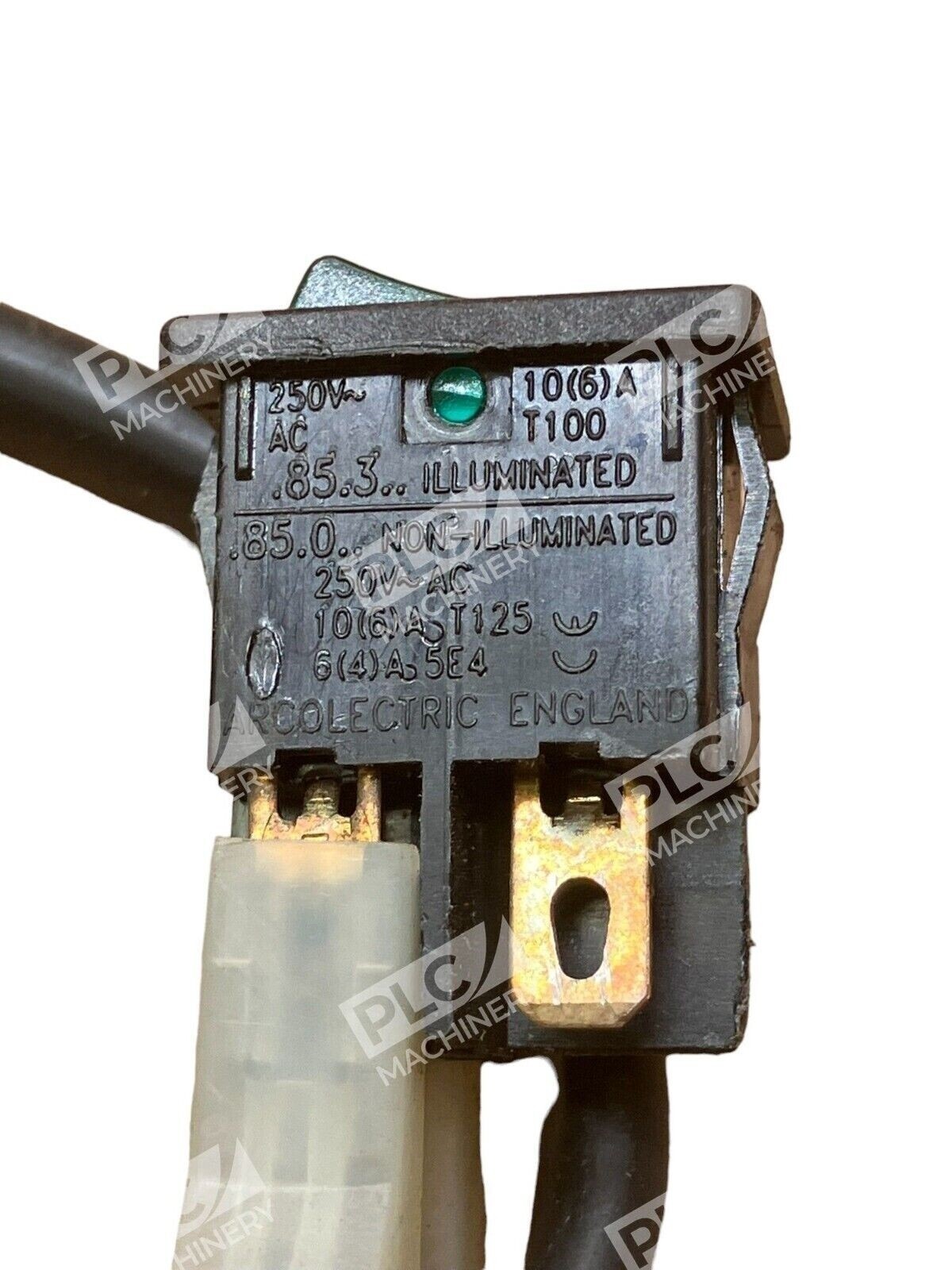

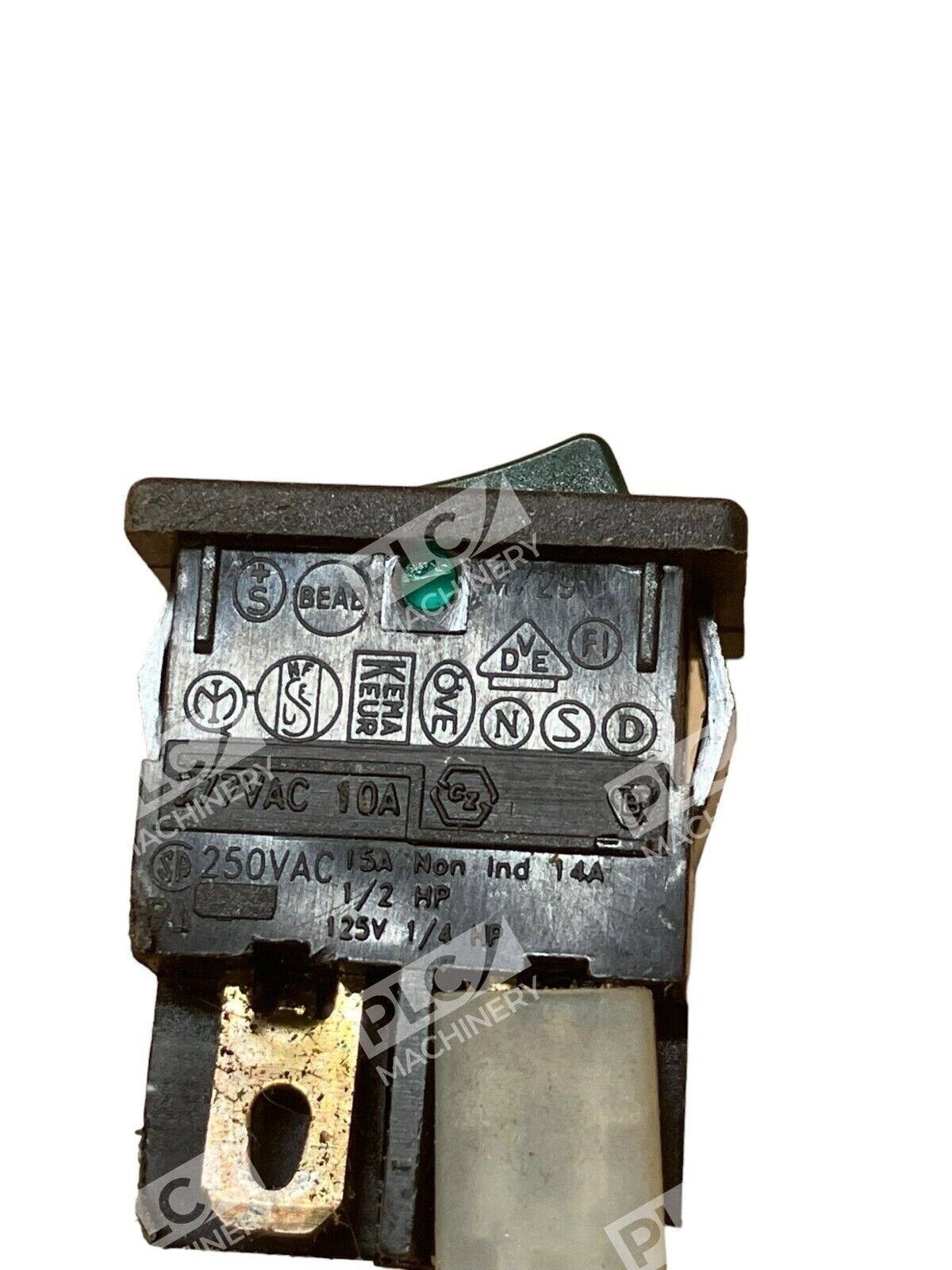

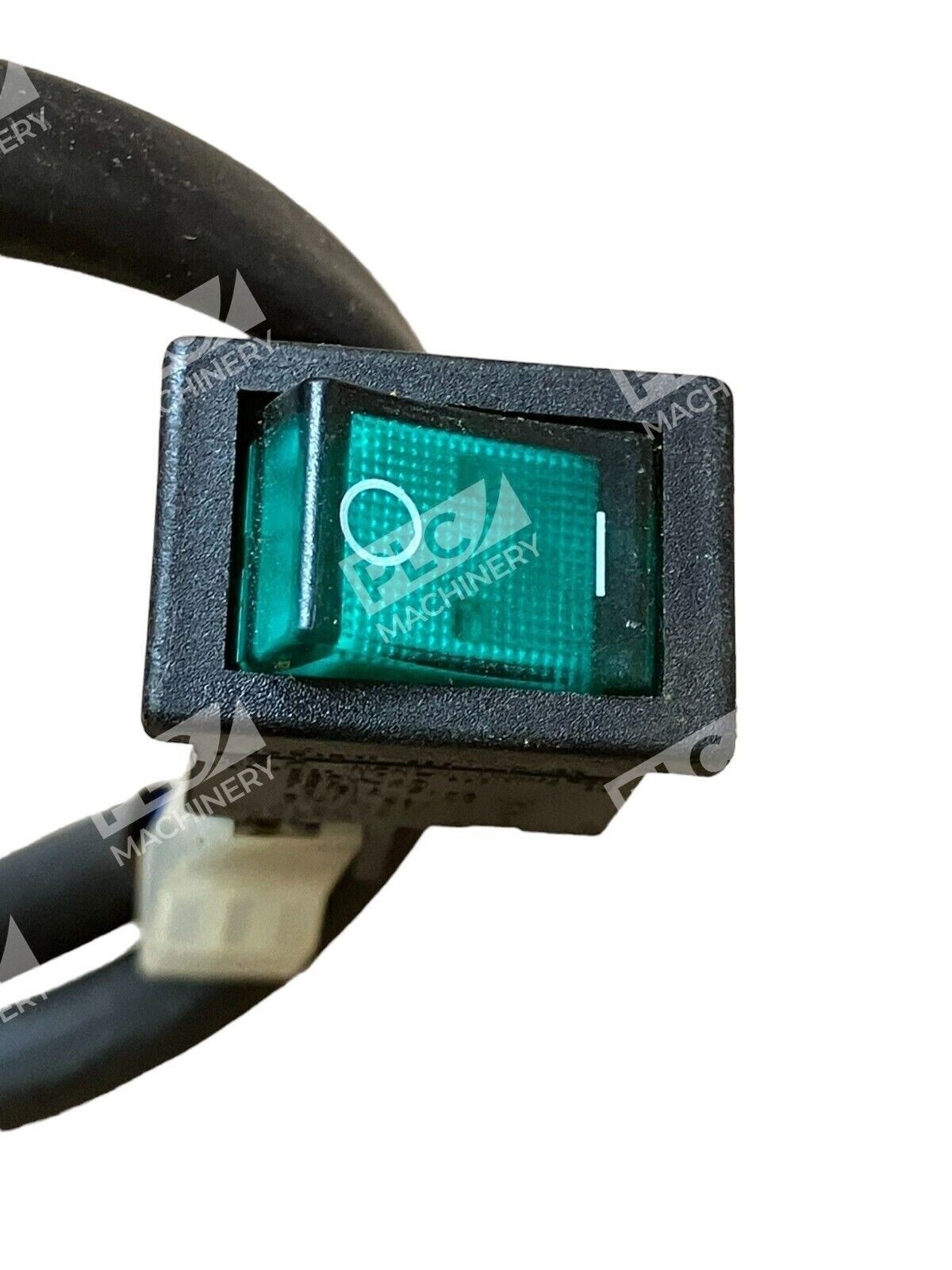

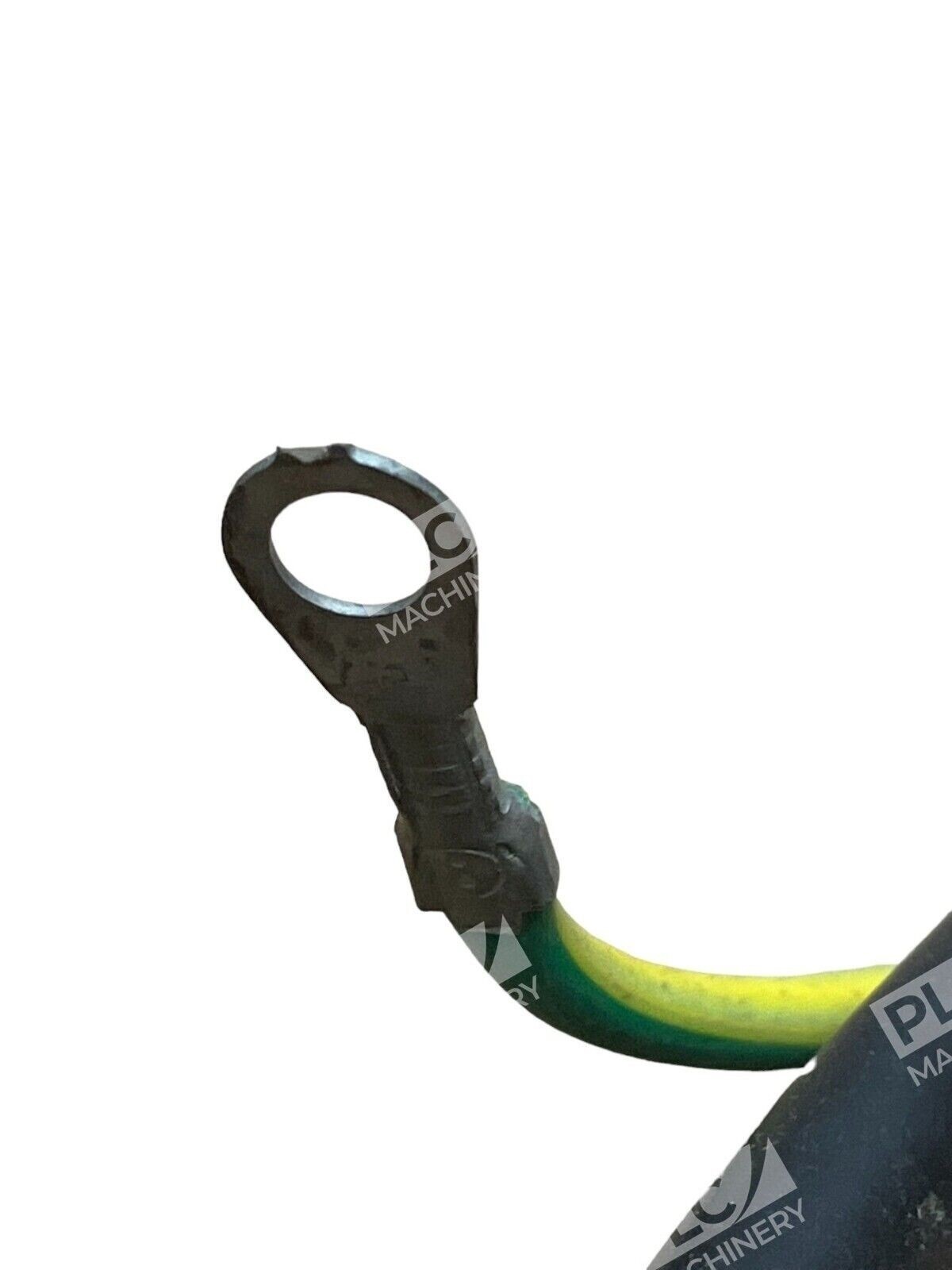

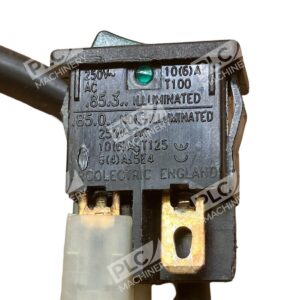

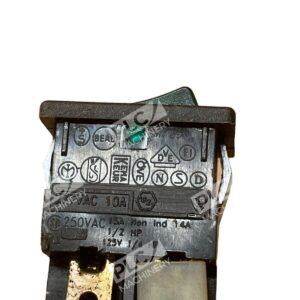

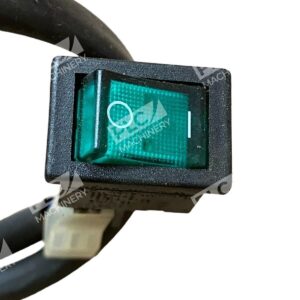

The Schaffner FN 261-2-06 is a filtered power entry module featuring an IEC C14 inlet connector. This unit combines EMI suppression with a standard power entry interface, making it ideal for equipment requiring both reliable connectivity and electromagnetic interference reduction. The integrated fuse holder and quick-connect terminals simplify installation on industrial equipment, appliances, and control systems.
Key Features

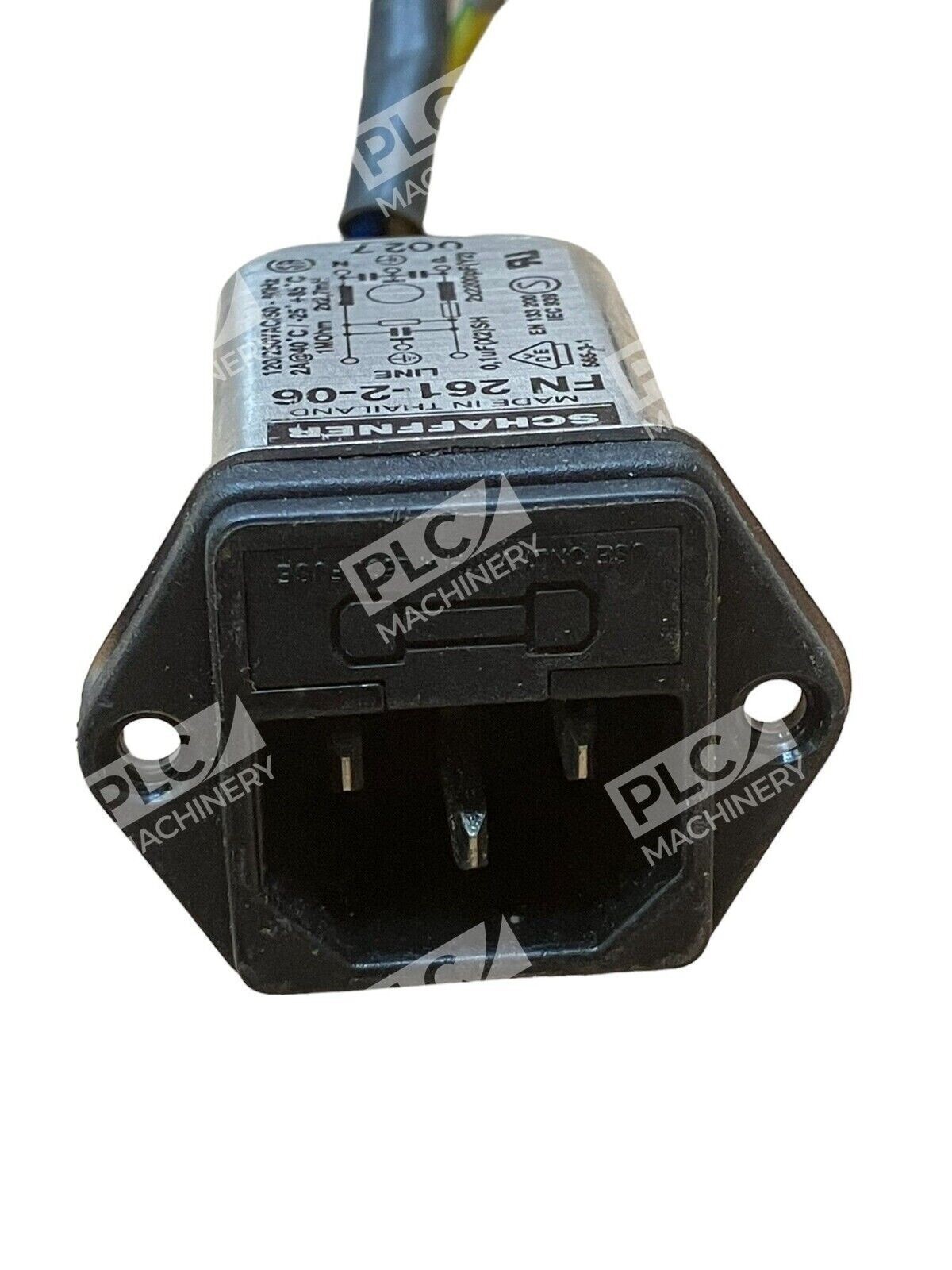

- IEC C14 inlet connector for standard power entry
- 2A rated current at 250VAC nominal voltage
- Integrated 1-pole fuse holder (5mm × 20mm)
- Quick-connect terminal design for fast installation
- Snap-in flange mount for panel integration
- Built-in EMI/RFI filtering to meet CISPR 17 requirements
- Compact, lightweight construction
Technical Specifications
- Current Rating: 2A @ +25°C
- Voltage Rating: 250VAC, 50/60 Hz
- Connector Type: IEC C14 (IEC 320-C14)
- Fuse: 1-pole holder, 5mm × 20mm
- Terminal Type: Quick-connect (6.3 × 0.8mm)
- Mounting: Snap-in, flange-mount panel
- Operating Frequency: DC to 400 Hz
- Filter Capacitance: Cx = 100 nF, Cy = 2.2 nF
- Test Voltage: 2000VAC
- Certifications: UL, CSA, ENEC 14
- RoHS Compliant: Yes
Typical Applications
The FN 261-2-06 serves as a power inlet for:
- Industrial control equipment and PLCs
- Laboratory and test instrumentation
- Medical devices and diagnostic systems
- IT and server equipment requiring EMI filtering
- General commercial appliances (low-power)
- HVAC and building automation systems
Compatibility & Replacements
Compatible With
- Equipment with IEC C14 power inlet receptacles (female)
- Power distribution systems requiring 2A inlet capacity
- Industrial control cabinets with 250VAC supply
- EU and international standard AC power systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The FN 261-2-06 is part of the Schaffner FN 261 series and shares the same footprint and electrical characteristics as other 2A FN 261 variants with IEC C14 geometry.
Works With
- Standard IEC C14 power cords and assemblies
- 5mm × 20mm fast-acting or slow-blow fuses
- Panel cutouts designed for IEC C14 flange mounting
- CISPR 17 compliant installations requiring EMI inlet filtering
