Overview

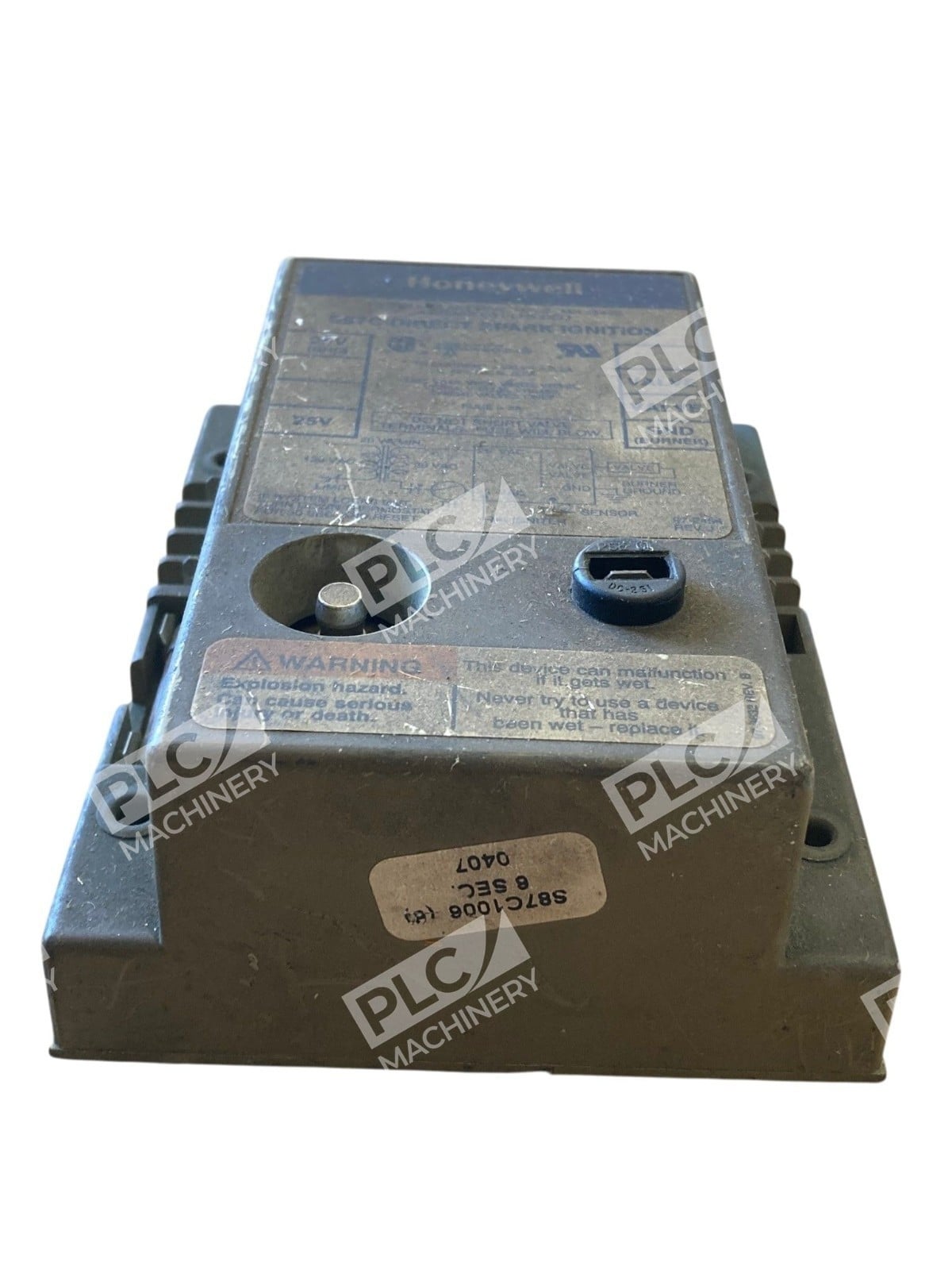

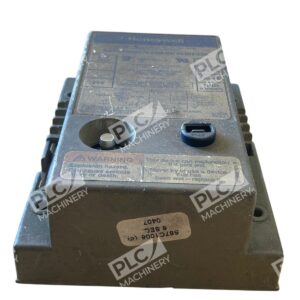

The Honeywell S87C is a proven direct spark ignition (DSI) control module engineered for gas-fired heating equipment. The Honeywell S87 is a solid state direct spark ignition control module for gas-fired heating appliances that controls the gas valve, monitors the main burner flame, and generates a high voltage spark for ignition. The S87C uses separate electrodes for spark ignition and flame sensing. This module provides reliable ignition control and safety lockout in furnaces, boilers, and other commercial heating applications.
Key Features
- Generates high voltage potential for main burner ignition and lockout after one trial for ignition if main burner fails to ignite
- 30,000 V open circuit spark generator voltage
- Mounts in any position
- Separate spark and flame sensing electrode design for enhanced reliability
- Safety lockout timing: 4, 6, 11, 21 sec (nominal)
- Flame failure reignition time: 0.8 sec maximum
Technical Specifications
- Voltage and frequency: 25 Vac, 60 Hz; Current rating: 0.2 A at 25 Vac
- Flame current signal required: 1.5 μ dc minimum
- Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
- UL Listed (File No. MH11790)
- 3 A fuse protection
- Control circuit: Low-voltage solid-state electronics
Typical Applications
- Gas-fired furnaces and heating systems
- Commercial and residential boilers
- Hot water heating appliances with direct spark ignition
- HVAC systems requiring electronic ignition control and flame monitoring
- Equipment requiring 21-second safety lockout timing
Compatibility & Replacements
Compatible With
- Honeywell gas controls designed for DSI application: V845, V854, VR845, VR854, VR8450 and VR8540
- 25 Vac transformer power supply systems
- Thermostat or temperature controller interfaces
- Temperature limit controllers
- Direct spark ignition gas-fired heating systems
Replaces / Drop-In Replacement For
- S87C can be used for direct field replacement of S825A,C
- For direct replacement of S825C
Works With
- Recommended spark igniters: Q347A, Q330
- Compatible flame sensors: Q354A, Q342, Q361
- Any DSI-rated gas control valve at 2.0 A or less (specific models required for S87C)
- Standard HVAC control wiring and thermostat systems
