Overview

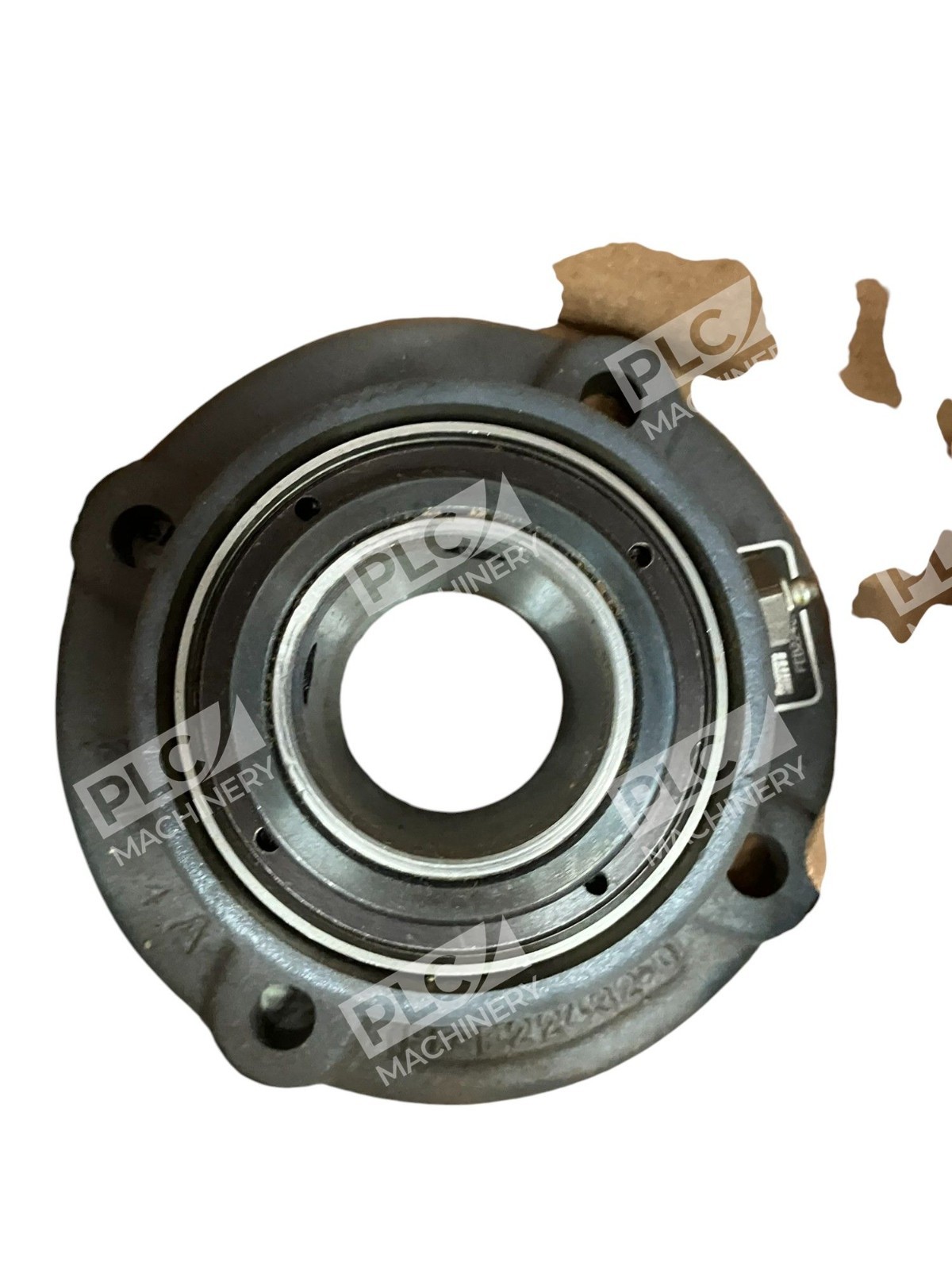

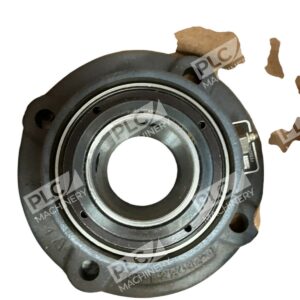

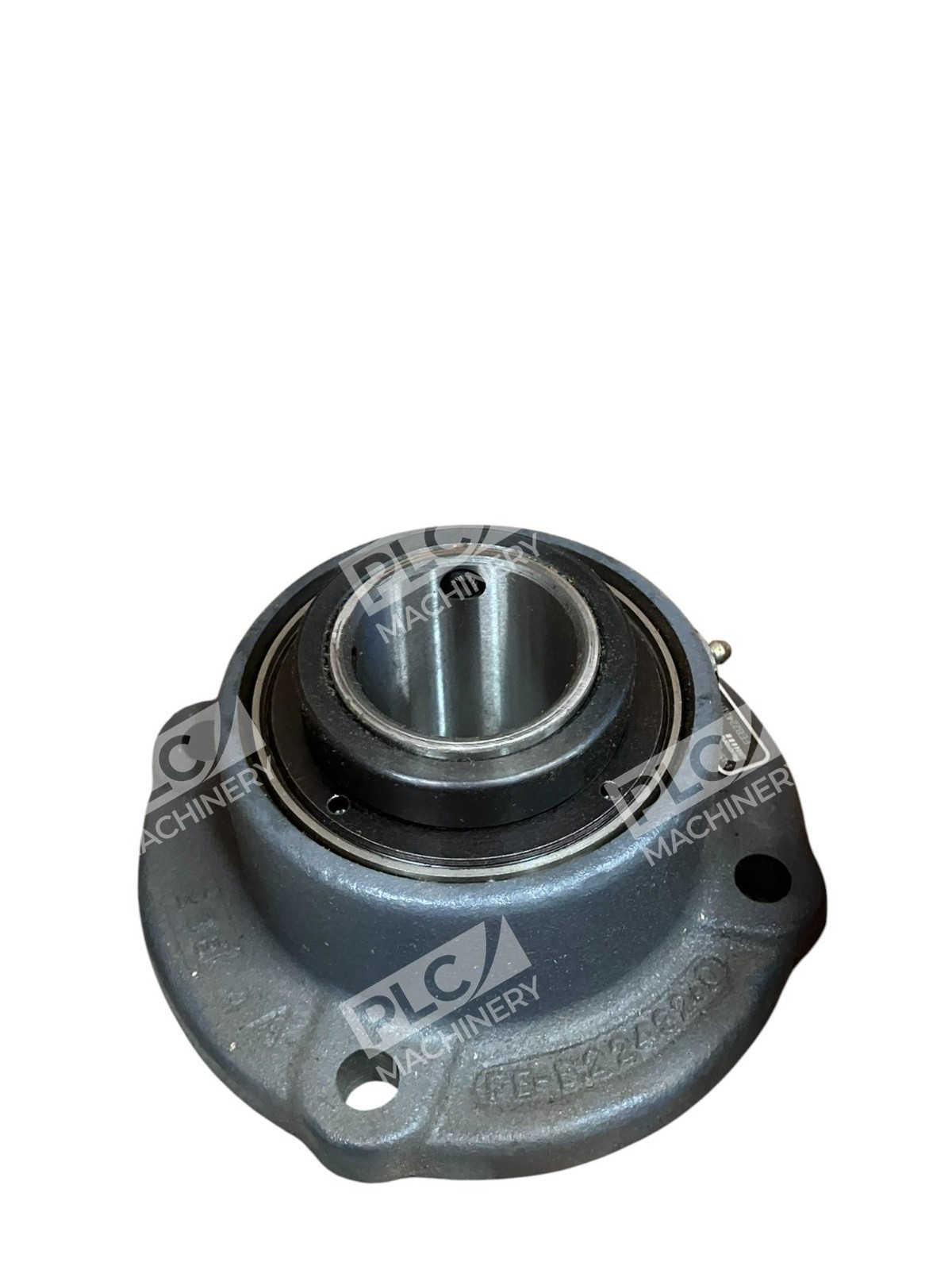

The Rexnord FEB22431H is a Link-Belt B22400 series flanged block spherical roller bearing designed for general industrial duty. Features a 1-15/16″ (49.2 mm) bore with 4-bolt round flange mounting for secure, vibration-free installation on vertical or horizontal shafts. The expansion (floating) design accommodates thermal growth and shaft misalignment.
Key Features
- Spherical roller design: Self-aligning double-row construction distributes radial and combined radial-thrust loads uniformly across roller complement
- Expansion bearing: Floating design allows axial shaft movement, ideal for belt or chain drive applications
- Cast iron housing: Corrosion-resistant, powder-coated finish; rated for standard duty
- Single setscrew collar locking: Simple, secure collar prevents bearing rotation on shaft
- Labyrinth seal: Clearance seal provides protection without excessive drag or heat buildup
- Grease lubrication: 1/8 NPT grease fitting for periodic maintenance
Technical Specifications
- Bore diameter: 1-15/16 in (49.2 mm)
- Bolt circle diameter: 5.75 in (146 mm)
- 4-bolt center-to-center length: 4-1/16 in (103.2 mm)
- Overall length/diameter: 6-11/16 in (169.9 mm)
- Overall depth: 3-9/16 in (90.5 mm)
- Overall height: 7 in (177.8 mm)
- Weight: 12 lbs (5.4 kg)
- Housing material: Cast iron, solid construction
- Bearing type: Spherical roller (double-row, self-aligning)
- Radial dynamic load capacity: 21,200 lbf (94.3 kN)
- Radial static load capacity: 33,200 lbf (147.7 kN)
- Maximum speed: 2,800 rpm
- Locking device: Single setscrew collar
- Seal type: Labyrinth (clearance)
- Standards: ANSI/ABMA STD 9-1990
Typical Applications
- Belt conveyors and bucket elevators
- Gearbox input/output shafts
- Centrifugal pumps and blowers
- Crusher and mill equipment
- Rotating machinery with vertical or horizontal shaft orientation
- Equipment requiring high radial load capacity with thermal growth compensation
Compatibility & Replacements
Compatible With
- Link-Belt B22400 series flange blocks (expansion type)
- Standard 4-bolt round flange mounting surface
- 1-15/16″ diameter straight bore shafts
- Industrial drive systems requiring ANSI/ABMA standard bearings
Replaces / Drop-In Replacement For
- Rexnord FEB22431H (equivalent remanufactured or surplus units)
- Direct replacement for identical Link-Belt B22400 series designation
- SKF, Dodge, Sealmaster, or other OEM 4-bolt flange bearing units with same bore and bolt circle diameter (requires verification)
Works With
- Link-Belt unmounted replacement bearing cartridges (BR22431H, same B22400 series)
- Standard 1/8 NPT grease gun and fittings
- Typical industrial lubricants (EP-2 or ISO VG 100 grease recommended)
- Compatible with sealed or open bearing applications
