Overview
The Reliance Electric 0-51893-2 is a field controller control board designed for integration into Reliance Electric Maxpak Plus variable speed drive systems. This PCB module functions as the field controller in the 0-51893 series of control boards, serving applications requiring precise field excitation and regulation in DC motor drive installations. The Reliance Electric 0-51893-2 delivers dependable performance in legacy industrial automation environments where drive stability and field control are critical to operation.
Key Features
- Compact form factor (4″ wide × 5″ long) designed for standard mounting brackets in Reliance drive enclosures
- Terminal strip with labeled connection points for field wiring integration

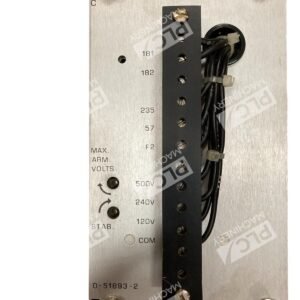

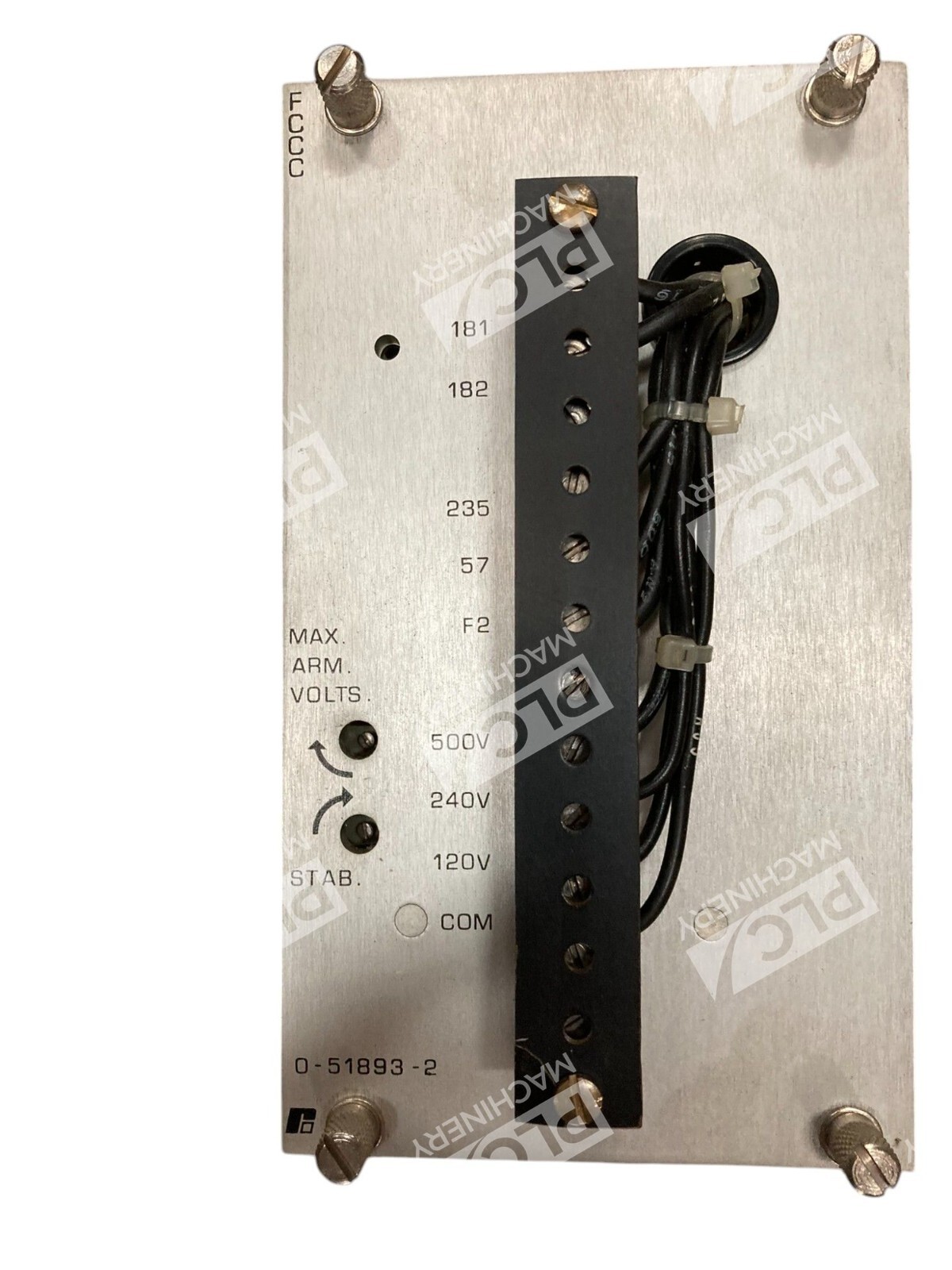

- Front-mounted faceplate for secure installation and field accessibility
- Part of the proven 0-51893 field controller family used across multiple Reliance drive platforms
- Designed for legacy Reliance Maxpak Plus and compatible drive systems
Technical Specifications
- Manufacturer: Reliance Electric
- Part Number: 0-51893-2
- Product Type: Field Controller Control Board
- Functional Designation: FCCC (Field Exciter/Regulator Controller)
- Width: 4 inches
- Depth: 5 inches

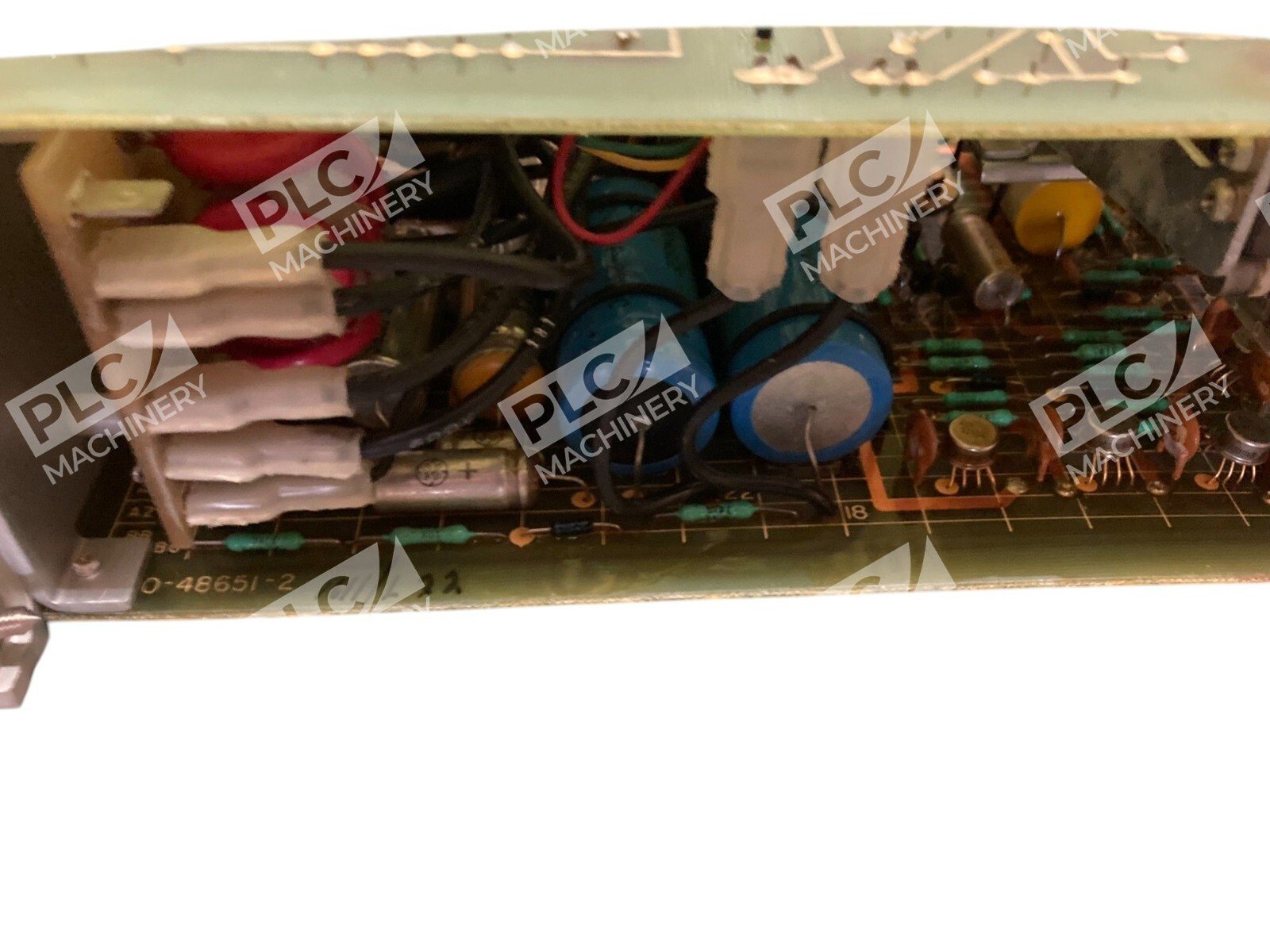

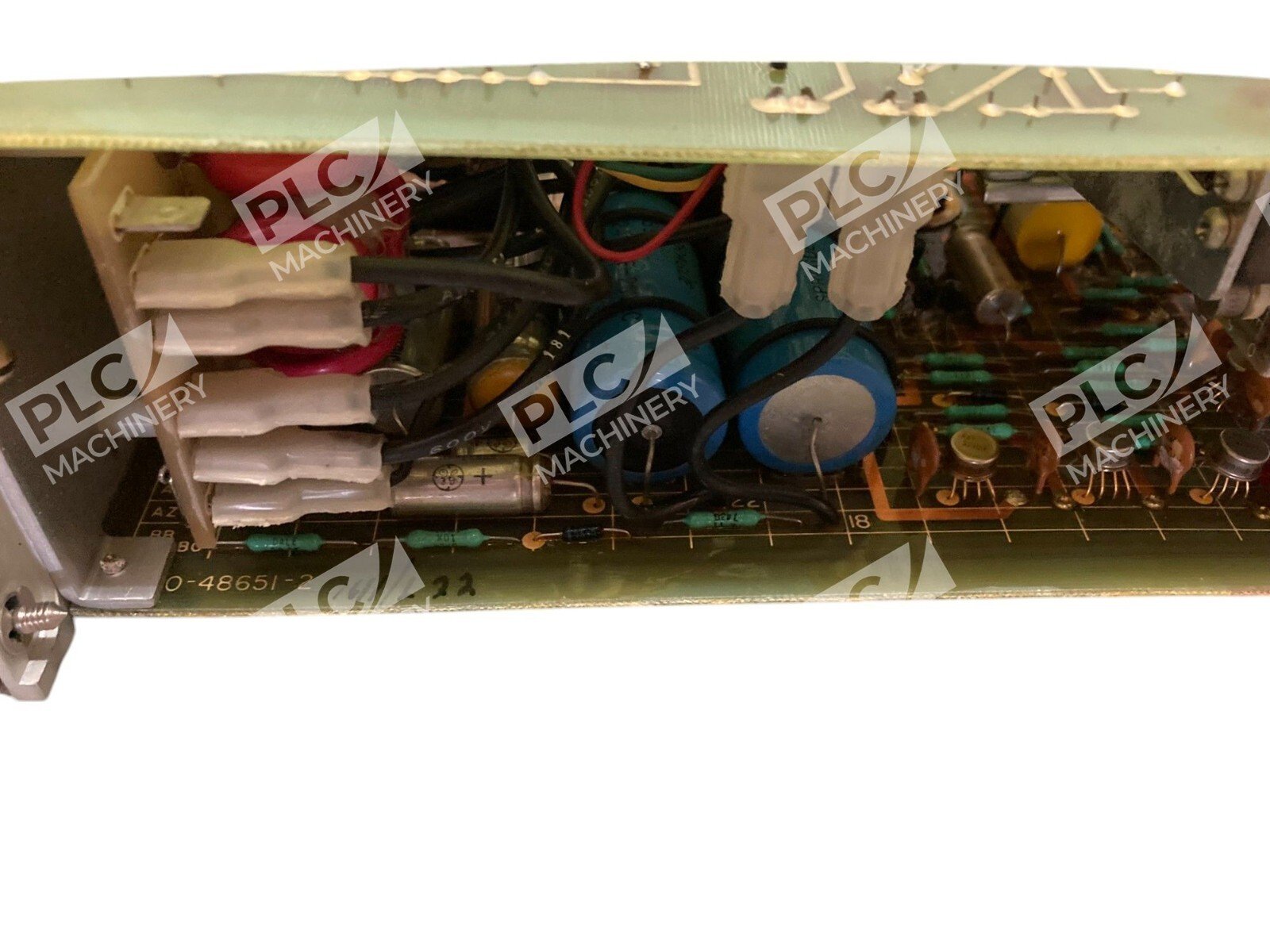

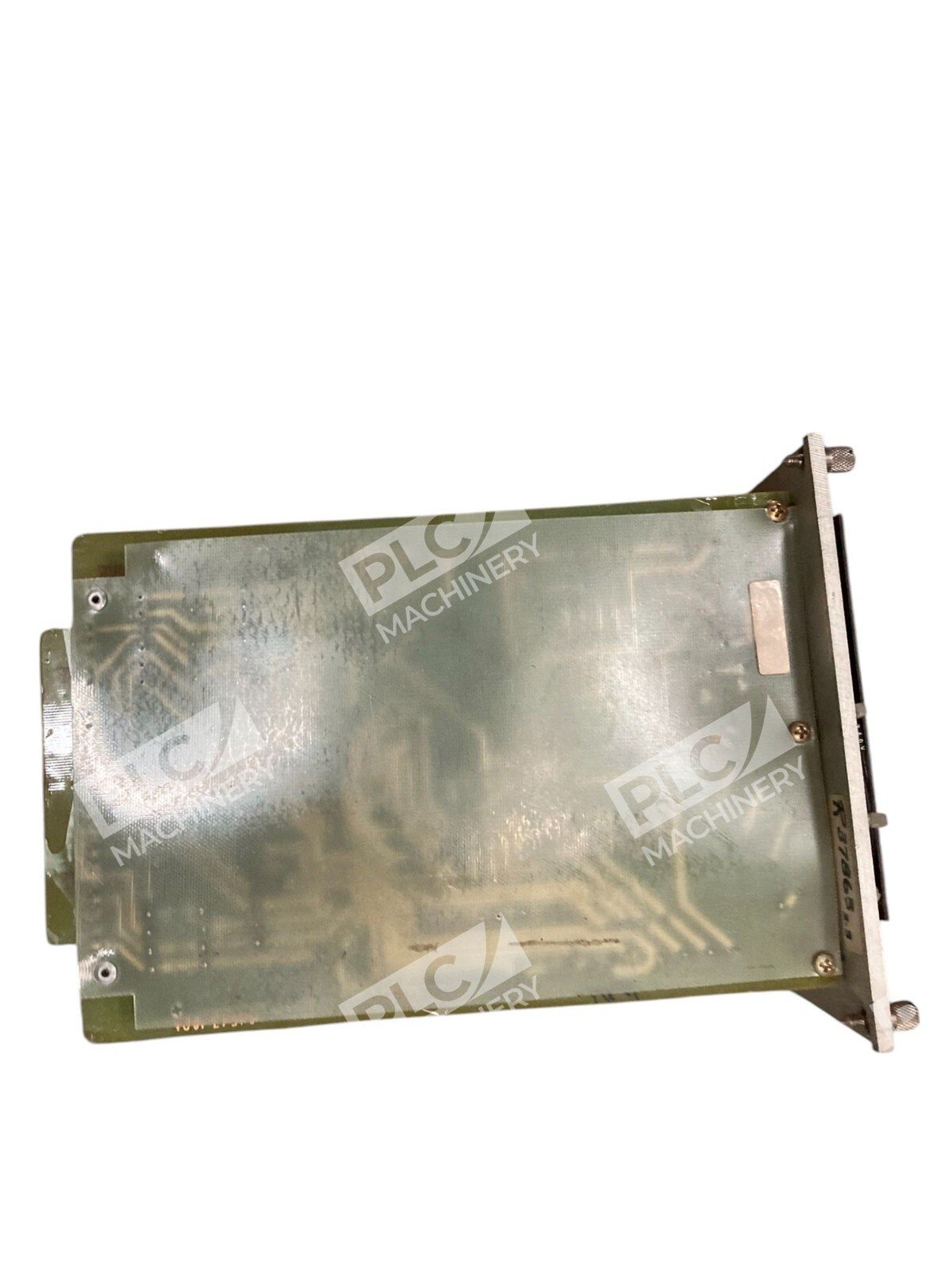

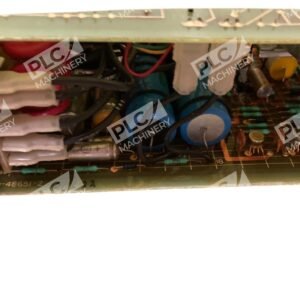

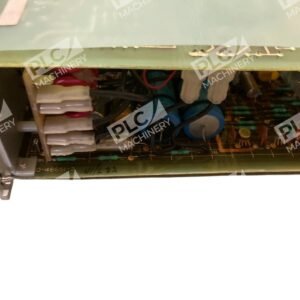

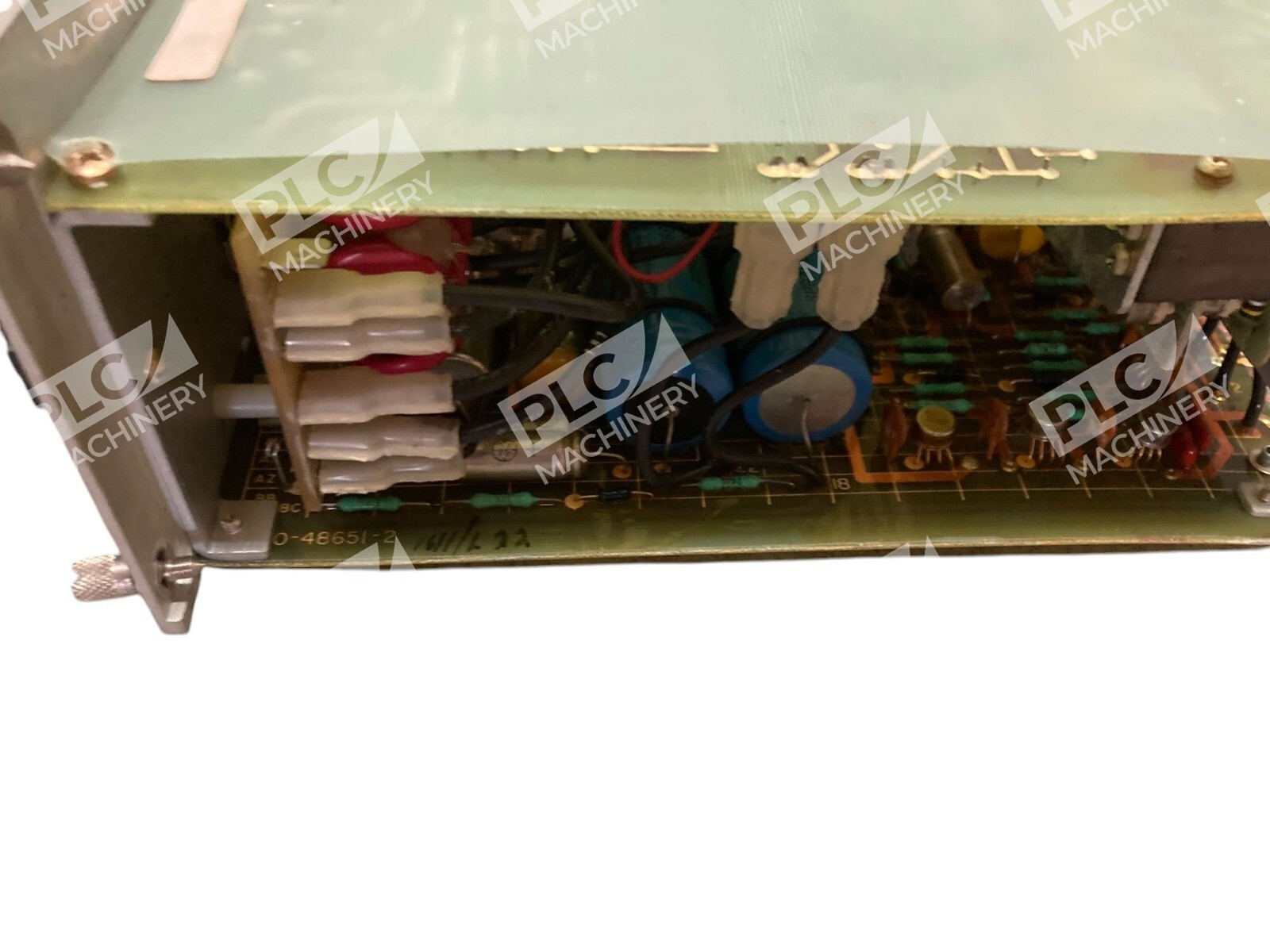

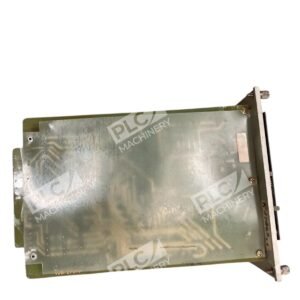

- Assembly Type: Printed circuit board with faceplate and mounting bracket
- Connection Method: Terminal strip with labeled screw connections
- Series: 0-51893 Field Controller Module Series
- Application: Maxpak Plus variable speed drives
Typical Applications
The 0-51893-2 field controller is commonly installed in:
- Reliance Electric Maxpak Plus DC variable speed drive systems
- Industrial motor control cabinets requiring field excitation regulation
- Legacy manufacturing automation equipment using Reliance drives
- Process control systems where field control stabilization is needed
- Equipment upgrades or replacements maintaining original Reliance drive configurations
Compatibility & Replacements
Compatible With
- Reliance Electric Maxpak Plus variable speed drive systems
- Reliance drive enclosures using the 0-51893 field controller board series
- Drive systems with terminal strip screw connection architecture
- Legacy Reliance control systems requiring field regulation modules
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 0-51893-2 is part of a multi-variant field controller series; refer to your Reliance drive documentation to confirm the correct variant (0-51893, 0-51893-1, 0-51893-3, 0-51893-4, 0-51893-7) for your specific drive platform.
Works With
- Reliance Electric proprietary drive control software and commissioning tools
- Standard terminal strip wiring conventions for motor field excitation control
- Legacy Reliance drive system configurations and architectures
