Overview

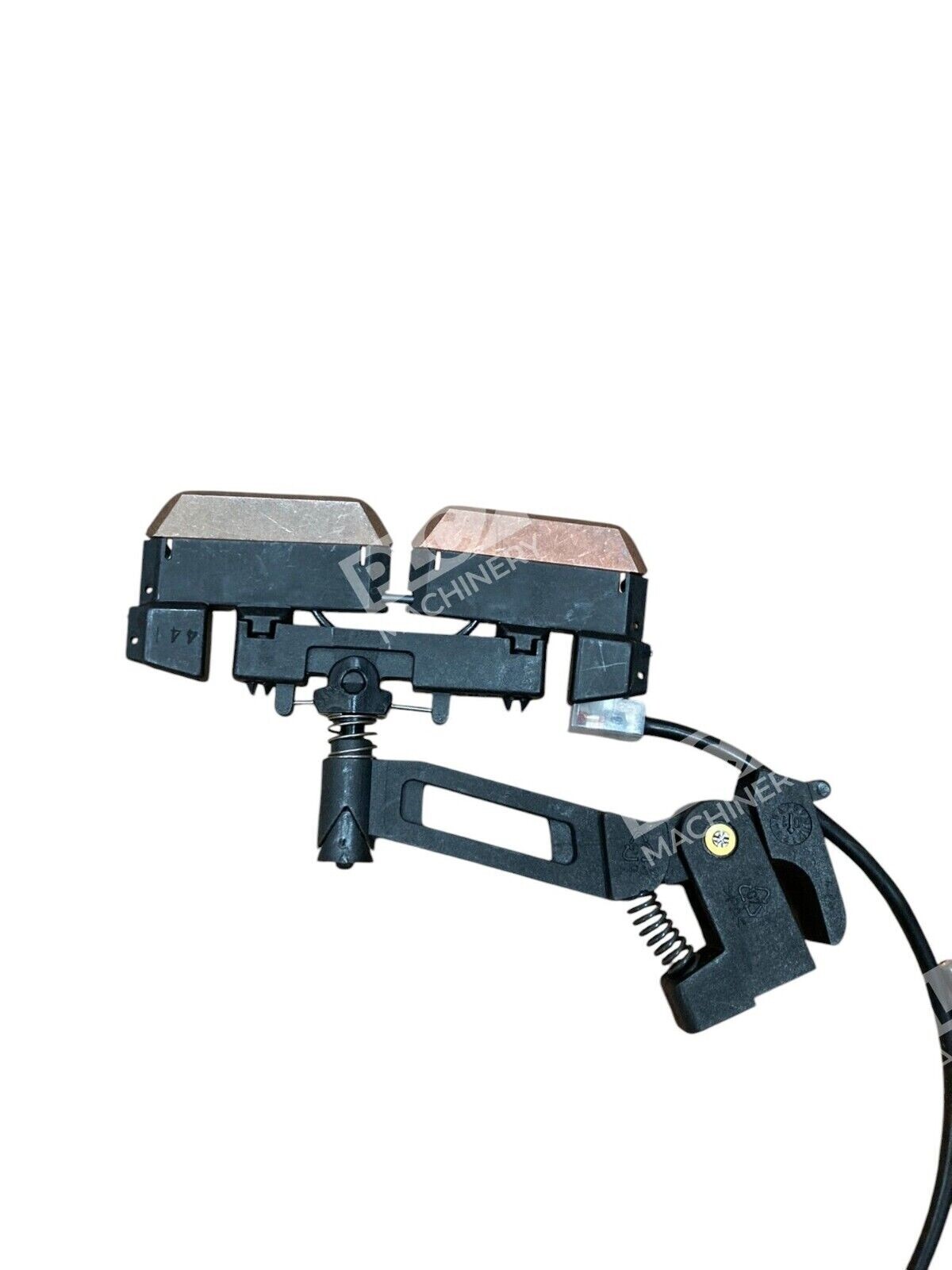

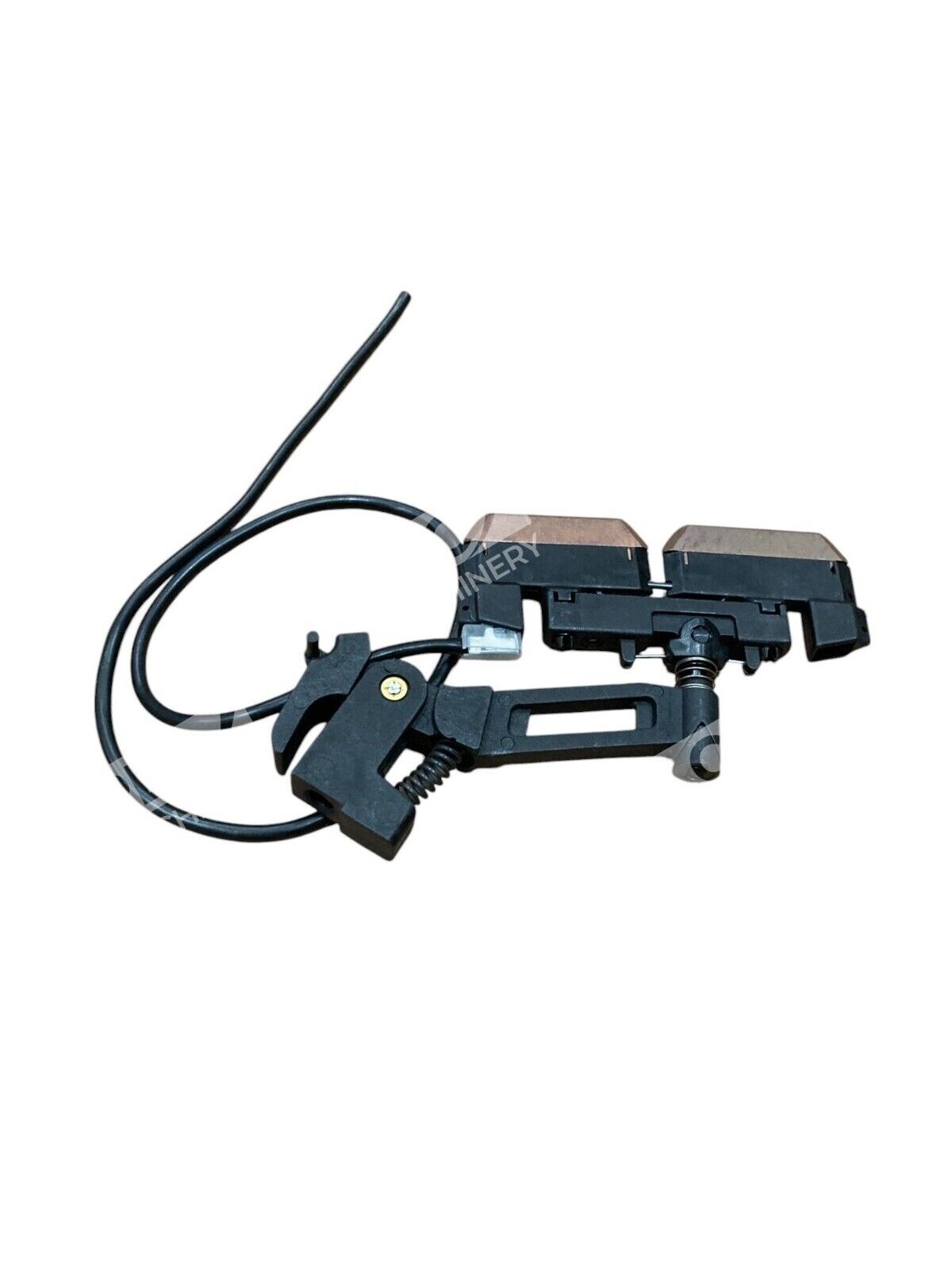

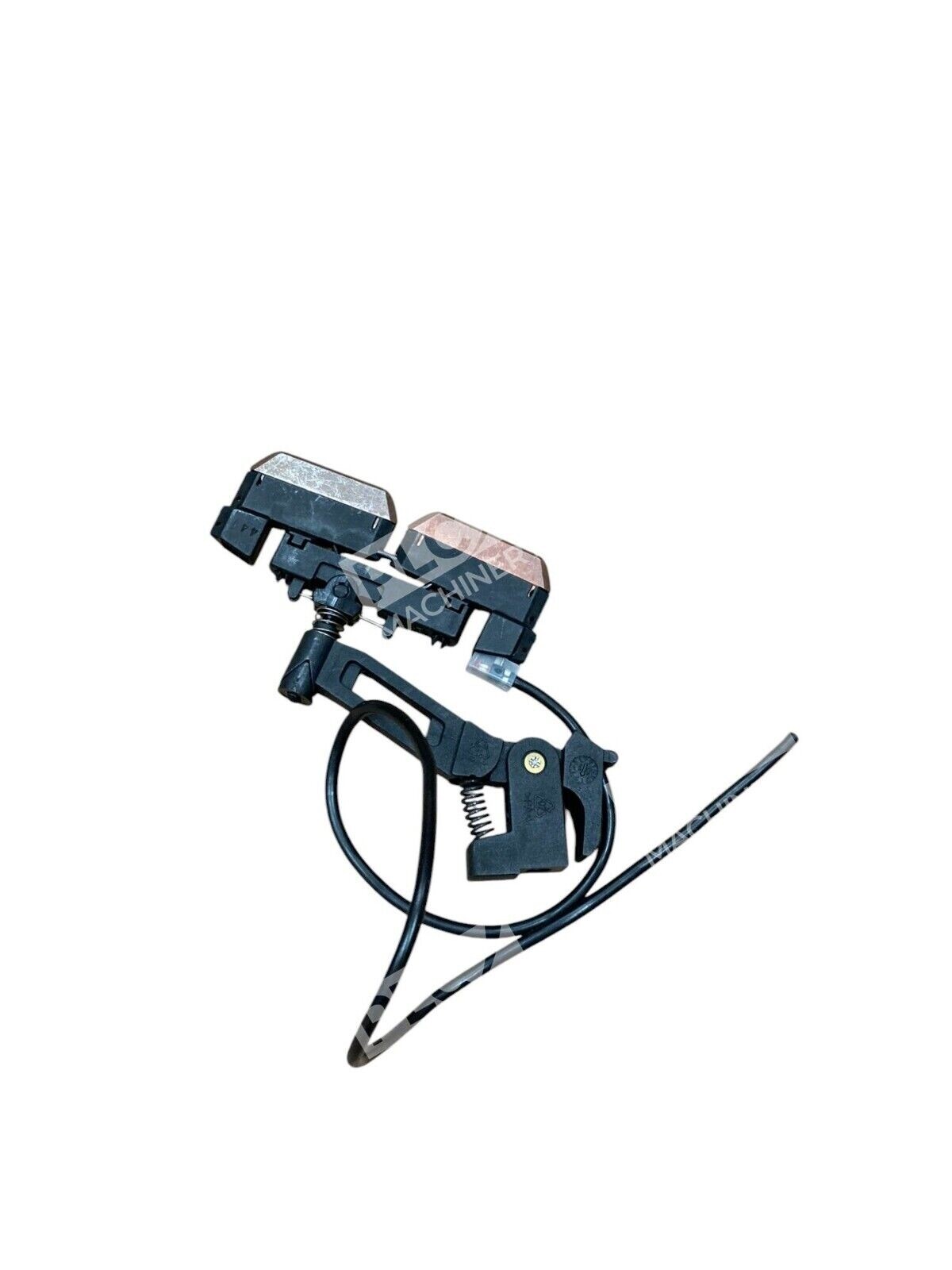

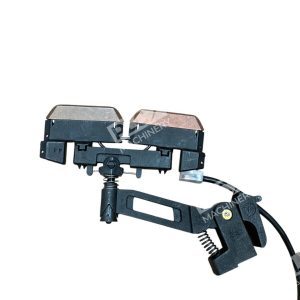

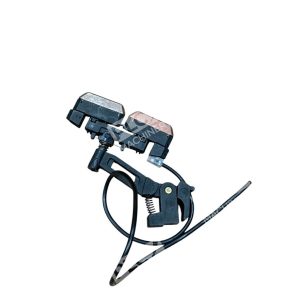

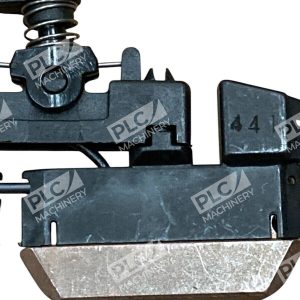

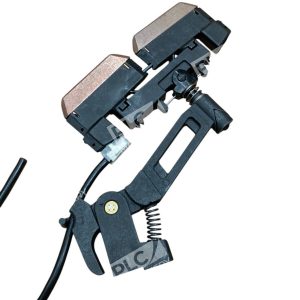

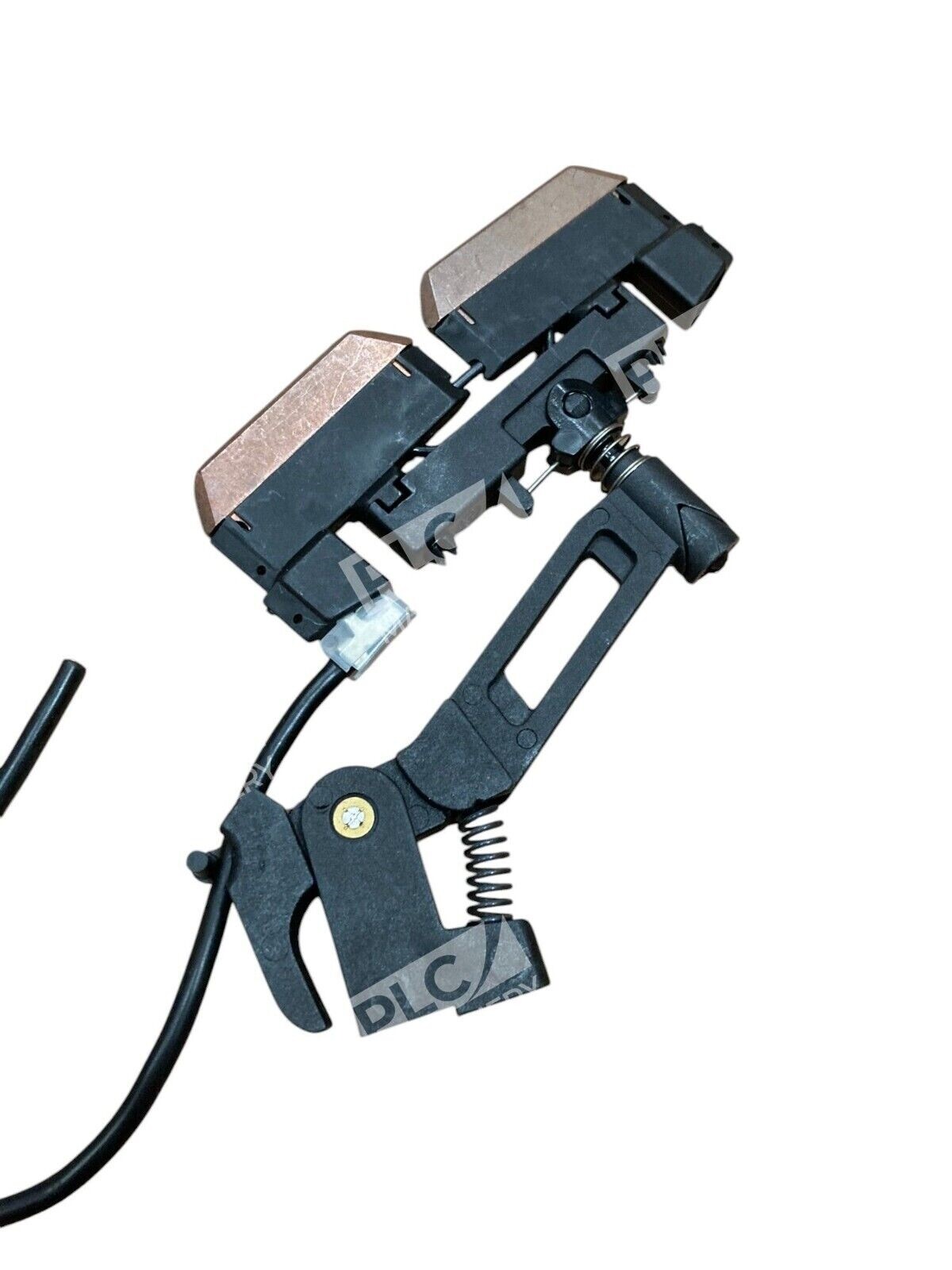

The Vahle KDS2/40 PH carbon brush (168073) is an original equipment component designed for use in KDS2/40 current collector systems. This brush assembly provides sliding electrical contact between the stationary conductor rail and mobile carriage-mounted collectors in industrial conveyor and power rail applications. The Vahle KDS2/40 is engineered to maintain stable contact pressure and minimize electrical resistance during extended service cycles.
Key Features
- Compact single-pole or multi-pole configuration suitable for phase and ground circuit collection
- Contact pressure rated at 3.5N per brush across 14mm contact distance for stable electrical connection
- High-flexibility cable (WFLA 2.5mm²) with 0.5m standard lead for easy integration
- Precision-ground brush profile optimizes contact surface and extends collector rail life
- German engineering from VAHLE—proven reliability in demanding industrial environments
Technical Specifications
- Part Number: 168073 (SA-KDS2/40/04PH-88/15-0.5)
- Collector Series: KDS2/40 Compact Current Collector
- Contact Brush Type: Carbon/graphite with spring tension mechanism
- Contact Pressure: 3.5N (per brush)
- Contact Distance: 14mm
- Cable Gauge: 2.5mm² (WFLA high-flex type)
- Lead Length: 0.5m standard
- Mounting: Slip line rail system (horizontal/vertical)
- Maximum Allowable Offset: ±15mm (vertical and horizontal)
Typical Applications
- Conveyor systems requiring continuous power and signal distribution
- Overhead monorail carriage collectors
- Automated material handling systems with moving trolleys
- Power transfer to moving machinery and lifting equipment
- Multi-conductor rail systems in manufacturing and logistics facilities
Compatibility & Replacements
Compatible With
- VAHLE KDS2/40 slip line current collector systems
- Standard aluminum conductor rails (phase and ground applications)
- Horizontal and vertical rail mounting configurations
- Carriage-mounted collectors with standard mounting holes
Replaces / Drop-In Replacement For
- Original equipment Vahle part 168073
- OEM Rapistan conveyor KDS2/40 brush assemblies
- Verify exact mounting configuration before ordering
Works With
- VAHLE KDS2/40 collector rail systems
- KUFR2/60 and similar compact collector frames
- Standard slip line power distribution networks
- Multi-pole conductor rail configurations (phase, ground, signal)
