Overview

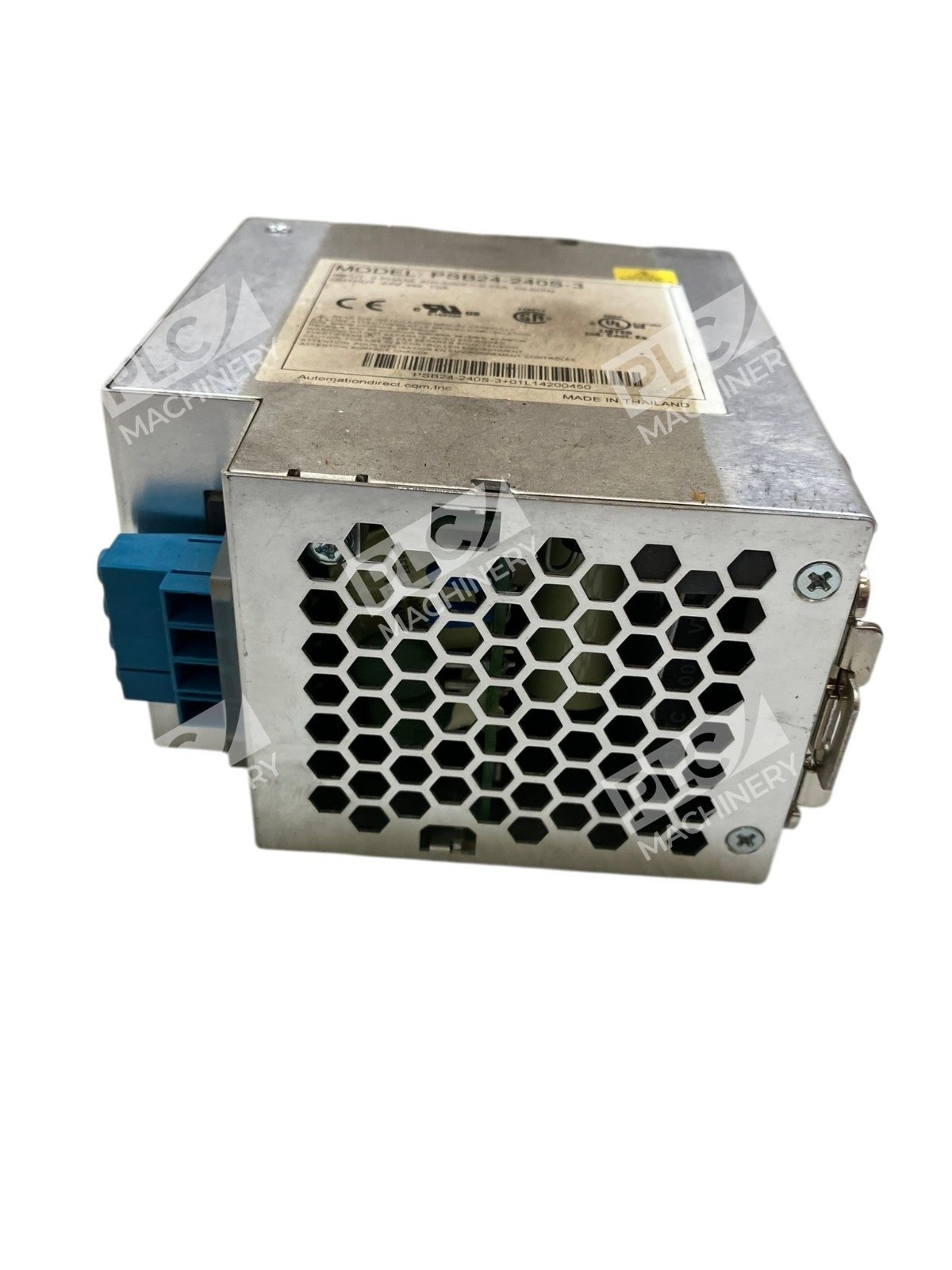

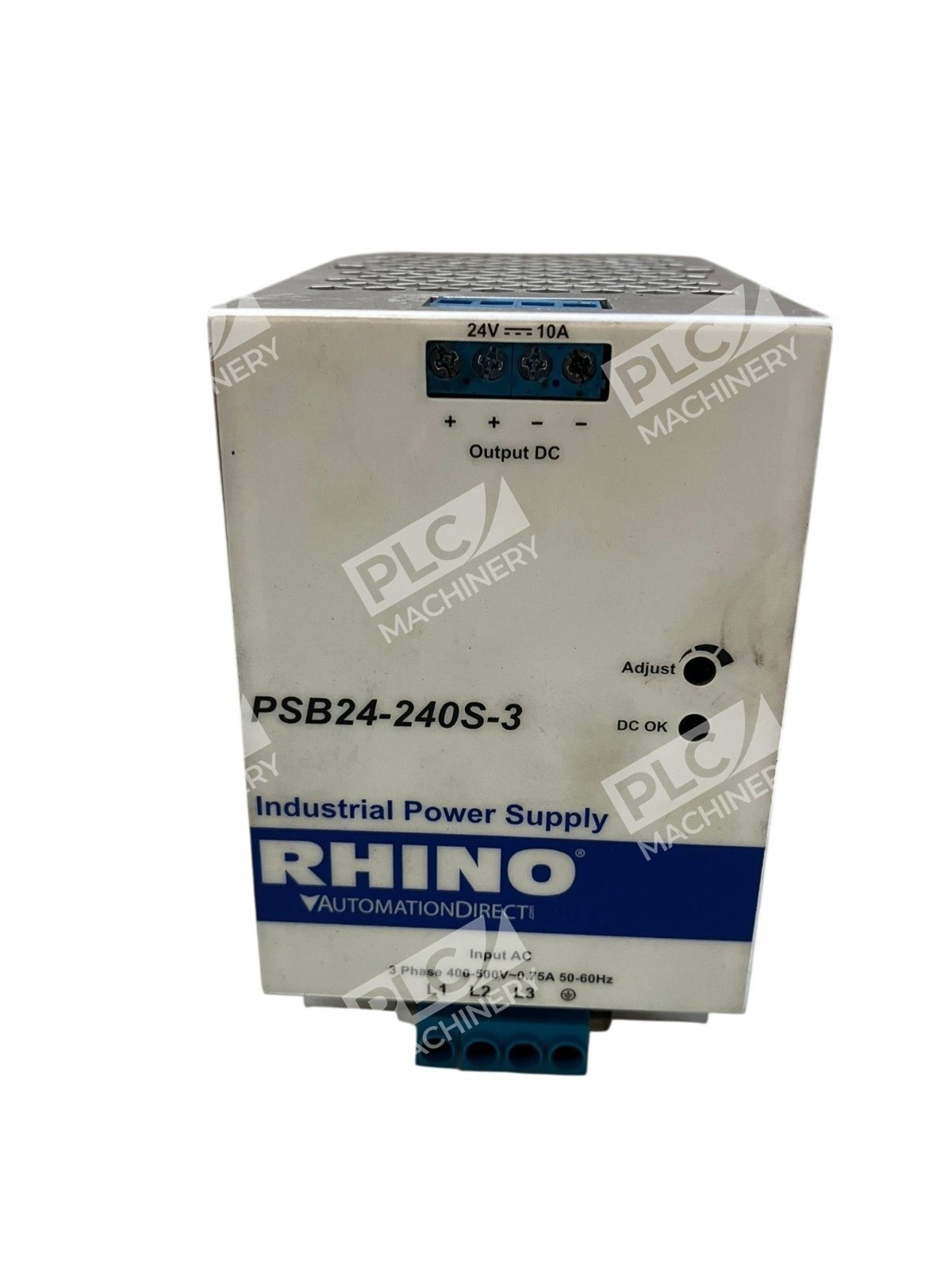

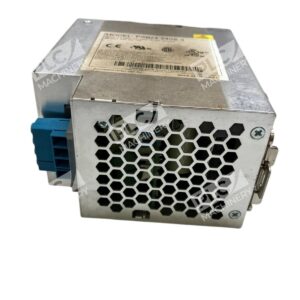

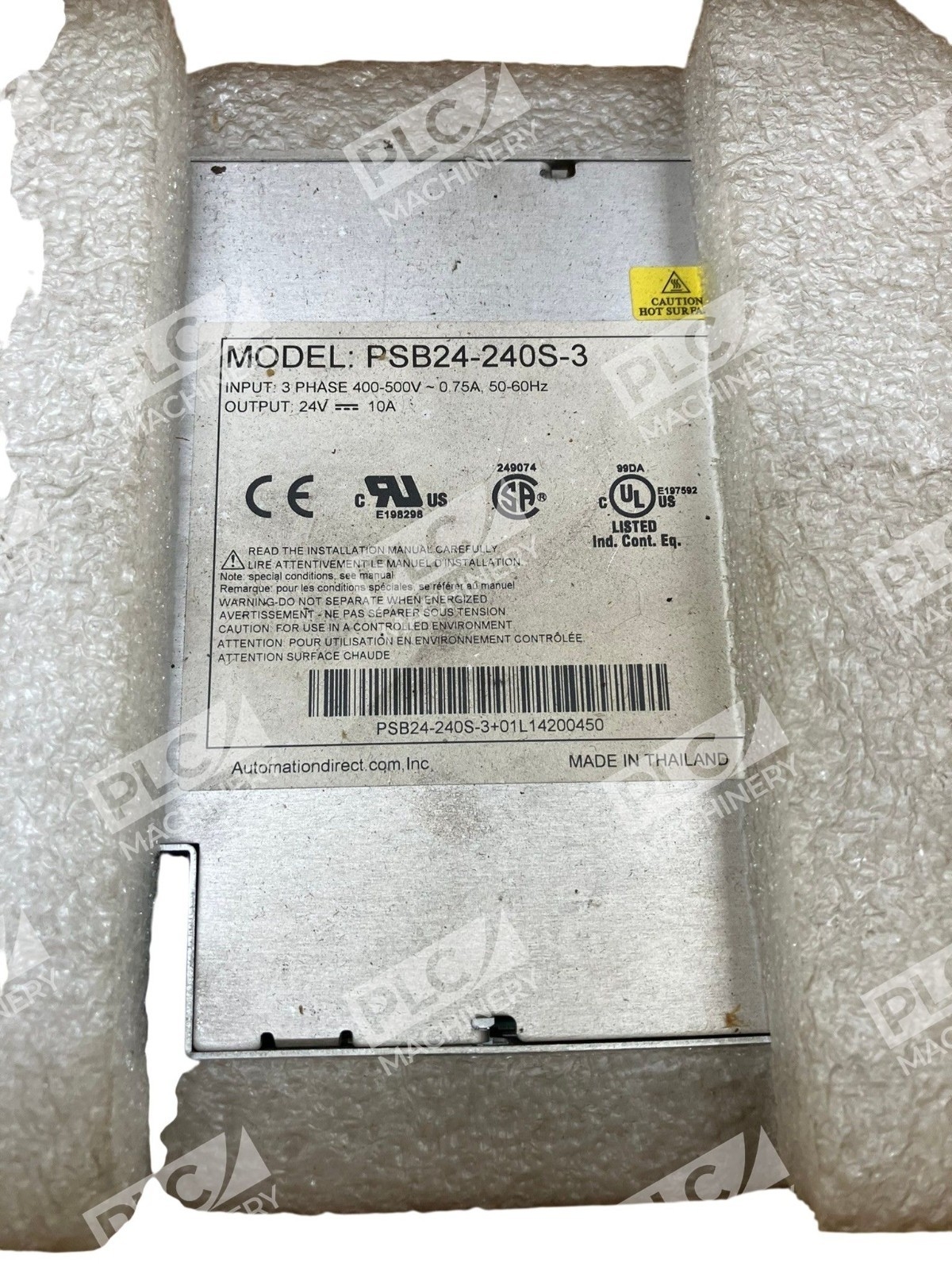

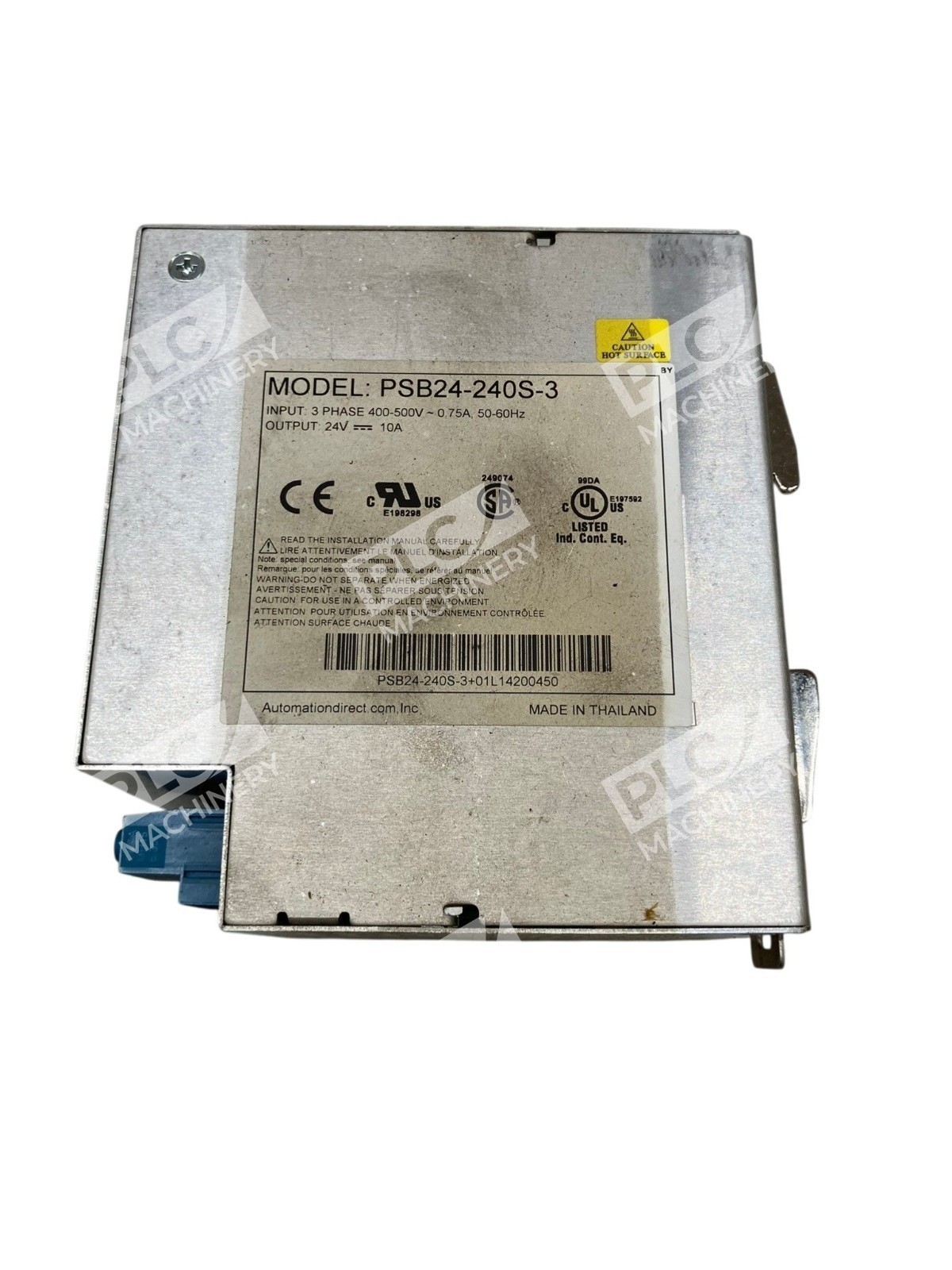

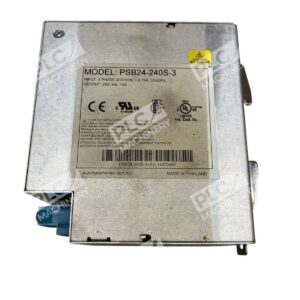

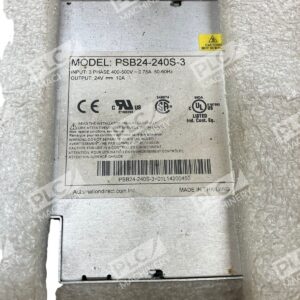

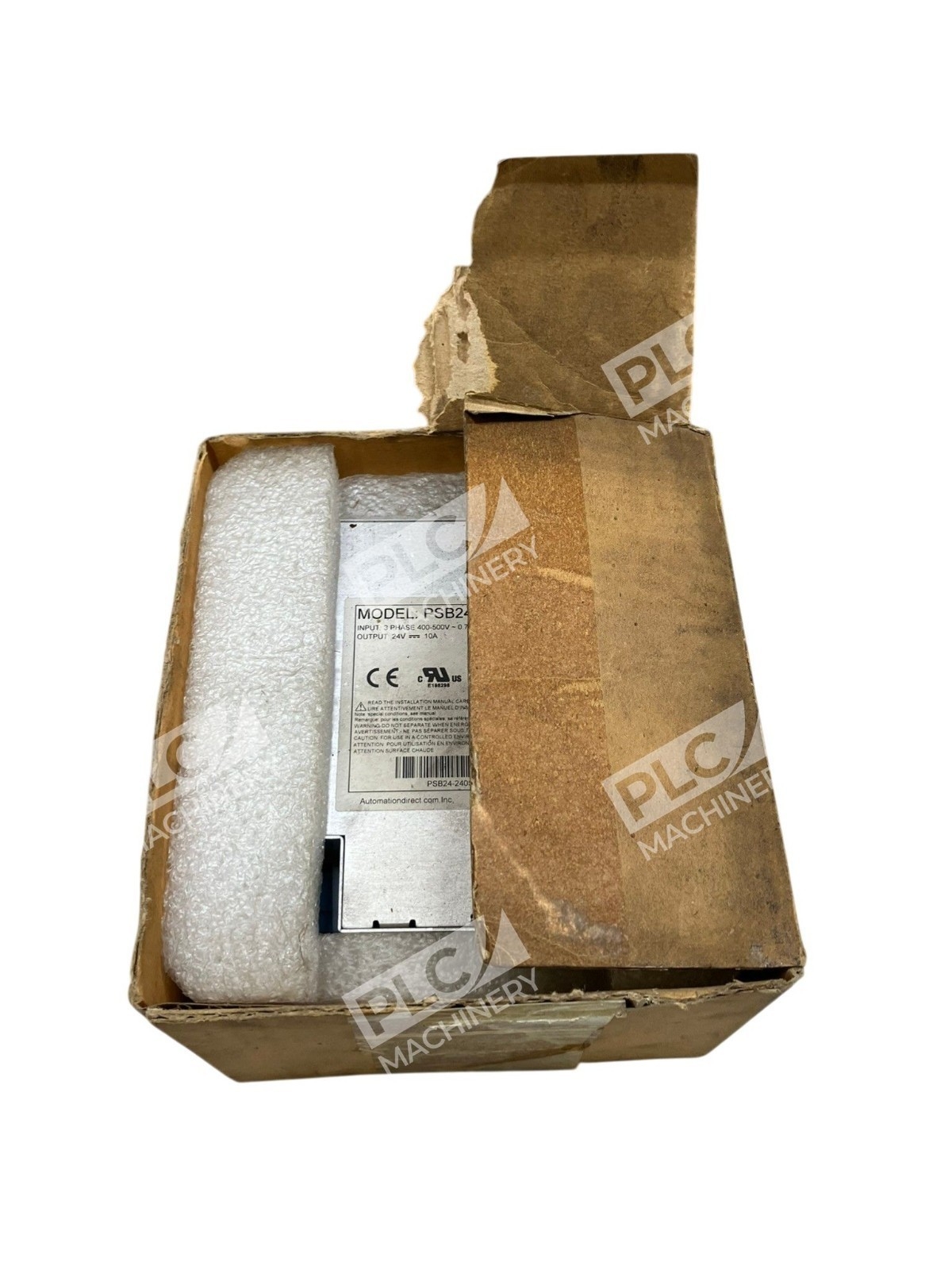

The Rhino PSB24-240S-3 is a high-efficiency 3-phase switching power supply engineered for demanding industrial automation and control applications. Delivering a stable 24 VDC output at 10A (240W), this unit accepts 480 VAC nominal 3-phase input and is housed in a compact aluminum enclosure with 35mm DIN-rail mounting. The PSB24-240S-3 provides reliable DC power for PLCs, HMIs, sensors, motion drives, and field devices in manufacturing, process control, and distributed automation environments.
Key Features
- Adjustable output voltage (24–28 VDC) via potentiometer for tuning to device requirements
- Wide input range (320–600 VAC 3-phase) enables stable operation across variable or unstable supply conditions
- High efficiency (92% at 400–500 VAC) minimizes heat generation and reduces energy costs
- Integrated protections: overvoltage, overload, and short-circuit protection with internal fuse
- Voltage monitoring support for real-time diagnostics and system stability
- Screw terminal connections enable fast, reliable wiring with flexible or solid cable
Technical Specifications
- Output Voltage: 24 VDC nominal, adjustable 24–28 VDC
- Output Current: 10 A continuous
- Output Power: 240 W
- Input Voltage (Nominal): 480 VAC 3-phase
- Input Voltage (Range): 320–600 VAC 3-phase
- Input Current: 0.75 A at 400–500 VAC
- Frequency: 50/60 Hz
- Efficiency: 92% at 400–500 VAC
- Enclosure: Aluminum, IP20 rating, enclosed

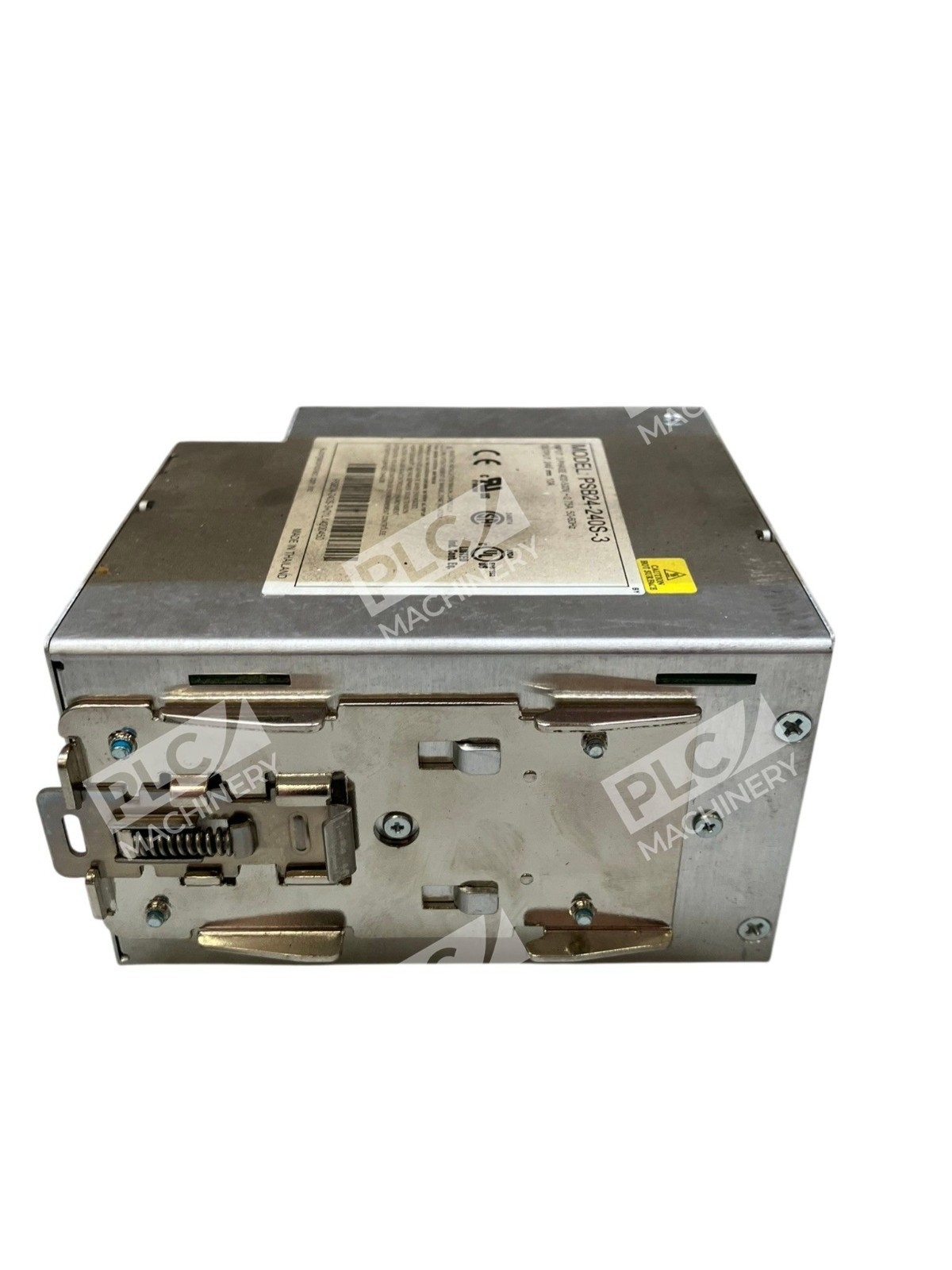

- Mounting: 35mm DIN rail

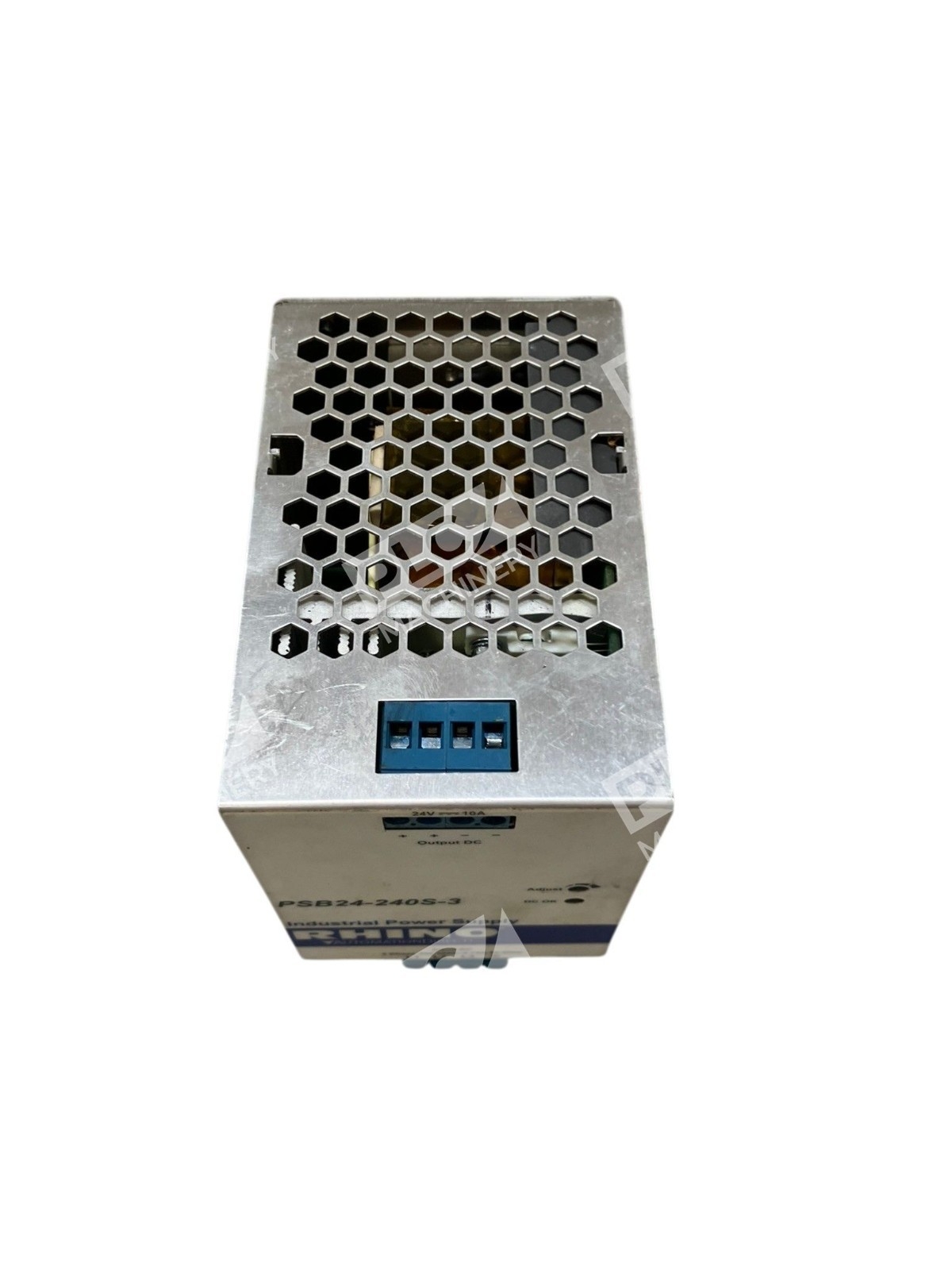

- Terminals: Screw terminals
- Protection: Internal fuse (non-replaceable), overvoltage, overload, short circuit
- Operating Temperature: 0–40°C (32–104°F) ambient
- Weight: 2.49 lbs / 900 g
- Certifications: UL/IEC tested and approved for 20A (UL) / 16A (IEC) branch circuits
Typical Applications
- Industrial control panels and machinery enclosures
- Factory automation and PLC power conditioning
- HMI terminals and distributed I/O modules
- Sensor and actuator supplies in process control systems
- Motion drive and servo amplifier auxiliary power
- Global and multi-site installations with variable AC supply
Compatibility & Replacements
Compatible With
- 3-phase star network power grids (480 VAC nominal or 320–600 VAC range)
- Industrial control cabinets with 35mm DIN-rail infrastructure
- Any 24 VDC load: PLCs, HMIs, sensors, proportional valves, servo drives, I/O modules
- Allen-Bradley CompactLogix, ControlLogix, MicroLogix (24V models)
- Siemens S7-1200, S7-1500, LOGO! controllers
- Omron CJ-series and NX-series PLCs
- Mitsubishi FX-series PLCs
Replaces / Drop-In Replacement For
- Earlier RHINO PSB series units with identical 24V/10A/240W/480VAC specifications
- Other Automation Direct switching supplies in the same class
- Verify exact pin-out and terminal configuration before substitution in legacy systems
Works With
- 3-phase AC distribution panels and motor control centers
- Industrial uninterruptible power supplies (UPS) input conditioning
- Standard PLC communication protocols (Ethernet/IP, PROFINET, CC-Link, Modbus) powered by 24V output
- SCADA, MES, and plant monitoring systems dependent on stable 24 VDC auxiliary power
