Overview

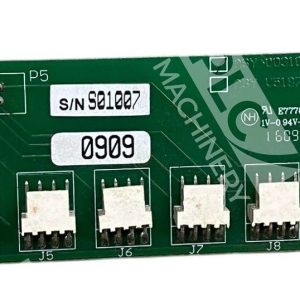

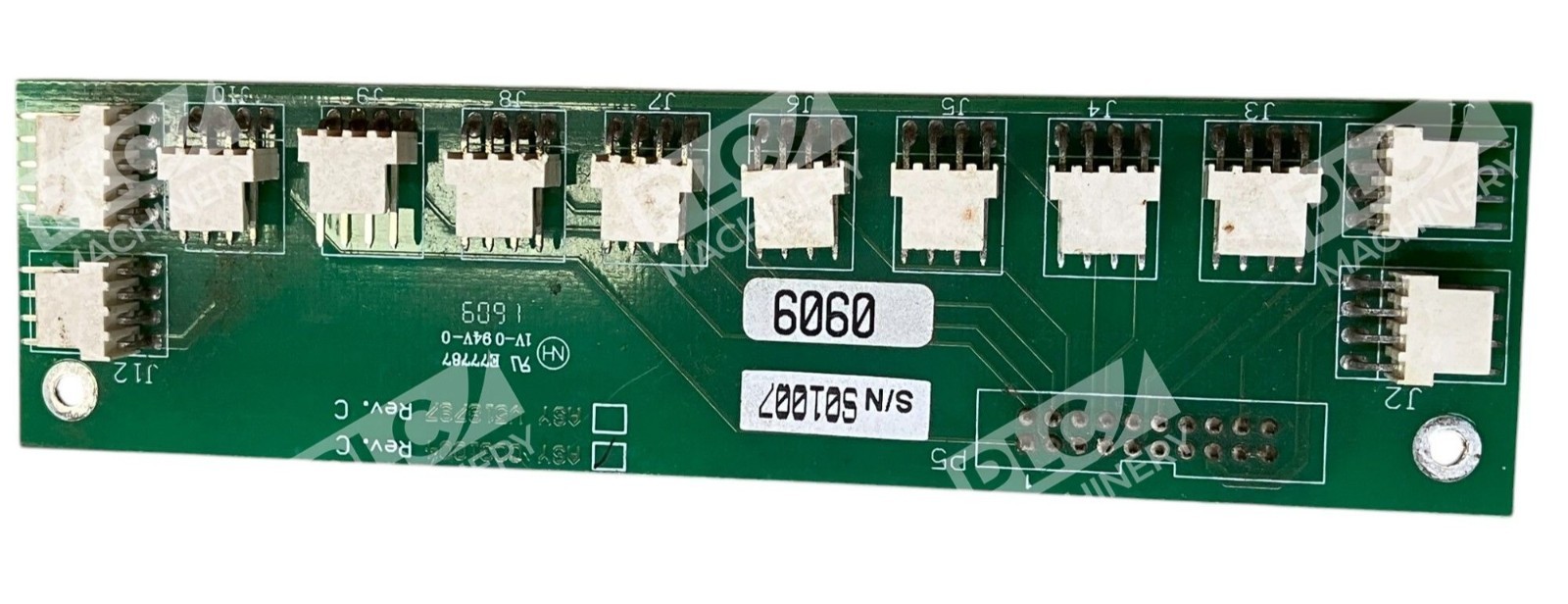

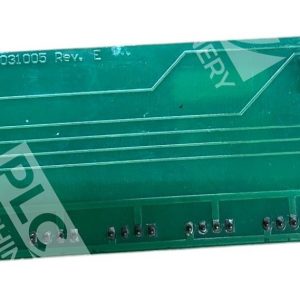

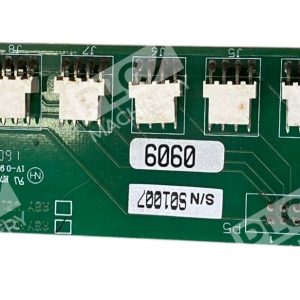

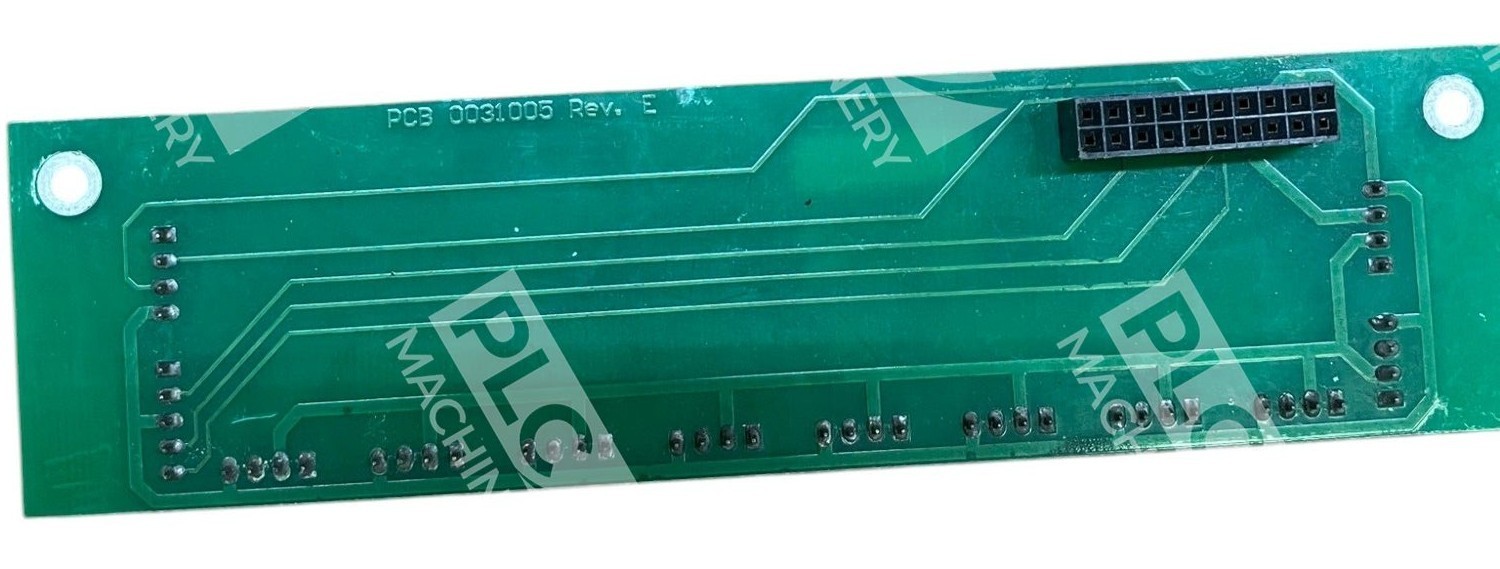

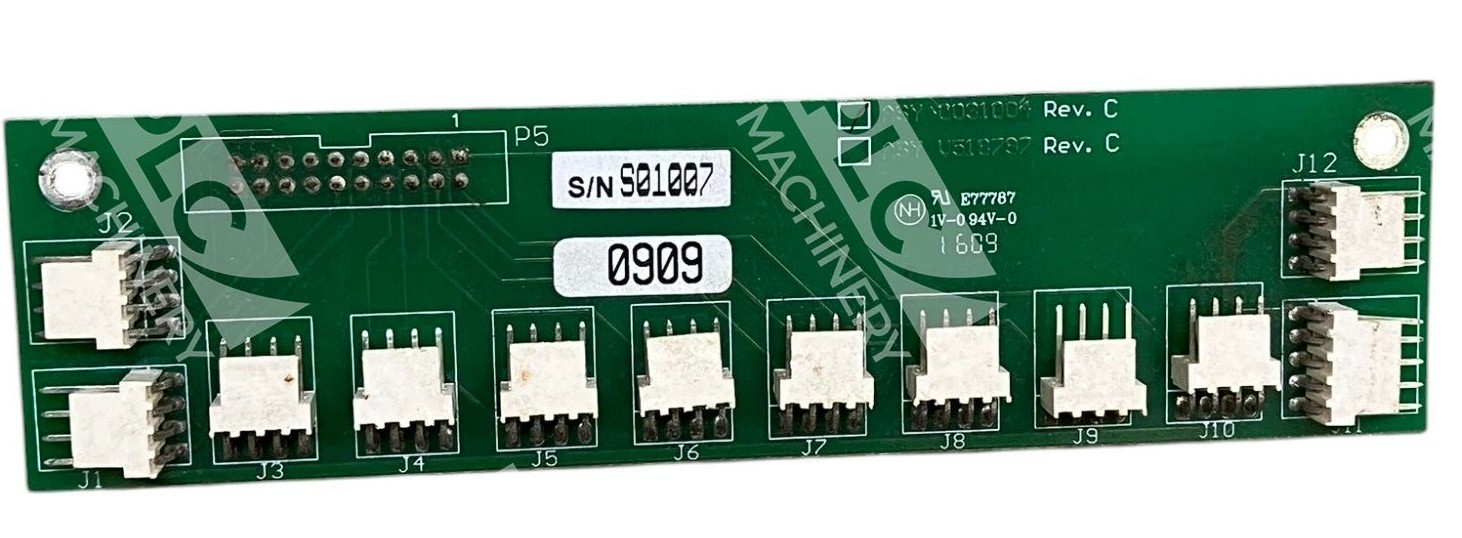

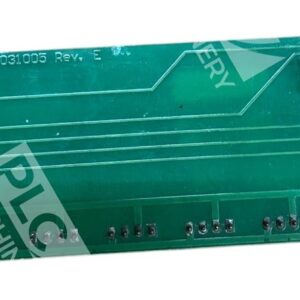

The Processor Terminal Board ASSY 0031004 Rev C is a critical interconnection component in PLC automation and control systems. This terminal board assembly manages signal routing, power distribution, and electrical connections between the main processor and input/output modules, ensuring stable communication and operation within industrial automation frameworks.
Key Features
- Terminal board assembly for PLC processor applications
- Rev C designation indicates latest revision with proven reliability
- Dual-row terminal configuration for organized wiring
- Designed for industrial control signal distribution
- Compatible with standard 35mm DIN rail mounting systems
Technical Specifications
- Part Number: 0031004 Rev C
- Assembly Type: Processor Terminal Board
- Revision: C
- Terminal Count: Multiple connection points for signal routing
- Mounting: DIN rail compatible
- Operating Environment: Industrial automation cabinet
- Material: FR-4 PCB with tin-plated terminals
Typical Applications
- PLC processor signal conditioning and distribution
- Industrial machine control cabinets
- Automation system wiring interconnection
- Control panel terminal organization
- Discrete I/O signal routing between modules
Compatibility & Replacements
Compatible With
- Standard PLC processor modules
- Industrial automation control systems
- 35mm DIN rail mounted enclosures
- Discrete input/output signal networks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This Rev C assembly is typically a direct replacement for earlier revisions of the same part number in existing installations.
Works With
- Standard PLC programming software (logic and configuration dependent)
- Industrial control networks using discrete signaling
- Hard-wired automation systems
- Signal conditioning circuits
