<h2>Overview</h2>

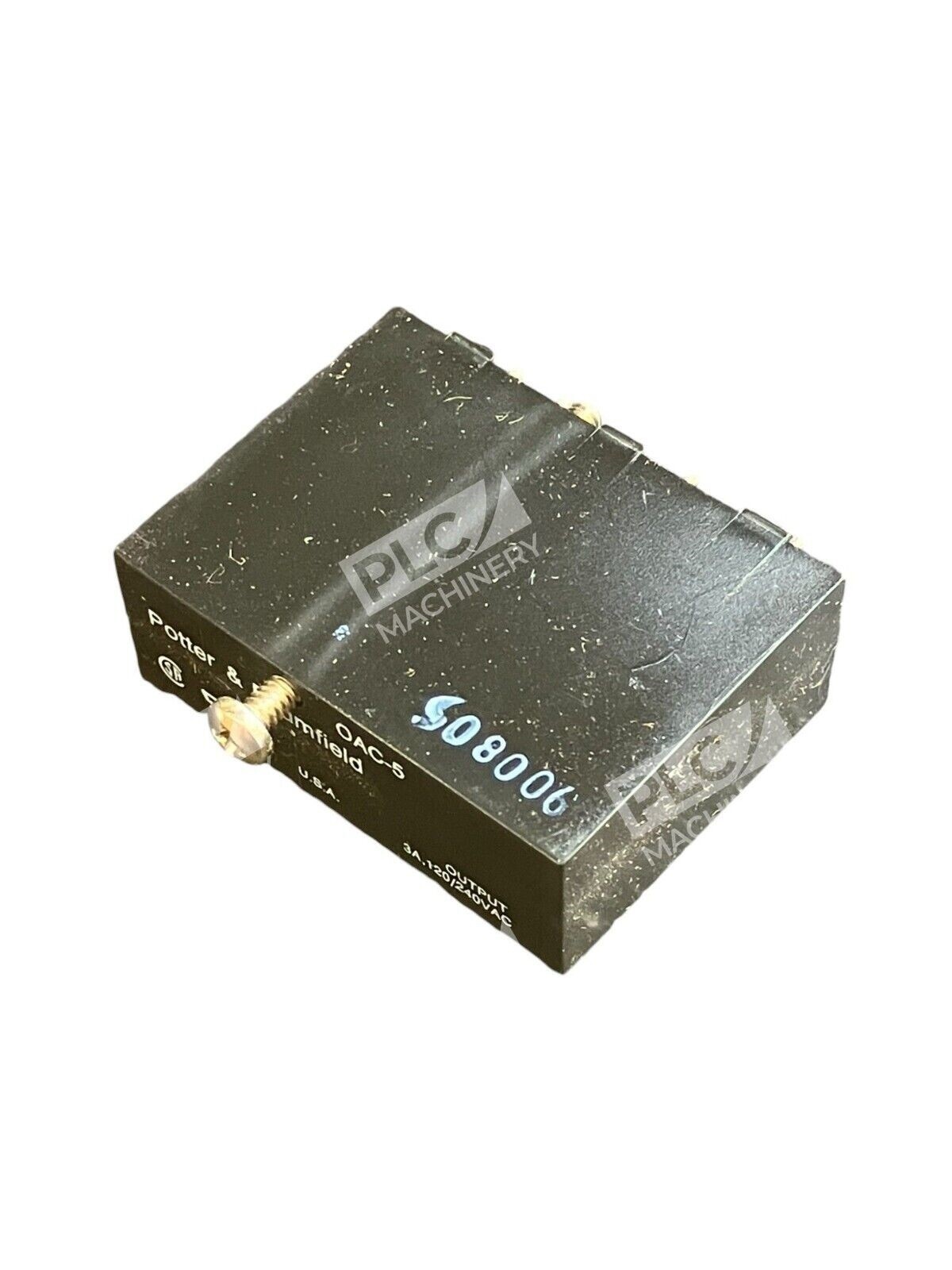

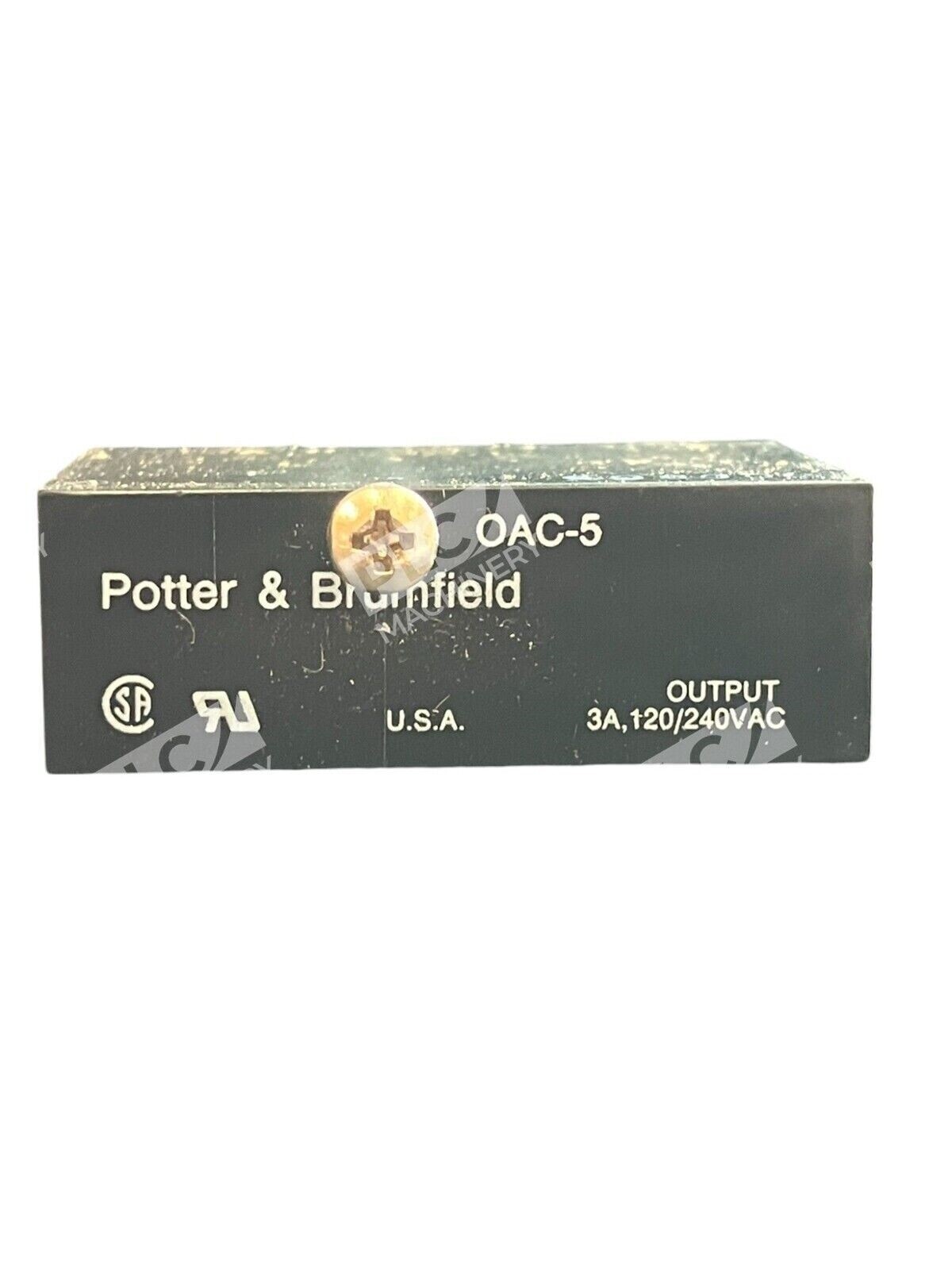

<p>The <strong>Potter & Brumfield OAC-5</strong> is an industrial-grade AC output module designed for continuous-duty switching applications in PLC and control systems. Each unit features a 3A switching capacity rated for 120/240VAC loads, making it well-suited for controlling contactors, solenoids, and other AC-powered devices. This lot includes two modules, providing redundancy or multi-output coverage for system expansion and maintenance flexibility.</p>
<h2>Key Features</h2>
<ul>
<li>3A continuous duty switching at 120/240VAC output</li>
<li>4000Vrms optical isolation for noise immunity and circuit protection</li>
<li>Compatible with sinking or sourcing logic inputs</li>
<li>High immunity to false operation and electrical noise</li>
<li>Color-coded for quick function identification</li>
<li>Compact form factor ideal for space-constrained panels</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Output Current Rating:</strong> 3A continuous duty</li>
<li><strong>Output Voltage:</strong> 12–120VAC</li>
<li><strong>Control Voltage:</strong> 5VDC supply</li>
<li><strong>Contact Configuration:</strong> SPST-NO (single pole, single throw)</li>
<li><strong>Optical Isolation:</strong> 4000Vrms</li>
<li><strong>Operating Temperature:</strong> -30 to +80°C</li>
<li><strong>Dimensions:</strong> 43.18 mm (W) × 31.8 mm (L) × 15.2 mm (D)</li>
<li><strong>Case Material:</strong> Black, UL94V-0 potting compound</li>
<li><strong>Mounting:</strong> PCB mount, 2IO series compatible</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>PLC peripheral I/O module replacement in legacy control systems</li>
<li>Contactors and motor starter control circuits</li>
<li>Solenoid valve and pump switching</li>
<li>Lighting and heating element control</li>
<li>Backup/spare modules for production uptime</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>TE Connectivity Potter & Brumfield 2IO series mounting boards</li>
<li>PLC output modules using 5VDC logic supply</li>
<li>Industrial relay and output module cabinets</li>
<li>Sinking and sourcing logic control circuits</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Original Potter & Brumfield OAC-5 modules in existing systems</li>
<li>Verify compatibility with your system integrator before ordering.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>TE Connectivity Potter & Brumfield relay and output module product lines</li>
<li>Industrial automation platforms using DC-triggered AC switching modules</li>
</ul>
