Overview

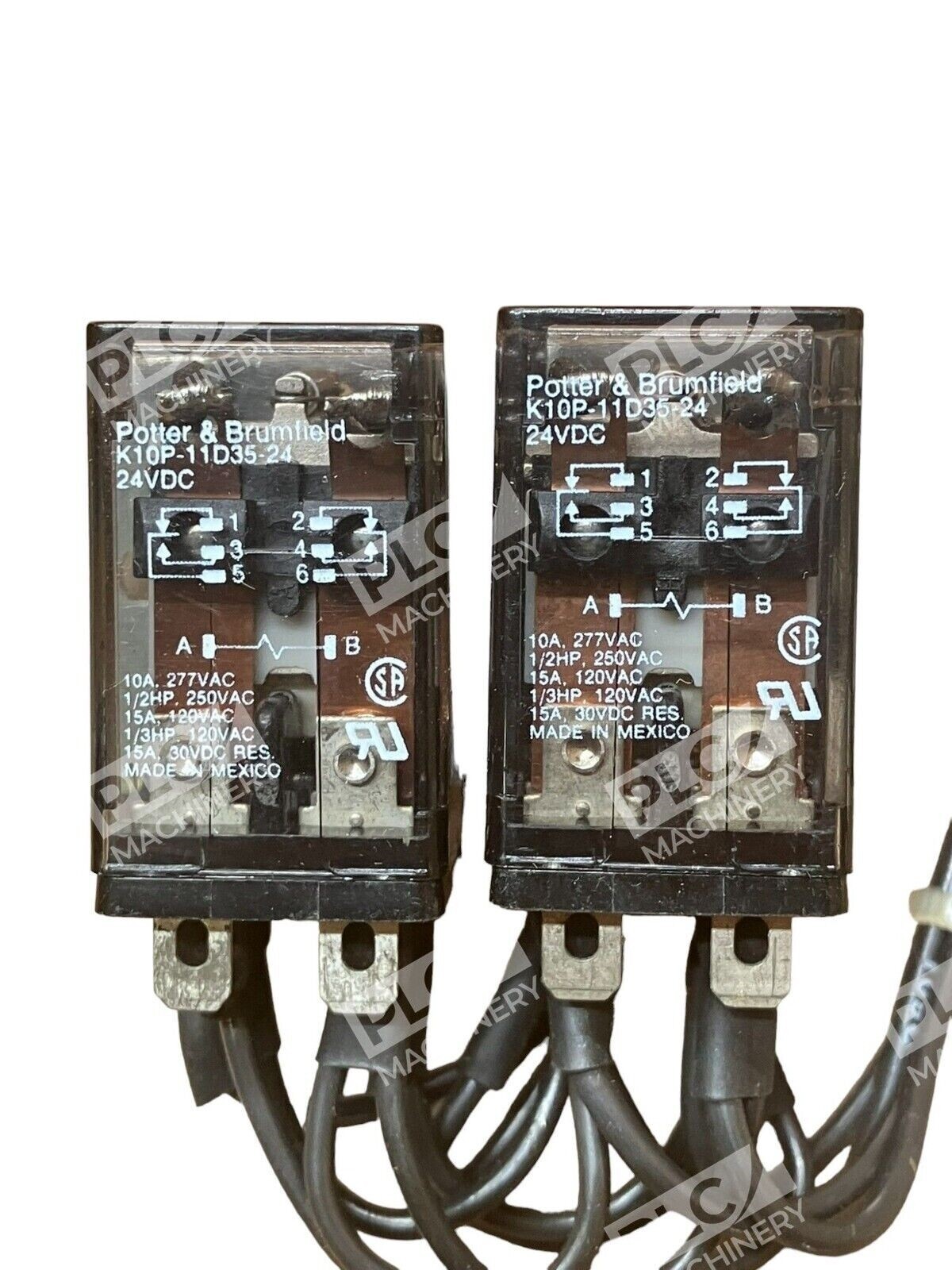

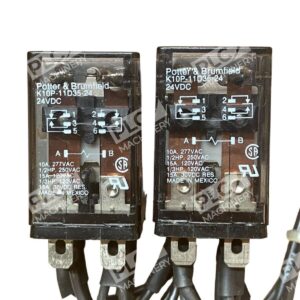

The Potter & Brumfield K10P-11D35-24 is a 2-pole miniature power relay engineered for general-purpose industrial control. Manufactured by TE Connectivity, this K10 series relay delivers reliable switching performance with a 10A contact rating at 24VDC coil voltage. Its plug-in socket mount design and silver-cadmium oxide (AgCdO) contacts make it suitable for factory automation, HVAC systems, and process control applications requiring dependable electrical switching.
Key Features
- 2-pole DPDT (Double Pole, Double Throw) contact configuration for flexible switching logic
- AgCdO (silver-cadmium oxide) contacts for superior arc erosion resistance and long contact life
- 24VDC coil voltage with plug-in socket mounting for easy replacement and modular design
- Socket mount case with indicator lamp for visual relay status verification
- UL coil insulation Class B for compliance with industrial equipment standards
- Compact form factor reduces panel space requirements in control cabinets
Technical Specifications
Key operating parameters for system integration and design verification:
Typical Applications
The K10P-11D35-24 is widely deployed in:
- Factory Automation: PLC-controlled machine logic, motor starters, and interlocking circuits
- HVAC Control: Heating and cooling stage switching, fan control circuits
- Industrial Process Control: Valve solenoid drivers, pump control, batch logic sequencing
- Power Distribution Panels: Load switching, equipment enable/disable circuits
- Building Management Systems: Lighting control, load management, equipment switching
Compatibility & Replacements
Compatible With
- K10 series relay sockets (standard DIN socket mount pattern)
- Any industrial control system supporting 24VDC relay inputs
- Standard 24VDC power supplies commonly used in factory automation
- PLCs with relay output modules (24VDC switched outputs)
- Pneumatic and hydraulic control systems with 24VDC logic circuits
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The K10P-11D35-24 is a direct replacement for older K10P relays with identical socket mounting and 24VDC coil voltage specification. Common predecessor models in the K10 line use the same octal socket pattern.
Works With
- TE Connectivity K10 series socket bases and relay terminals
- Standard industrial 24VDC logic circuits and control systems
- Electromechanical relay ladder diagrams and hardwired logic
- Building automation protocols that utilize relay outputs
