Overview

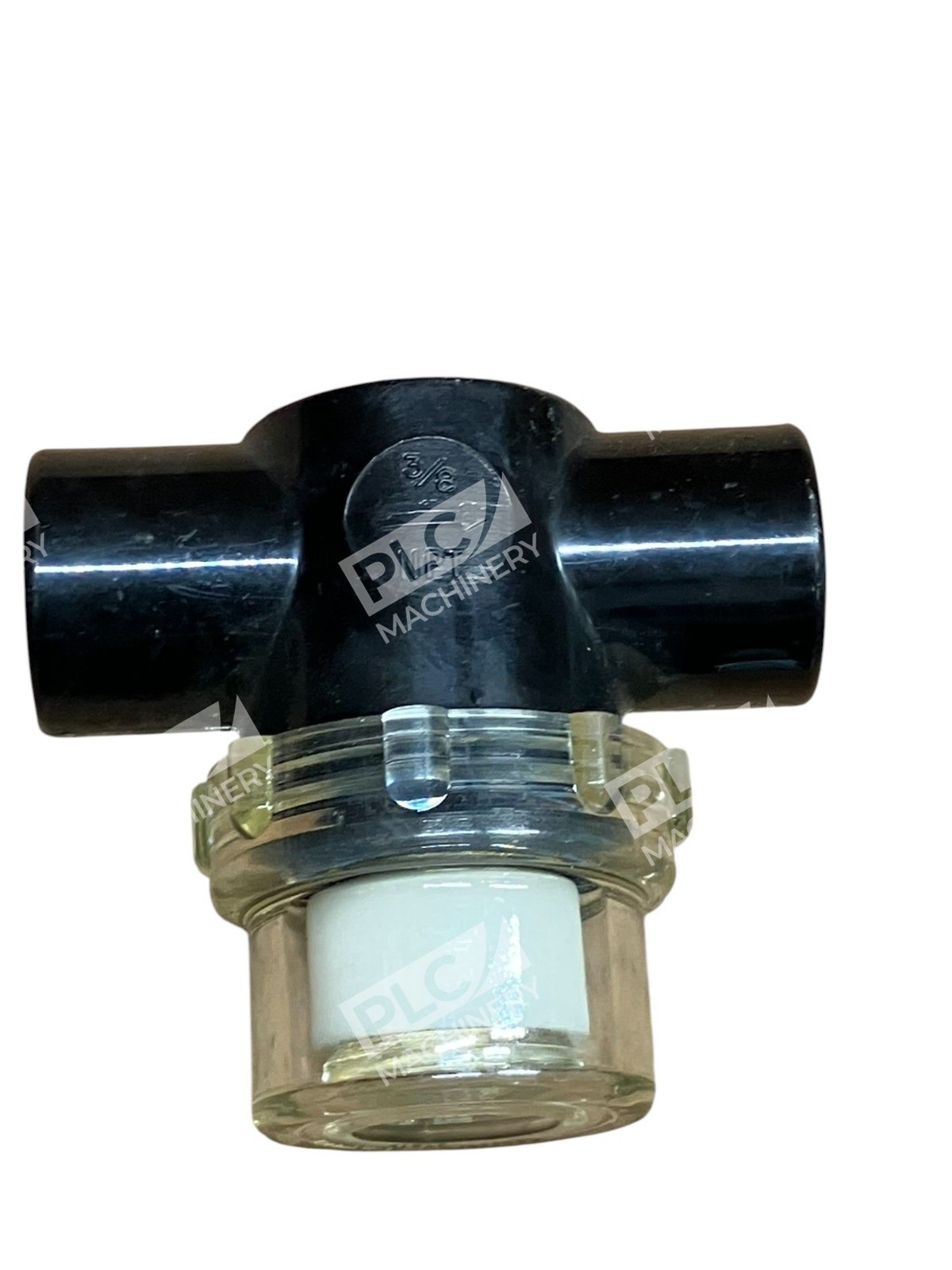

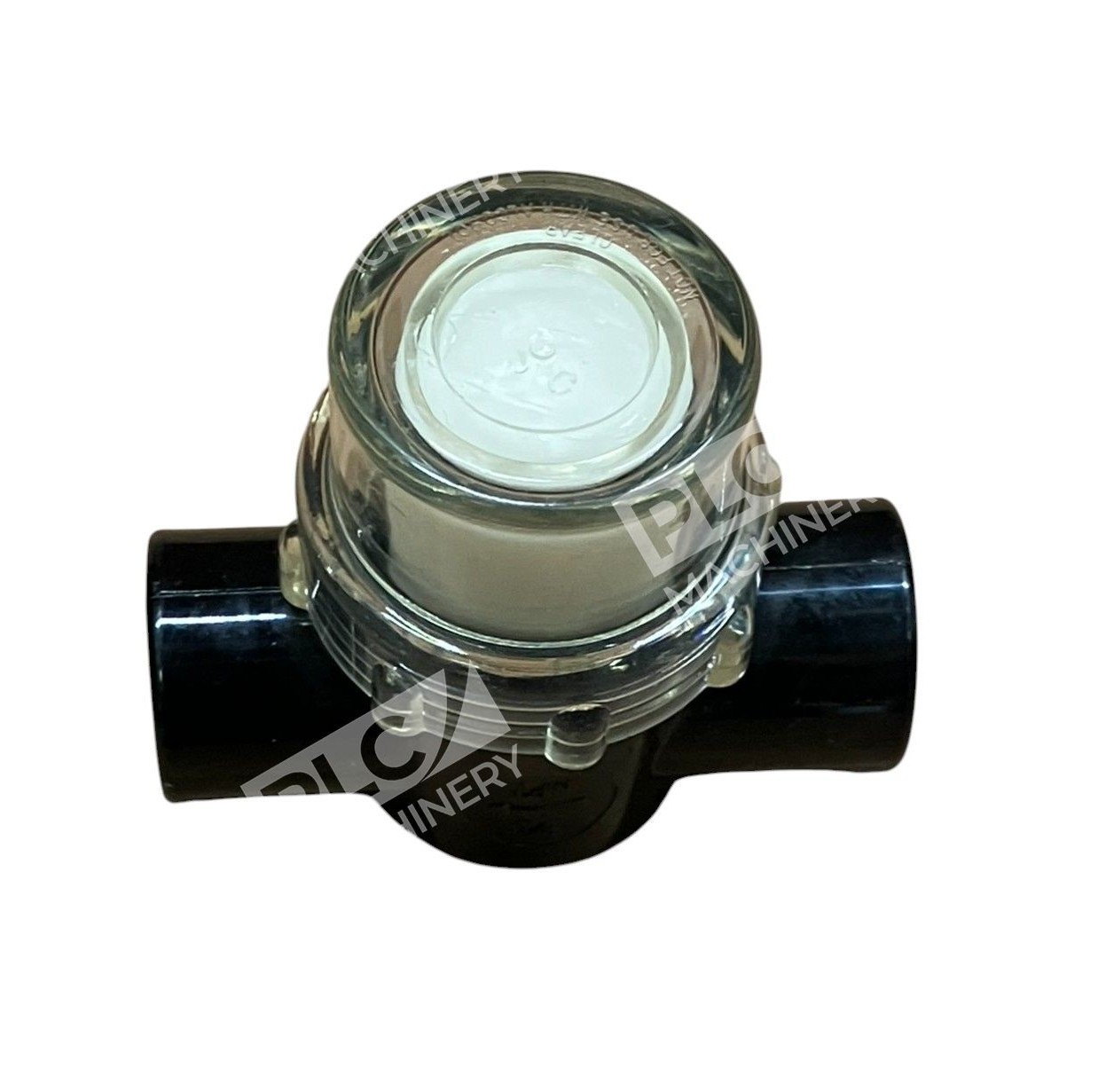

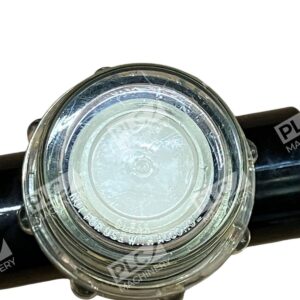

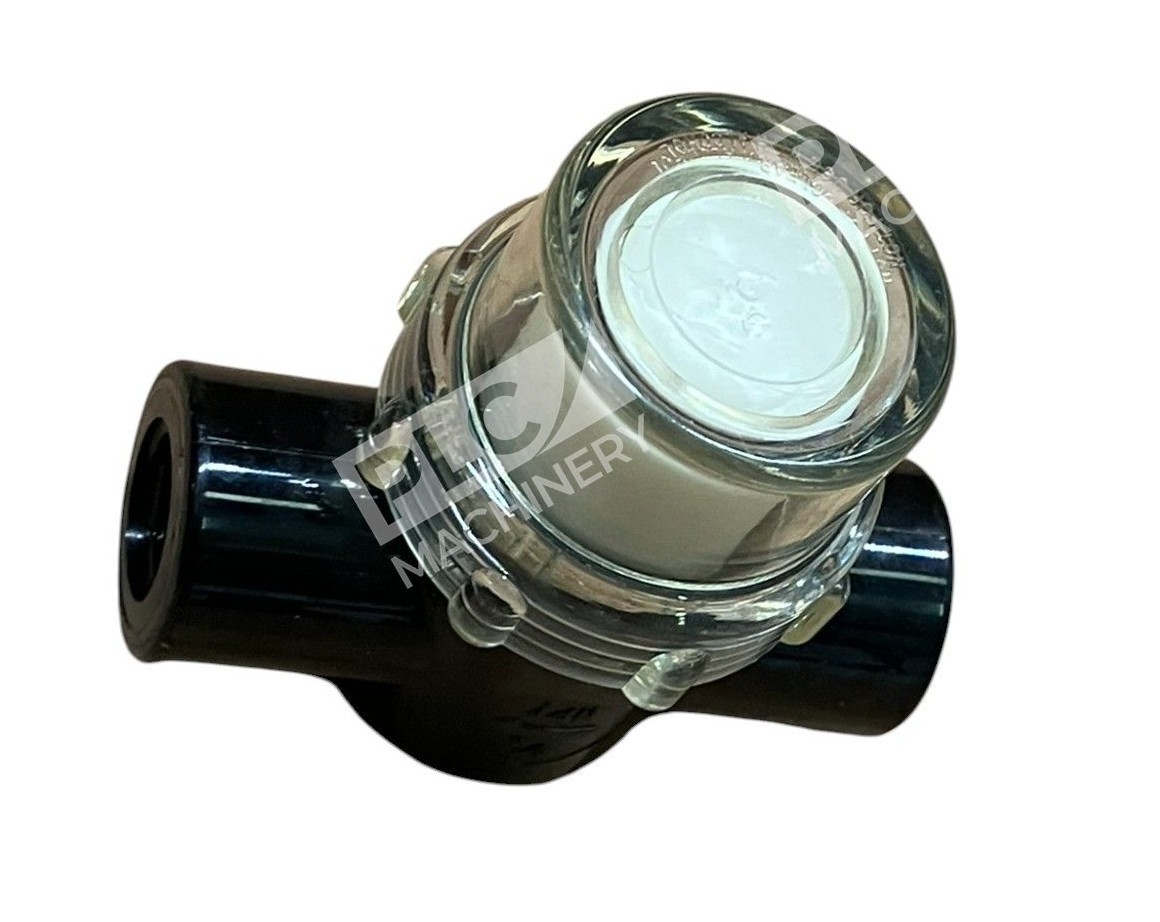

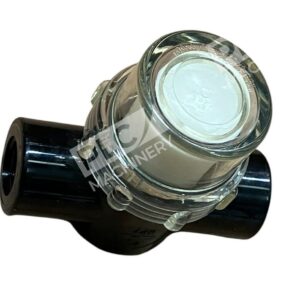

The PIAB PPSF.125-X10 is a compact vacuum filter assembly engineered for industrial pneumatic applications. Part of Piab’s X10 filter series, this unit delivers dependable particulate filtration with a 1/8 NPT port configuration. The integrated design accepts the PPX10RE plastic filter element for efficient fluid separation and extended service intervals.
Key Features
- Compact design suitable for vacuum pump and pneumatic system integration
- 1/8 NPT threaded connection for quick installation
- Compatible with PPX10RE replaceable filter element
- Plastic construction (PA, PE, PP materials) for corrosion resistance
- Wide operating temperature range: -4°F to 176°F
- Efficient filtration with 4.65 in² filter area
Technical Specifications
The PIAB PPSF.125-X10 meets industrial durability standards with proven performance across multiple sectors:
- Port Size: 1/8 NPT
- Flow Rating: 2.97 scfm
- Filter Area: 4.65 in²
- Weight: 1.87 oz (minimum)
- Operating Temperature Range: -4°F to +176°F
- Housing Material: PA, PE, PP (plastic compounds)
- Compatible Element: PPX10RE (plastic cartridge)
- Country of Origin: Germany
Typical Applications
The PIAB PPSF.125-X10 is widely deployed in:
- Vacuum pump systems requiring particulate separation
- Pneumatic control circuits and air logic modules
- Industrial automation equipment with vacuum actuation
- Food processing and packaging machinery
- Laboratory and research vacuum applications
- OEM vacuum systems requiring compact, efficient filtration
Compatibility & Replacements
Compatible With
- Piab vacuum pump systems
- Pneumatic control networks with 1/8 NPT porting
- X10 series filter housings (1/8, 1/4, and 3/8 NPT variants)
- Industrial vacuum automation platforms
Replaces / Drop-In Replacement For
- Equivalent Piab PPSF.125-X10 vacuum filter assemblies
- OEM vacuum filtration modules requiring 1/8 NPT connection
Works With
- PPX10RE filter element (standard plastic cartridge)
- PPX10RE3 filter element pack (3-pack replacement)
- Standard pneumatic tubing and fittings (1/8 NPT)
- Industrial vacuum control systems and logic modules
