Overview

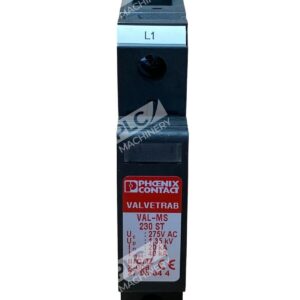

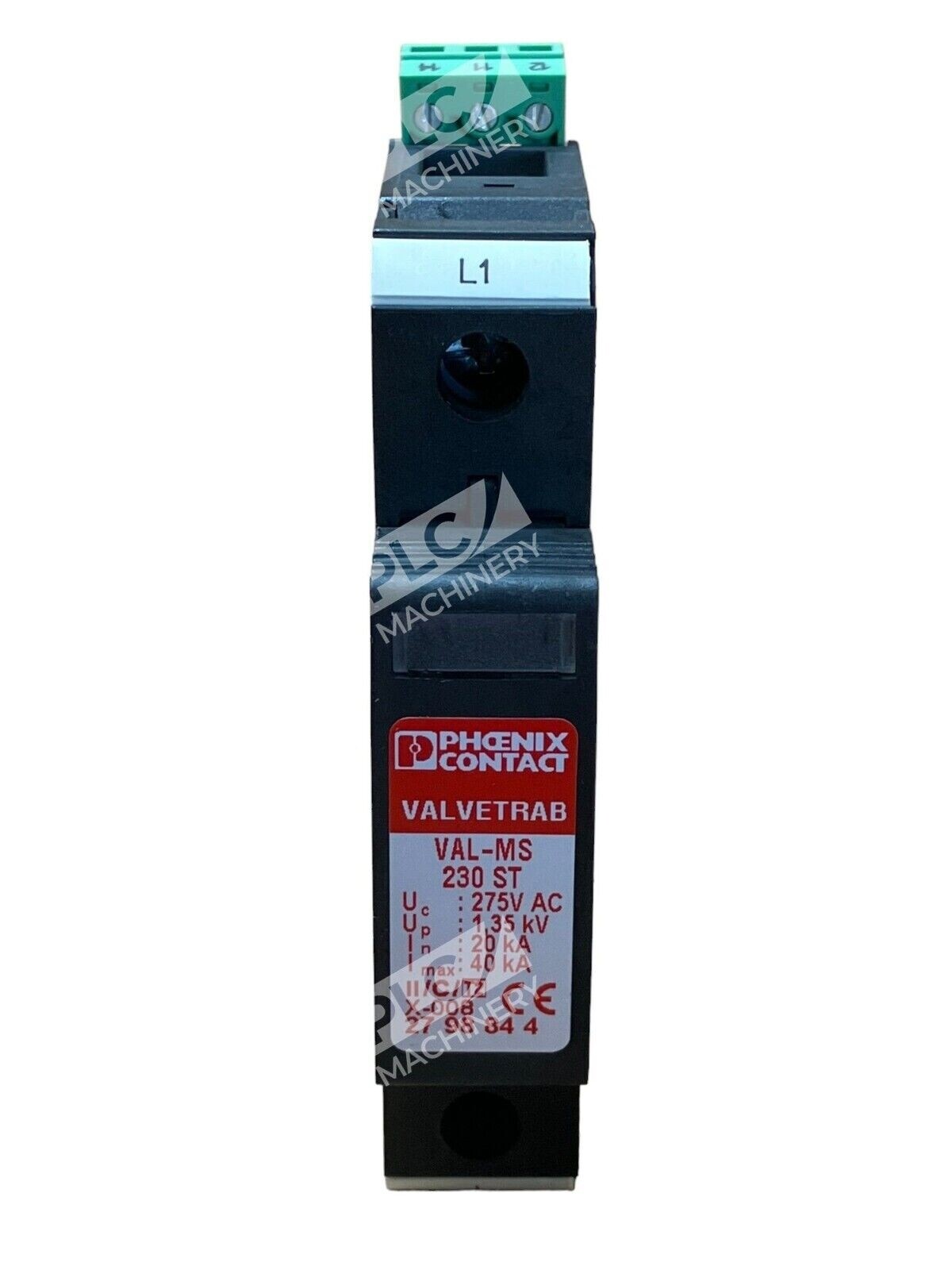

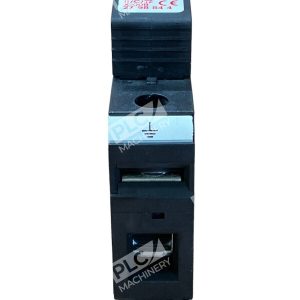

The Phoenix Contact VAL-MS 230 ST is a Type 2 surge protection plug designed to protect electrical equipment from voltage surges and transient overvoltages. This surge arrester features a high-capacity varistor and is engineered for use with VAL-MS base elements on NS 35/7.5 rail-mounted systems. The 230 V AC rated design makes it ideal for industrial automation systems, control cabinets, and switchboard protection in three-phase and single-phase AC applications.
Key Features
- Type 2 surge protective device with high-capacity varistor technology
- Thermal monitoring with automatic disconnection on overheat
- Visual fault indicator for immediate failure recognition
- Compatible with VAL-MS base element systems
- Rail-mounted installation on NS 35/7.5 DIN profile
- Compact plug-in design for switchboard integration
Technical Specifications
- Nominal Voltage: 230 V AC
- Surge Protection Type: Type 2
- Mounting: NS 35/7.5 DIN rail
- Discharge Current Rating: 20 kA nominal
- Protection Technology: High-capacity varistor
- Monitoring: Thermal monitoring with visual indicator
- Design Standard: IEC 61643-11 Type 2
Typical Applications
- Industrial control cabinets and switchboards
- PLC and automation system power supply protection
- Three-phase AC distribution systems
- Building automation and power distribution networks
- Emergency backup power and UPS input protection
- Factory and manufacturing equipment protection
Compatibility & Replacements
Compatible With
- VAL-MS base element systems (NS 35/7.5 rail-mounted)
- Phoenix Contact surge protection modules
- Standard DIN 35/7.5 rail-mounted systems
- 230 V AC single-phase and three-phase distribution
Replaces / Drop-In Replacement For
- Previous VAL-MS 230 surge protection plugs
- Standard Type 2 surge arresters with 230 V AC rating
Works With
- VAL-MS base modules and surge protection systems
- IEC 61643-11 compliant control systems
- Industrial automation and control networks
