Overview

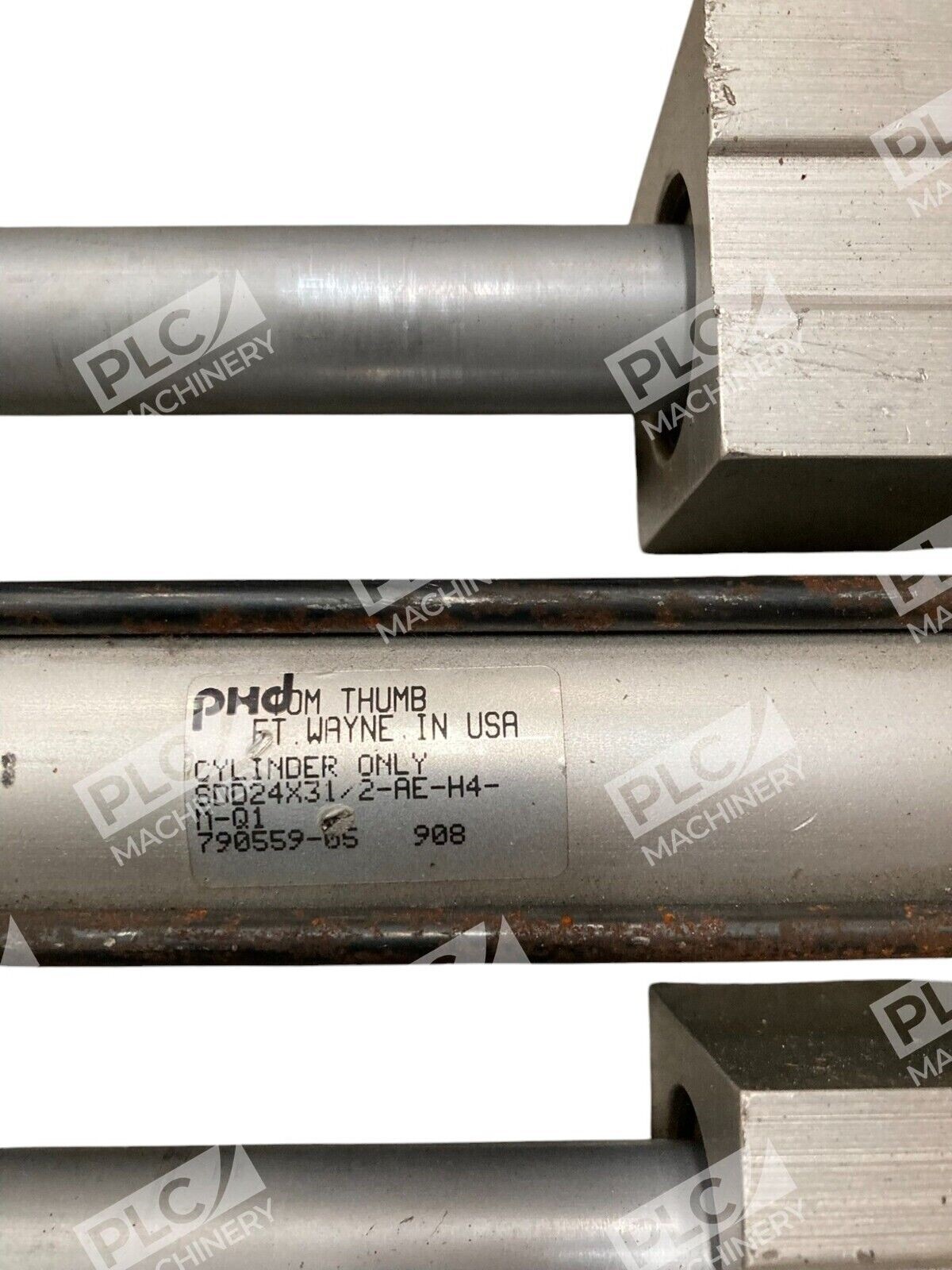

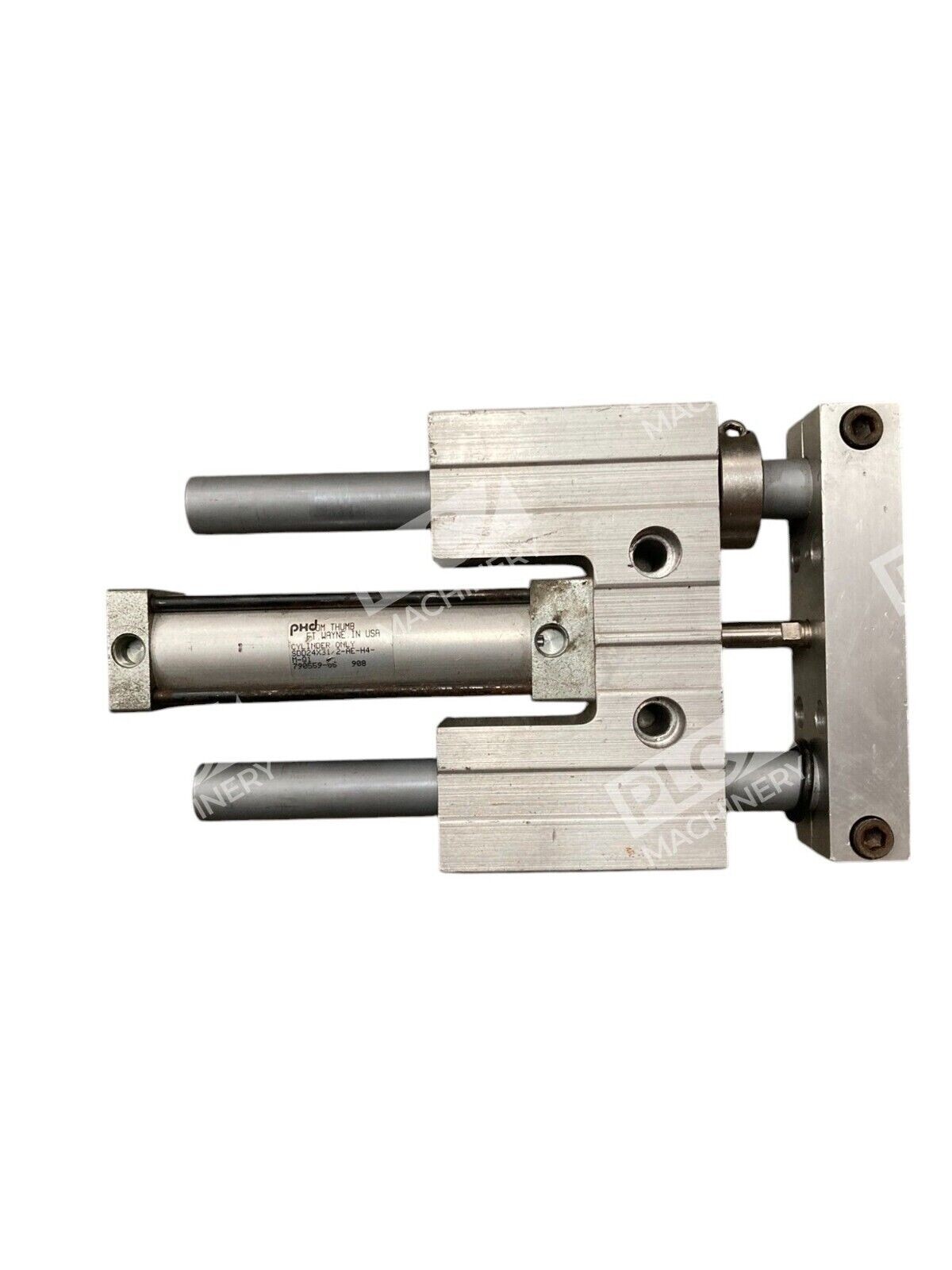

The PHD SDD24X31/2-AE-H4-M-Q1 is a guided pneumatic slide cylinder manufactured by PHD Inc, a leading supplier of pneumatic and hydraulic actuators for automation. This model features guided rod construction for linear motion stability and is commonly used in machine tool applications, material handling, and factory automation where smooth, repeatable positioning is essential. The SDD24 bore size with 3.125-inch stroke configuration provides moderate force output suitable for light-to-medium duty applications.
Key Features
- Guided rod design ensures straight, smooth linear motion without lateral deflection
- Compact footprint optimized for space-constrained machine installations
- Pneumatic operation provides cost-effective automation without electrical power requirements
- Double-ended rod configuration (-H4 designation) enables symmetrical force output
- Durable construction suitable for repetitive industrial duty cycles
- Compatible with standard pneumatic control systems and valve packages
Technical Specifications
Verify exact specifications with PHD engineering documentation or your system integrator before ordering.
- Bore Diameter: 24 mm (SDD24)
- Stroke Length: 31/2 inch (1.5625 inch)
- Rod Configuration: Double-ended rod (H4)
- Mounting Style: Guided slide cylinder
- Pressure Rating: Standard pneumatic (60–90 psi typical; verify with datasheet)
- Actuation Type: Pneumatic (compressed air)
- Sealing: Impact-rated seals (standard PHD specification)
Typical Applications
- CNC machine tool clamping and positioning
- Packaging and material handling automation
- Transfer systems and assembly fixtures
- Industrial workholding and quick-change systems
- Machinery requiring smooth, guided linear motion
- Applications demanding repeatability and minimal wear
Compatibility & Replacements
Compatible With
- PHD pneumatic control systems and manifolds
- Standard industrial pneumatic networks (60–90 psi, ISO 4401 cavity footprints)
- Solenoid directional control valves (4/3, 4/2, 5/2, 5/3 patterns)
- Industrial automation platforms using pneumatic actuation
- Compressed air supply systems with appropriate pressure regulation
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This model may serve as a replacement for equivalent PHD guided slide cylinders with matching bore (SDD24) and stroke dimensions. Consult PHD documentation or contact technical support to confirm direct interchangeability with legacy or OEM-specific configurations.
Works With
- 4/3 solenoid directional control valves
- 5/2 and 5/3 pneumatic spool valves
- Pilot-operated proportional valves for speed control
- Manual push-button and lever-operated controls
- Vacuum regulators and flow control equipment
- Pneumatic logic and relay systems
